LED Street Light 75W 10150lm IP65 Dimmable 4000K | Ledison Atlas
- Vendor
- Ledison
- SKU
- 604157
- Availability
- In stock
- Weight
- 5.0 kg
£128.09inc VAT £106.74exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

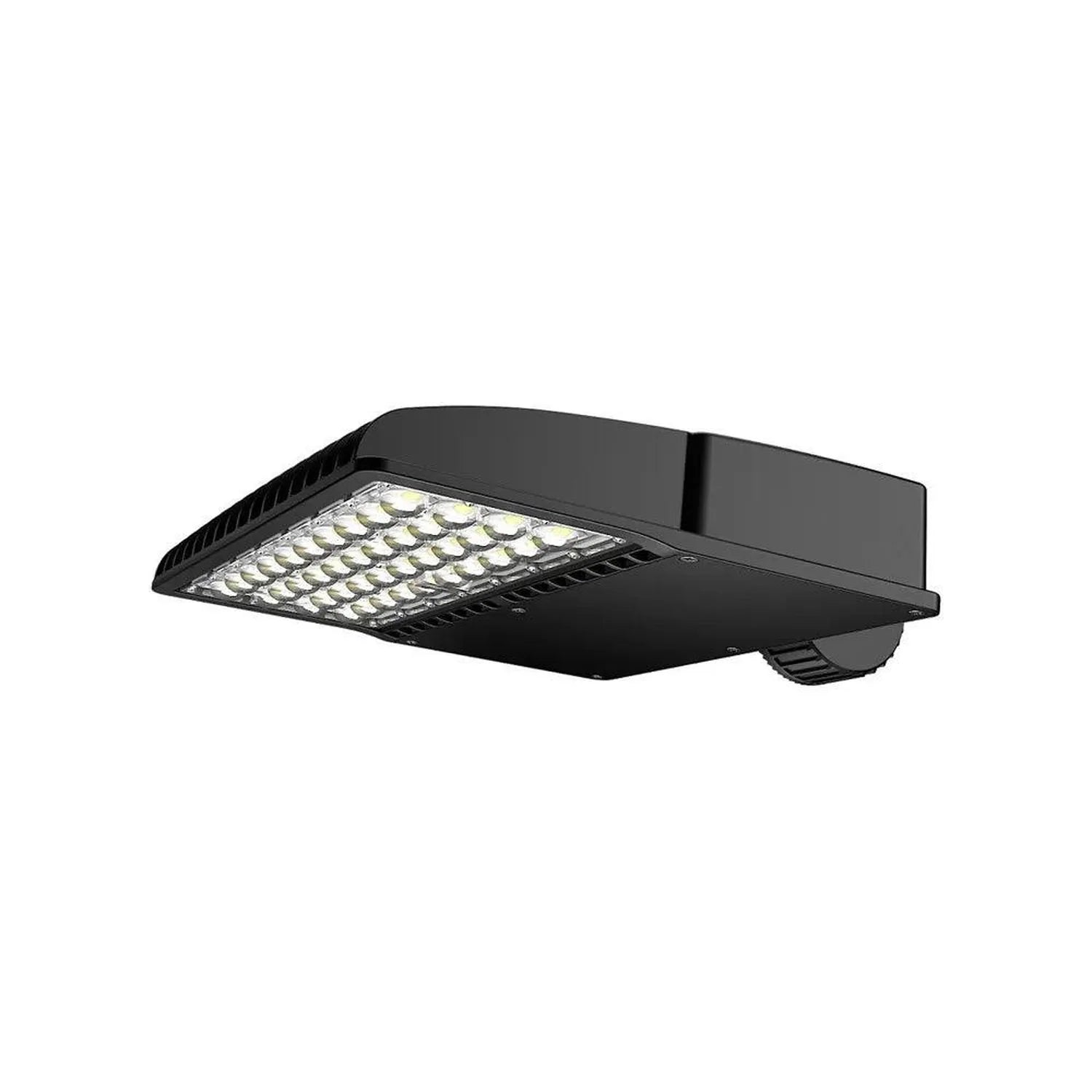

The Atlas is a 75W LED street light producing 10150 lumens of 4000K natural white light. It is built for roads, motorways, car parks and similar outdoor spaces, and is rated IP65. The fitting runs on 100-265Volt and is dimmable.
Atlas LED street light features
- Output: 75 watts, 10150 lumens
- Colour temperature: 4000K natural white, Ra70 colour rendering
- Beam distribution: Type I, II, III, IV, V

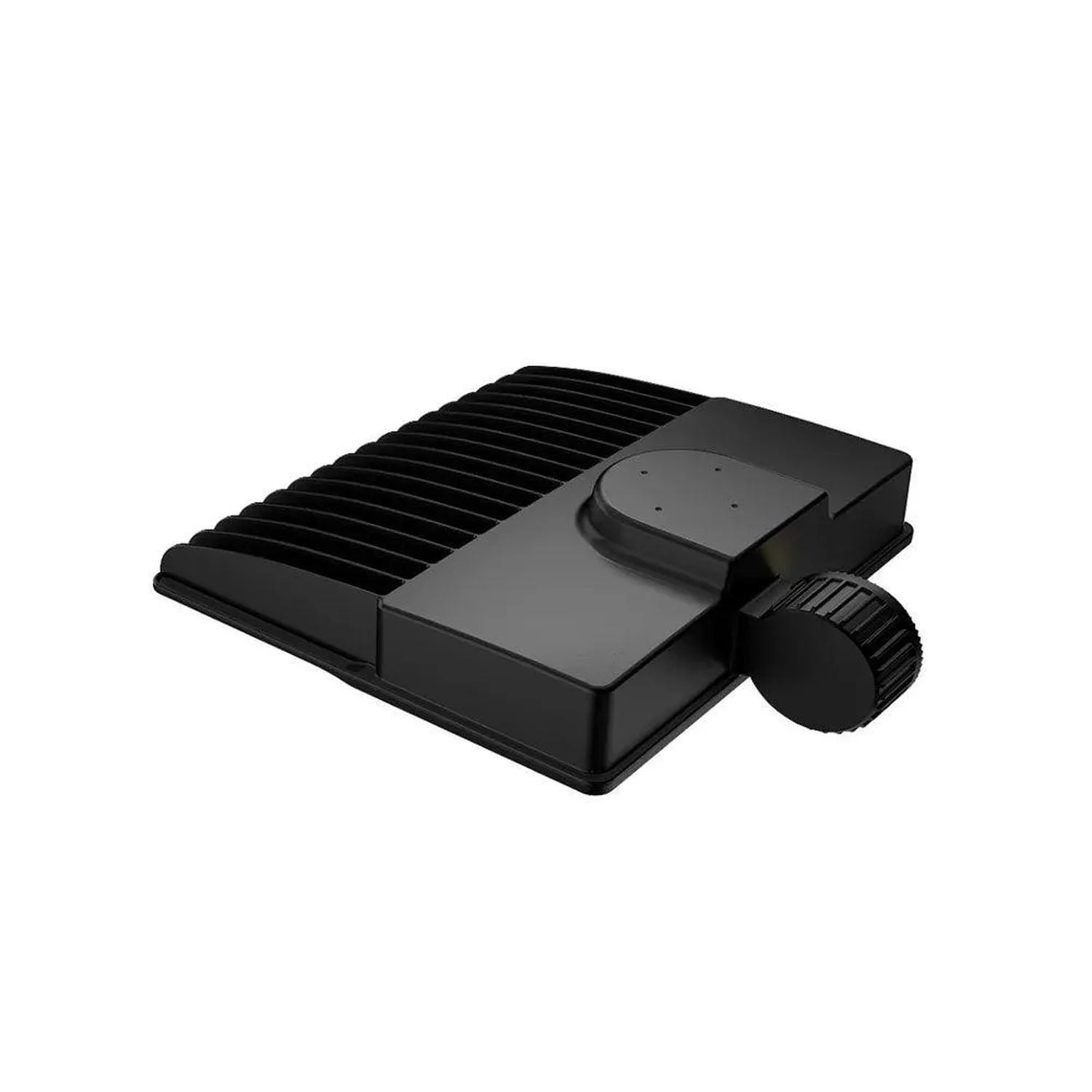

- Heatsink: large-finned magnesium alloy, finished with electrophoresis and TGIC powder paint to resist corrosion, including from salty water
- Optics: a toughened glass lens over each LED chip spreads the light evenly
- Lifetime and warranty: 80,000 hours average lifetime, 5-year warranty
Applications
Typical sites include public roads, motorways and car parks. Because every chip has its own lens, the light is spread evenly across the ground, which avoids dark spots between one lighting point and the next. The corrosion-resistant finish suits locations exposed to salty water.
Mounting and photocell options

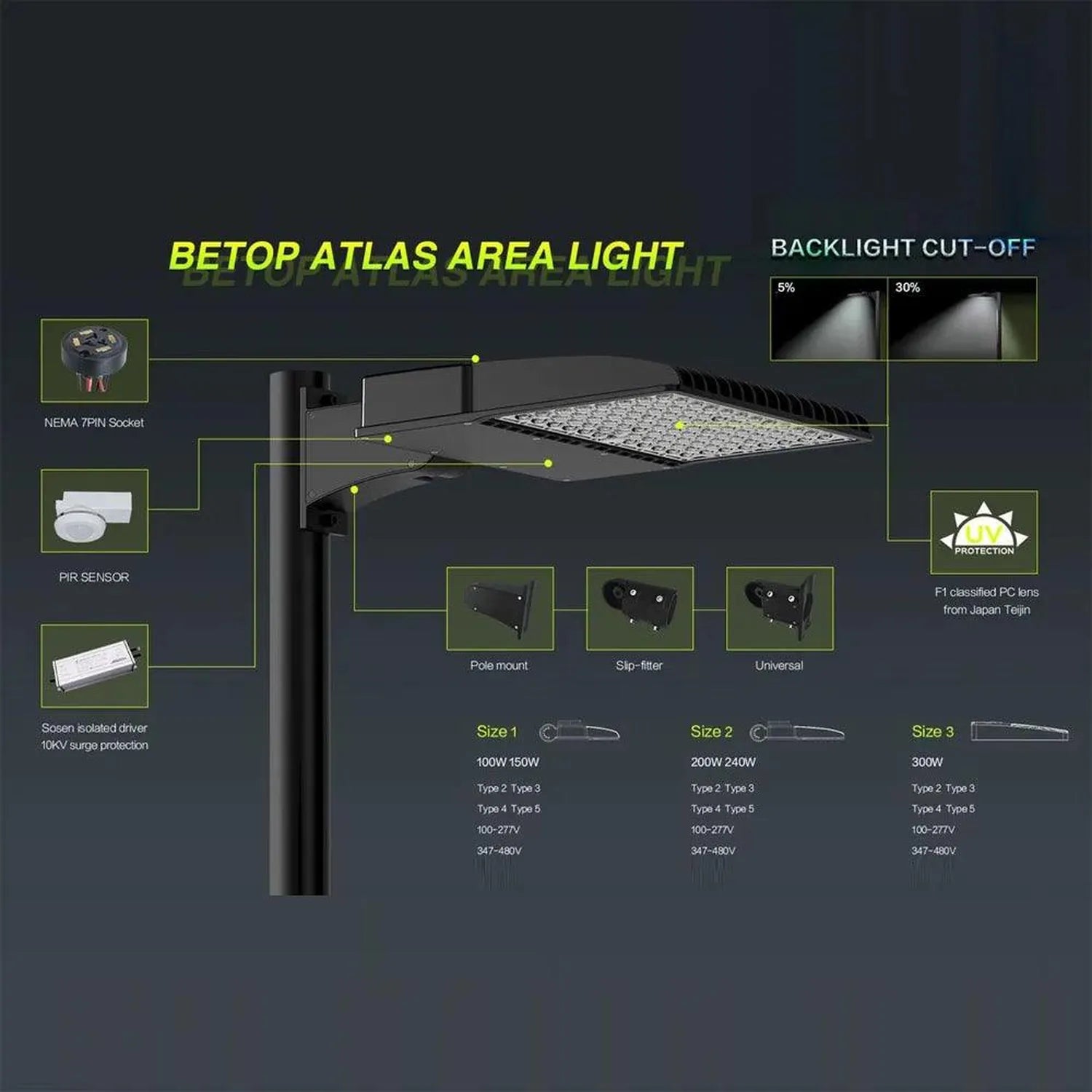

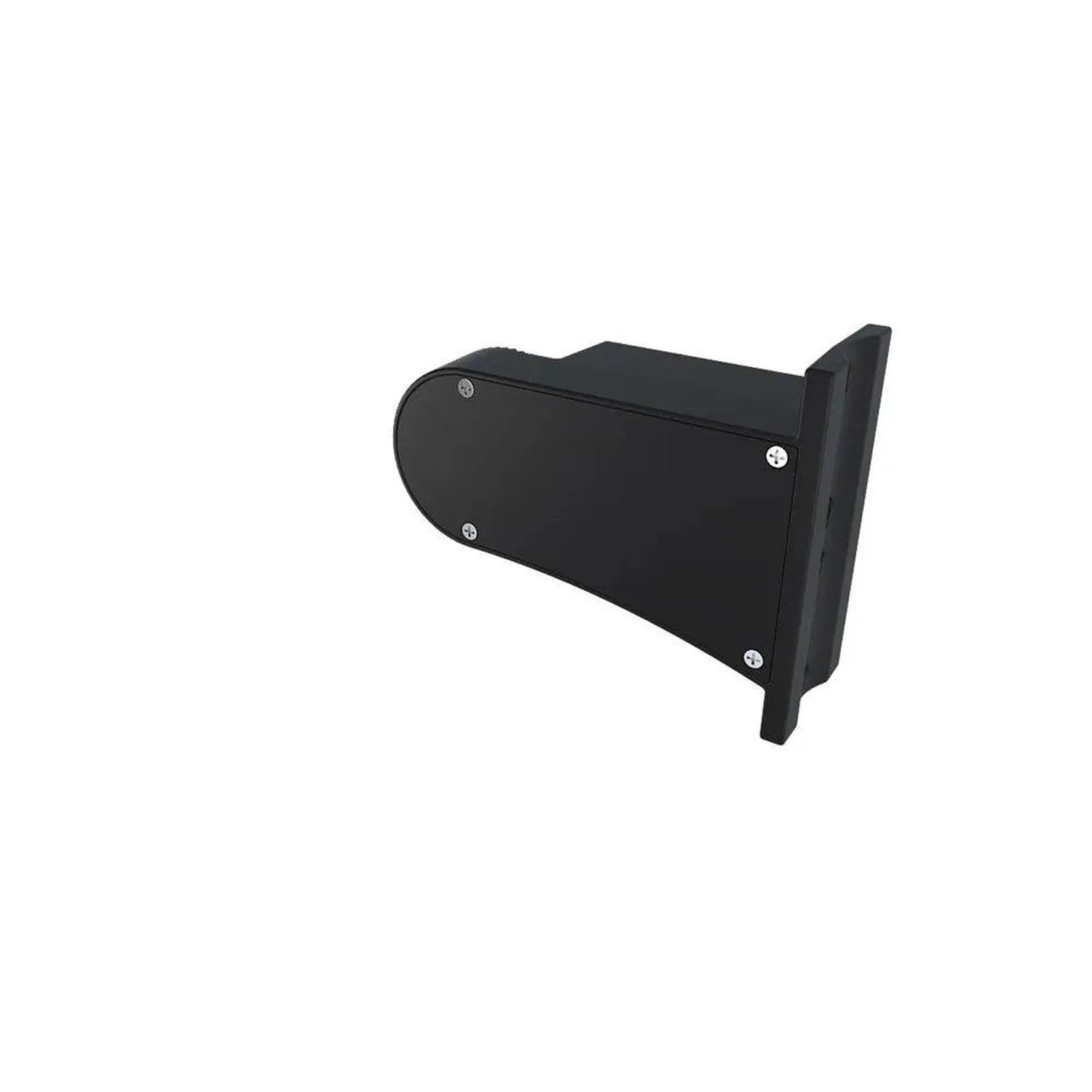

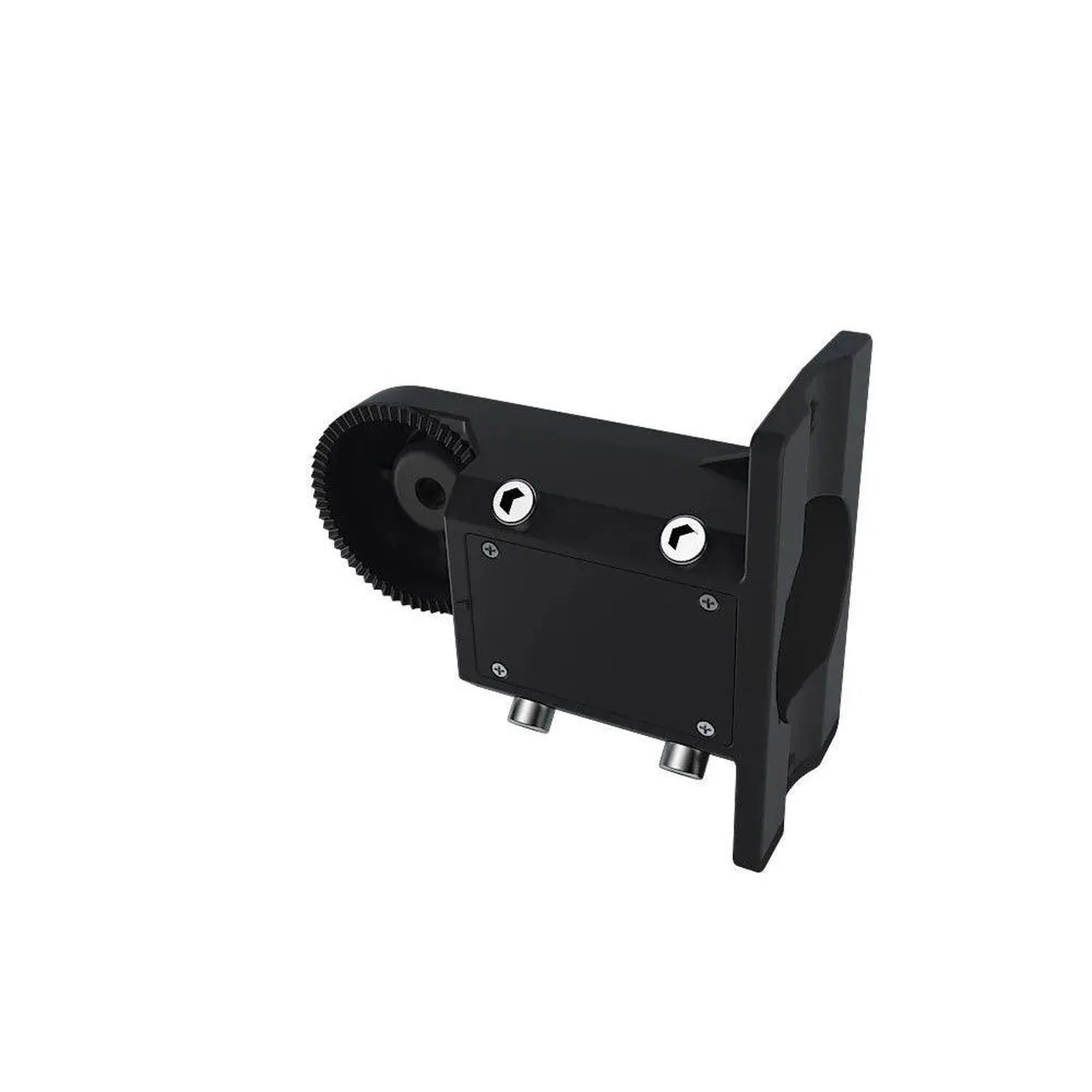

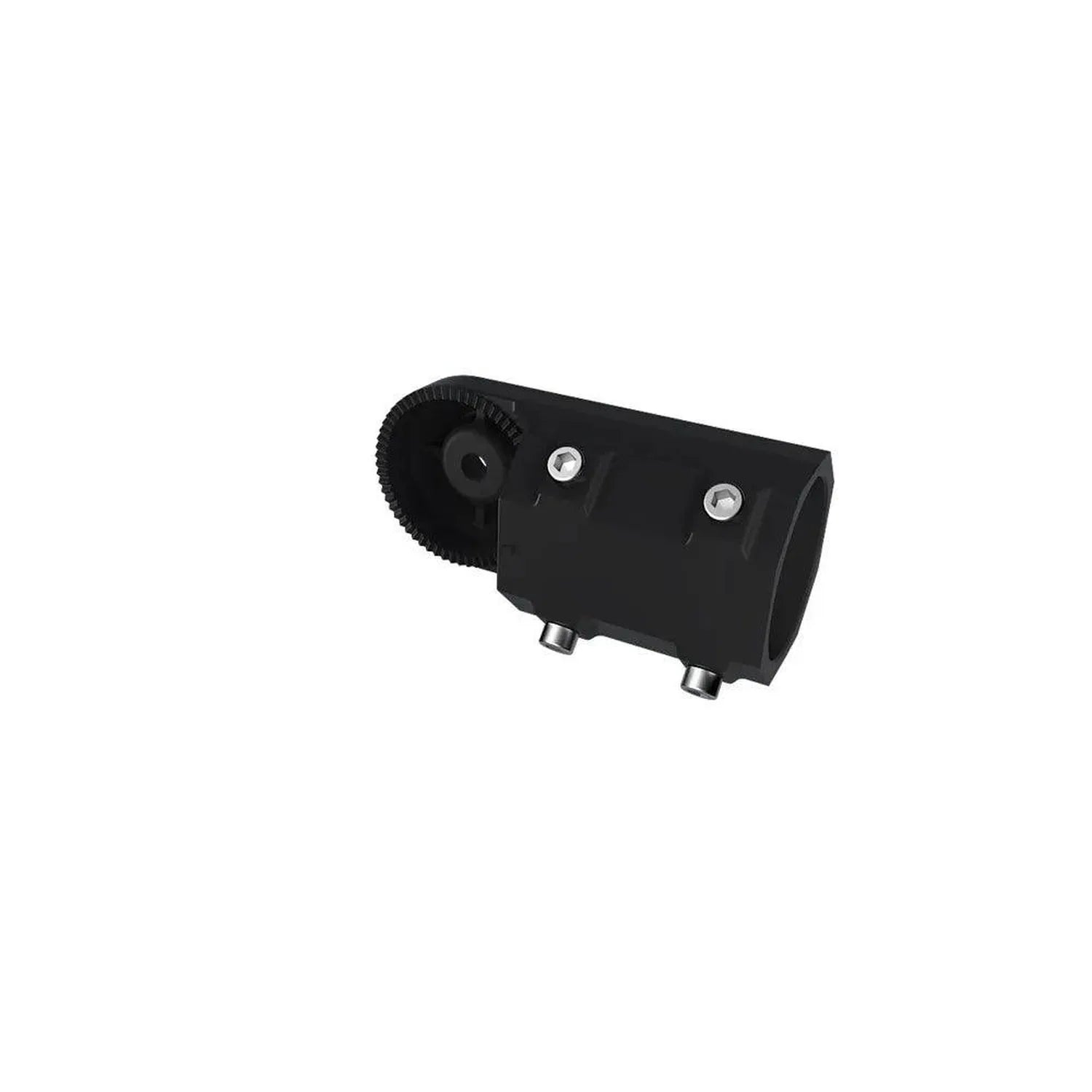

There are four ways to fit it. Choose from a slip-fitter, a wall bracket, a square pole kit or a round pole kit, and the light can go directly on poles up to 70mm in diameter.
Want automatic switching? Add the optional IP67 photocell sensor (JL-205C). It turns the light on at dusk and off at dawn, so no timer or manual switch is needed.
Supplied with
- Universal mounting bracket BT-AL-UV
- NEMA 3pin base JL-230F
The fitting is ROHS compliant and carries CE and UL certification.
Technical Specifications 20 rows Show
| Fitting | Street light |
| Wattage (rated) | 75 Watt |
| Luminous flux | 10150lm |
| Colour rendering index | Ra70 |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| IP rating | IP65 |
| Beam angle | Type I, II, III, IV, V |
| Dimensions | 350x300x82mm |
| Housing | Magnesium alloy heatsink, electrophoresis and TGIC powder paint |
| Dimmable | YES |
| Colour temperature | 4000K |
| Lens | Micro magnify toughness glass on each chip |
| Mounting | Square poles, round poles, walls or directly on poles up to 70mm diameter |
| Supplied with | Universal mounting bracket BT-AL-UV, NEMA 3pin base JL-230F |
| Photocell (option) | JL-205C, IP67 |
| Average lifetime | 80,000 hours |
| Operating temperature | -40 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
