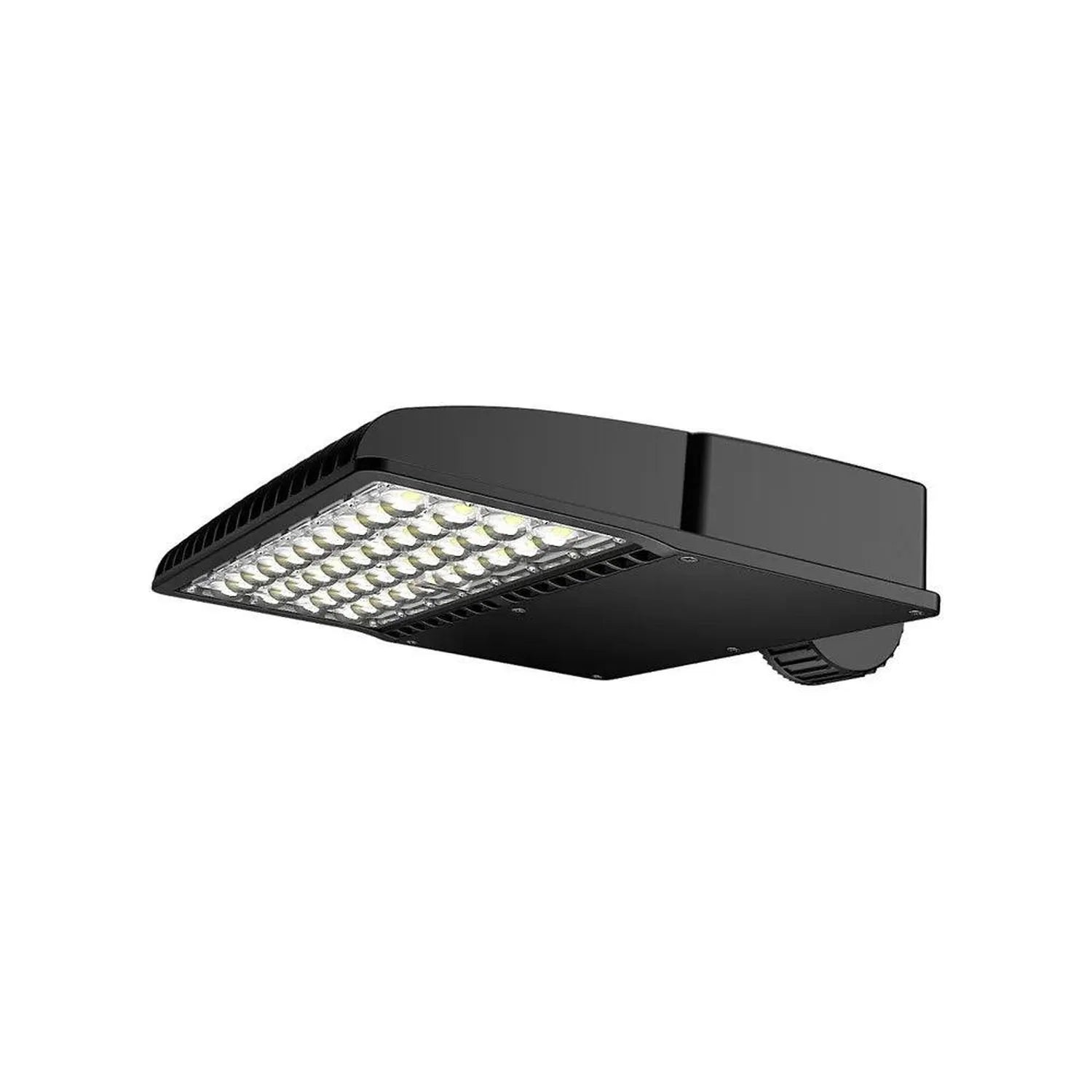

Black LED street light with rectangular housing and array of white LED modules mounted on pole, product shot on white backgro

100W LED Street Light IP65 14500lm 4000K Dimmable | Atlas

No / Slip-Fitter Mount
£134.39
Skip to product information
Black LED street light with rectangular housing and array of white LED modules mounted on pole, product shot on white backgro

100W LED Street Light IP65 14500lm 4000K Dimmable | Atlas

Vendor
Ledison
SKU
604159
Availability
In stock
Weight
5.0 kg

£134.39inc VAT £111.99exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Atlas is a 100W LED street light producing 14500 lumens of 4000K natural white light. It suits roads, motorways, car parks and other outdoor areas, and carries an IP65 rating. The input range is 100-265Volt, and the fitting is dimmable.

Why choose this 100W LED street light

  • Output: 100 watts, 14500 lumens at 4000K
  • Protection: IP65 rated
  • Beam distribution: Type I, II, III, IV, V
  • Optics: a toughened glass lens over each LED chip spreads light evenly and avoids dark spots between lighting points
  • Average lifetime: 80,000 hours
  • Warranty: 5 years

Housing and finish

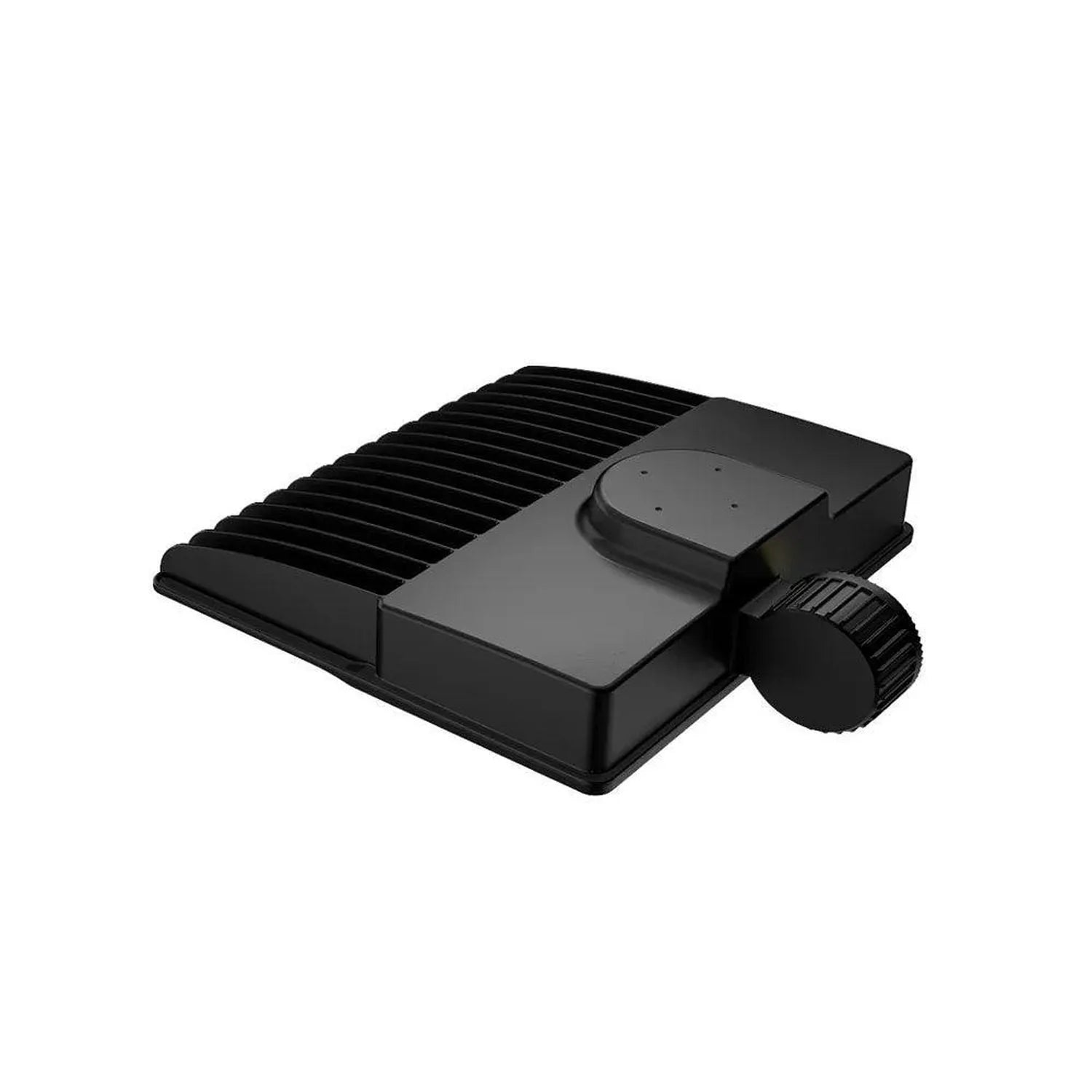

Heat is drawn away through a magnesium alloy heatsink with large fins. Corrosion is the bigger enemy outdoors. The housing is treated with electrophoresis and then TGIC powder paint, giving it protection against corrosion, salty water included.

Mounting options

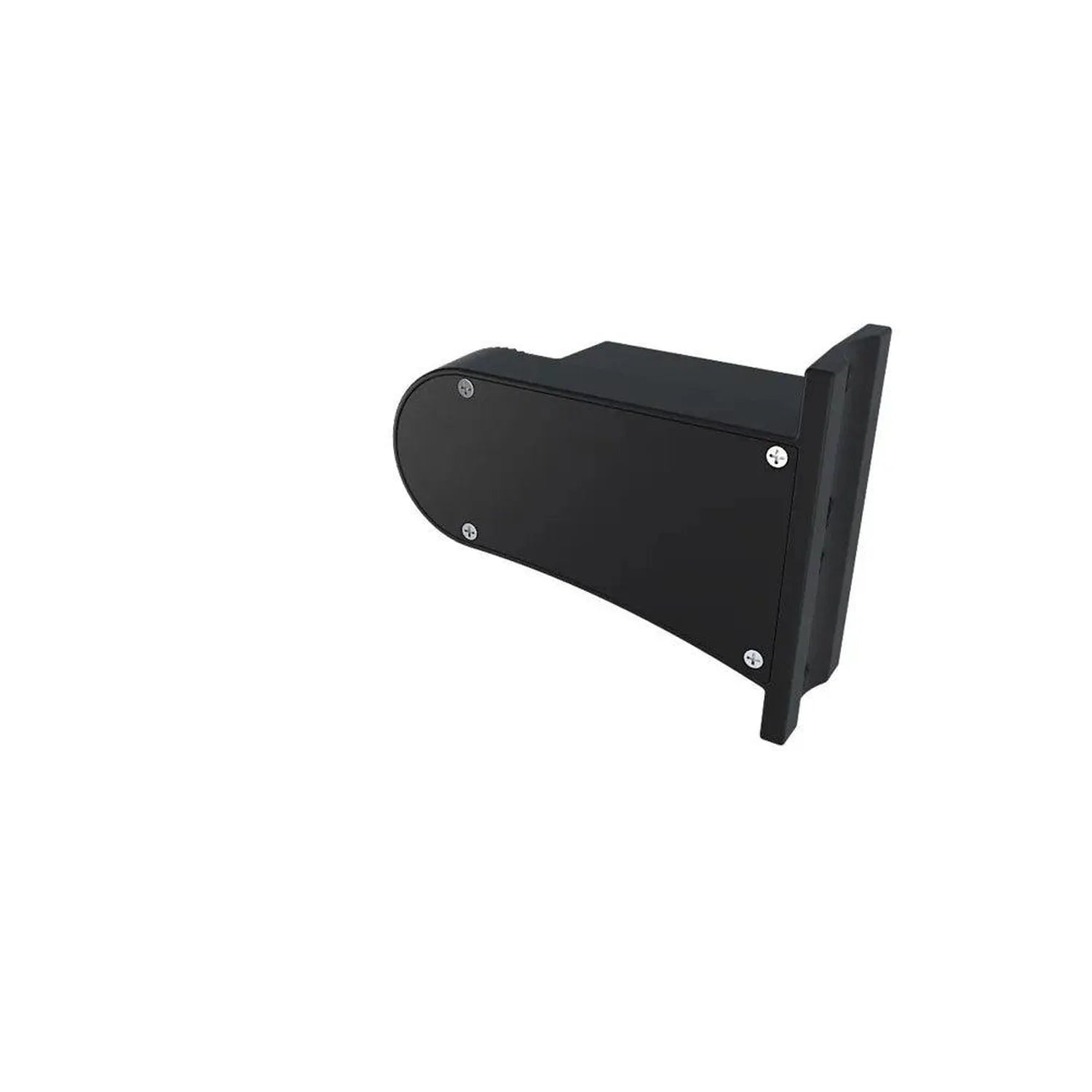

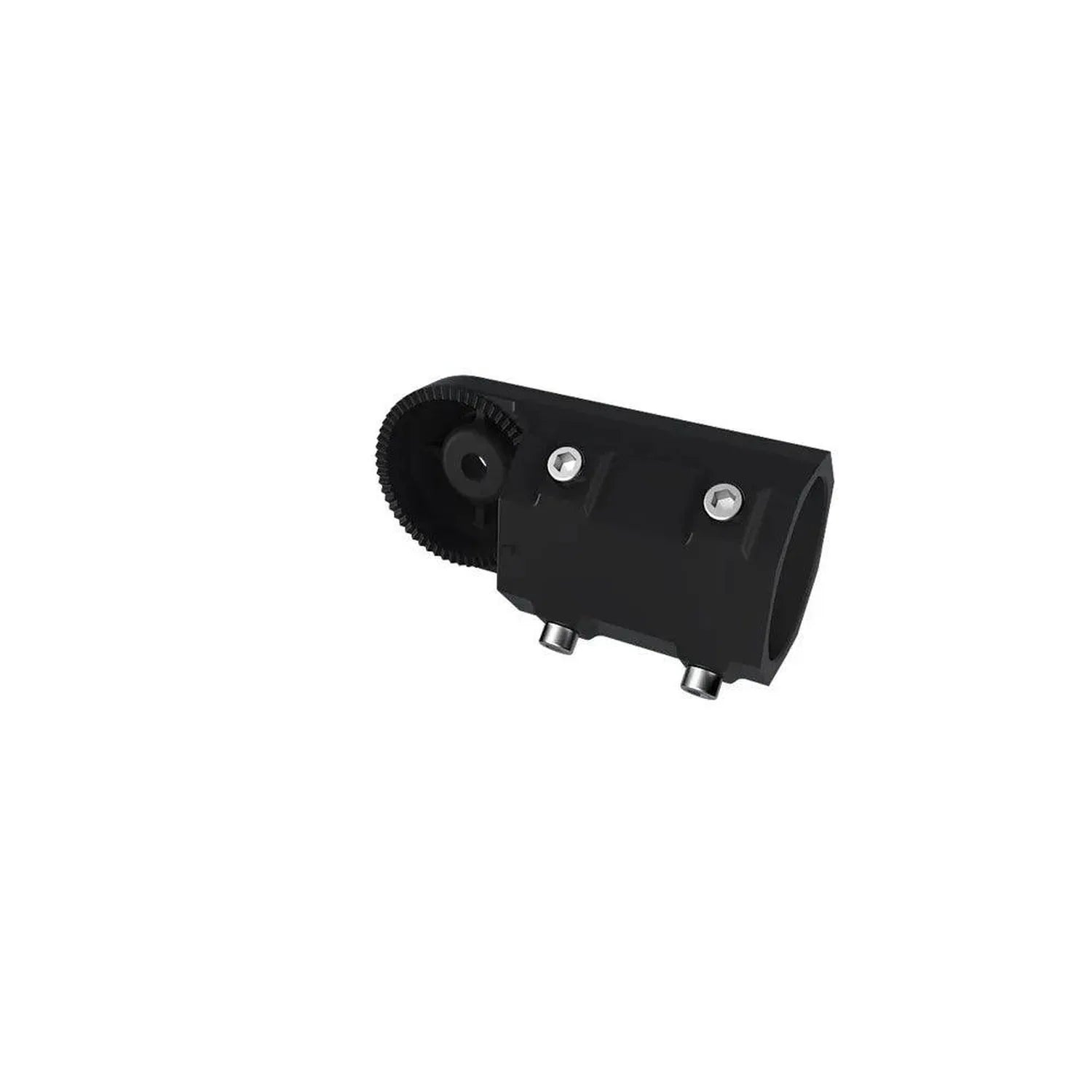

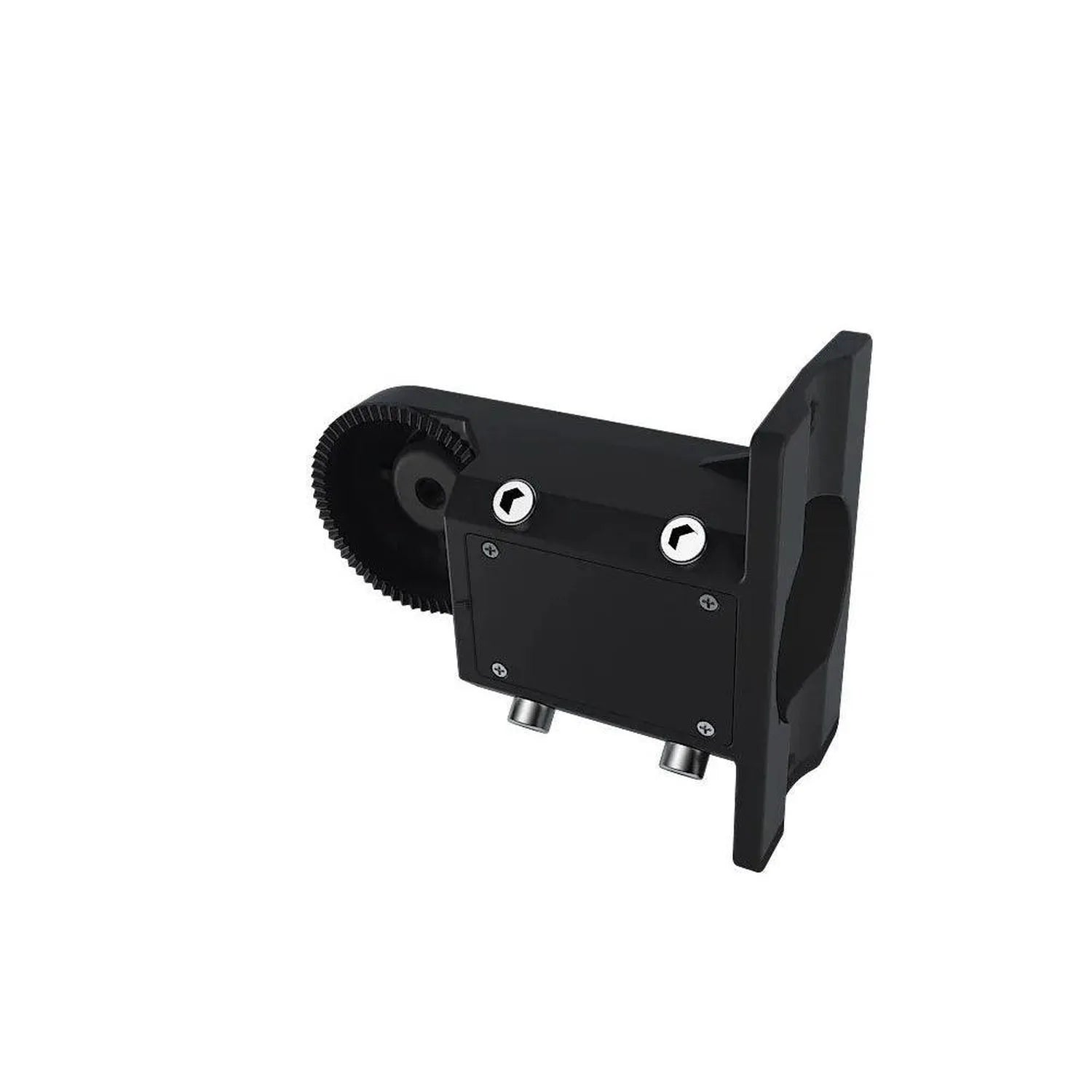

Four mounting kits are available: square poles, round poles, walls, or directly on poles up to 70mm diameter. Pick a slip-fitter, wall bracket, square pole or round pole kit to match the site.

Dusk to dawn switching

An IP67 photocell sensor can be added as an option. With it fitted, the light turns on at dusk and off at dawn without a separate timer.

Where it is used

Typical installations include road and motorway lighting, car parks and general outdoor area lighting. The choice of five beam distribution types lets you match the light pattern to the width and layout of the space being lit.

Technical Specifications 20 rows Show
FittingStreet light
Wattage (rated)100 Watt
Luminous flux14500lm
Colour rendering indexRa70
Voltage100-265Volt
Line frequency50/60Hz
IP ratingIP65
Beam angleType I, II, III, IV, V
Dimensions350x300x82mm
HousingMagnesium alloy heatsink, electrophoresis and TGIC powder paint
DimmableYES
Colour temperature4000K
LensMicro magnify toughness glass on each chip
MountingSquare poles, round poles, walls or directly on poles up to 70mm diameter
Supplied withUniversal mounting bracket BT-AL-UV, NEMA 3pin base JL-230F
Photocell (option)JL-205C, IP67
Average lifetime80,000 hours
Operating temperature-40 OC to 50 OC
CertificationROHS Compliant, CE, UL
Warranty5 years

Manufacturer datasheet. Figures as published by the manufacturer.
