LED Street Light 150W 21750lm IP65 Pole or Wall Mount | Atlas
- Vendor
- Ledison
- SKU
- 604163
- Availability
- In stock
- Weight
- 5.0 kg
£145.94inc VAT £121.62exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

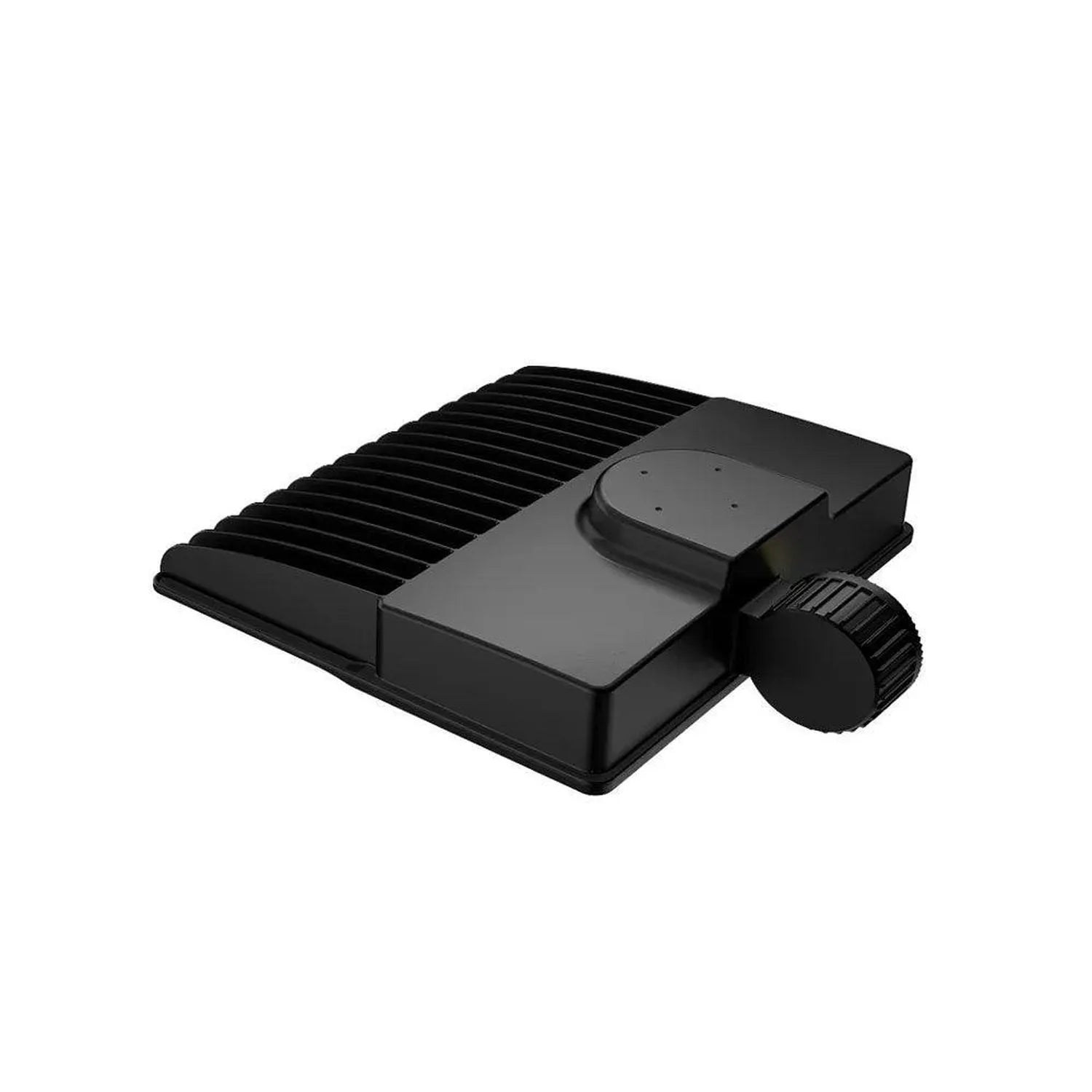

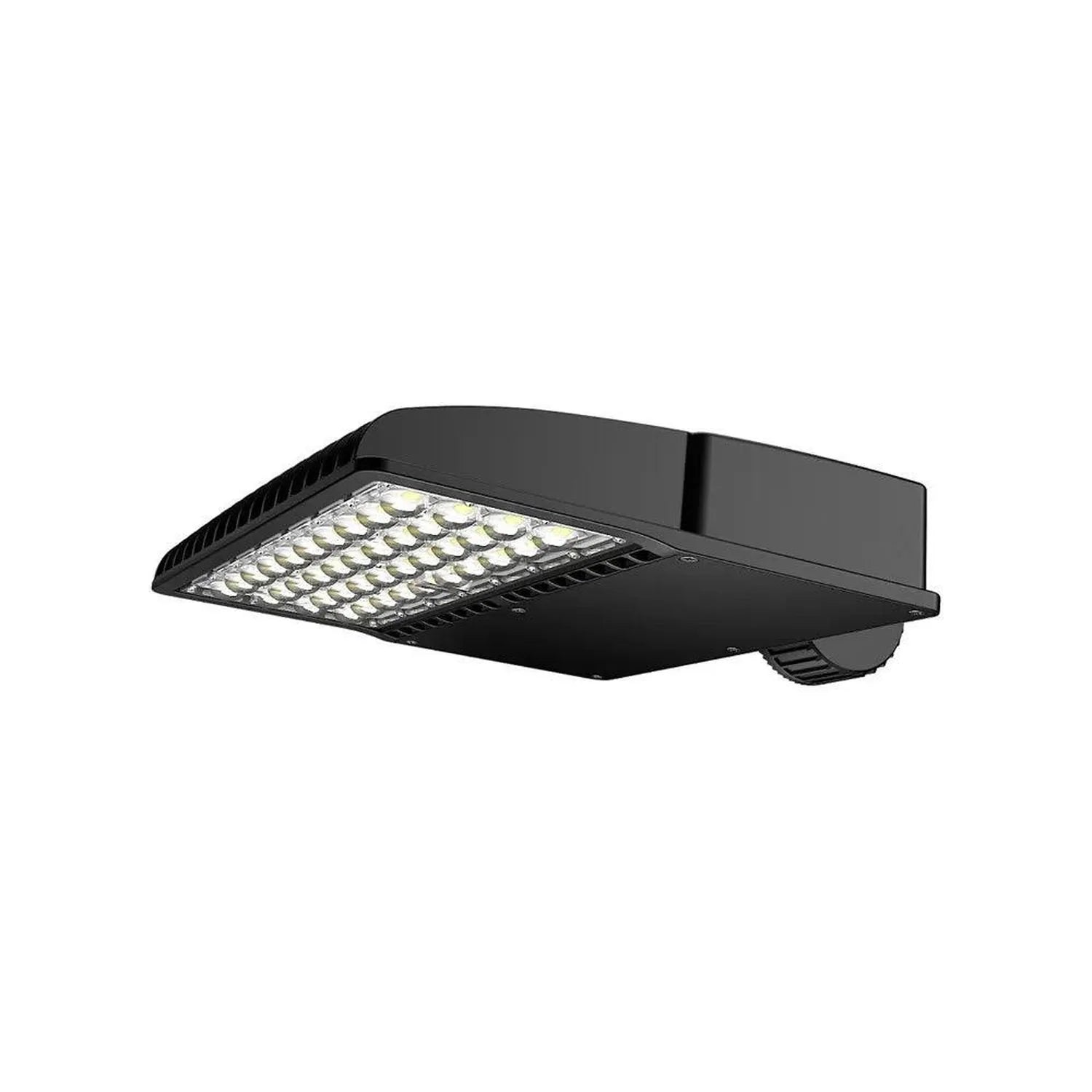

The Atlas is a 150W LED street light producing 21750 lumens of 4000K natural white light, rated IP65 for outdoor installation. It is intended for roads, motorways, car parks and other open outdoor areas, and runs on a 100-265Volt supply.
LED street light construction and optics
Heat is drawn away through a magnesium alloy heatsink with large fins. That housing is treated with electrophoresis and then a TGIC powder paint, which protects it against corrosion, salty water included. Each LED chip carries its own toughened glass lens. The result is an even spread of light, without dark patches between neighbouring lighting points.
Key features
- Output: 150 watts, 21750 lumens
- Colour temperature: 4000K natural white
- Ingress protection: IP65
- Beam distribution: Type I, II, III, IV, V
- Control: dimmable
- Lifetime and cover: 80,000 hours average lifetime, 5-year warranty
Mounting options

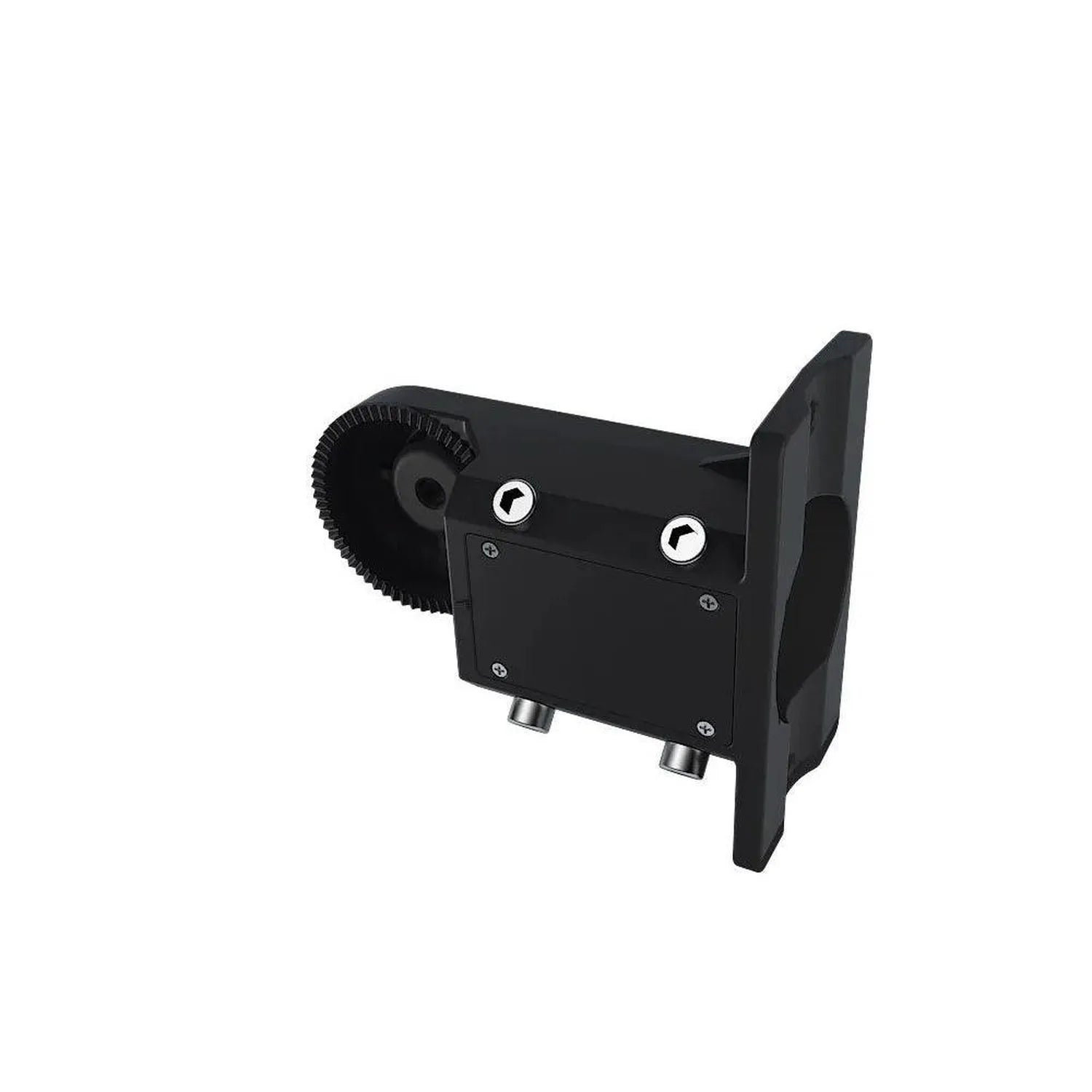

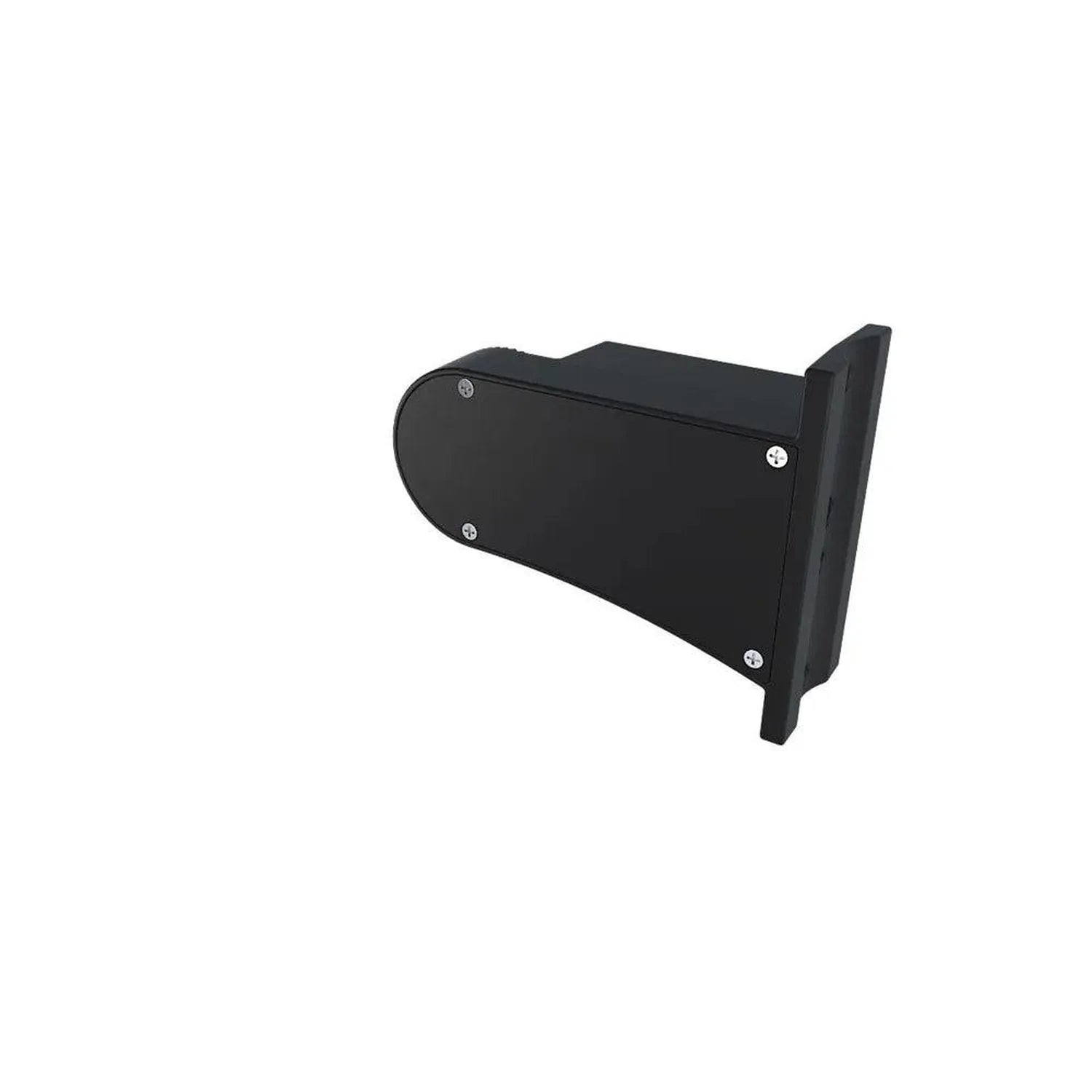

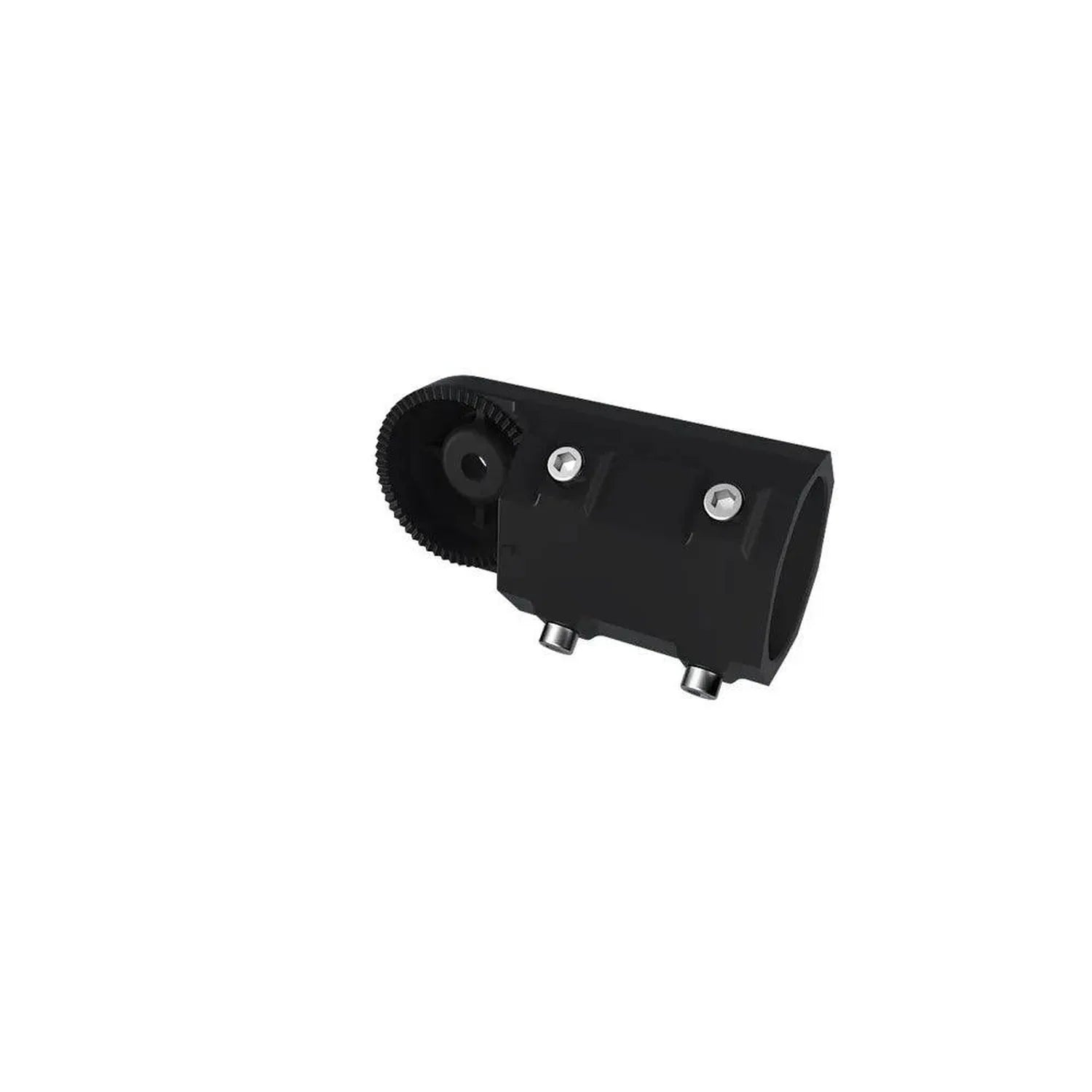

Four mounting kits are available. Choose from a slip-fitter, a wall bracket, a square pole kit or a round pole kit. Fitted directly, it takes poles up to 70mm diameter.
Dusk to dawn control
An IP67 photocell sensor can be added as an option. With it fitted, the light switches on at dusk and off again at dawn, so no timer is needed.
Supplied with
- Universal mounting bracket BT-AL-UV
- NEMA 3pin base JL-230F
The optional photocell is model JL-205C, rated IP67.
Technical Specifications 20 rows Show
| Fitting | Street light |
| Wattage (rated) | 150 Watt |
| Luminous flux | 21750lm |
| Colour rendering index | Ra70 |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| IP rating | IP65 |
| Beam angle | Type I, II, III, IV, V |
| Dimensions | 350x300x82mm |
| Housing | Magnesium alloy heatsink, electrophoresis and TGIC powder paint |
| Dimmable | YES |
| Colour temperature | 4000K |
| Lens | Micro magnify toughness glass on each chip |
| Mounting | Square poles, round poles, walls or directly on poles up to 70mm diameter |
| Supplied with | Universal mounting bracket BT-AL-UV, NEMA 3pin base JL-230F |
| Photocell (option) | JL-205C, IP67 |
| Average lifetime | 80,000 hours |
| Operating temperature | -40 OC to 50 OC |
| Certification | ROHS Compliant, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
