Hyperion, CREE LED Street & Motorway Light - 90W

Ref: SPL-D90-8X

£144.00

Price inc VAT

60k hours life span, wall/pole mounted, with photocell option

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £139.68 Save 3%
12 Items £135.36 Save 6%
24 Items £132.48 Save 8%
Description
Specification
Downloads
Description

HYPERION LED STREET/MOTORWAY LIGHT. 90WATT. THE BEST VALUE FOR PERFORMANCE AND PRICE

When it comes to illuminating public areas, brightness and reliability are paramount.

Introducing the industry-leading Hyperion range of LED street and motorway lights. These robust, long-lasting lamps are ideal for lighting public spaces, whether that is a neighbourhood footpath or a national motorway.

Unique features include an innovative aerodynamic design. Paired with perforated aluminium housing, this gives the Hyperion range a light, slim, wind-resistant profile. A smartly-designed convection air cooling system gives these LEDs a 60,000-plus hour life expectancy.

What’s more, the high colour rendering index and 150-lumen light output ensure all Hyperion street and motorway lights are approved for use where safety is a top concern, including large car parks and major roads. The 4,000K natural white LED can perform in even the toughest of conditions, including fog.

For Safer and Brighter Streets

MODULAR STRUCTURE

The Ledison LED Street Lights are built with LED CREE modules that are connected in parallel to achieve different lumen output. Using the Nuventix heatsinks, the large surface of the extruded heatsink extracts more heat, that cooling technology raises the lumen output and extends the life of LED chips. In addition, a heat spreader conducts heat from the LEDs to the heat sink.

Here we focus on the cooling solution of a luminaire which must exceed the lifetime of the LEDs by far so that it contributes positively to the overall lifetime of the luminaire via extension of the LED lifetime, and does not limit it further

/live/pages/LED-CREE-MODULE.jpg

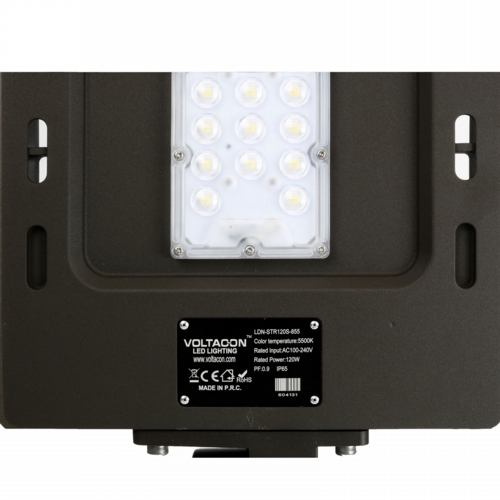

The LED Module with LED CREE chips and optic lens mounted on a high-performance aluminium heatsink.



DIMENSIONS

POLE DIMENSIONS (MM)

Specification

Specification of the CREE LED Street Light - 90Watt

Fitting:

STREET LIGHT

Luminous flux:

10800lm

Wattage (rated):

90 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

120lm/W

Line frequency:

50/60Hz

Power Factor

0.9

Average lifetime:

80,000 hours

Net Weight per piece

5.5kg

Color Temperature:



 Uniform Light Distribution

 145°x75°beam angle

Warm white:

3200K

Dimensions

398x283x83mm

Natural white:

4000K

Dimmable

YES

Cool white:

5500K

Warranty:

7 years

Operating Temp:

-40 OC to 50 OC

Certification:

ROHS Compliant, CE, UL

Number of CREE LED Modules: 3                                                                             IP Rating: IP66

Downloads

Technical Manual

VOLTACON LED Street Light Fittings -Hyperion

Modular CREE LED Street Lights 40W-300W

Download

Installation Instruction LED Street Light Hyperion

Installation Manual - Pole & Wall Mounted

Download
