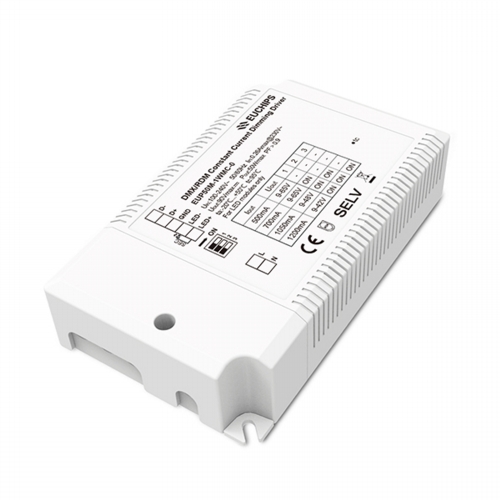

EUCHIPS 50Watt DMX dimmable LED driver

Ref: EUP50M-1WMC-0


Price inc VAT

It works with RDM master controller

Bulk Savings £££
# Items Our Price Savings
6 Items £19.30 Save 3%
12 Items £18.71 Save 6%
24 Items £18.31 Save 8%

EUP50M-1WMC-0 is a 50W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DMX512(1990). EUP50D-1WMC-0 can be connected to DMX main controller or RDM controller to achieve a smooth dimming effect.

50W Constant Current Euchips LED DMX Dimming Driver EUP50M-1HMC-0 is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products

Product Features

  • Single channel output, output current level selectable by DIP S.W.
  • Meet DMX512(1990)
  • Support RDM function
  • Wide input voltage of 100VAC ~ 240VAC
  • High efficiency up to 88%
  • Built-in active PFC function
  • Dimming effect smooth, no flicker
  • Protections: over load, short circuit
  • Suitable for indoor LED lighting application, such as down light, panel lights

Installation wiring diagram
