0-10V LED Driver 10W Constant Current 120-300mA | Euchips EUP10A-1HMC-1
- Vendor
- Euchips
- SKU
- 770717
- Availability
- In stock
- Weight
- 0.15 kg
£24.10inc VAT £20.08exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

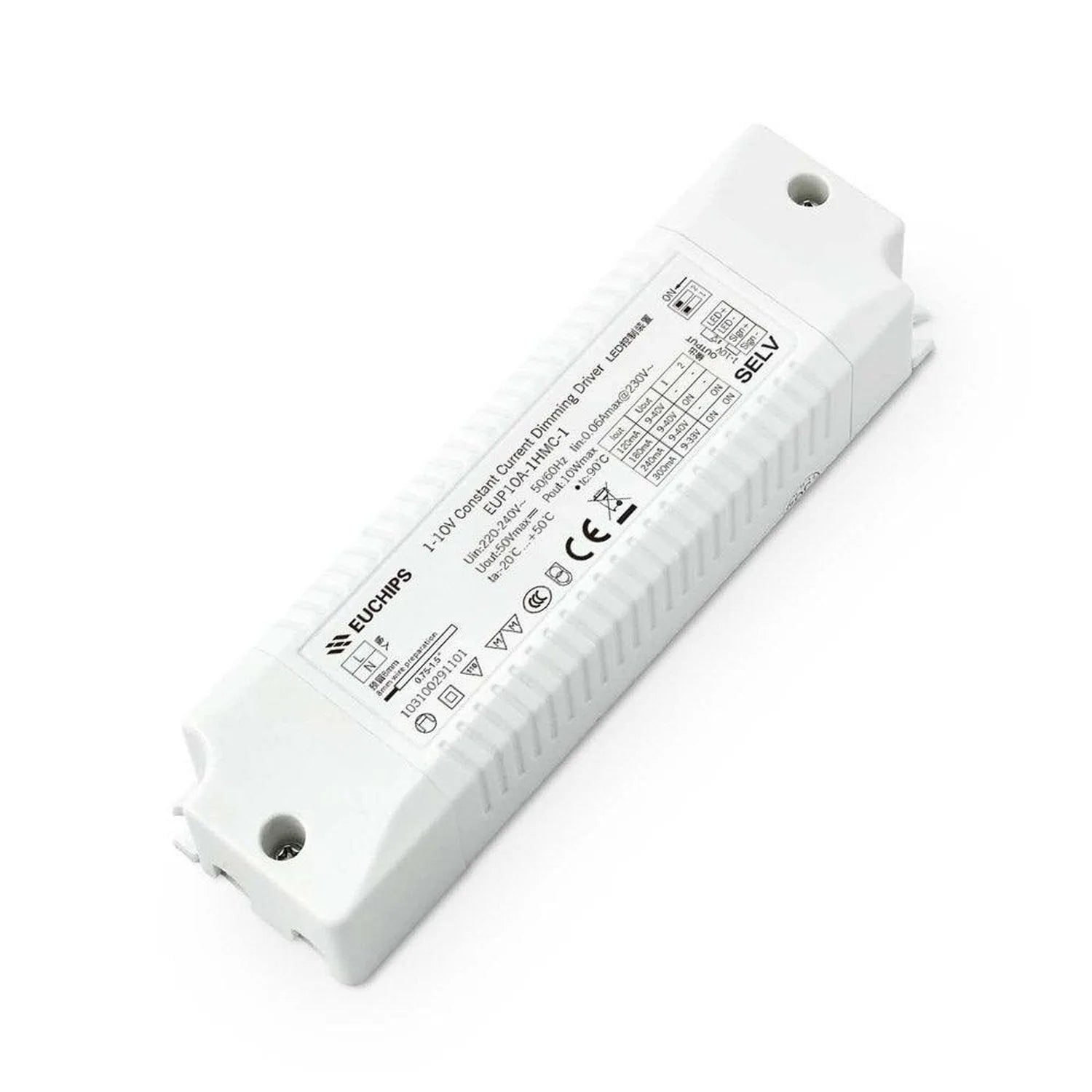

The Euchips EUP10A-1HMC-1 is a slim 10W constant current 0-10V LED driver, and it is the smallest dimmable driver in the Euchips range. It also accepts 1-10V dimmers. Output current is set on a DIP switch, with four steps between 120mA and 300mA.
0-10V LED driver features

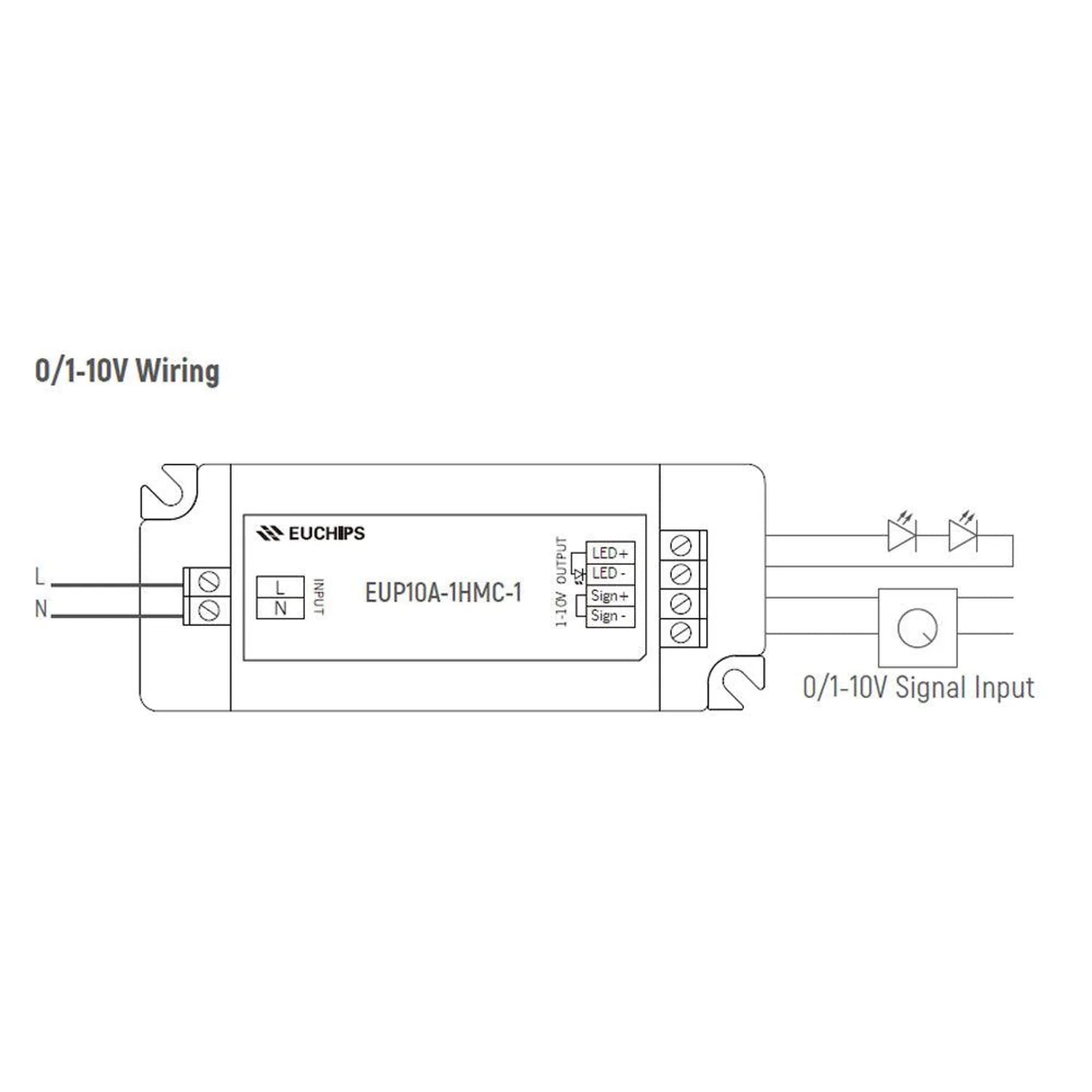

- Dimming inputs: 0/1-10V active signal, PWM or adjustable resistance
- Dimming range: 0.1% to 100%, and down to off, without flicker
- Selectable output: 120mA, 180mA, 240mA or 300mA via DIP switch (120mA is the factory default)
- Mains input: 220VAC-240VAC, 50/60Hz
- Power quality: built-in active PFC with a power factor of 0.95, efficiency of 85% at 230VAC full load, ripple current <3%
- Protection: short circuit, overload and over temperature
DIP switch output settings
All switches OFF gives the default setting. Pick the current that matches your LED load.
- 120mA/9-40VDC/4.8W (default)
- 180mA/9-40VDC/7.2W
- 240mA/9-40VDC/9.6W
- 300mA/9-33VDC/9.9W
Where to use it
Typical loads are downlights, spotlights and panel lights, along with LED T8 and T5 tubes. Leave the dimming input unconnected and the driver runs at 100% output. That means the same unit can serve as a standard non-dimming LED driver on jobs where control is not needed, so one stock line covers both cases.
Installation notes

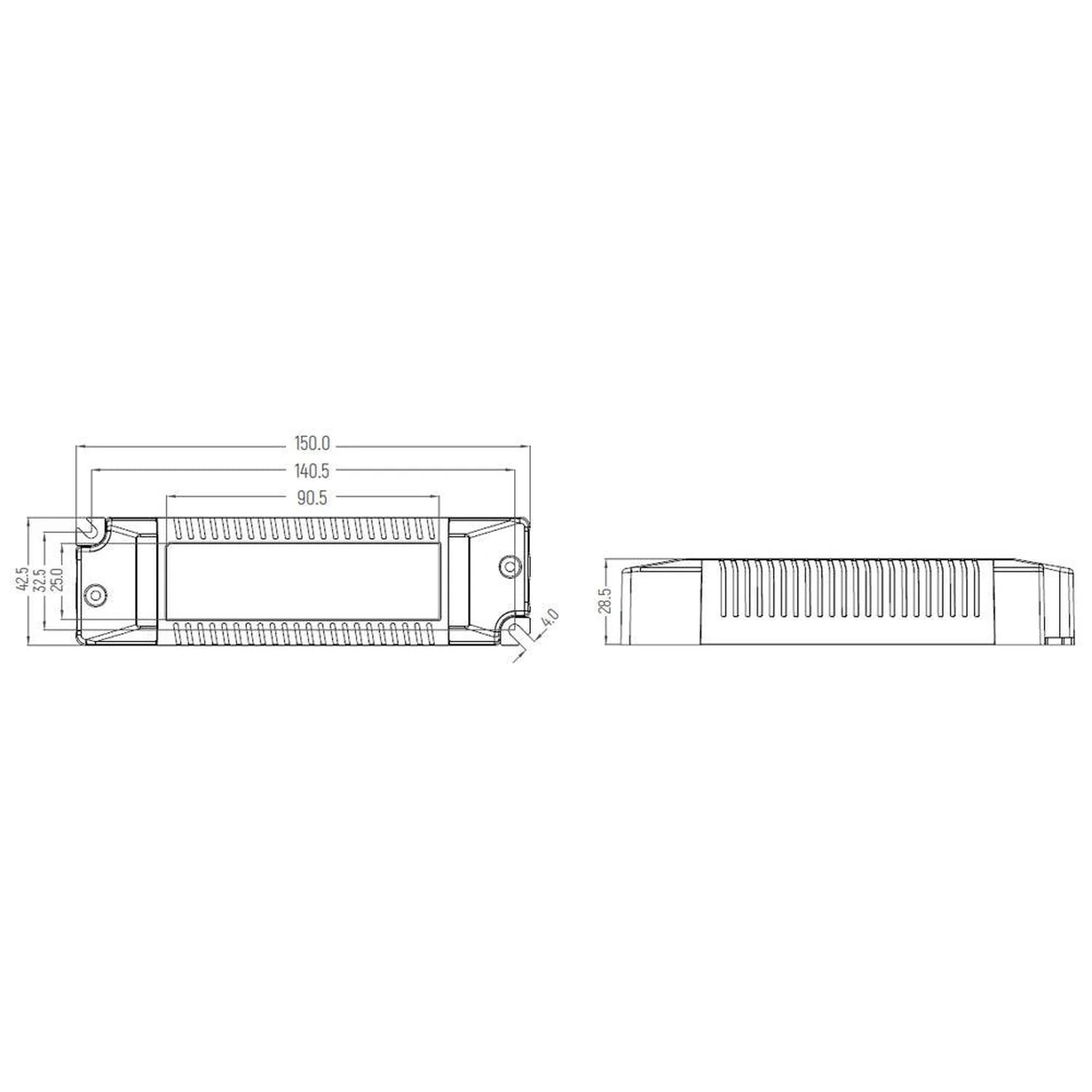

This driver is IP20 and not waterproof. For outdoor use it must be mounted inside a waterproof enclosure. The PC housing measures 150*43*29mm and weighs 125g, which suits tight ceiling voids.
Lifetime and warranty
Rated lifetime is 30,000h at tc 80. Euchips covers the driver with a 3-year warranty.
Technical Specifications 30 rows Show
| Brand | Euchips |
| Model | EUP10A-1HMC-1 |
| Output options | 120mA/9-40VDC/4.8W 180mA/9-40VDC/7.2W 240mA/9-40VDC/9.6W 300mA/9-33VDC/9.9W |
| Factory default current | 120mA |
| Dimming type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming range | 0.1%-100% Dimming to off |
| Input voltage | 220VAC-240VAC |
| Frequency | 50/60Hz |
| Efficiency | 85%@230VAC,Full load |
| Power factor | 0.95@230VAC,Full load |
| THD | <10%@230VAC, Full load |
| AC current (max) | 0.06Amax@230VAC |
| Inrush current | Cold start,18A @230VAC |
| Ripple current | <3% |
| Current tolerance | 5% |
| Standby power | <1W |
| No load output voltage | 50V Max |
| Protection | Short circuit, over load, over temperature |
| Isolation | I/P-O/P: 3000VAC/1min/5mA |
| Safety standards | EN61347, GB19510 |
| Working temperature | -20~50 |
| Storage temperature | -40~85, 20-90%RH |
| tc | 90 |
| Housing | PC |
| IP rating | IP20 |
| Lifetime | 30,000h@tc:80 |
| Warranty | 3 years |
| Switch cycle | >15,000 times |
| Dimensions | 150*43*29mm |
| Net weight | 125g |
Manufacturer datasheet. Figures as published by the manufacturer.
