Euchips LED Driver 60W 1-10V Dimmable Constant Current 1050-1400mA | EUP60A-1HMC-1

£37.75
Skip to product information
EUCHIPS 60W constant current dimmable LED driver with 1-10V dimming control, showing technical specifications label and termi

Euchips LED Driver 60W 1-10V Dimmable Constant Current 1050-1400mA | EUP60A-1HMC-1

Vendor
Euchips
SKU
770259
Availability
In stock
Weight
0.15 kg

£37.75inc VAT £31.46exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

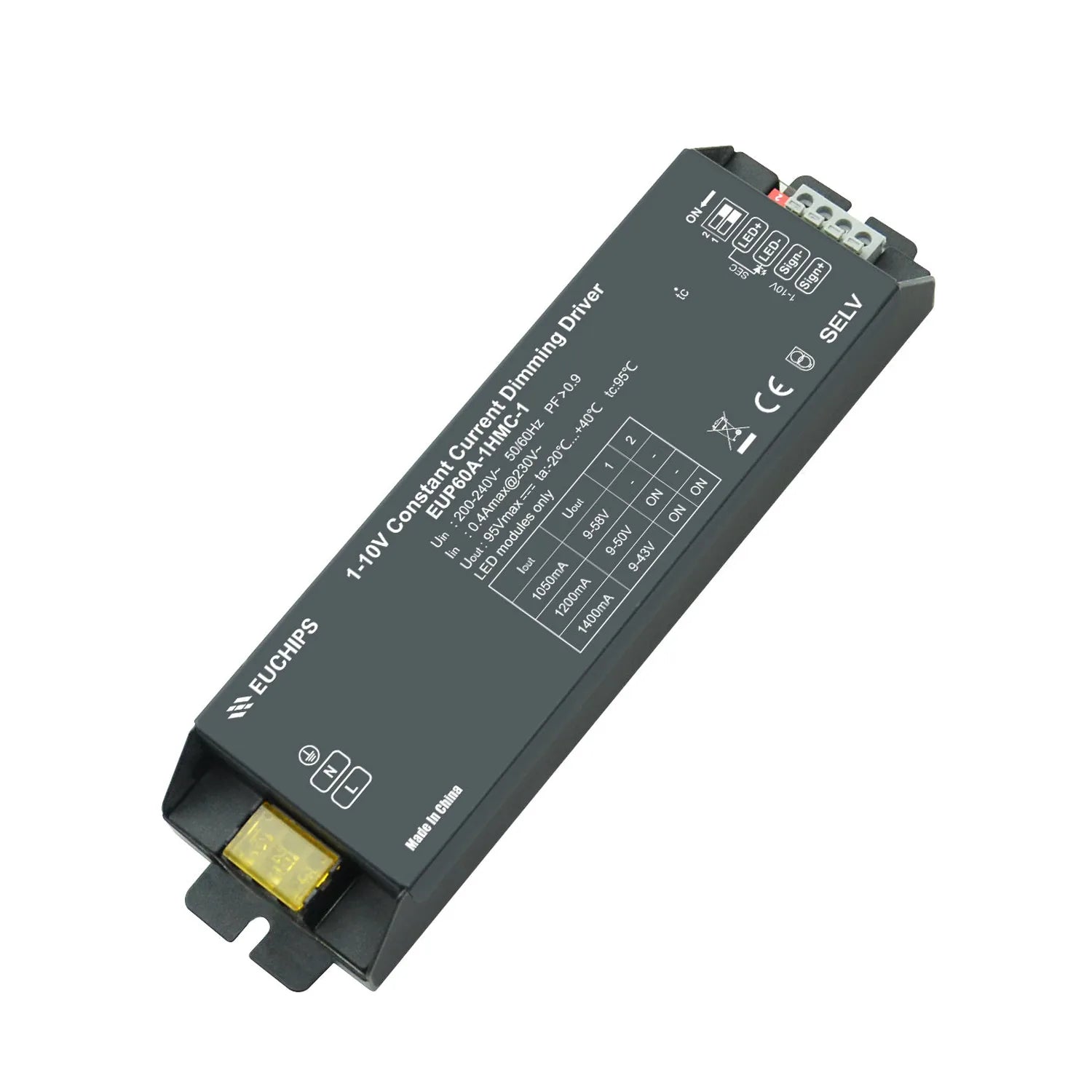

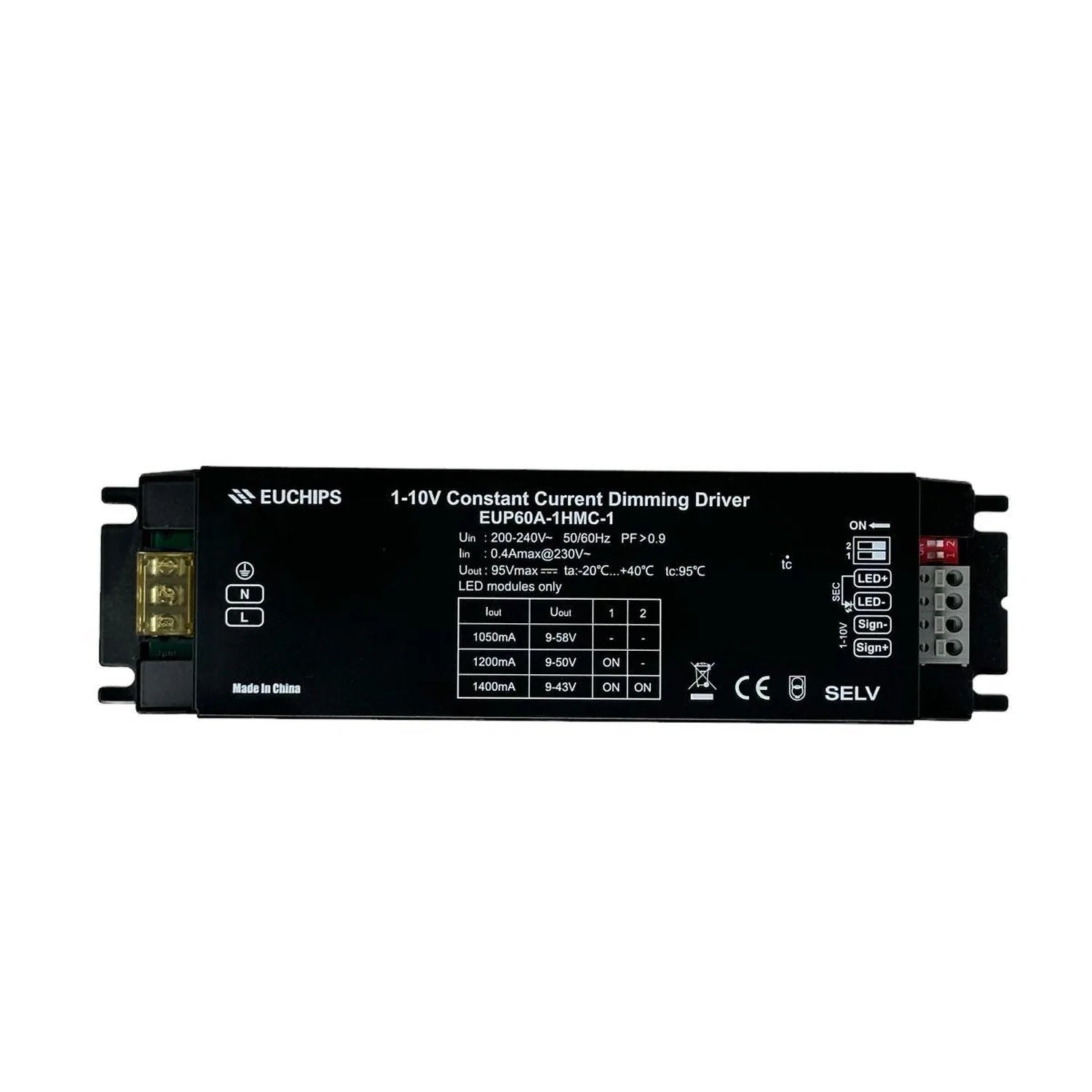

The Euchips EUP60A-1HMC-1 is a 60W constant current LED driver for indoor fittings such as downlights and panel lights. A DIP switch sets the output current to match the LED load. Out of the box it runs at 1050mA, with both switches in the OFF position.

Euchips LED driver features

  • Selectable output: 1050mA, 1200mA or 1400mA via DIP switch.
  • Dimming: 1-10V active signal, PWM or adjustable resistance.
  • Ripple: low ripple current with no flicker, output LF current ripple 4%.
  • Mains input: 200V to 240V AC, 50/60Hz, built-in active PFC with power factor of ≥0.9.
  • Efficiency: 86%.
  • Protection: over voltage, short circuit and over power.

Current and voltage settings

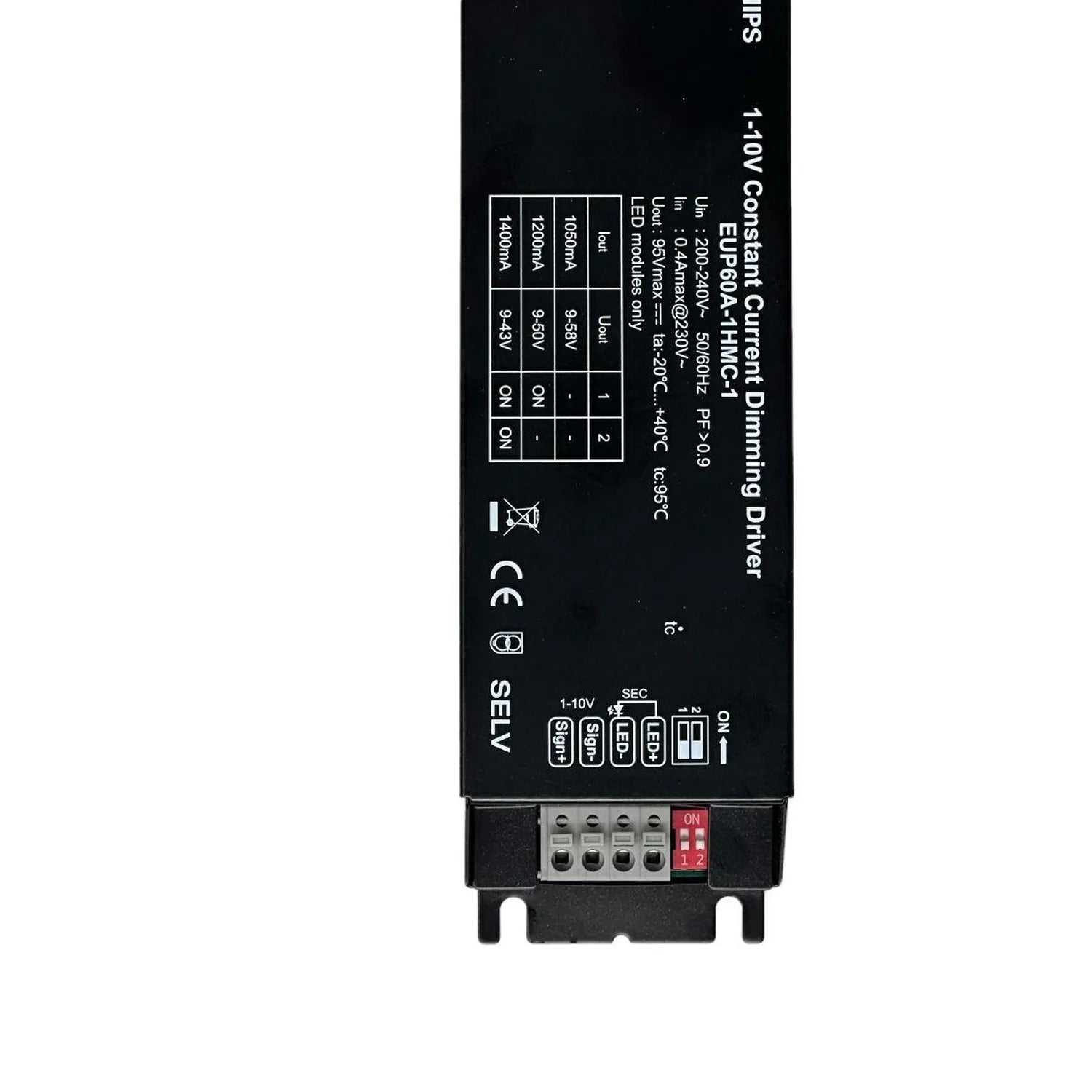

Each DIP switch position pairs a current with its own output voltage window. Pick the one that suits the fitting.

  • 1050mA / 9-58VDC / 60.9W
  • 1200mA / 9-50VDC / 60W
  • 1400mA / 9-43VDC / 60.2W

Where it fits

This driver is intended for indoor LED lighting, with downlights and panel lights the obvious candidates. Leave the dimming input unconnected and it delivers 100% output. That means it can stand in as a standard non-dimming driver too, which is handy when one part number has to cover both dimmed and fixed circuits on a job.

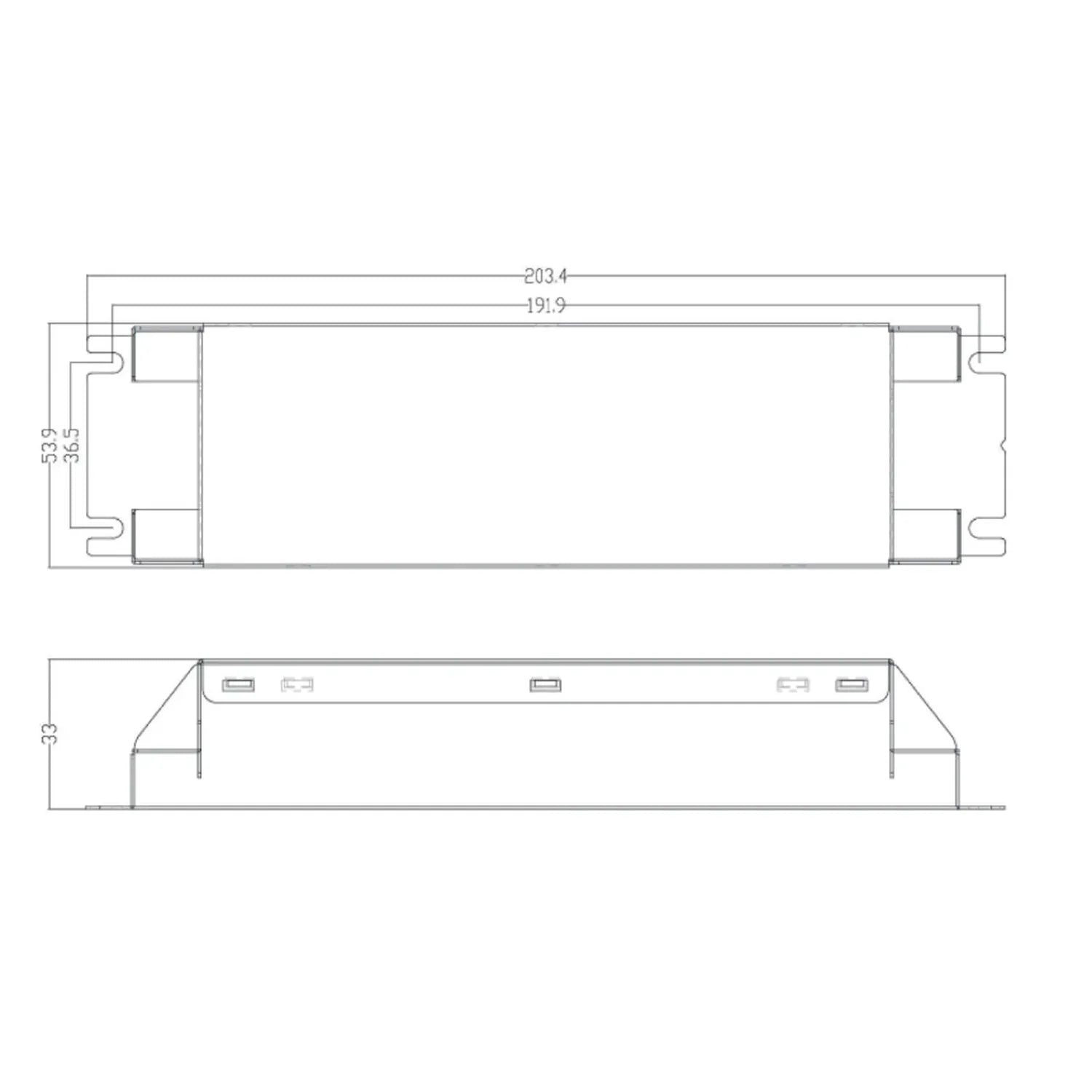

The case measures 203.4 x 53.9 x 32.6mm and weighs 365g. Its working temperature range is -20°C to 40°C, so check the ceiling void or enclosure stays inside that before fitting.

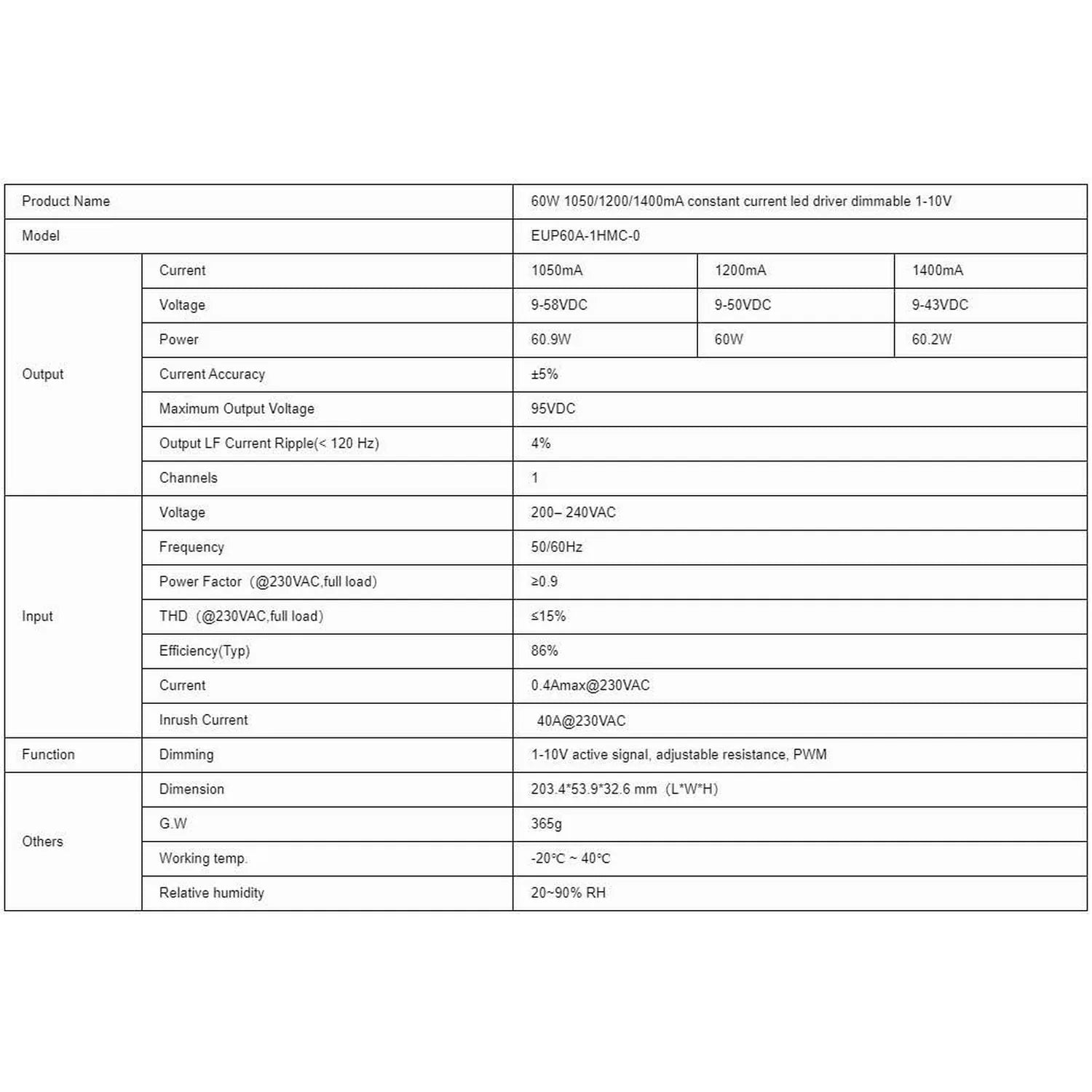

Technical Specifications 23 rows Show
BrandEuchips
ModelEUP60A-1HMC-1
Driver typeConstant current LED driver
Power60W
Output options1050mA / 9-58VDC / 60.9W, 1200mA / 9-50VDC / 60W, 1400mA / 9-43VDC / 60.2W
Current adjustmentDIP switch selectable
Dimming modes1-10V active signal, adjustable resistance, PWM
Maximum output voltage95VDC
Current accuracy±5%
Output LF current ripple4%
Input voltage200V to 240V AC
Frequency50/60Hz
Power factor≥0.9
THD≤15%
Efficiency86%
AC current max0.4A at 230VAC
Inrush current40A at 230VAC
ProtectionOver voltage protection, short circuit protection, over power protection
Dimensions203.4 x 53.9 x 32.6mm
Gross weight365g
Working temperature-20°C to 40°C
Relative humidity20 to 90% RH
Channels1

Manufacturer datasheet. Figures as published by the manufacturer.
