Euchips LED Driver 20W 1-10V Dimmable Constant Current | EUP20A-1HMC-1
- Vendor
- Euchips
- SKU
- 770018
- Availability
- In stock
- Weight
- 0.15 kg
£30.44inc VAT £25.37exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The Euchips EUP20A-1HMC-1 is a 20W constant current LED driver for indoor fittings such as downlights, panel lights and spotlights. A DIP switch sets the output current, from 350mA up to 700mA, so one driver can be matched to several different fittings.
Euchips LED driver dimming and output
Dimming works from a 0/1-10V active signal, PWM or adjustable resistance. The range runs from 0.1% to 100% and down to off, smoothly and without flicker. Leave the dimming input disconnected and the driver runs at 100% output. It then behaves as a standard non-dimming LED driver.
DIP switch output settings
- 350mA: 9-40VDC, 14W
- 500mA: 9-40VDC, 20W
- 550mA: 9-36VDC, 19.8W
- 700mA: 9-28VDC, 19.6W
Key features
- Input: 220V to 240V AC, 50/60Hz
- Efficiency: up to 85%
- Active PFC: power factor ≥0.95 at 230VAC full load
- Ripple current: <3%
- Protection: short circuit and overload

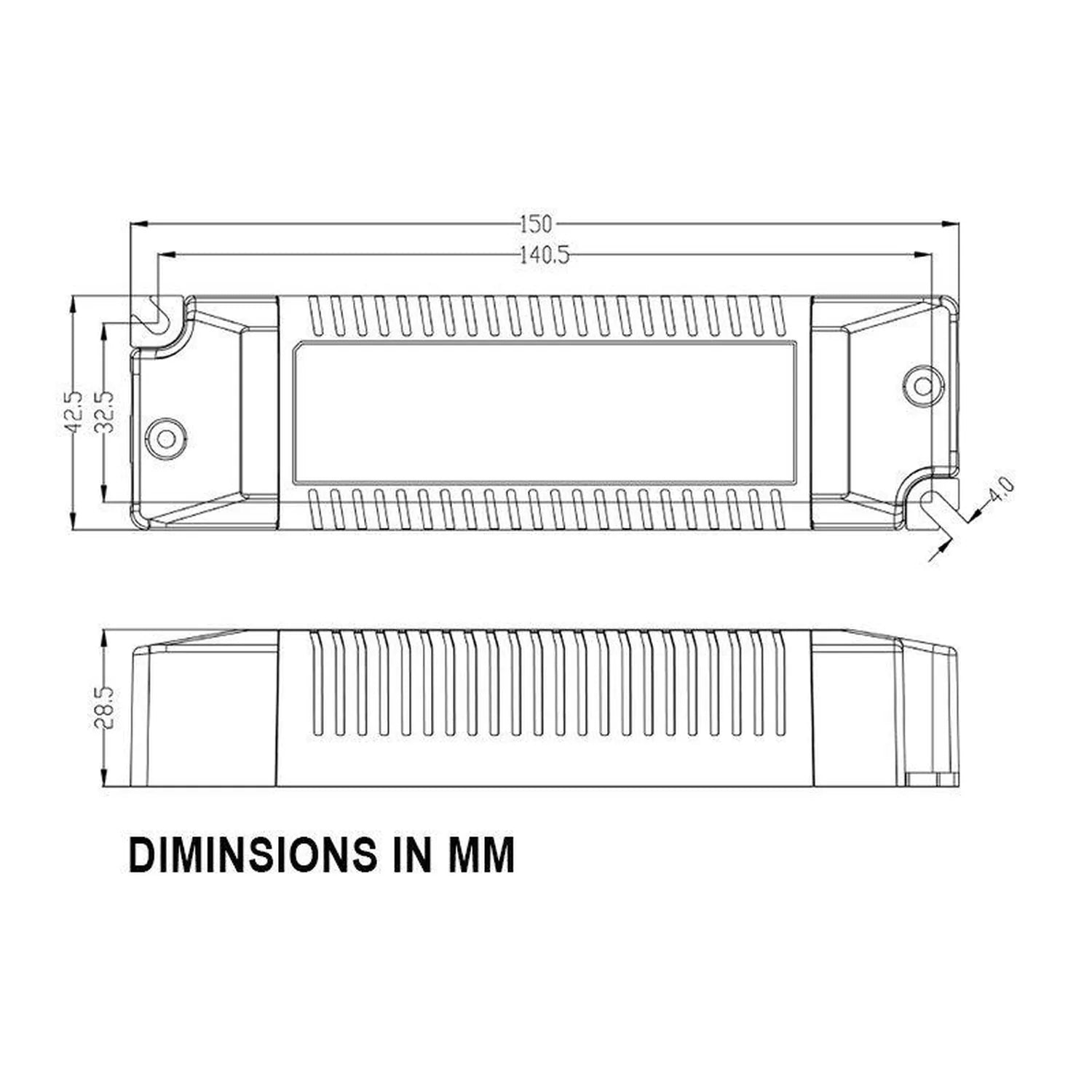

- Housing: IP20 PC case measuring 150 x 43 x 29mm
Applications
This driver suits indoor lighting. Typical uses are downlights, panel lights, spotlights and ceiling lights, along with decorative, floor and flood lights. The IP20 rating means it belongs inside, away from moisture.
Installers working across mixed fittings will find the selectable current useful, since the same unit covers four output settings. Check the forward voltage of your LED load against the voltage window for the chosen current before switching on.
Lifetime and warranty
Euchips rates the lifetime at 30,000 hours at tc 80°C. The driver carries a 3-year warranty.
Technical Specifications 29 rows Show
| Brand | Euchips |
| Model | EUP20A-1HMC-1 |
| Driver type | Constant current LED driver |
| Power | 20W |
| Output options | 350mA / 9-40VDC / 14W, 500mA / 9-40VDC / 20W, 550mA / 9-36VDC / 19.8W, 700mA / 9-28VDC / 19.6W |
| Current adjustment | DIP switch selectable |
| Dimming modes | 0/1-10V active signal, PWM, adjustable resistance |
| Dimming range | 0.1% to 100% dimming to off |
| Input voltage | 220V to 240V AC |
| Frequency | 50/60Hz |
| Efficiency | Up to 85% |
| Power factor | ≥0.95 at 230VAC, full load |
| THD | <10% at 230VAC, full load |
| Standby power | <1W |
| AC current max | 0.12A at 230VAC |
| Inrush current max | 18A at 230VAC |
| Ripple current | <3% |
| Current tolerance | ±5% |
| No load output voltage | 50V Max |
| Protection | Short circuit, overload |
| IP rating | IP20 |
| Housing | PC |
| Dimensions | 150 x 43 x 29mm |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 85°C, 20-90%RH |
| tc | 90°C |
| Lifetime | 30,000 hours at tc 80°C |
| Switch cycle | >15,000 times |
| Warranty | 3 years |
Manufacturer datasheet. Figures as published by the manufacturer.
