Euchips LED Driver 20W DMX512/RDM Dimmable Constant Current | EUP20M-1HMC-0
- Vendor
- Euchips
- SKU
- 770058
- Availability
- In stock
- Weight
- 0.15 kg
£27.25inc VAT £22.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

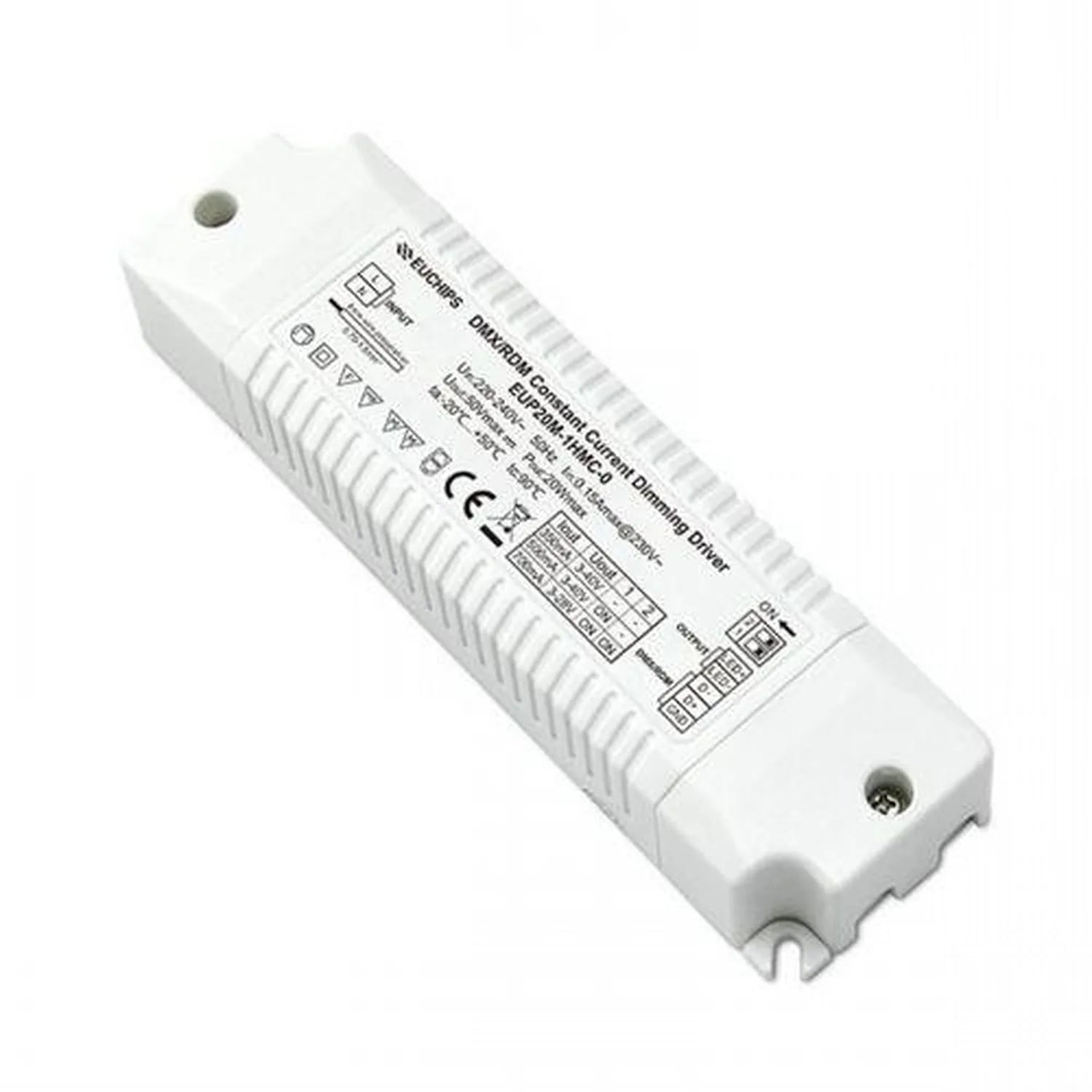

The Euchips EUP20M-1HMC-0 is a 20W constant current LED driver controlled over DMX512/RDM. A DIP switch sets the output current, and dimming is smooth with no flicker. If no dimming signal is connected, the driver runs at 100% output, so it can also serve as a standard non-dimming LED driver.
Euchips LED driver features
- Output current: single channel, selectable by DIP switch at 350mA (3-40VDC), 500mA (3-40VDC), 550mA (3-36VDC) or 700mA (3-28VDC)
- Control: DMX512/RDM
- Mains input: 200VAC ~ 240VAC with built-in active PFC
- Efficiency: 82% at 230VAC, full load
- Housing: Class 2 power supply in a full protective plastic case
- Protection: short circuit, overload and over temperature
Where to use it
This driver suits indoor LED lighting. Downlights, spotlights and panel lights are typical loads. Because the current is chosen on the unit itself, one model covers fittings rated at any of the four supported currents, which is useful when stocking drivers for mixed jobs.
Choosing a current setting
Match the DIP switch position to the current rating of the LED fitting. Check that the fitting's forward voltage sits inside the window for that setting. At 700mA the output range is 3-28VDC. At 350mA and 500mA it extends to 40VDC.
Size and installation
The unit measures 150*43*29 mm and weighs 120g. Its rated working temperature is -20℃ ~ 50℃, with relative humidity of 20~90% RH. On a DMX512/RDM network it dims from the lighting controller; without one, it simply drives the load at full output, so the same part can be fitted now and brought under DMX control later.
Technical Specifications 23 rows Show
| Brand | Euchips |
| Model | EUP20M-1HMC-0 |
| Power | 20W |
| Output | Single channel output, output current level selectable by DIP S.W. |
| Output current and voltage | 350mA: 3-40VDC, 500mA: 3-40VDC, 550mA: 3-36VDC, 700mA: 3-28VDC |
| Channels | 1 |
| Current accuracy | ±5% |
| No load output voltage | 50VDC |
| Output current ripple | <3% |
| Control | DMX512/RDM |
| Input voltage | 200VAC ~ 240VAC |
| Frequency | 50/60Hz |
| Input current | 0.12Amax@230VAC |
| Power factor | >0.95@230VAC,full load |
| Efficiency | 82%@230VAC,full load |
| Inrush current | Cold start,15A @230VAC |
| Power factor correction | Built-in active PFC function |
| Housing | Class 2 power supply. Full protective plastic housing |
| Protection | Short circuit, over load, over temperature |
| Dimensions | 150*43*29 mm (L*W*H) |
| Gross weight | 120g |
| Working temperature | -20℃ ~ 50℃ |
| Relative humidity | 20~90% RH |
Manufacturer datasheet. Figures as published by the manufacturer.
