Dimmable LED Driver 54W Constant Current 1-10V | Easeic LNA154BL

£39.85
Skip to product information

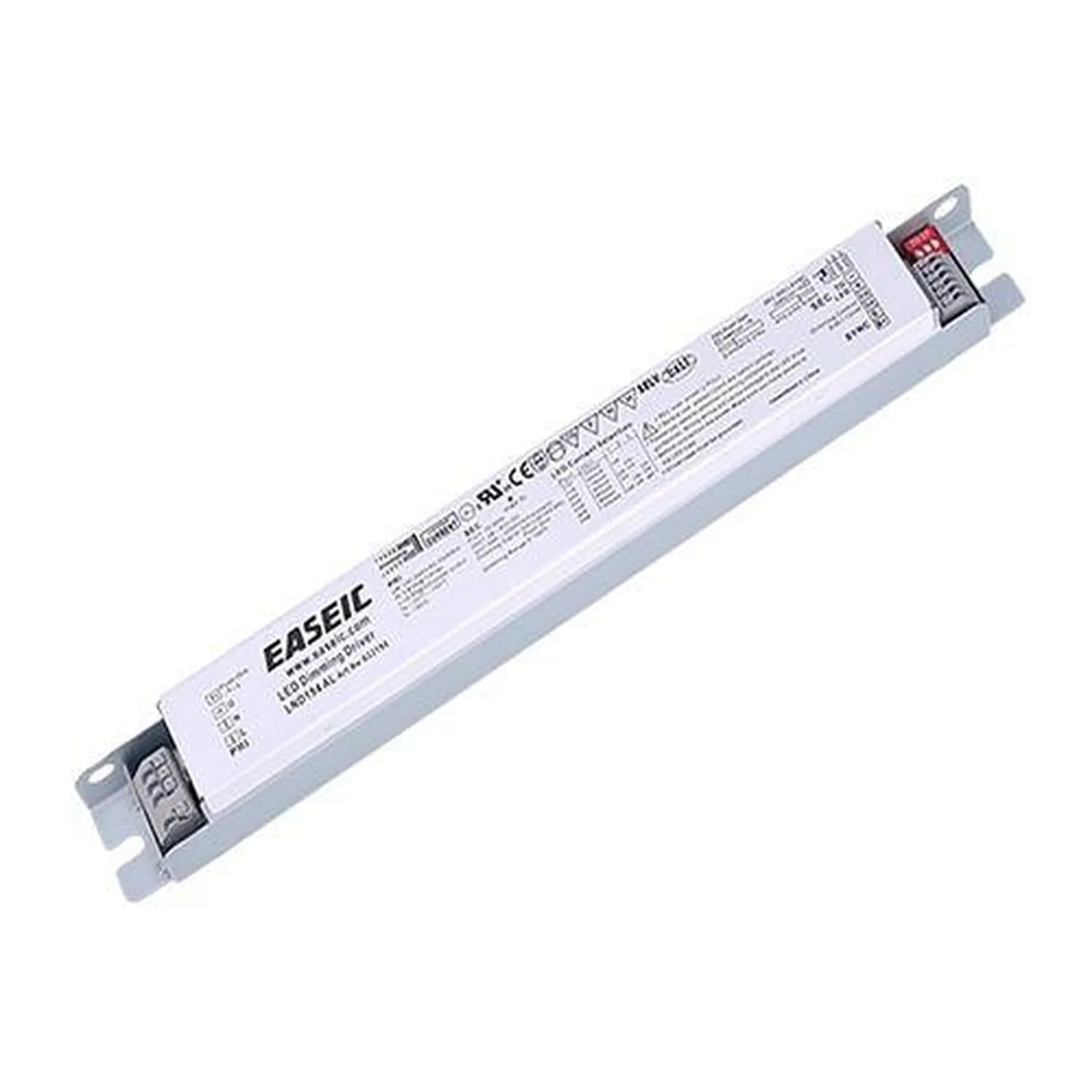

Easeic LED dimmable driver unit, white rectangular ballast with terminal connectors at each end, product label visible on top

Dimmable LED Driver 54W Constant Current 1-10V | Easeic LNA154BL

Vendor
Easeic
SKU
672154
Availability
In stock
Weight
0.15 kg

£39.85inc VAT £33.21exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Easeic LNA154BL is a 54W constant current LED driver that dims from a 0/1-10V control signal. Its output current is adjustable between 1050mA and 1750mA using the onboard DIP switches, so one driver can be matched to several different LED arrays. It suits LED panels, downlights, battens, linear fittings and architectural luminaires.

Dimmable LED driver features

  • Output power: up to 54W
  • Output current: 1050-1750mA, selected by DIP switch
  • Output voltage: 3V to 48V DC, with a maximum open circuit voltage of <58V
  • Mains input: 100-277V AC, 50/60Hz
  • Dimming control: 0/1-10V, PWM, resistance or PUSH-Dim from a standard push-button switch, with analogue flicker-free dimming across 0-100%
  • Electrical performance: efficiency up to 88%, power factor >0.95, THD <10%

Protection and build

Four protection functions are built in: short circuit, over voltage, over current and open circuit. The housing measures 280 x 30 x 26mm. That slim profile lets it sit inside compact fittings, and wiring goes into push terminals rather than screw clamps. The driver carries UL Class 2 classification and a 5 year warranty.

Where it is used

This driver is a good match for recessed LED panels and luminaires, linear fittings and battens. Typical projects include commercial offices, retail units and hospitality spaces where lighting needs smooth dimming. OEM luminaire manufacturers can also use it, because the adjustable current lets a single part cover more than one fitting design.

Setting the current

Check the rated current of your LED array first. Then set the DIP switches to the matching value within the 1050-1750mA range before you connect the load.

Technical Specifications 20 rows Show
BrandEaseic
ModelLNA154BL
TypeLED 1-10 Dimmable Driver
Output powerUp to 54W
Output current1050mA - 1750mA Adjustable
Output voltage3V - 48V DC
Maximum open circuit voltage<58V
Input voltage100 - 277V AC
Frequency50 / 60Hz
Dimming type0/1-10V / PWM / Resistance / PUSH-Dim
Dimming range0 - 100%
EfficiencyUp to 88%
Power factor>0.95
THD<10%
Protection featuresShort Circuit, Over Voltage, Over Current, Open Circuit
Operating temperature-20°C to +50°C
Dimensions280 x 30 x 26 mm
TerminalsPush terminals
Protection classUL Class 2
Warranty5 Years

Manufacturer datasheet. Figures as published by the manufacturer.
