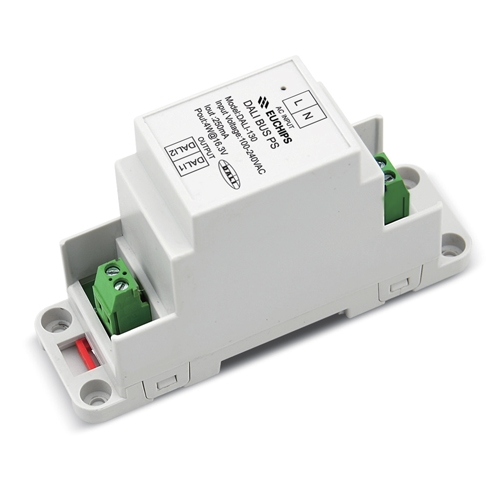

DALI Bus Power Supply. 16V. Din Rail. EUCHIPS
Ref: DALI-130£52.50
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £50.93 | Save 3% |
| 12 Items | £49.35 | Save 6% |
| 24 Items | £48.30 | Save 8% |
Description
Specification
Downloads
Description
Power Supply for DALI Controlled Lighting System
For the DALI power Supply to operate properly you need to feed the DALI Bus with 16V output voltage. It is an integral part of a dimmable system with the Digital Addressable Lighting Interface. Our extensive expertise in LEDs also covers all types of digital and analogue dimming component.
FEATURES
- Meet DALI Protocol IEC62386
- Output current up to 250mA Max
- Wide range of input voltage 100VAC~240VAC
- Support two installation methods of rail and screw fixing
- Support over current protection
- Having LED indicator light indicate status
Typical Installation Diagram of DALI Dimming System
Specification
Technical Parameters
| Input Voltage | 100-240V AC | Product Size | L112*W35*H67 (mm) |
| Input Frequency | 50/60Hz | Packing Size | L354*W234*H232(mm) |
| Output Channels | 1 | Net Weight | 71g |
| Output Voltage | 16V+5% | Gross Weight | 105g |
| Output Current | 250mA | Working Temp. | -20℃~+50℃ |
| Output Power | 4W |
Wiring Connections to the DALI Bus Power Supply
