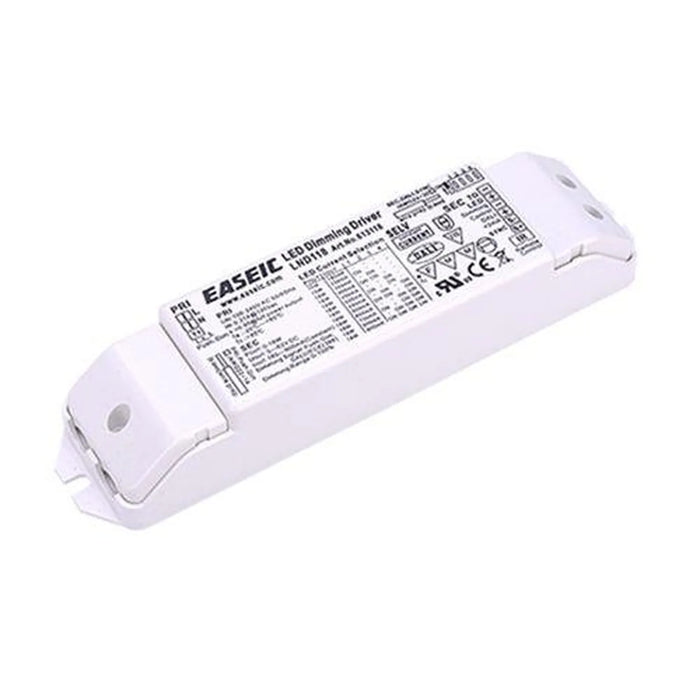

White rectangular LED driver with technical specifications label visible on top surface, showing EASEIC branding and certific

DALI LED Driver 18W Constant Current 200-1050mA | EASEIC LND118

£27.25
Skip to product information
White rectangular LED driver with technical specifications label visible on top surface, showing EASEIC branding and certific

DALI LED Driver 18W Constant Current 200-1050mA | EASEIC LND118

Vendor
Easeic
SKU
613118
Availability
In stock
Weight
0.1 kg

£27.25inc VAT £22.71exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The EASEIC LND118 is a constant current DALI LED driver rated up to 18W. DIP switches set the output anywhere from 200-1050mA, so you can match one driver to the LED load it is feeding. It dims through DALI 2 with feedback, 1-10V, PWM or a mains push switch (Push-Dim).

DALI LED driver features

  • Output power: up to 18W
  • Output current: 200-1050mA, selected by DIP switch
  • Output voltage: 3V to 66V
  • Input: 100~277Vac
  • Dimming: analogue and flicker-free from 0-100%, with LED start at 0.1%
  • Efficiency: up to 88%, power factor >0.90, THD <10%

Protection covers short circuit, over current, over voltage and open circuit. The case measures 167x39x30mm (LxWxH), and the driver comes with a 5 year warranty.

Applications

Use it with LED panels, battens and linear lighting, or with downlights and spotlights. It fits office, retail and hospitality lighting schemes.

Wiring and installation

A terminal cover and cable retainer are supplied. Wire it with 16-24 AWG solid copper wire rated >=300V/85C. DALI and switch-dim connect to the same terminals (DA/N and DA/L), and once DALI is connected the 1-10V and switch-dim functions are disabled.

Breaker loading on 230VAC: a maximum of 16 drivers on a B16, or 28 on a C16.

Default current setting

Out of the factory the driver is set to 200mA. At that current the maximum output is 13W. The full 18W is available from 300mA, so check the DIP switches before commissioning.

Technical Specifications 30 rows Show
BrandEASEIC
ModelLND118
Order code613118
TypeLED DALI Dimmable Driver
Output powerUp to 18W
Output current200-1050mA
Output voltage3V to 66V
Max open circuit voltage<75V
Input voltage100~277Vac
Frequency50/60Hz
EfficiencyUp to 88%
Power factor>0.90
Dimming range0-100%
ProtectionShort Circuit, Over Current, Over Voltage, Open Circuit
Operating temperature-20 to +50, 20-95% RH non-condensing
Dimensions167x39x30mm (LxWxH)
Weight0.15Kg(0.37lbs)
DimmingDALI 2 / 1-10V / PWM / PUSH-Dim
THD<10%
Protection classUL Class 2
Line current0.23A@100VAC 0.21A@120VAC 0.11A@230VAC
Inrush current33A(twidth=270us measured at 50% Ipeak) at 230VAC
Leakage current<0.5mA/230VAC
Max case temperature (Tc)75 for Life & 85 for UL Safety
DALI sink current<2mA
LED start0.1%
Environmental ratingUL damp and dry
Wire16-24 AWG solid copper wire rated >=300V/85C
PUSH cable length<20m
Warranty5 year warranty

Manufacturer datasheet. Figures as published by the manufacturer.
