DALI LED Driver 54W Dimmable Constant Current 500-1050mA | EASEIC LND154AC
- Vendor
- Easeic
- SKU
- 623154
- Availability
- Pre-order
- Weight
- 0.1 kg
Not in stock right now. We will confirm the lead time before dispatch.
£35.65inc VAT £29.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The EASEIC LND154AC is a dimmable constant current DALI LED driver with a selectable output from 500mA to 1050mA. Built-in DIP switches give 11 current levels, so a single driver can run LED lights from 31W up to 54W. Pick the setting and wire it in.
DALI LED driver features
- Output power: 10-54W, depending on the current setting
- Output current and voltage: 500-1050mA, 20V to 62V
- Dimming: DALI (IEC62386), Push-Dim, On/off Dim and SYNC, 0-100% with memory function
- Mains input: universal AC, 90~265Vac
- Power quality: power factor >0.95, THD <20%
- Protection: short circuit, over voltage, over current and open circuit, with a UL Class 2 output

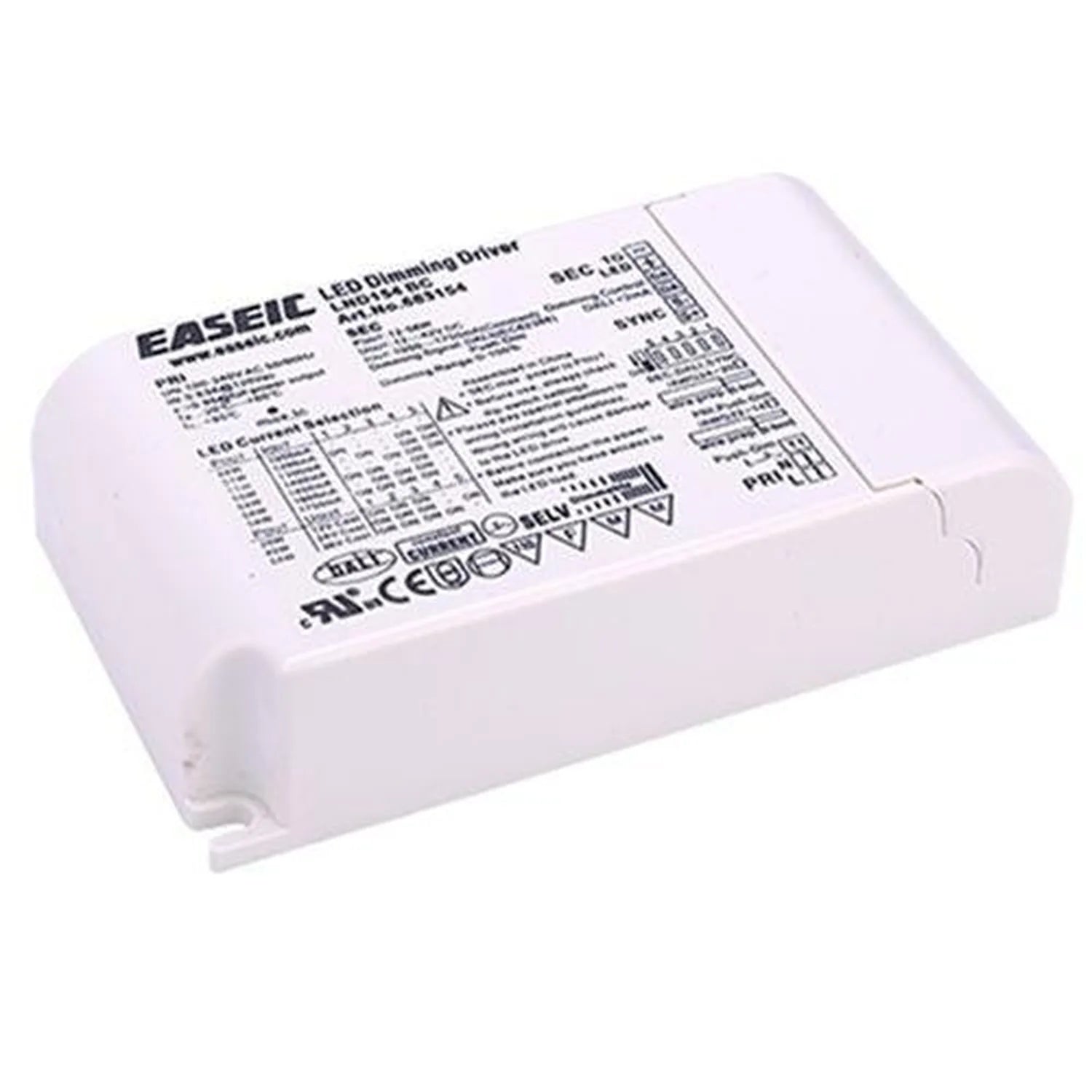

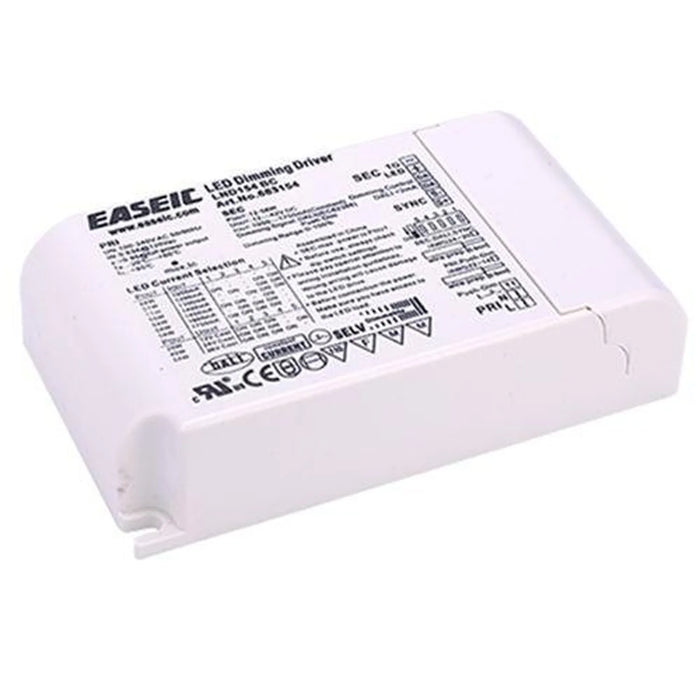

A label on the cover shows every switch position, which makes choosing the right current simple on site. The driver leaves the factory set to 500mA (31W). It is covered by a 5 year warranty.
Controls and installation
Beyond DALI, the LND154AC dims from an ordinary mains push switch and can also switch on and off or run in SYNC with other drivers. For Push-Dim, use only a self-reset push button without an indicator light. Wire it between Push-dim and L(AC), never to N(AC), and keep the total push cable length under 20m.
Terminations take 16-24 AWG solid copper wire rated >=300V/85C. On a 230VAC supply, fit a maximum of 15 drivers on a B16 breaker or 26 on a C16. The housing measures 118x67x30mm.
Supplied with
- Terminal cover
- Cable retainer
Technical Specifications 30 rows Show
| Brand | EASEIC |
| Model | LND154 AC |
| Order code | 623154 |
| Output power | 10-54W(See Output current settings table) |
| Output current | 500-1050mA |
| Output voltage | 20V to 62V |
| Line voltage | 100-240Vac_rms |
| Operating mains voltage | 90[min] to 265[max] |
| Frequency | 50/60Hz |
| Power factor | >0.95 |
| THD | <20% |
| Efficiency | 87%@100VAC 87%@120VAC 88%@230VAC |
| Dimming | DALI(IEC62386), Push-Dim, On/off Dim, SYNC |
| Dimming range | 0-100% |
| Protection | Over Current, Over Voltage, Short Circuit and Open Circuit Protection for LED+ and LED- |
| Operating temperature | -20 to +50, 20-95% RH non-condensing |
| Dimensions | 118x67x30mm (LxWxH) |
| Weight | 0.17Kg(0.37lbs) |
| Line current | 0.65A@100VAC 0.54A@120VAC 0.29A@230VAC |
| Input power (max.) | 64.6W |
| Inrush current | 70A(twidth=270us measured at 50% Ipeak) at 230VAC |
| Leakage current | <0.75mA/230VAC |
| Max case temperature (Tc) | 75 for Life & 85 for UL Safety |
| DALI sink current | <2mA |
| Audible noise | <24dB |
| Environmental rating | UL damp and dry |
| Wire | 16-24 AWG solid copper wire rated >=300V/85C |
| PUSH cable length | <20m |
| Max open circuit voltage | <60V |
| Warranty | 5 year warranty |
Manufacturer datasheet. Figures as published by the manufacturer.
