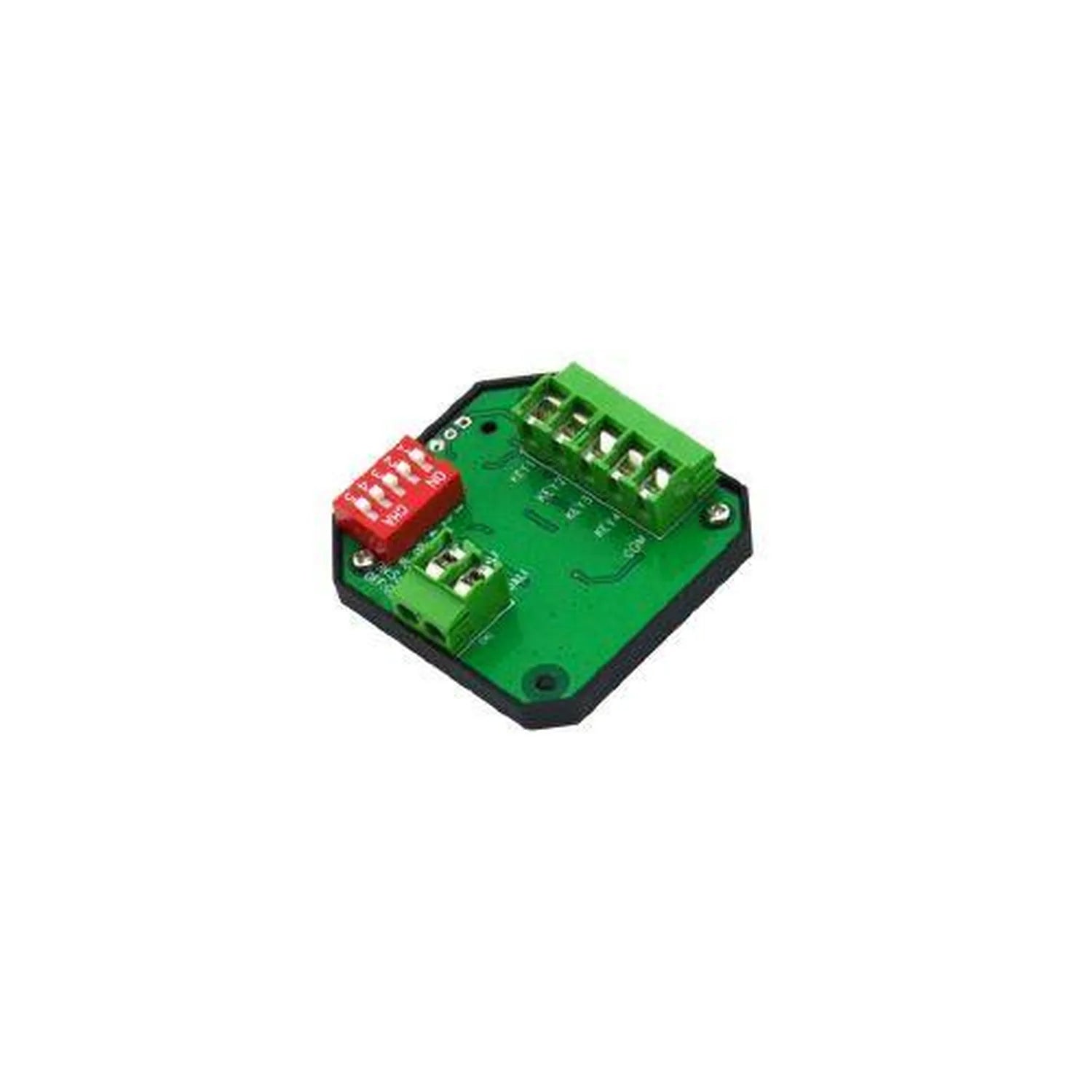

Green circuit board with black base and red DIP switch module, mounted terminals visible, product shown isolated on white bac

DALI Controller for Push Switches 4 Groups or 4 Scenes | Euchips DALI-GSC-4

Vendor
Euchips
SKU
999016
Availability
In stock
Weight
0.1 kg

£47.20inc VAT £39.33exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Euchips DALI-GSC-4 converts standard push switches into DALI controls. It handles up to 4 groups or 4 scenes, and it is small enough to sit inside the switch back box. It draws its power from the DALI line, so no separate supply is needed.

How this DALI controller works

A DIP switch selects one of two modes. In group mode, each of the 4 push switches controls its own group: a short press turns the group on or off, and a long press dims it up or down. Scene mode is simpler. Each switch recalls a scene.

Several units can share one DALI system because the controller supports multi-master operation, with units installed in parallel.

Key features

  • Capacity: max. 4 groups or 4 scenes
  • Mode selection: group or scene, set by DIP switch
  • Power: supplied via the DALI bus
  • Standards: designed to comply with IEC60929/62386
  • Size: 44*46*14mm
  • Multi-master: several controllers can run on one DALI system

Installation notes

The controller fits in the mounting box behind the key switch, which keeps the wall plate looking like any other switch. Keep the wire from the controller to the switch panel to 50cm or less.

Safety

  • Do not connect the controller to the mains.
  • DALI signals are not SELV. Treat them as mains voltage when wiring.

For installers adding DALI lighting control to an existing switch layout, this is a way to keep familiar push switches on the wall while the DALI system does the grouping and scene work.

Technical Specifications 13 rows Show
BrandEuchips
ModelDALI-GSC-4
InputVia DALI signal line
Signal12-20VDC
Current2mA
OutputDimming/Off/On for 4 groups individually (group control); switch scene (scene control)
Dimensions44*46*14mm
Temperature0~60
StandardIEC60929/62386
ModeGroup or scene, set by DIP switch
Multi-masterSeveral can be installed in parallel
InstallationInserted into the mounting box for the key switch
Wire to switch panelNot exceed 50cm

Manufacturer datasheet. Figures as published by the manufacturer.
