DALI LED Driver 36W Constant Current 200-1050mA Dimmable | EASEIC LND136AL
- Vendor
- Easeic
- SKU
- 633136
- Availability
- In stock
- Weight
- 0.1 kg
£36.70inc VAT £30.58exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

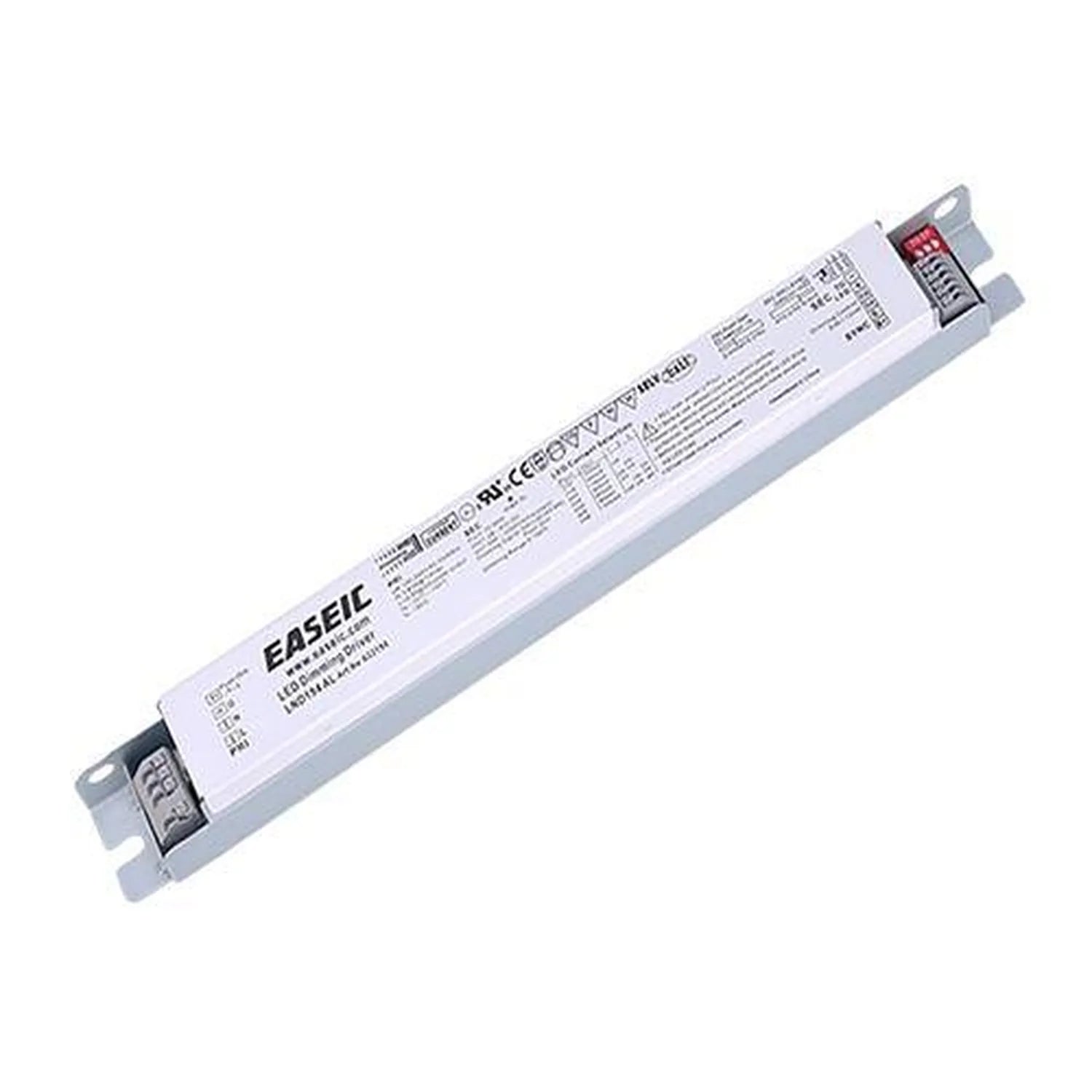

The EASEIC LND136AL is a slim constant current DALI LED driver rated up to 36W, with DALI-2 dimming and feedback. DIP switches set the output current anywhere from 200-1050mA, so one driver can be matched to a wide spread of LED loads.
DALI LED driver with multiple dimming options
DALI-2 is only one way to control it. The same unit also dims from 1-10V, PWM, resistance and a mains push switch (Push-Dim). Dimming is analogue and flicker-free across 0-100%, and the LEDs can start from 0.1%.
- Output power: up to 36W
- Output current: 200-1050mA, selected by DIP switch
- Output voltage: 3V to 66V
- Input: 100~277Vac, efficiency up to 88%, power factor >0.95, THD <10%
- Protection: short circuit, over current, over voltage and open circuit
- Size: 280x30x26mm (LxWxH), ultra slim housing
Where it fits
Suited to LED panels, battens and linear lighting, plus downlights and spotlights. Typical projects include offices, retail units and hospitality venues. It carries a 5 year warranty.
Wiring and installation
Connections are made with push terminals using 16-24 AWG solid copper wire rated >=300V/85C. DALI and switch-dim share the same terminals (DA/N and DA/L). Once DALI is connected, the 1-10V and switch-dim functions are disabled.
Plan your circuits carefully. At 230VAC, a B16 breaker takes a maximum of 16 drivers and a C16 takes 28.
Check the current setting
The driver leaves the factory set to 200mA. At that setting the maximum output is 13W, and the full 36W only becomes available from 550mA, so set the DIP switches to suit your LED load before commissioning.
Technical Specifications 30 rows Show
| Brand | EASEIC |
| Model | LND136AL |
| Order code | 633136 |
| Type | LED DALI Dimmable Driver |
| Output power | Up to 36W |
| Output current | 200-1050mA |
| Output voltage | 3V to 66V |
| Max open circuit voltage | <75V |
| Input voltage | 100~277Vac |
| Frequency | 50/60Hz |
| Efficiency | Up to 88% |
| Power factor | >0.95 |
| Dimming range | 0-100% |
| Protection | Short Circuit, Over Current, Over Voltage, Open Circuit |
| Operating temperature | -20 to +50, 20-95% RH non-condensing |
| Dimensions | 280x30x26mm (LxWxH) |
| Weight | 0.23Kg(0.51lbs) |
| Dimming | DALI-2 / 1-10V / PWM / Resistance / PUSH-Dim |
| DALI standard | IEC62386 |
| THD | <10% |
| Environmental rating | UL Damp and Dry |
| Line current | 0.44A@100VAC 0.36A@120VAC 0.19A@230VAC |
| Inrush current | 55A(twidth=270us measured at 50% Ipeak) at 230VAC |
| Leakage current | <0.5mA/230VAC |
| Max case temperature (Tc) | 75 for Life & 85 for UL Safety |
| DALI sink current | <2mA |
| LED start | 0.1% |
| Wire | 16-24 AWG solid copper wire rated >=300V/85C |
| PUSH cable length | <20m |
| Warranty | 5 year warranty |
Manufacturer datasheet. Figures as published by the manufacturer.
