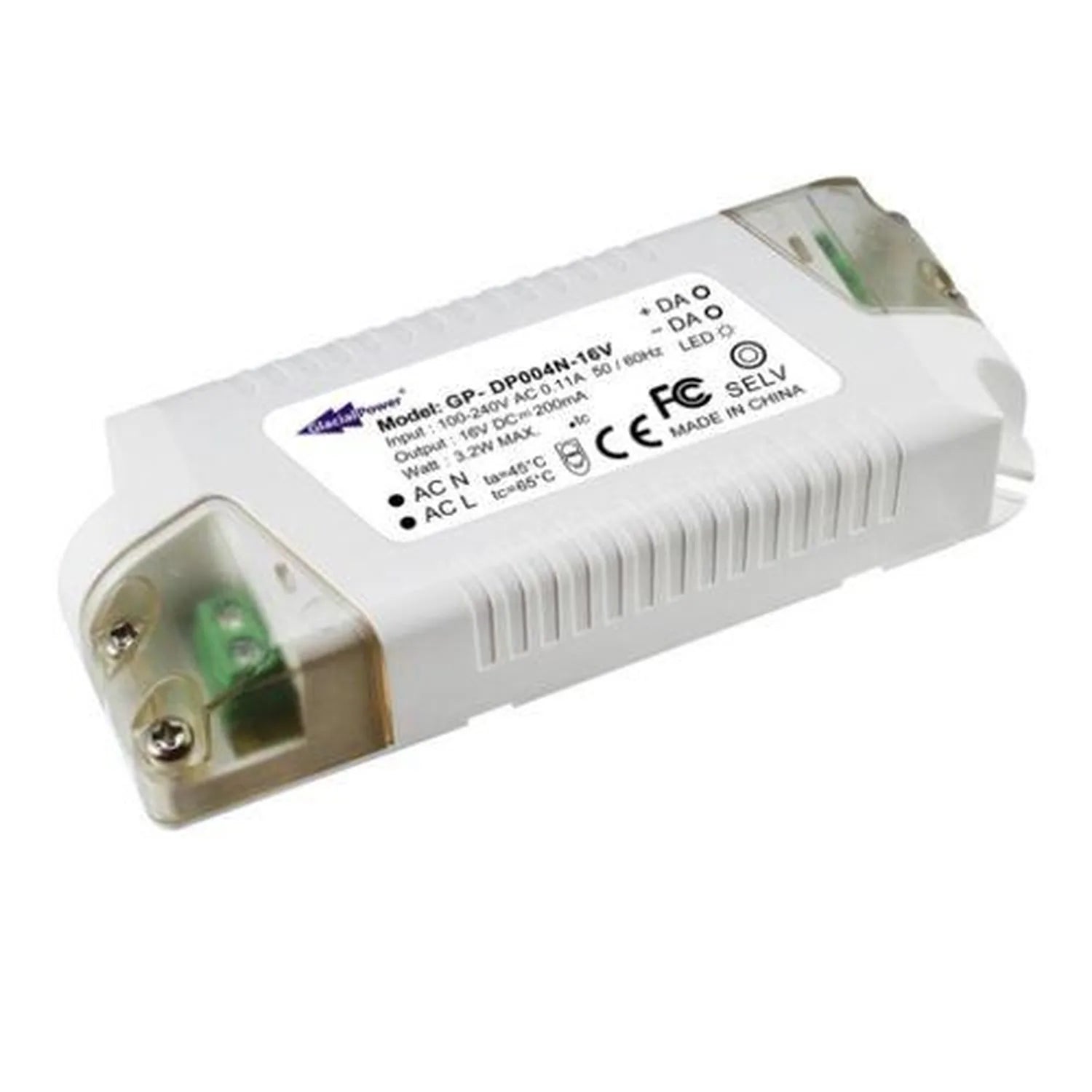

White rectangular LED power supply with green indicator light and metal connectors, showing model number and FCC certificatio

DALI Bus Power Supply 16V 200mA 100-240VAC | Glacial GP-DP004N-16V

£32.54
Skip to product information
White rectangular LED power supply with green indicator light and metal connectors, showing model number and FCC certificatio

DALI Bus Power Supply 16V 200mA 100-240VAC | Glacial GP-DP004N-16V

Vendor
Glacial
SKU
999001
Availability
In stock
Weight
0.1 kg

£32.54inc VAT £27.12exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Glacial GP-DP004N-16V is a DALI bus power supply that puts the 16V a DALI system needs onto the bus. It delivers up to 200mA, which is enough to run a complete DALI system with up to 64 dimmable LED lights. Without bus power, nothing on the line will talk.

DALI bus power supply features

  • Output: 16V at a maximum of 200mA, rated power 3.2W
  • Input: universal AC, 100~240VAC
  • Standard: compatible with IEC 62386
  • Protection: OCP / SCP
  • Status LEDs: show power OK and DALI bus traffic
  • Cooling: free air convection, so there is no fan

Where it fits

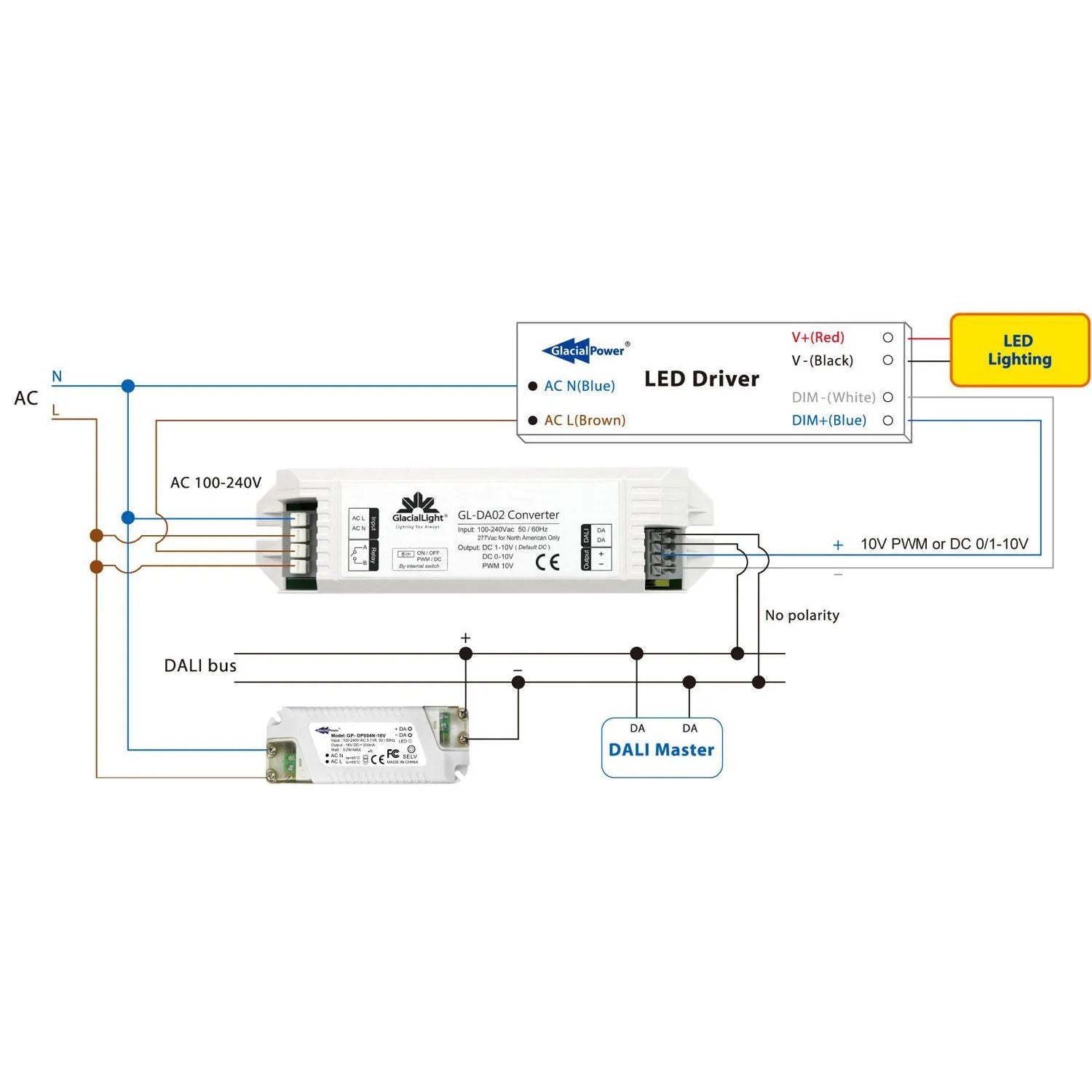

Every DALI lighting installation needs a power source on the bus, and this unit fills that role for systems of up to 64 DALI lights. Because it accepts 100~240VAC, the same model can be specified across different supply conditions.

The indicator LEDs are a practical help during commissioning. One confirms that power is OK. The other shows that there is traffic on the DALI bus, so an installer can check at a glance whether the controller and drivers are communicating before working through the fittings one by one.

Size and weight

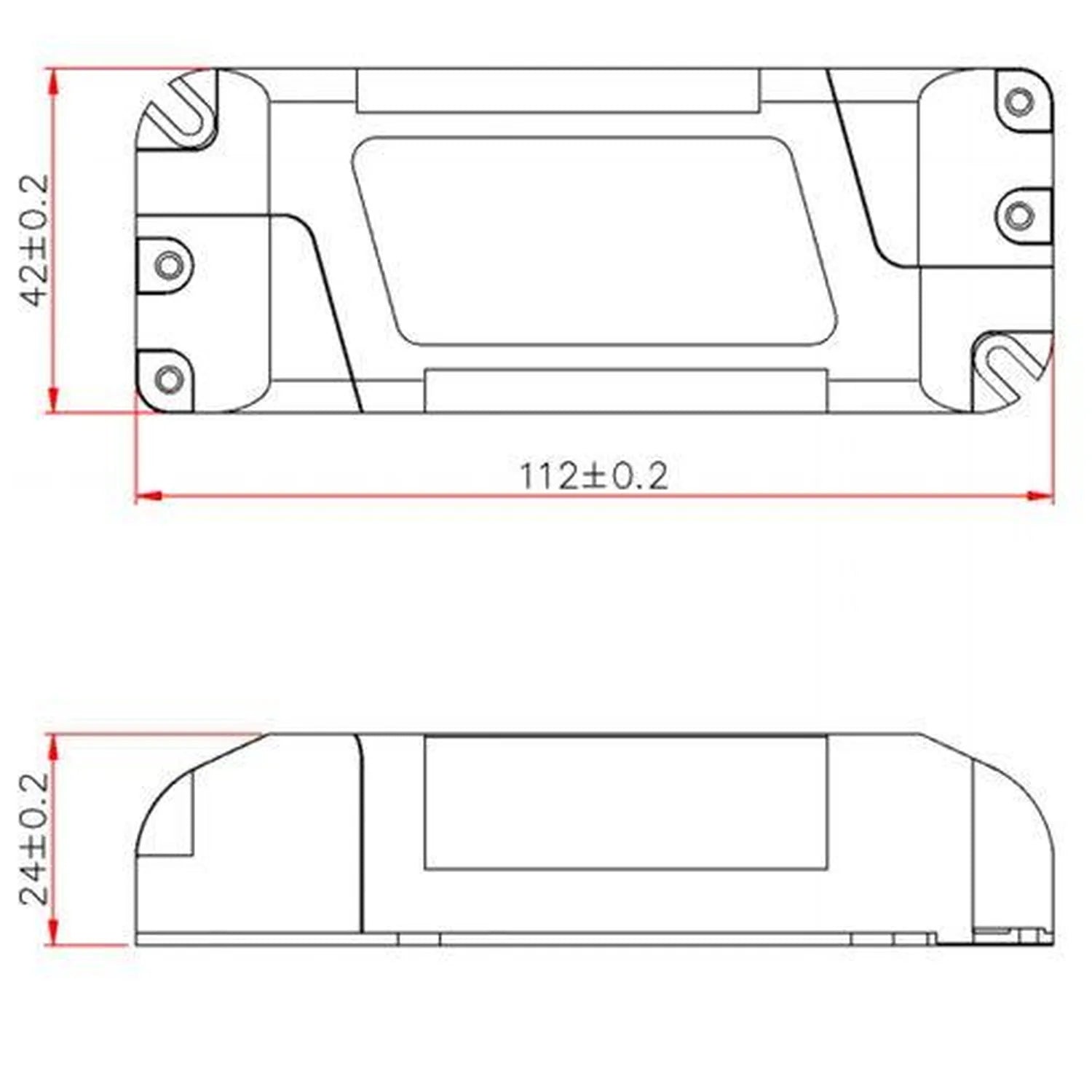

The housing measures 112 x 42 x 24 mm and weighs 75.3g, a compact footprint for fitting alongside other control gear.

Warranty

Glacial covers the GP-DP004N-16V with a 5-year warranty.

Technical Specifications 24 rows Show
BrandGlacial
ModelGP-DP004N-16V
Input100~240VAC
Output voltage16V
Maximum current200mA
StandardIEC 62386
ProtectionOCP / SCP
CoolingFree Air Convection
Rated power3.2W
Voltage tolerance±15%
DC voltage range13.6 ~ 18.4V
Current tolerance200mA+20% / -10%
Ripple & noise (max.)150mV
Efficiency68%
Input voltage range90 ~ 264VAC
Frequency50 Hz ~ 60 Hz
AC current (max.)0.11A at 115VAC
Inrush current (max.)21A at 115VAC / 42A at 230VAC
Withstand voltageI/P-O/P: 3.75KVAC
MTBF200K hours min.
IndicatorLED indicator for power OK and DALI bus traffic
Warranty5-year
Dimensions112 x 42 x 24 mm (L x W x H)
Weight75.3g

Manufacturer datasheet. Figures as published by the manufacturer.
