DALI LED Driver 54W Constant Current 1050-1750mA | EASEIC LND154BL
- Vendor
- Easeic
- SKU
- 673154
- Availability
- In stock
- Weight
- 0.1 kg
£39.85inc VAT £33.21exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

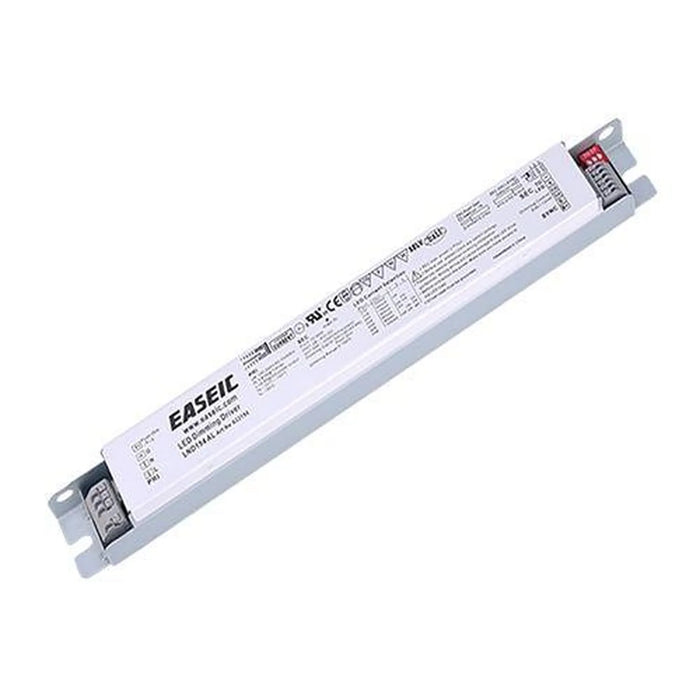

The EASEIC LND154BL is a constant current DALI LED driver rated up to 54W, with DALI 2 dimming and feedback. DIP switches set the output current anywhere from 1050-1750mA, so one driver can be matched to the LED load in front of it.
DALI LED driver key features
- Output power: up to 54W
- Output current: 1050-1750mA, selected by DIP switch
- Output voltage: 3V to 48V
- Dimming: DALI 2, 1-10V, PWM and Push-Dim from a mains push switch
- Efficiency and power quality: up to 88%, power factor >0.95, THD <10%
- Protection: short circuit, over current, over voltage and open circuit
Dimming is analogue and flicker-free across 0-100%. The LEDs can start at 0.1%. Input is 100~277Vac, and the driver carries a 5 year warranty.
Where it fits
Use it with LED panels, battens and linear lighting, or with downlights and spotlights. Typical projects include offices, retail and hospitality lighting, where a DALI system or a simple push switch handles control.
Installation notes
- Push-in terminals, so no screwdriver is needed
- Wire with 16-24 AWG solid copper rated >=300V/85C
- DALI and switch-dim share the same terminals (DA/N and DA/L)
- Connecting DALI disables the 1-10V and switch-dim functions
- Up to 16 drivers on a B16 breaker, or 28 on a C16 (230VAC)
The unit measures 118x67x30mm.
Current setting and output
It leaves the factory set to 1050mA. At that setting the maximum output is 50W. Move the DIP switches to 1200mA or above and the full 54W becomes available.
Technical Specifications 29 rows Show
| Brand | EASEIC |
| Model | LND154BL |
| Order code | 673154 |
| Type | LED DALI Dimmable Driver |
| Output power | Up to 54W |
| Output current | 1050-1750mA |
| Output voltage | 3V to 48V |
| Max open circuit voltage | <57V |
| Input voltage | 100~277Vac |
| Frequency | 50/60Hz |
| Efficiency | Up to 88% |
| Power factor | >0.95 |
| Dimming range | 0-100% |
| Protection | Short Circuit, Over Current, Over Voltage, Open Circuit |
| Operating temperature | -20 to +50, 20-95% RH non-condensing |
| Dimensions | 118x67x30mm (LxWxH) |
| Weight | 0.23Kg(0.51lbs) |
| Dimming | DALI 2 / 1-10V / PWM / PUSH-Dim |
| THD | <10% |
| Line current | 0.69A@100VAC 0.61A@120VAC 0.31A@230VAC |
| Inrush current | 39A(twidth=270us measured at 50% Ipeak) at 230VAC |
| Leakage current | <0.5mA/230VAC |
| Max case temperature (Tc) | 75 for Life & 85 for UL Safety |
| DALI sink current | <2mA |
| LED start | 0.1% |
| Environmental rating | UL damp and dry |
| Wire | 16-24 AWG solid copper wire rated >=300V/85C |
| PUSH cable length | <20m |
| Warranty | 5 year warranty |
Manufacturer datasheet. Figures as published by the manufacturer.
