Constant Current LED Driver 30W 650mA Flicker Free | Lifud LF-GMR030YS0650H
- Vendor
- Lifuid
- SKU
- 003307
- Availability
- Sold out
- Weight
- 0.15 kg
£6.60inc VAT £5.50exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

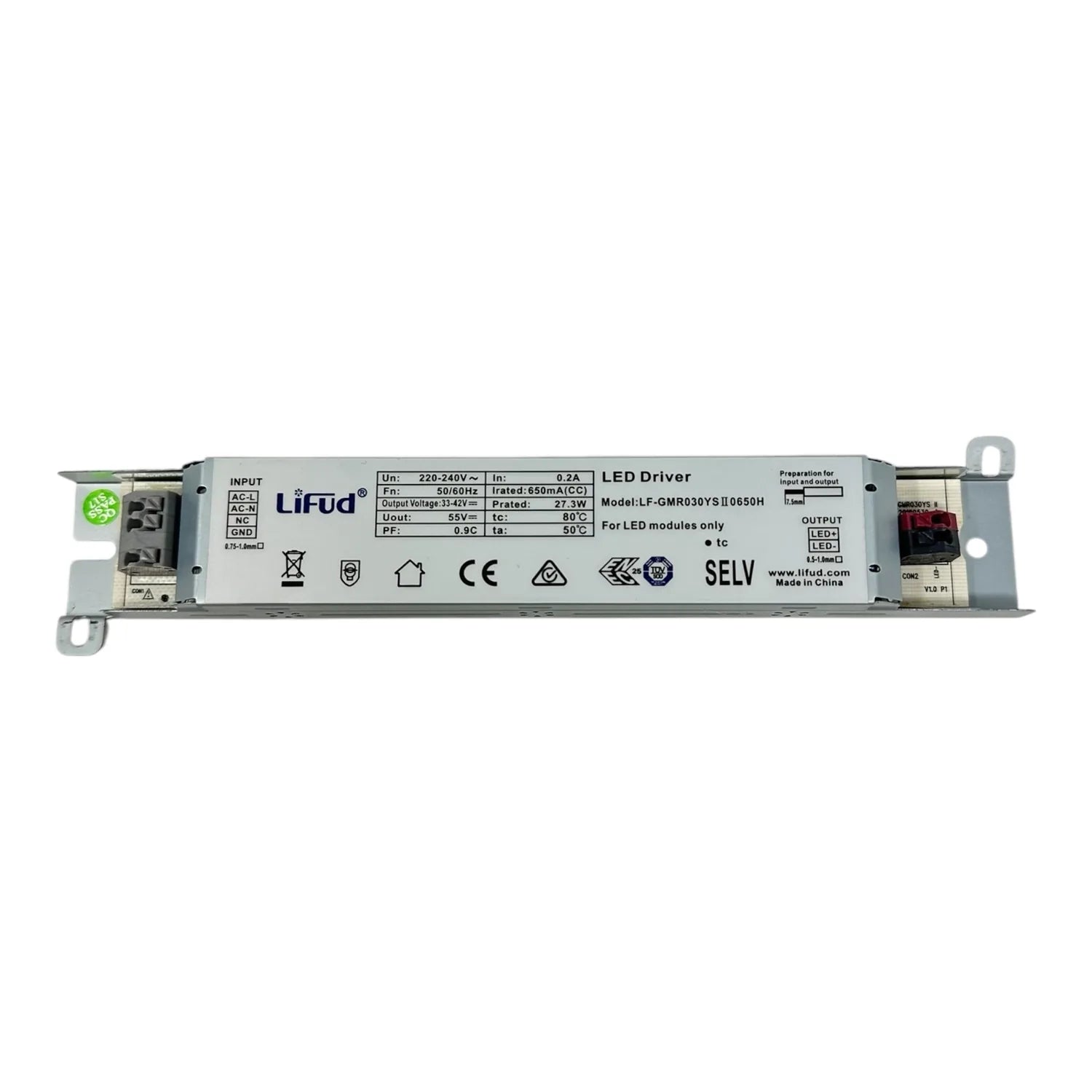

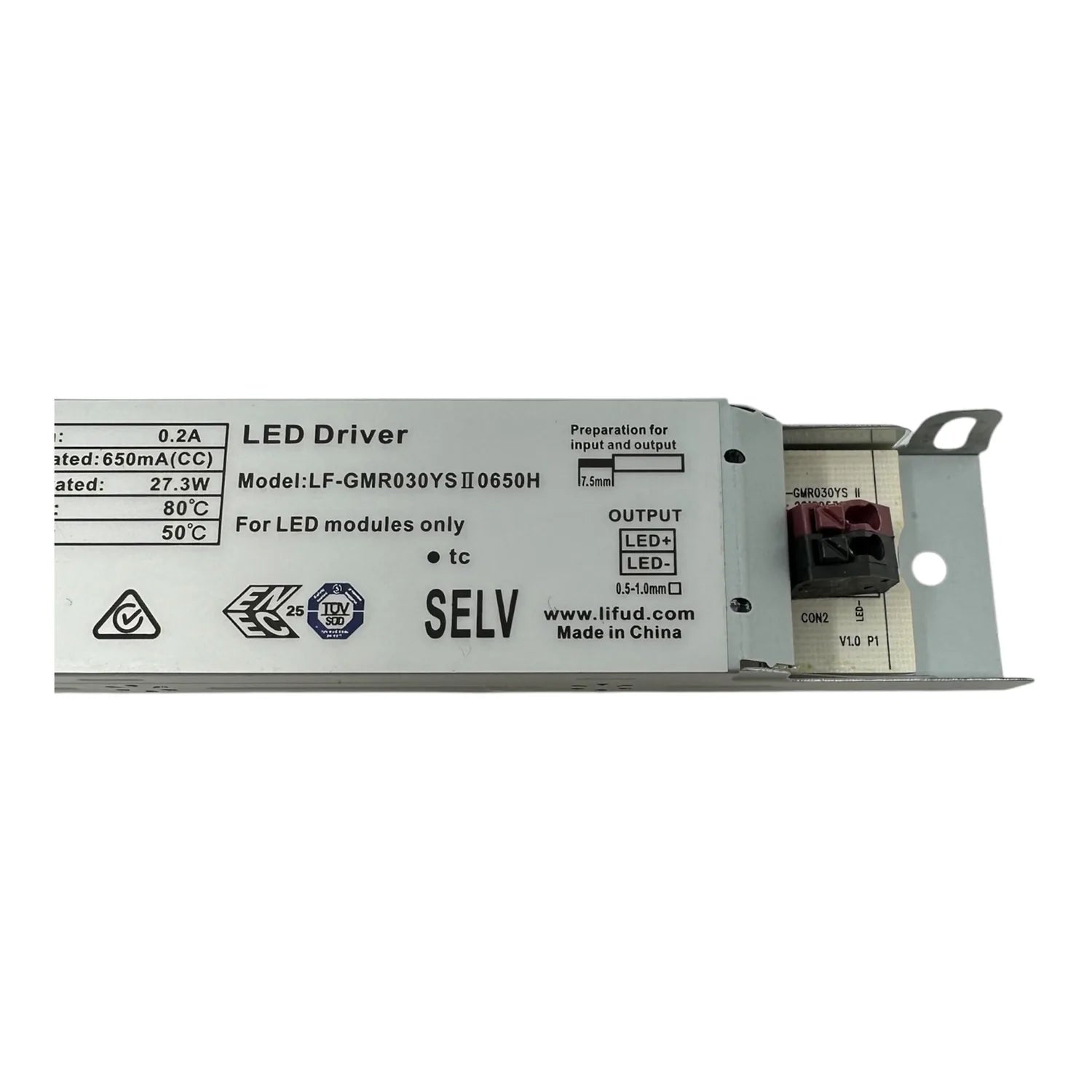

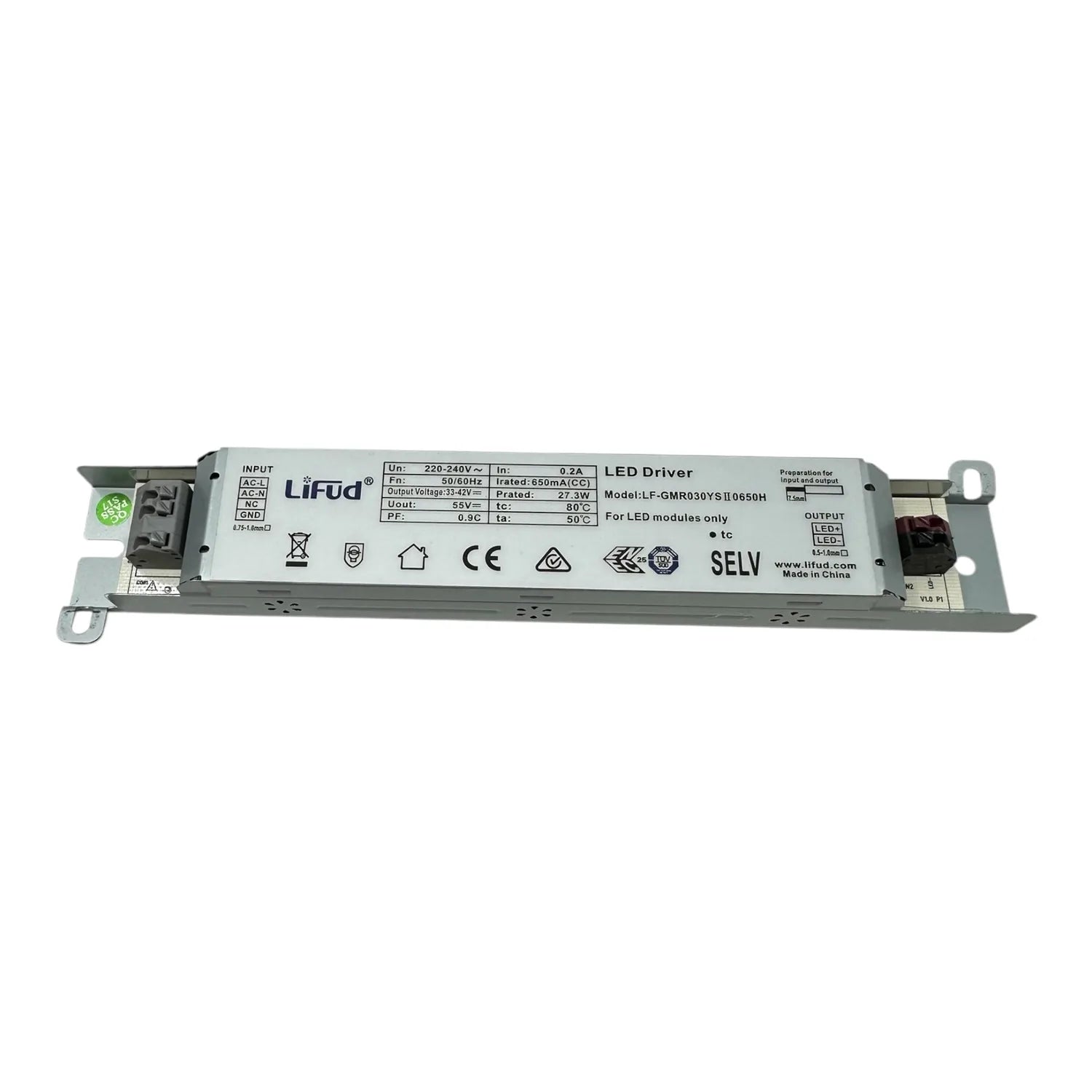

When the driver in an LED tube, batten or panel fails, the fitting itself usually still works. This Lifud LF-GMR030YS0650H is a 30W constant current LED driver with a 650mA output, built as a replacement power supply so the luminaire can stay where it is. It is flicker free and not dimmable.
Constant current LED driver specification
- Output: 30W at 650mA
- Input voltage: AC220-240V, with a maximum input range of AC180-264V
- Power factor: active PFC, PF>0.95@AC230V
- Efficiency: up to 89%, with low THD (≤20%)
- Surge protection: L-N: 2KV; L/N-GND: 4KV
- Lifetime and warranty: nominal lifetime above 50000 hours, 5 years warranty
Where it fits
The driver is isolated and intended for class I LED luminaires. Typical jobs include LED tri-proof lights, LED tubes and battens, and LED panels and arrays, along with other linear lights. Fault-finding on a run of battens? Swap the driver, not the fitting.
Installation notes

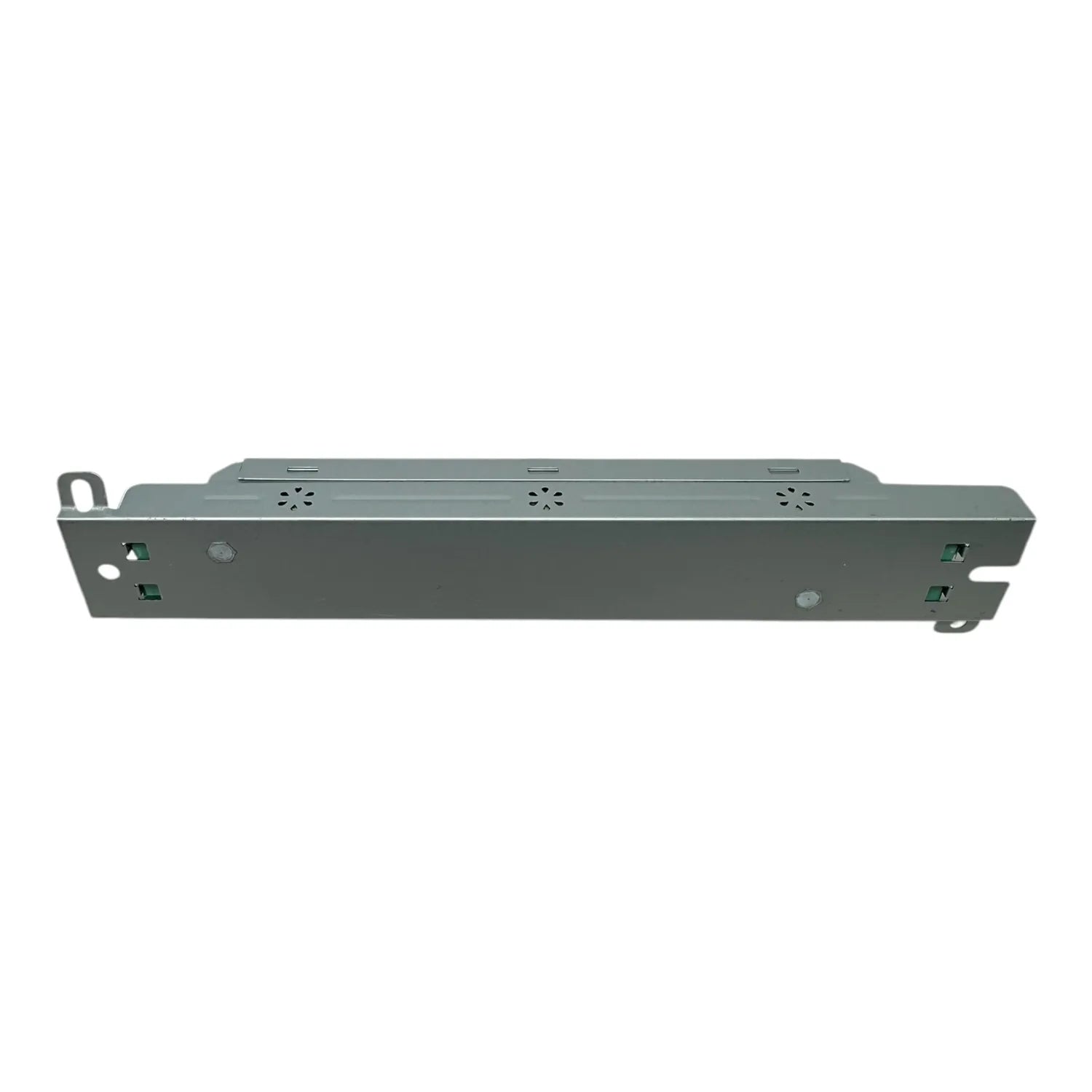

It goes inside the luminaire. The linear metal case measures 20 x 2.5 x 3.0 cm, a slim profile suited to the driver channel of a linear fitting. Check that your luminaire calls for a 650mA constant current supply at 30W before fitting, since this version does not offer dimming.
Why a replacement driver makes sense
Replacing the whole fitting means extra labour, new fixings and more waste. Changing only the power supply keeps the original housing, diffuser and mounting in place. For installers handling maintenance contracts, that is often the quicker repair.
Technical Specifications 16 rows Show
| Brand | Lifud |
| Model | LF-GMR030YS0650H |
| Type | Constant Current LED Power Supply |
| Output power | 30W |
| Output current | 650mA |
| Input voltage | AC220-240V |
| Max input voltage range | AC180-264V |
| Power factor | PF>0.95@AC230V |
| Efficiency | up to 89% |
| THD | ≤20% |
| Surge protection | L-N: 2KV; L/N-GND: 4KV |
| Case | Linear metal case non-dimmable version |
| Dimensions | 20 x 2.5 x 3.0 cm |
| Luminaire class | class I |
| Lifetime | above 50000 hours |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
