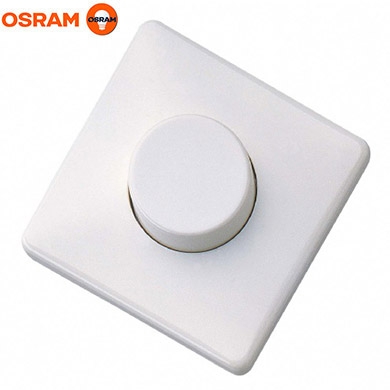

OSRAM DIM MCU 1-10V Dimmer Switch



Price inc VAT

LED OSRAM Dimmer Switch 1-10V with rotary knob. It can control up to 50 LED lights

Bulk Savings £££
# Items Our Price Savings
6 Items £43.17 Save 3%
12 Items £41.83 Save 6%
24 Items £40.94 Save 8%

OSRAM Rotary Dimmer Switch. 1-10V control signal

This dimmer switch gives a varialble output singal between 1-10V, which is transmitted to the dimmable LED drivers. The control signal is widely used by the following dimmable Voltacon LED products:

  • Dimmable LED panels
  • LED T8 and LED T5 tubes
  • Down lighters and Round Panels
  • 30W and 50W low/high bay LED lights
  • Non-corrosive fittings and all the VOLTALED LED fittings.

The switch has a push on/off function to turn off the mains voltage.

The 1-10V singal is connected to the input of the LED drivers using a pair of red and black cables. The installers must use a 4 core cable for the implementation of the dimming system

Why 4-Cores ?

  1. Live wire
  2. Neutral wite
  3. Control signal positive (+)
  4. Control signal negative (-)


Technical Specifications of osram dimmer switch.

  • EAN: 4050300347424
  • Dim interface: 1-10 V
  • Control output load capacity: max. 40 mA
  • Permissible line cross section: max. 1.5 sqmmProtection class: II
  • Nominal voltage: 230 V
  • Number of control outputs: 1
  • Load contact: 6 A
  • Type of installation: Integrated in flush device box
  • Operating freq: 50-60 Hz
  • Product colour: White
  • Type of protection: IP20
  • Ambient temperature range: 0 +50 CLength: 80 mm
  • Height: 40 mm
  • Width: 80 mm

Technical Manual


OSRAM 1-10V dimmer switch

OSRAM 1-10 dimmer switch functions and wiring
