Dimmable LED Driver 36W 1-10V Constant Current 200-1050mA | Easeic LNA136AL
- Vendor
- Easeic
- SKU
- 632136
- Availability
- In stock
- Weight
- 0.15 kg
£28.34inc VAT £23.62exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

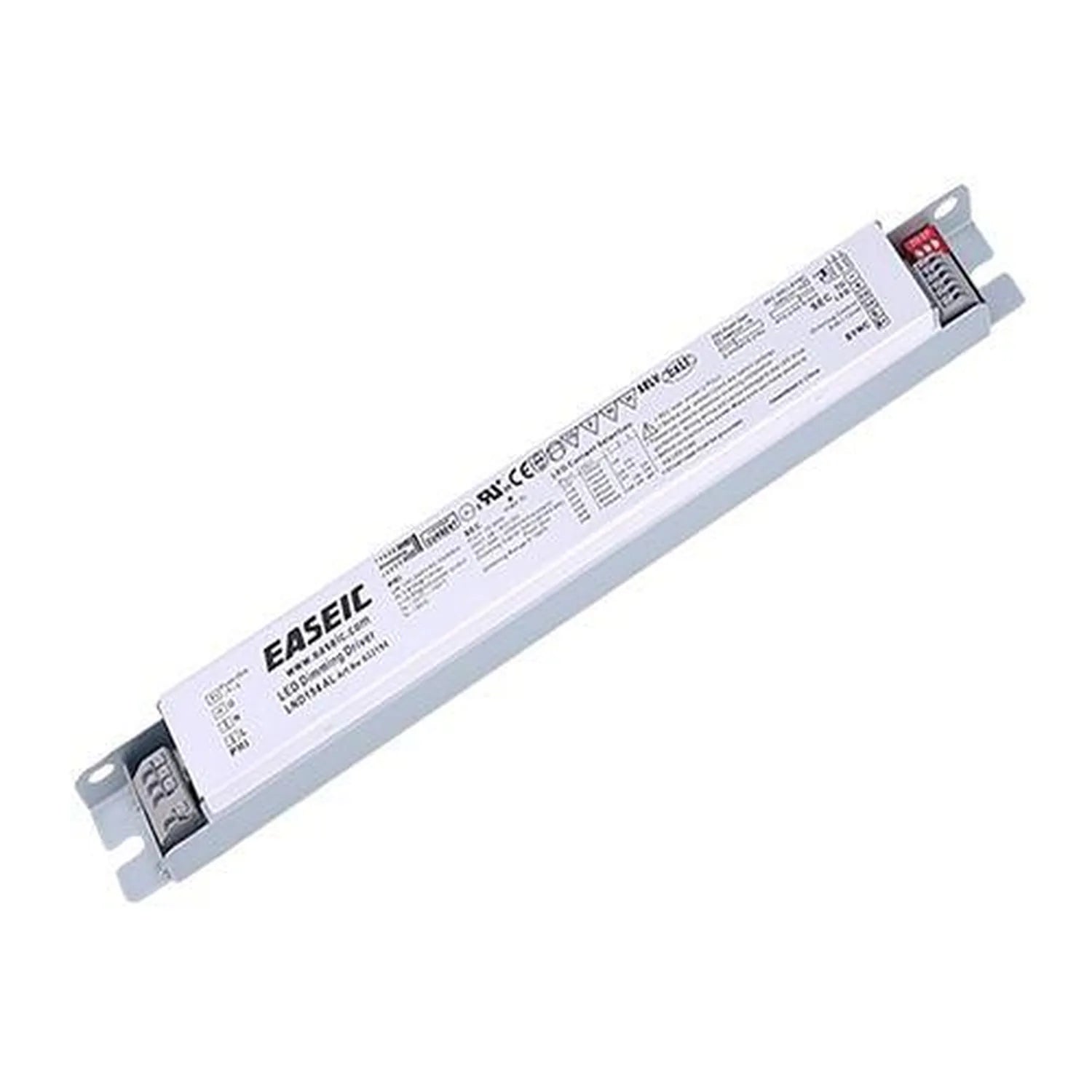

The Easeic LNA136AL is a 36W dimmable LED driver with a constant current output that you set between 200mA and 1050mA using the DIP switches. It suits LED panels, downlights, battens, linear fittings and architectural luminaires. Its slim 280 x 30 x 26mm housing has push terminals and fits inside compact fittings.
Dimmable LED driver key features
- Output power: up to 36W
- Adjustable current: 200-1050mA, selected by DIP switch
- Output voltage: 3V-66V DC, with maximum open circuit voltage <77V
- Mains input: 100-277V AC, 50/60Hz
- Dimming: 0/1-10V, PWM, resistance or PUSH-Dim, analogue flicker-free across 0-100%
- Power quality: efficiency up to 88%, power factor >0.95, THD <10%
Control and protection
Several control methods are supported. A building management system can send a 0/1-10V signal, or PWM and resistance dimming can be used instead. For simpler rooms, PUSH-Dim works from a standard push-button switch. Short circuit, over voltage, over current and open circuit protection are all built in.
Applications
Typical uses include LED panels and recessed luminaires, linear fittings and battens, and commercial lighting in offices, retail and hospitality. OEM luminaire manufacturers also use it as a built-in driver. The unit carries a 5 year warranty.
Before you install
- The factory default is 200mA. Set the current you need before connecting the LEDs.
- Full 36W output is available from 550mA upwards. At 200mA the maximum is 13W, so check the DIP switch table in the datasheet.
- Keep total push-dim cable length under 20m.
- Use only a self-reset push button without an indicator light, linked between Push-dim and L(AC).
Technical Specifications 30 rows Show
| Brand | Easeic |
| Model | LNA136AL |
| Type | LED 1-10 Dimmable Driver |
| Output power | Up to 36W |
| Output current | 200mA - 1050mA Adjustable |
| Factory default current | 200mA |
| Output voltage | 3V - 66V DC |
| Maximum open circuit voltage | <77V |
| Input voltage | 100 - 277V AC |
| Frequency | 50 / 60Hz |
| Input current | 0.44A@100VAC 0.36A@120VAC 0.19A@230VAC |
| Maximum input power | 41.5W |
| Inrush current | Cold start 55A at 230VAC |
| Leakage current | <0.5mA/230VAC |
| Dimming type | 0/1-10V / PWM / Resistance / PUSH-Dim |
| Dimming range | 0 - 100% |
| Efficiency | Up to 88% |
| Power factor | >0.95 |
| THD | <10% |
| Protection features | Short Circuit, Over Voltage, Over Current, Open Circuit |
| Operating temperature | -20°C to +50°C |
| Maximum case temperature | 75°C for life, 85°C for UL safety |
| Dimensions | 280 x 30 x 26 mm |
| Environmental rating | UL Damp and Dry |
| Weight | 0.23Kg |
| Audible noise | <24dB Class A |
| Approvals | UL8750, UL1310, CSA-C22.2 No.250.0-08, ENEC EN61347-1, EN61347-2-13 |
| Wiring | 16-24 AWG solid copper wire rated >=300V/85C |
| Order code | 632136 |
| Warranty | 5 Years |
Manufacturer datasheet. Figures as published by the manufacturer.
