LED Gear Tray 18Watt - Emergency Battery 0%- 10% MS (Microwave Sensor)
Ref: 2D01TK-16F6£44.99
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £43.64 | Save 3% |
| 12 Items | £42.29 | Save 6% |
| 24 Items | £41.39 | Save 8% |

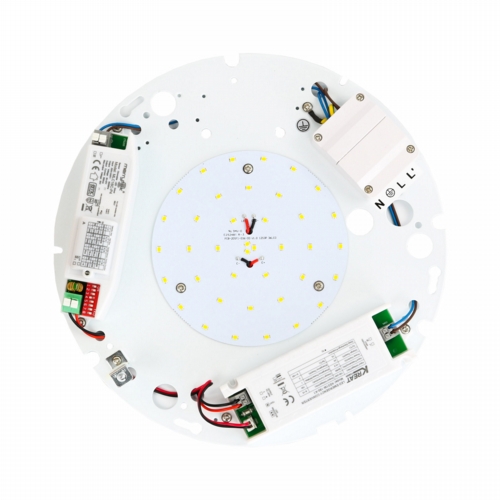

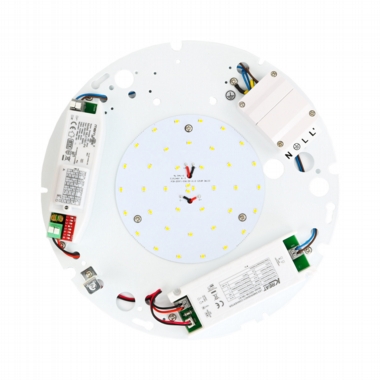

2D LED Gear Tray 16Watt. Emergency and microwave sensor 0 to +10%
Retrofitting emergency lights that previously held fluorescent 2D bulbs? The LED gear tray may fit your needs. With an emergency driver and an integrated 3.6V battery, the tray will offer emergency lighting for three hours. It is equipped with a motion sensor to take lighting from full to either 10% or 0%, depending on user settings, after a set period. The junction box is fully insulated, allowing for a safe connection to the main voltage. Its 4-way power block lets you set the tray to function as needed. This is suitable for both wall and ceiling installations, offering the best emergency lighting option available.
Electrical Specifications
|
Fitting: |
2D/4pin |
Luminous flux: |
1600lm |
|
Wattage (rated): |
18 Watt |
Color Rendering index: |
>80 |
|
Voltage: |
100-265Volt |
Typical efficiency: |
100lm/W |
|
Line frequency: |
50/60Hz |
Beam Angle: |
120deg. |
|
Average lifetime: |
50,000 hours |
Current (Amps) |
250mA |
|
Color Temperature: |
|
Dimensions |
262mm diameter |
|
Warm white: |
2700K - 1400lumen |
Power Factor |
0.95 |
|
Natural white: |
4000K - 1500lumen |
Dimmable |
NO |
|
Cool white: |
6000K - 1600lumen |
Warranty: |
5 years |
|
Operating Temp: |
-20 OC to 45 OC |
Certification: |
TUV, ROHS Compliant, CE, UL |

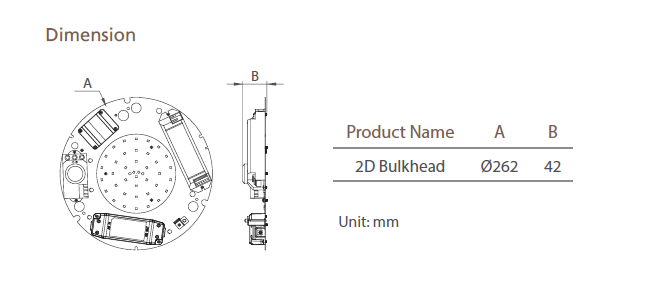

Dimensions and Layout
Technical Manual
