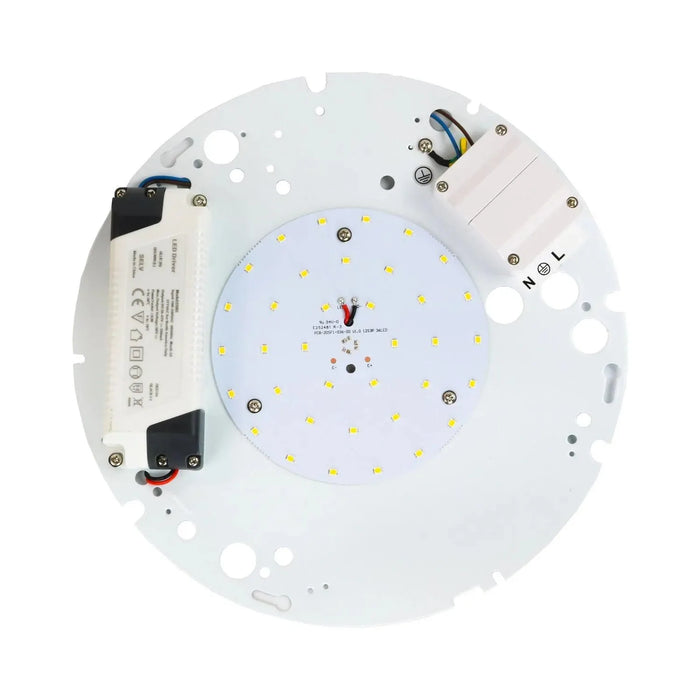

Circular LED module viewed from reverse side showing yellow SMD LEDs, white driver unit, wiring, and mounting holes.

LED Gear Tray Replacement 16W 2D Retrofit for 28W and 36W CFL | Ledison

Warm White 2700K
£26.24
Skip to product information
Circular LED module viewed from reverse side showing yellow SMD LEDs, white driver unit, wiring, and mounting holes.

LED Gear Tray Replacement 16W 2D Retrofit for 28W and 36W CFL | Ledison

Vendor
Ledison
SKU
101017
Availability
Sold out
Weight
0.313 kg

£26.24inc VAT £21.87exc VAT

Sorry, this one is sold out

Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 16W LED gear tray from Ledison takes the place of a 28W or 36W 2D fluorescent lamp inside a round ceiling or wall light. The driver is built in. You keep the existing fitting and swap only the internals, which saves replacing the whole light.

LED gear tray replacement features

  • Power: 16 watts
  • LED type: SMD2835 LEDs
  • Colour options: warm white 2700K (1400lumen), natural white 4000K (1500lumen) or cool white 6000K (1600lumen)
  • Beam angle: 120 degrees
  • Control: on/off only, not dimmable
  • Lifetime and warranty: 50,000 hours, with a 5-year warranty

Fitting and wiring

The tray measures 262mm in diameter. Its LED driver sits on the metal tray itself, so there is no separate gear to house elsewhere in the luminaire. Connections are made through a three-way power block for switched live, neutral and earth, and the junction box is fully insulated.

It suits round bulkheads and ceiling or wall lights that currently run a 2D/4pin lamp. Pick the colour temperature to match the room: warm white for living spaces and corridors, cool white where a crisper light is wanted, natural white for something in between.

Before you buy

Check that your existing fitting takes a 28W or 36W 2D lamp and has room for a 262mm tray. The unit is not dimmable, so it should go on a standard switched circuit rather than a dimmer.

Technical Specifications 17 rows Show
Fitting2D/4pin
Luminous flux1600lm
Wattage (rated)16 Watt
Colour rendering index>80
Voltage100-265Volt
Typical efficiency100lm/W
Line frequency50/60Hz
Beam angle120deg.
Average lifetime50,000 hours
Current250mA
Colour temperatureWarm white: 2700K - 1400lumen, Natural white: 4000K - 1500lumen, Cool white: 6000K - 1600lumen
Power factor0.95
Dimensions262mm diameter
DimmableNO
Operating temperature-20 OC to 45 OC
CertificationTUV, ROHS Compliant, CE, UL
Warranty5 years

Manufacturer datasheet. Figures as published by the manufacturer.
