Product Description

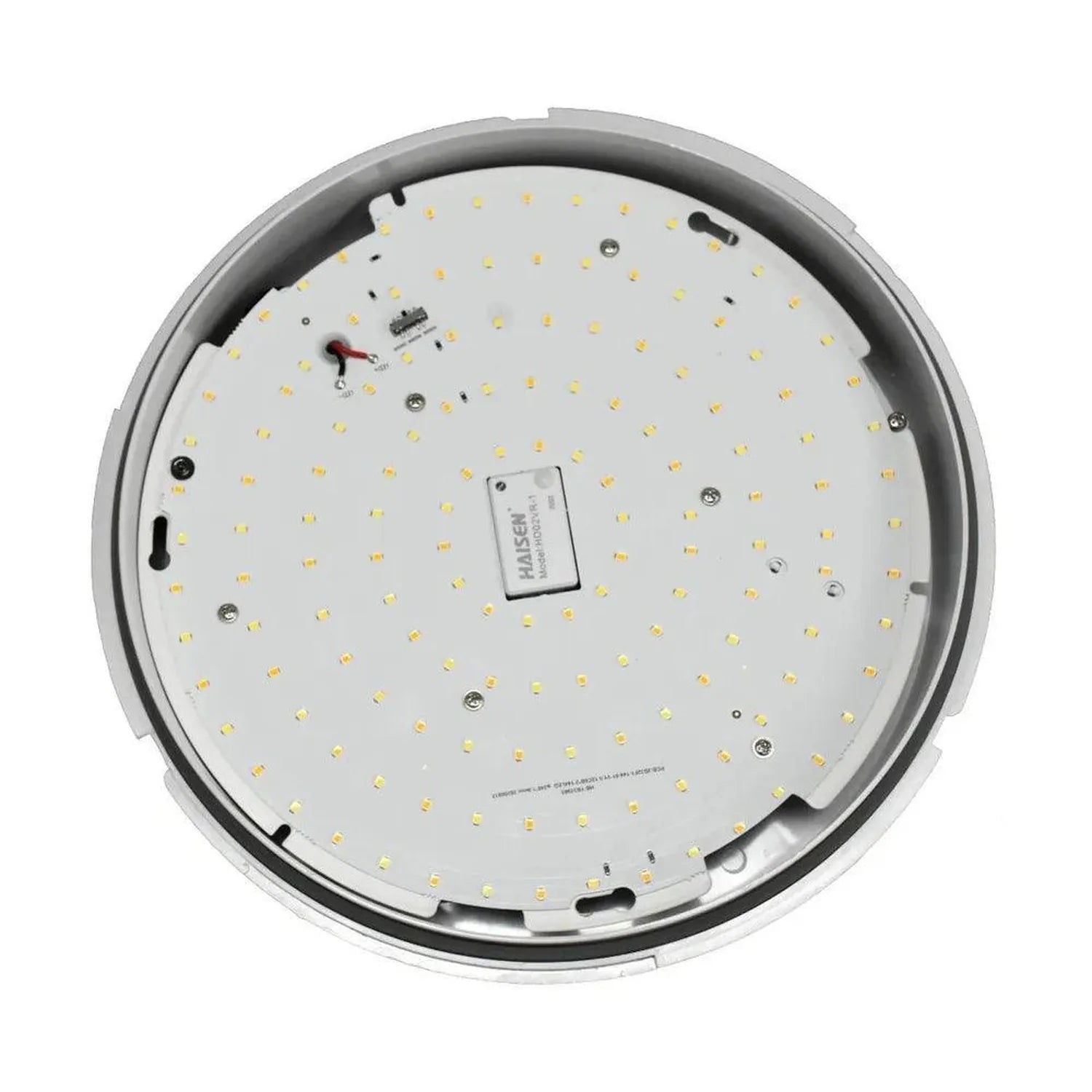

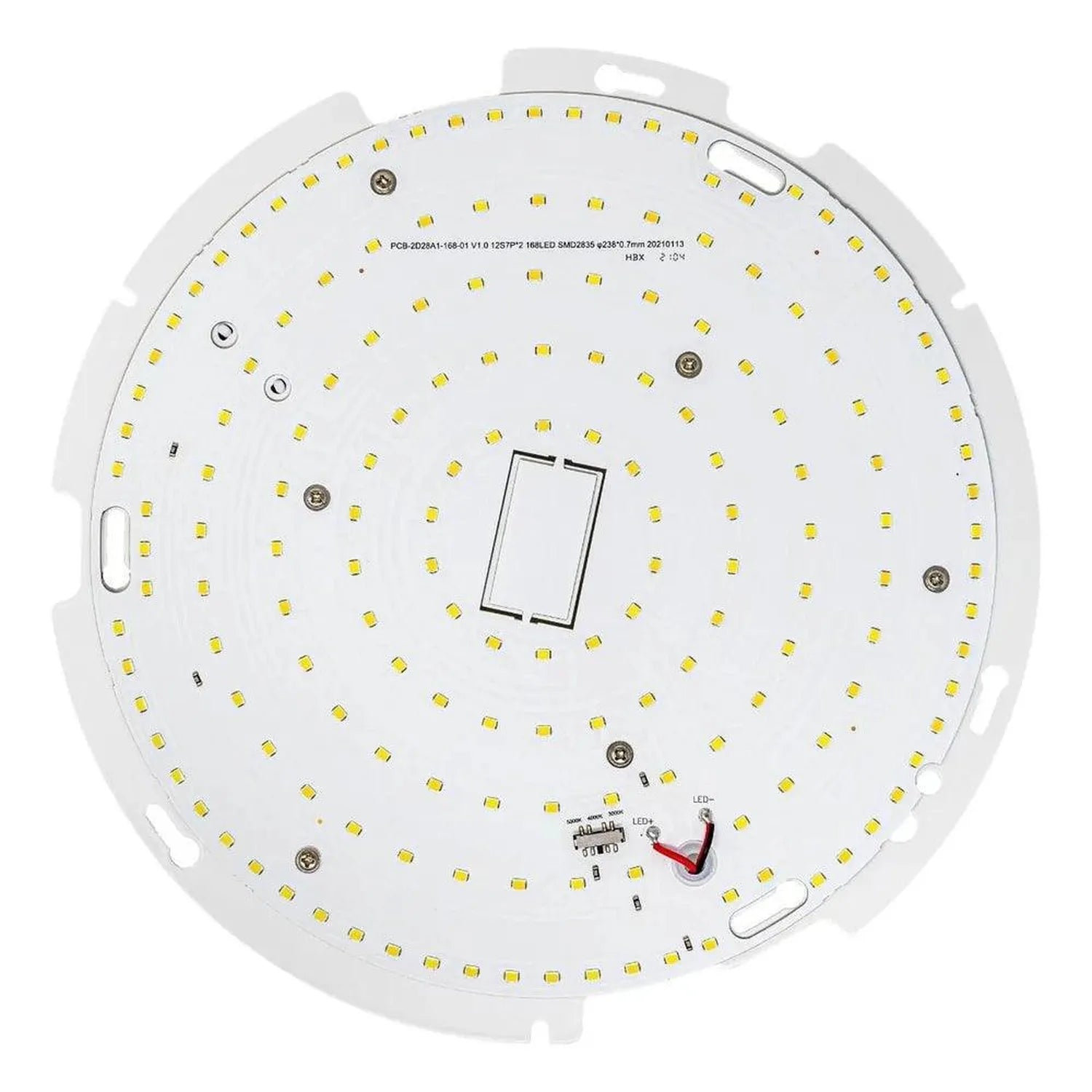

This 18W LED gear tray combines the light engine, an emergency driver and a battery in one unit. It takes the place of a 28W or 36W 2D fluorescent lamp inside a round ceiling or wall light, so the existing fitting stays where it is. Output is 1800 lumens at 100lm/W.

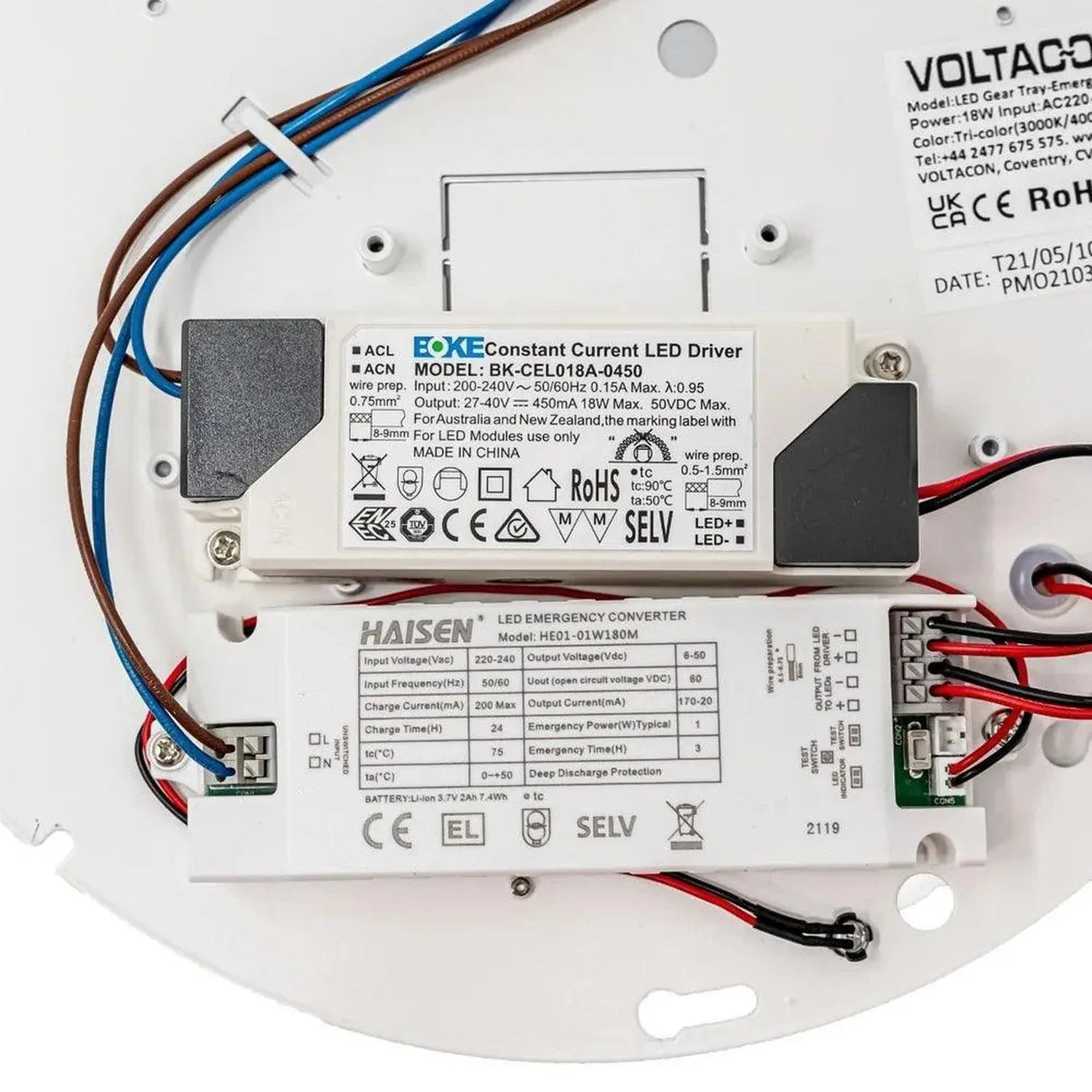

LED gear tray with emergency backup

Day to day it behaves like any other light on a wall switch. When the mains supply fails, it carries on as an emergency light for up to 3 hours, making it a maintained emergency fitting. The emergency output is 1W maximum.

Key features

  • Power and output: 18W, 1800lm, 100lm/W

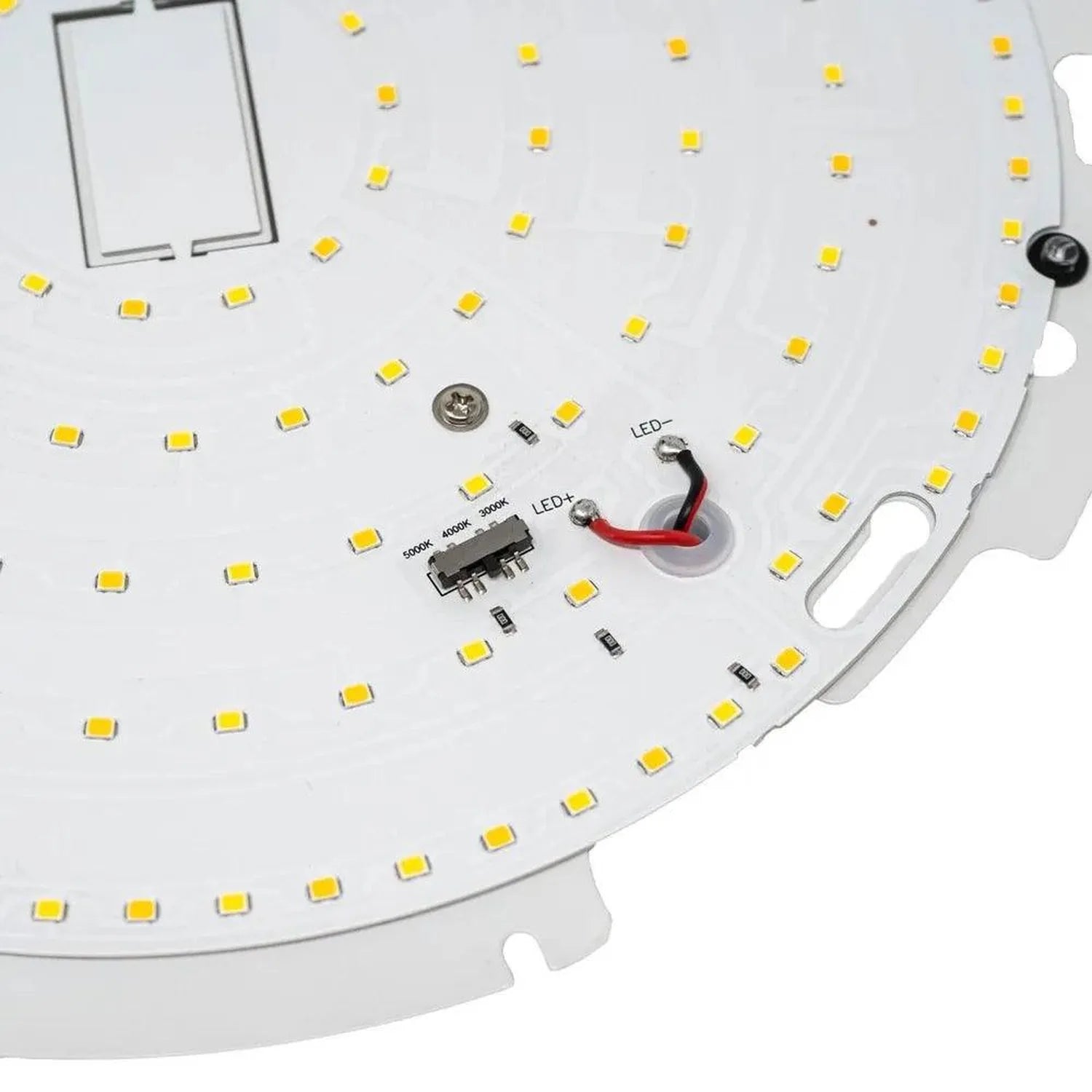

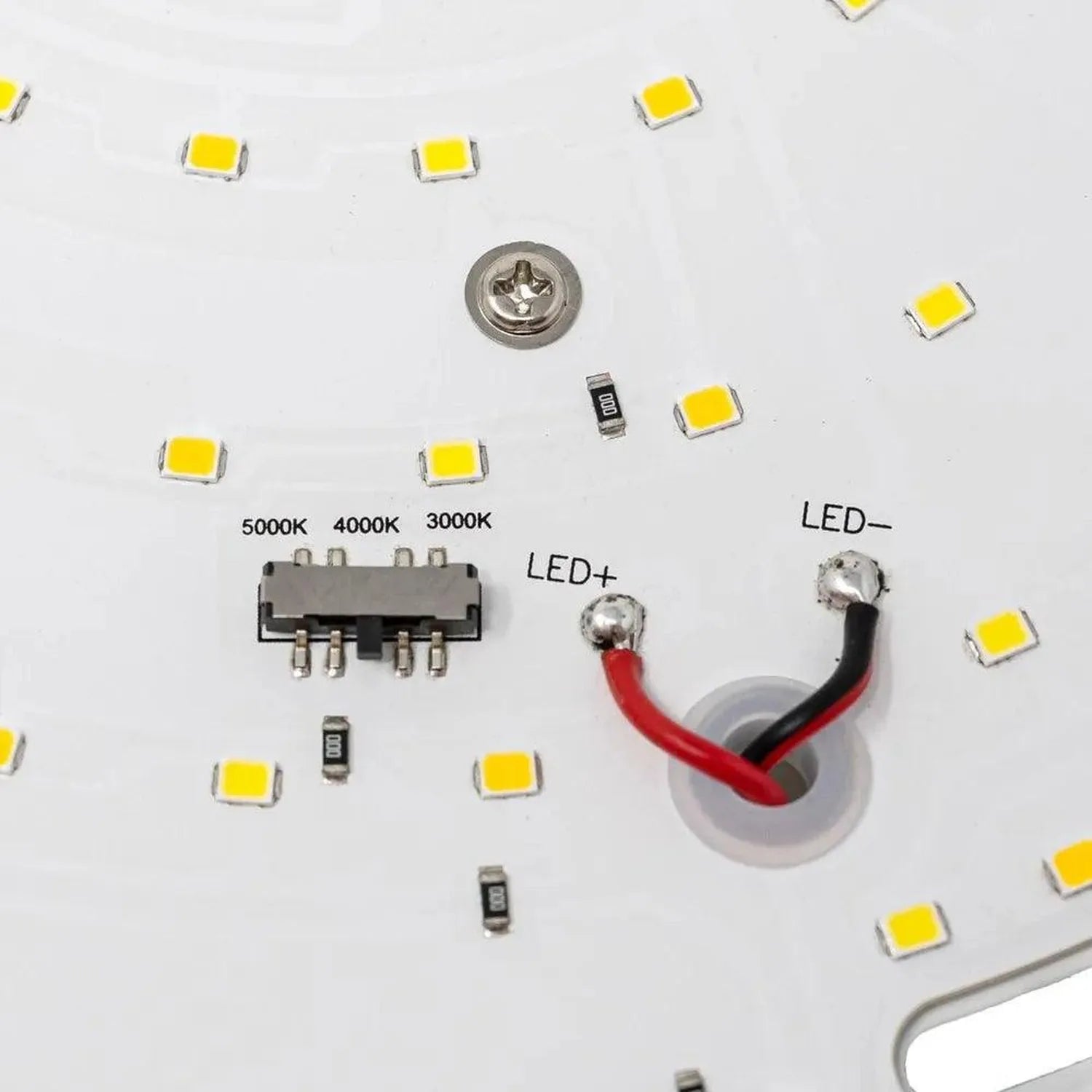

  • Colour temperature: 3000K, 4000K or 5000K
  • Emergency battery: LiFePO4 18650, 3.2V 1800mAh, up to 3 hours
  • Beam angle: 120°
  • Lifetime: 50,000 hours
  • Warranty: 5 years LED, 1 year emergency

Please note it is not dimmable.

Installation

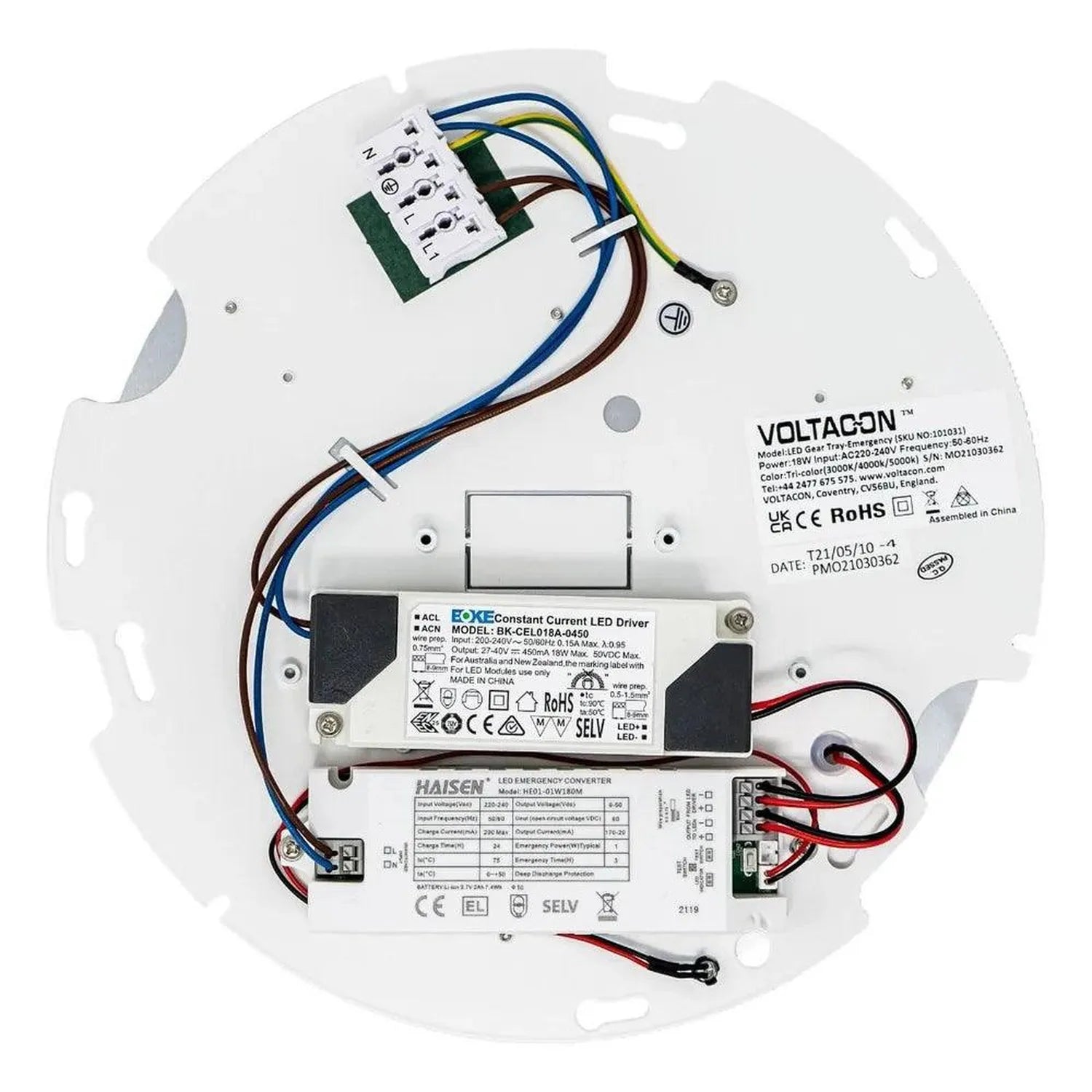

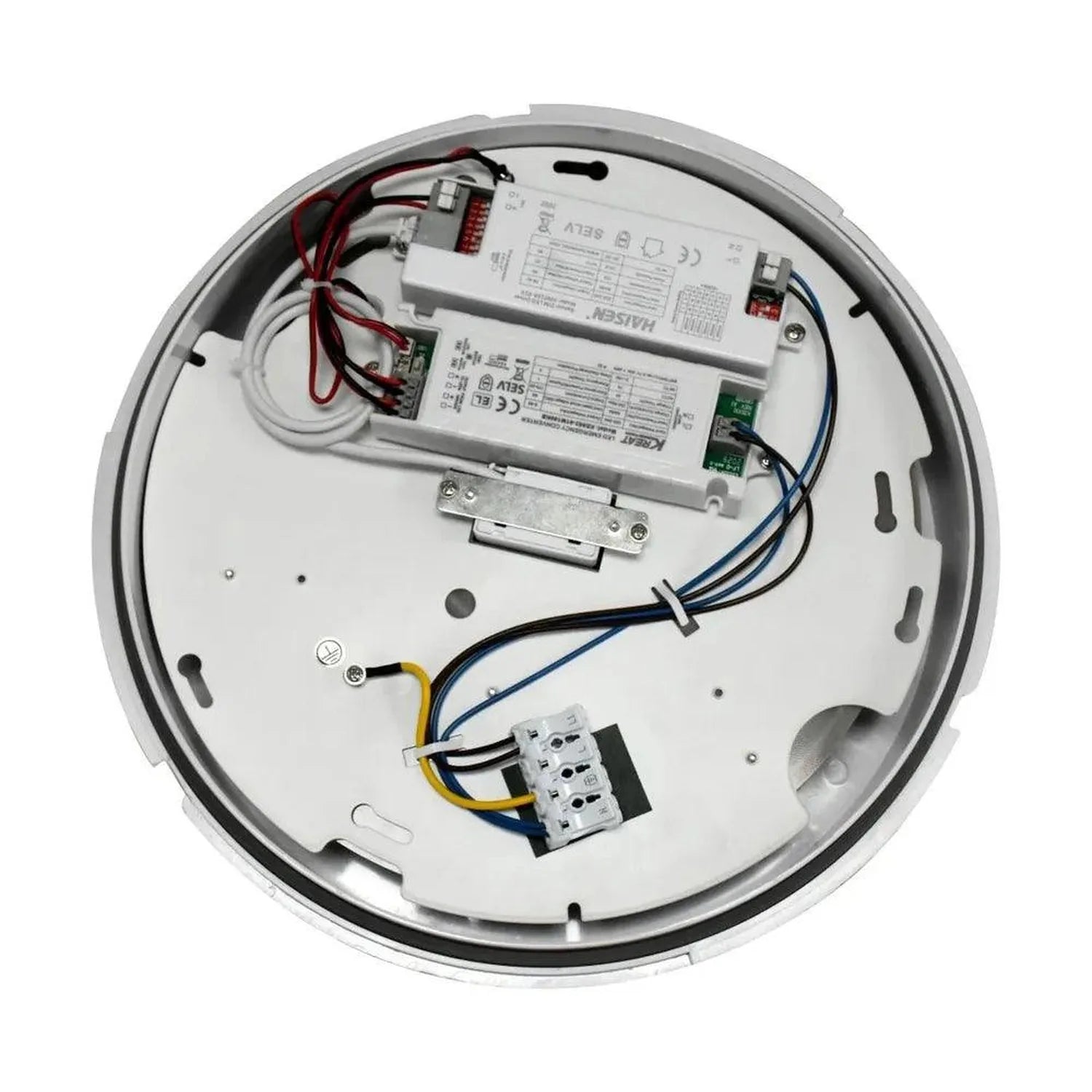

The tray measures 262mm in diameter. Wiring goes into a fully insulated junction box with a 4-way terminal block. That block takes a switched live, an unswitched live for the emergency circuit, neutral and earth. The unswitched live is what keeps the battery charged and lets the emergency function work when the switch is off or the supply drops.

Where to use it

Corridors, stairwells and communal areas are the obvious places. It also suits entrances and commercial spaces where an existing 2D light fitting needs both an LED upgrade and emergency cover. Swapping the gear tray avoids replacing the whole luminaire.

Technical Specifications 20 rows Show
Fitting2D / 4 pin
Luminous flux1800lm
Wattage (rated)18W
Colour rendering index>80
Voltage100-265V
Typical efficiency100lm/W
Line frequency50/60Hz
Beam angle120°
Average lifetime50,000 hours
Current250mA
Colour temperature3000K / 4000K / 5000K
Power factor0.95
Dimensions262mm diameter
Emergency durationup to 3 hours
Emergency batteryLiFePO4 18650, 3.2V 1800mAh
Emergency output1W maximum
DimmableNo
Operating temperature-20°C to 45°C
CertificationTUV, RoHS Compliant, CE, UL
Warranty5 years LED / 1 year emergency

Manufacturer datasheet. Figures as published by the manufacturer.
