Flush microwave sensor , Hytronik HC002
Flush microwave sensor , Hytronik HC002

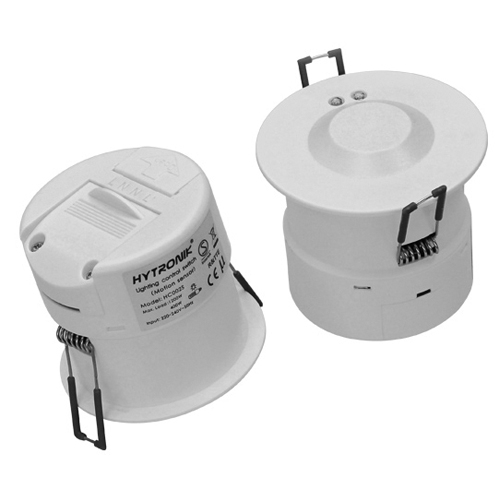

Hytronik Microwave Sensor HMW28 - Flush-mounted

Ref: HMW28


Price inc VAT

HMW28 Flush Mounted Microwave Sensor from Hytronik

Bulk Savings £££
# Items Our Price Savings
6 Items £56.26 Save 3%
12 Items £54.52 Save 6%
24 Items £53.36 Save 8%

Flush Mounted HMW28 Microwave Sensor from Hytronik

The Motion Sensor HMW28 (succeeding the HC002S and HMW20), with microwave technology, is a motion switch that turns on the light on detection of moving objects. The lights will be turned off after a pre-selected hold-time period if motion is not detected. This is a replacement sensor for the discontinued HC008S, HC002S and HMW20.

The flush mounted sensor also features a built-in daylight sensor for switching off light sources when sufficient natural light is detected.

This is a compact version for ceilling-mounted installation. One sensor can switch up to 800W resistive load and up to 800W inductive/capacitive load.

All the settings are fully adjustable by the user to provide high flexibility.

The sensor is discreetly fitted in any ceiling (plasterboard, suspended, false ceiling or wooden ceiling), the photocell is integrated on the top side of the sensor.

Cut-out diameter: 78mm

Height : 73mm

Notice: The threshold of the daylight sensor is adjustable. This function can be disabled if you want to operate the sensor even with ambient day-light.


Technical Characteristics of HMW28

  • Operating voltage: 220 - 240 V
  • Manufacturers Code: HMW28/PRO
  • Switched power (resistive): max. 800 W
  • Switched power (capacitive/inductive): 800 W
  • Stand-by losses: 0.3 W
  • Detection area: 10/25/50/75/100 %
  • Hold time: 5s/30s/1min/5min/10/min/30min, can be customized
  • Daylight threshold: 2-50 lux daylight/twilight/darkness
  • Microwave frequency: 5.8 GHz +/- 75 MHz
  • Detection range: Max 10 m / installation height 3m
  • Detection angle: 360 Deg
  • Mounting height: max. 3m
  • Operating temperature: -20 + 50 C
  • Type of protection: IP20
  • Certificates: UKCA, CE, RCM
  • Lifespan: 50000 h
  • Relay switching cycles: +100000
  • Warranty: 5 years

Technical Manual

Flush Mounted HC002S Sensor

HC002S Microwave Sensor Operating Instructions
