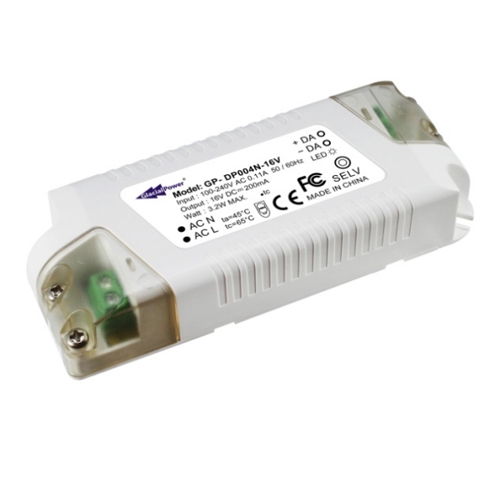

GLACIAL DALI Bus Power Supply 16V

Ref: GP-DP004N-16V

£32.50

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£31.53	Save 3%
12 Items	£30.55	Save 6%
24 Items	£29.90	Save 8%

Description

Specification

Description

16V Power Supply for DALI BUS Systems

For the DALI power Supply to operate properly you need to feed the DALI Bus with 16V output voltage. It is an integral part of a dimmable system with the Digital Addressable Lighting Interface. Our extensive expertise in LEDs also covers all types of digital and analogue dimming component.

The GP-DP004N-16V is made for DALI digital addressable lighting control bus. The main power electronic topology is an AC to DC power supply which is compliant to IEC62386 DALI standard , it is safe to use this device the DALI certified contrllers.

The maximum current is 200mA , that is powerful enought for a complete DALI system with 64 dimmable LED Lights

It can be used in any part of the worlds thanks to the universal AC input voltage. There is an LED indicator for diagnostics, power is OK and DALI bus traffic to assist the commissioning process.
Voltacon supports this product with a 5 year warranty.

FEATURES

Universal AC Input 100~240VAC
Constant Current Operation.
Compatibility with IEC 62386 Standard
Protections: OCP / SCP.
Cooling by Free Air Convection.

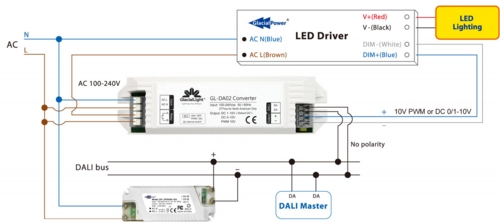

Typical Installation Diagram of DALI Dimming System

Specification

Properties of the DALI Power Supply

Model No.		GP-DP004N-16V
Output	DC Voltage	16V
	Voltage Tolerance	±15%
	DC Voltage Range	13.6 ~ 18.4V
	Rated Current	200mA
	Current Tolerance	200mA＋20% / －10%
	DC Current Range	180 ~ 240mA
	Rated Power	3.2W
	Ripple & Noise (Max.)	150mV
	Efficiency at 230V AC(Typ.)	68%
	Set up time (Max.)	115V AC : < 1S
	Set up time (Max.)	230V AC : < 0.5S
Input	Rated Voltage	100 ~ 240VAC
	Voltage Range	90 ~ 264VAC
	Frequency Range	50 Hz ~ 60 Hz
	AC Current (Max.)	0.11A at 115VAC
	Inrush Current (Max.)	21A at 115VAC / 42A at 230VAC
