DALI LED Driver 54W Constant Current 200-1050mA Dimmable | EASEIC LND154AL
- Vendor
- Easeic
- SKU
- 633154
- Availability
- In stock
- Weight
- 0.1 kg
£39.85inc VAT £33.21exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

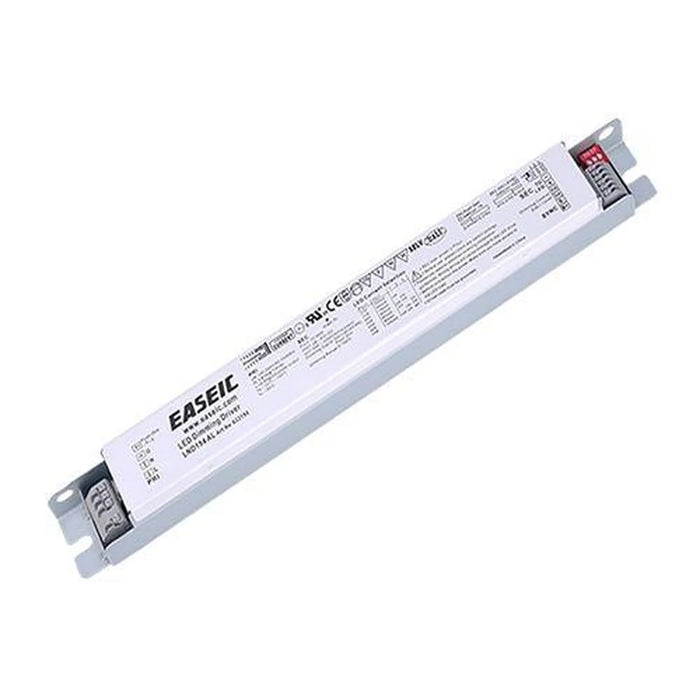

The EASEIC LND154AL is a slim constant current DALI LED driver rated up to 54W. Its output current is set between 200-1050mA using DIP switches, so one driver can be matched to a range of LED loads. Output voltage runs from 3V to 66V.
DALI LED driver features
- Dimming inputs: DALI 2 with feedback, 1-10V, PWM and mains push switch (Push-Dim).
- Dimming range: analogue, flicker-free dimming from 0-100%, with LED start at 0.1%.
- Input: 100~277Vac.
- Efficiency and power factor: efficiency up to 88%, power factor >0.95, THD <10%.
- Protection: short circuit, over current, over voltage and open circuit.
- Housing: ultra slim, 280x30x26mm (LxWxH), with a 5 year warranty.
Where it fits
Use it with LED panels, battens, linear lighting, downlights and spotlights. It suits office, retail and hospitality schemes.
Installation notes
Push-in terminals mean no screwdriver is needed. Wire with 16-24 AWG solid copper wire rated >=300V/85C. DALI and switch-dim share the same terminals (DA/N and DA/L), and once DALI is connected the 1-10V and switch-dim functions are disabled.
On a 230VAC supply, fit a maximum of 16 drivers on a B16 breaker, or 28 on a C16.
Check the current setting
The factory default is 200mA. At that setting the maximum output is 13W. The full 54W is available from 850mA, so set the DIP switches to suit your LEDs before switching on.
Technical Specifications 29 rows Show
| Brand | EASEIC |
| Model | LND154AL |
| Order code | 633154 |
| Type | LED DALI Dimmable Driver |
| Output power | Up to 54W |
| Output current | 200-1050mA |
| Output voltage | 3V to 66V |
| Max open circuit voltage | <75V |
| Input voltage | 100~277Vac |
| Frequency | 50/60Hz |
| Efficiency | Up to 88% |
| Power factor | >0.95 |
| Dimming range | 0-100% |
| Protection | Short Circuit, Over Current, Over Voltage, Open Circuit |
| Operating temperature | -20 to +50, 20-95% RH non-condensing |
| Dimensions | 280x30x26mm (LxWxH) |
| Weight | 0.23Kg(0.51lbs) |
| Dimming | DALI 2 / 1-10V / PWM / PUSH-Dim |
| THD | <10% |
| Line current | 0.69A@100VAC 0.61A@120VAC 0.31A@230VAC |
| Inrush current | 39A(twidth=270us measured at 50% Ipeak) at 230VAC |
| Leakage current | <0.5mA/230VAC |
| Max case temperature (Tc) | 75 for Life & 85 for UL Safety |
| DALI sink current | <2mA |
| LED start | 0.1% |
| Environmental rating | UL damp and dry |
| Wire | 16-24 AWG solid copper wire rated >=300V/85C |
| PUSH cable length | <20m |
| Warranty | 5 year warranty |
Manufacturer datasheet. Figures as published by the manufacturer.
