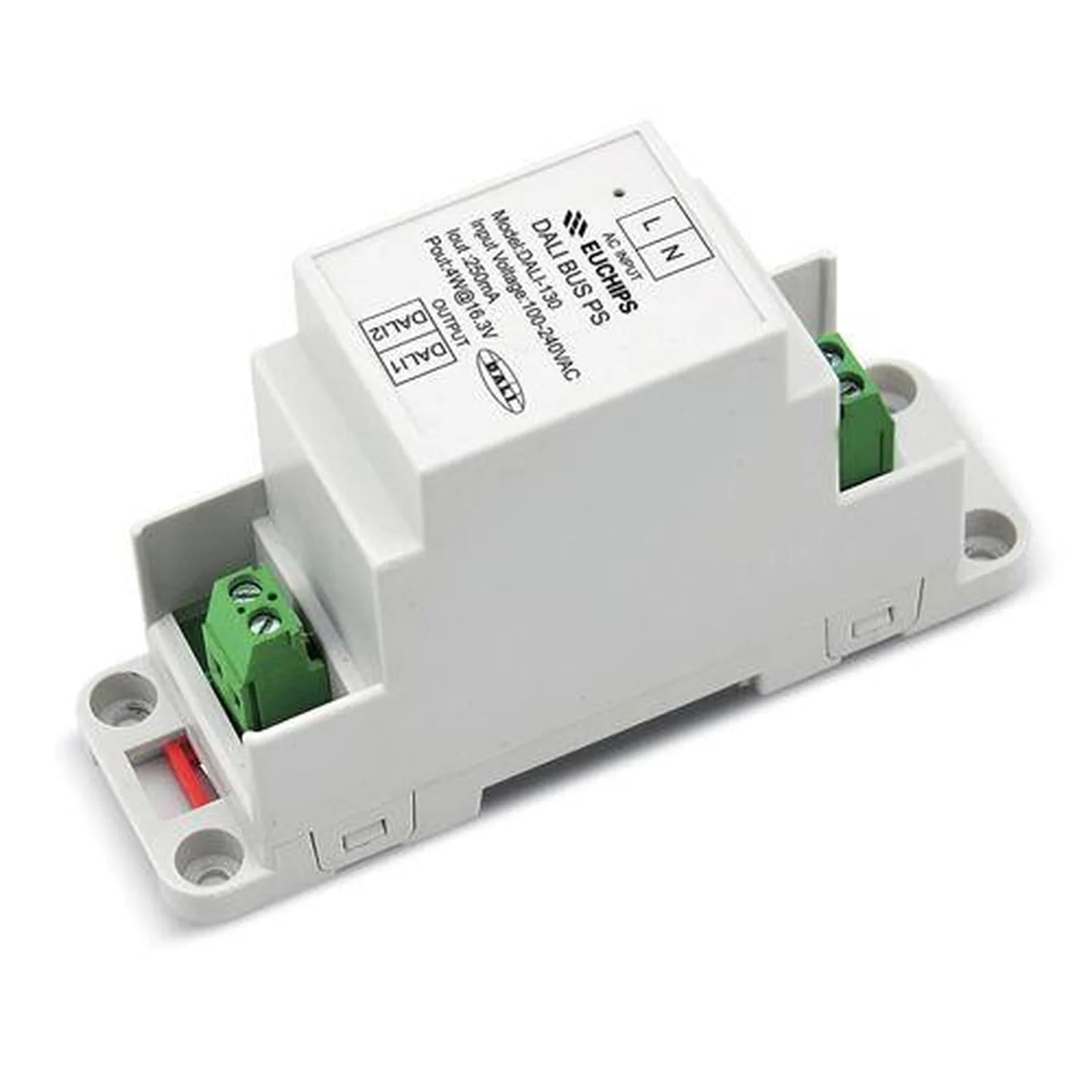

White DIN rail-mounted power supply module with green terminal connectors and product labeling visible on top surface.

DALI Bus Power Supply 16V 250mA DIN Rail 100-240V AC | Euchips DALI-130

£56.69
Skip to product information
White DIN rail-mounted power supply module with green terminal connectors and product labeling visible on top surface.

DALI Bus Power Supply 16V 250mA DIN Rail 100-240V AC | Euchips DALI-130

Vendor
Euchips
SKU
999003
Availability
In stock
Weight
0.1 kg

£56.69inc VAT £47.24exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

Every DALI lighting system needs power on the bus before anything will talk to anything else. The Euchips DALI-130 supplies that power: 16V+5% on the bus line, at up to 250mA, from a 100-240V AC mains input. It mounts on a DIN rail or fixes in place with screws.

DALI bus power supply features

  • Protocol: meets DALI standard IEC62386
  • Output: 16V+5%, 250mA, 4W
  • Input: 100-240V AC, 50/60Hz
  • Protection: over current protection
  • Status: LED indicator light
  • Working temperature: -20℃~+50℃

Installation notes

Fit the unit on a DIN rail inside a distribution board, or screw it to a suitable surface. Terminals accept solid or stranded wire from 0.5 mm to 2.5 mm.

  • DALI cable runs can reach 300m, provided the drop on the signal line stays at 2V or less
  • Each DALI circuit must not exceed 250 mA
  • DALI signals are not SELV, so treat the bus wiring as mains voltage

Sizing the bus load

A DALI ballast normally draws 2mA. Fill all 64 addresses and the ballasts take 128mA between them. That leaves 122mA of the supply's capacity free, which can run controls that have no supply of their own, such as the DALI GC and DALI SC. Plan the remaining headroom before adding further bus-powered devices.

Where it fits

Use the DALI-130 as the bus supply for a DALI dimming installation built around DALI drivers, ballasts and controllers. Small footprint, single output channel. The 100-240V AC input range means one unit covers mains supplies at both 50Hz and 60Hz.

Technical Specifications 18 rows Show
BrandEuchips
ModelDALI-130
Input voltage100-240V AC
Input frequency50/60Hz
Output channels1
Output voltage16V+5%
Output current250mA
Output power4W
Product sizeL112*W35*H67 (mm)
Net weight71g
Working temperature-20℃~+50℃
StandardIEC62386
Gross weight105g
Installationrail and screw fixing
Protectionover current protection
IndicatorLED indicator light
Max DALI cable length300m
Wire cross-section0.5 mm to 2.5 mm

Manufacturer datasheet. Figures as published by the manufacturer.
