EUCHIPS Wall Dimmer Switch 1-10V

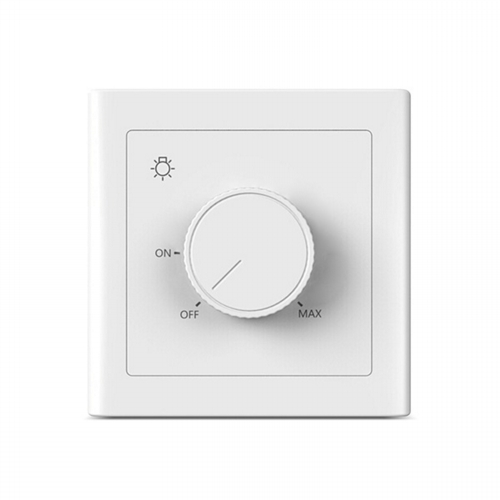

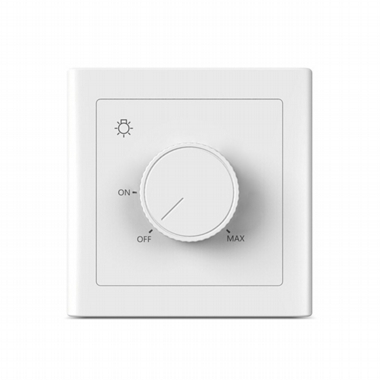

EUCHIPS 1-10V Dimmer Wall Mounted

A reliable and accurate way to control the brightness of LED lights with 1-10V dimmable led drivers. The switch frame is made of fire rate plastic. The ivory-white colour is a neutal colour , aesthetically suitable for any tupe of wall.

There is a dual functionality, on/off and dimming using a rotary button. This classical technique offers significant advantages due to the simplicity of the analogue circuit. The light density is proportioanlly adjusted with a variable resistance signal.

Feature

1. Suitable for 1-10V LED dimming driver with passive signal support

2. Installation in the European and domestic electrical box

3. Can switch off the signal and power supply at the same time

4. ABS material, high flame retardant

5. Fashion, and easy to use

6. Used in the study, bedroom, restaurant, bars and other places need dimming control

Wiring Diagram
