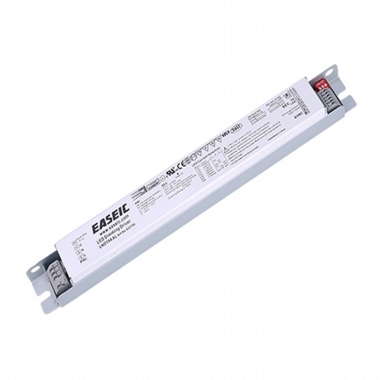

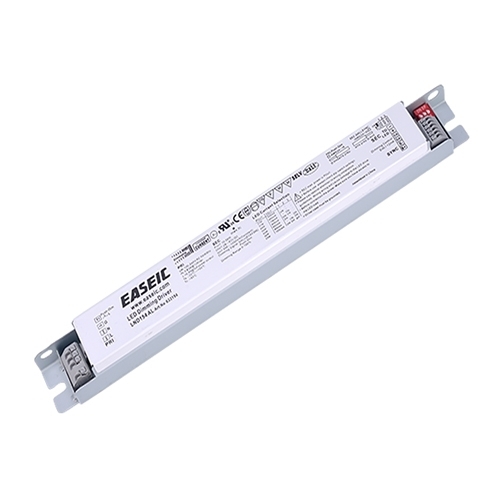

EASEIC LED Driver 27W 1-10V

Ref: LNA127 AL

£24.90

Price inc VAT

Constant Current Driver. Adjustable Settings. 250-700mA. Control LED Fittings

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £24.15 Save 3%
12 Items £23.41 Save 6%
24 Items £22.91 Save 8%
Description
Downloads
Description

EASEIC E-Dimming  0/1-10V Driver. Power 27Watt

The Smart LED Driver ensure light manufacturers and installers complete flexibility in producing high quality LED luminaires. The wide operating window in terms of output voltage and current provides further customization.

All the EASEIC drivers are programmable with dip-switches, using this feature, the parameters can be altered later if it is necessary.

The Smart LNA Driver is made for the OEM marketm the driver offers enormous flexibility for a variety of lighting applications.

All families use the slim linear factor of 280 x30 x26 mm (11" x 1.2" x 1.0") with universal input voltage (120V-265VAC).

Ideal for Wide Range of Lighting Applications

Ideal for for linear and recessed fittings, the power supply is available from smooth 1% or standard 10% minimum dimming through 0-10V dimmers. It enables integration with standards dimmers, occupancy sensor and light management systems.

Functions and Electrical Data

  • 100-240VAC,0/1-10V
  • PUSH-Dim dimming control and remote control dimming
  • Dimming range :0-100%,C.C:250MA-700MA
  • O.V:3-62V ,27W LED remote control constant current driver

Power Range

The led driver is made in 4 power ratings: 18W, 27W, 36W, 54W

The full specifications are available from the download tab.

Downloads

Technical Manual

EASEIC LED Driver 27W 1-10V

LNA127 AL Dimmable 1-10v constant current driver

Download
