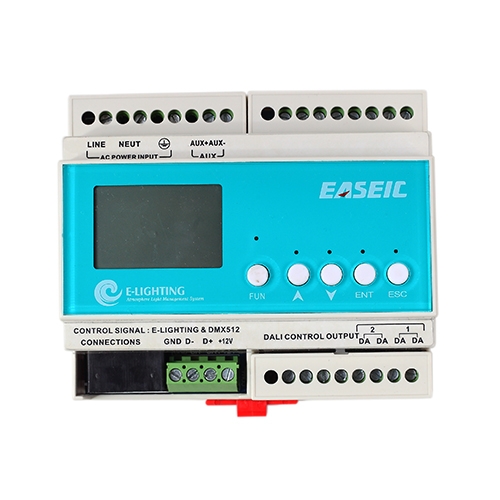

2 Channels DALI Bus management module

The EASEIC DALI controller is an affordable, user-friendly solution for digitanl control of up to 128 channels. The BDC202D series is also available in 4 channels. It is also an alternative to the Grafik Eye from Lutron. 2-channel DALI bus management, support 2 x 64 DALI independent address management, that can drive and manage 2 x 64 LED drivers device.

Product Description

• Work in DSI mode, can drive 2x 25 DSI protocol LED drivers
• 2 channel passive relay output, 2A per channel, can be set with DALI or DSI control the main power unit of the slave equipment interoperability
• Integrated 2X 250mA DALI bus power
• Compliant with IEC62386, slave state returned, single address, group or all the slave control manage function, communicates with all DALI devices in the same bus
• With DALI lighting management systems from EASEIC it is possible to create 99 predefined lighting scenes, in 99 areas and 16 lighting effects perfectly tailored to specific tasks.
• You can customise the name of the scene or area using theLCD dynamic display
• Manual switch on or off slave machine at any time.
• LED status indicator, the standard color is red or green, can also choose other colors

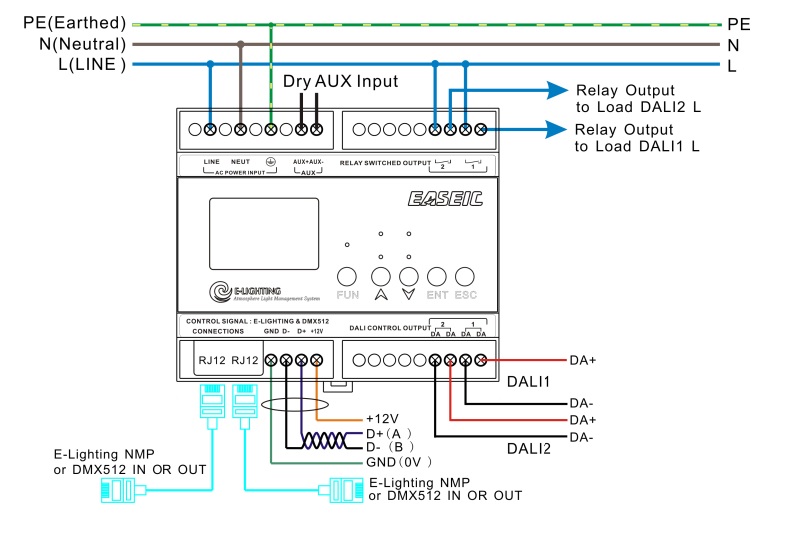

 Wiring Diagram
