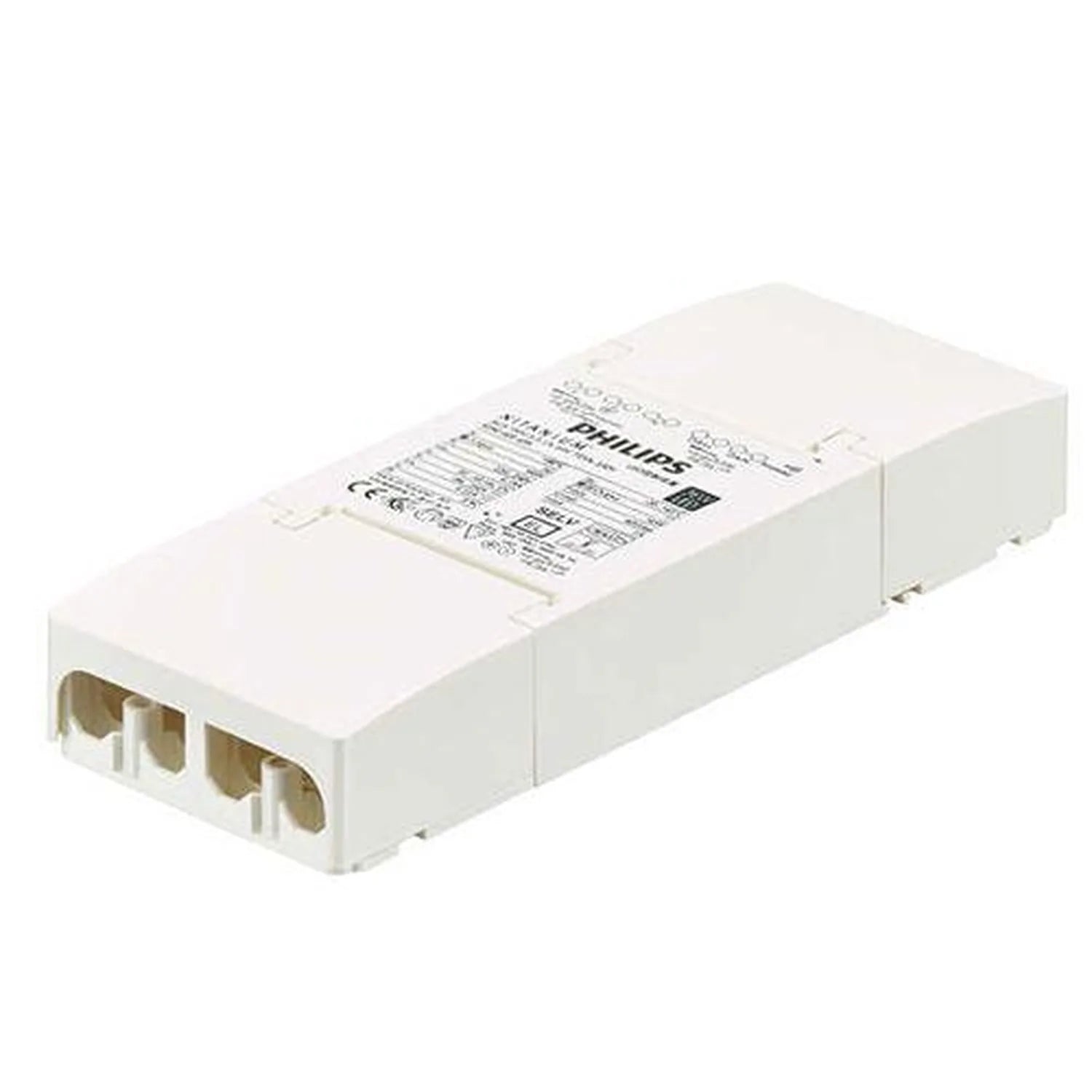

Philips Xitanium LED Driver 36W WH 0.15-1.05A 54V TD/Is DALI Dimmable
- Vendor
- Philips
- SKU
- 000268
- Availability
- In stock
- Weight
- 0.1 kg
£33.59inc VAT £27.99exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The Philips Xitanium 36W is a programmable constant current LED driver for spotlights and downlights. Its WH housing is intended for independent use, with strain relief and loop through already built in. Dimming runs from 1% to 100%.
Philips Xitanium LED driver 36W at a glance
- Output: 24...54 V, 0.15...1.05 A, 6...36 W
- Input: 220...240 Vac, 50...60 Hz
- Dimming: 1% to 100% via DALI, Touch & Dim or Corridor Mode
- Efficiency: 89%, power factor 0.9, output current ripple 4%
- Protection: open load, short circuit and over power, recovering automatically
- Lifetime: 50,000 hours, with a 5 year warranty
Setting the output current
Out of the box the driver delivers 150 mA. You can set the output current anywhere from 150mA to 1050mA using the Philips MultiOne configurator, SimpleSet, or a resistor placed outside the driver. Adjustable Output Current (AOC), Adjustable Light Output (ALO) and Constant Light Output (CLO) are all supported.
Control and monitoring
Energy metering and diagnostics are available over DALI. The output is SELV. Hot wiring is supported, and the driver is suitable for luminaires of protection class I and II.
Applications
Retail lighting and office lighting are where this driver fits best, powering spotlights and downlights where DALI control or simple Touch & Dim switching is wanted. Corridor Mode suits spaces that only need light when occupied.
Installation notes
Fitting must be done by a qualified electrician. The 50,000 hour lifetime is quoted with the Tcase-point at 75 C and a maximum of 10% failures.
Technical Specifications 41 rows Show
| Brand | Philips |
| Model | Xitanium 36W WH 0.15-1.05A 54V TD/Is |
| Logistic code (12NC) | 9290 028 61906 |
| Rated input voltage range | 220...240 Vac |
| Rated input frequency range | 50...60 Hz |
| Rated input voltage DC range | 186...250 Vdc |
| Input voltage AC range (operational) | 198...264 Vac |
| Rated input current | 0.19 A |
| Rated input power | 44 W |
| Power factor | 0.9 |
| Total harmonic distortion | 20 % |
| Efficiency | 89 % |
| Standby power | 0.47 W |
| Regulation method | Constant Current |
| Output voltage | 24...54 V |
| Output voltage max. | 60 |
| Output current | 0.15...1.05 |
| Default output current | 150 mA |
| Output current tolerance | 5 % |
| Output power | 6...36 |
| Output current ripple LF | 4 |
| Control method (TD) | Corridor Mode, DALI, Touch & Dim |
| Dimming range | 1...100 |
| DC emergency (DCemDim) | Yes |
| Energy metering and diagnostics | DALI part 252 and part 253 |
| Isolation input to output | SELV |
| Protection | Open load, short circuit and over power protection, automatic recovering |
| Inrush current | 5.5 A |
| Suitable for fixtures with protection class | I and II per IEC60598 |
| Ambient temperature | -20...+65 C |
| Tcase-max | 85 C |
| Tcase-life | 75 C |
| Relative humidity | 10...90 % |
| Driver lifetime | 50,000 hours |
| Dimensions | 201 x 75 x 32.5 mm |
| Weight | 204 gram |
| Input wire cross-section | 0.75...2.5 mm2 solid / stranded |
| Maximum cable length | 2 m |
| Internal fuse rating | T2A 250VDC/AC |
| IP rating | IP20 |
| Warranty | 5 year |
Manufacturer datasheet. Figures as published by the manufacturer.
