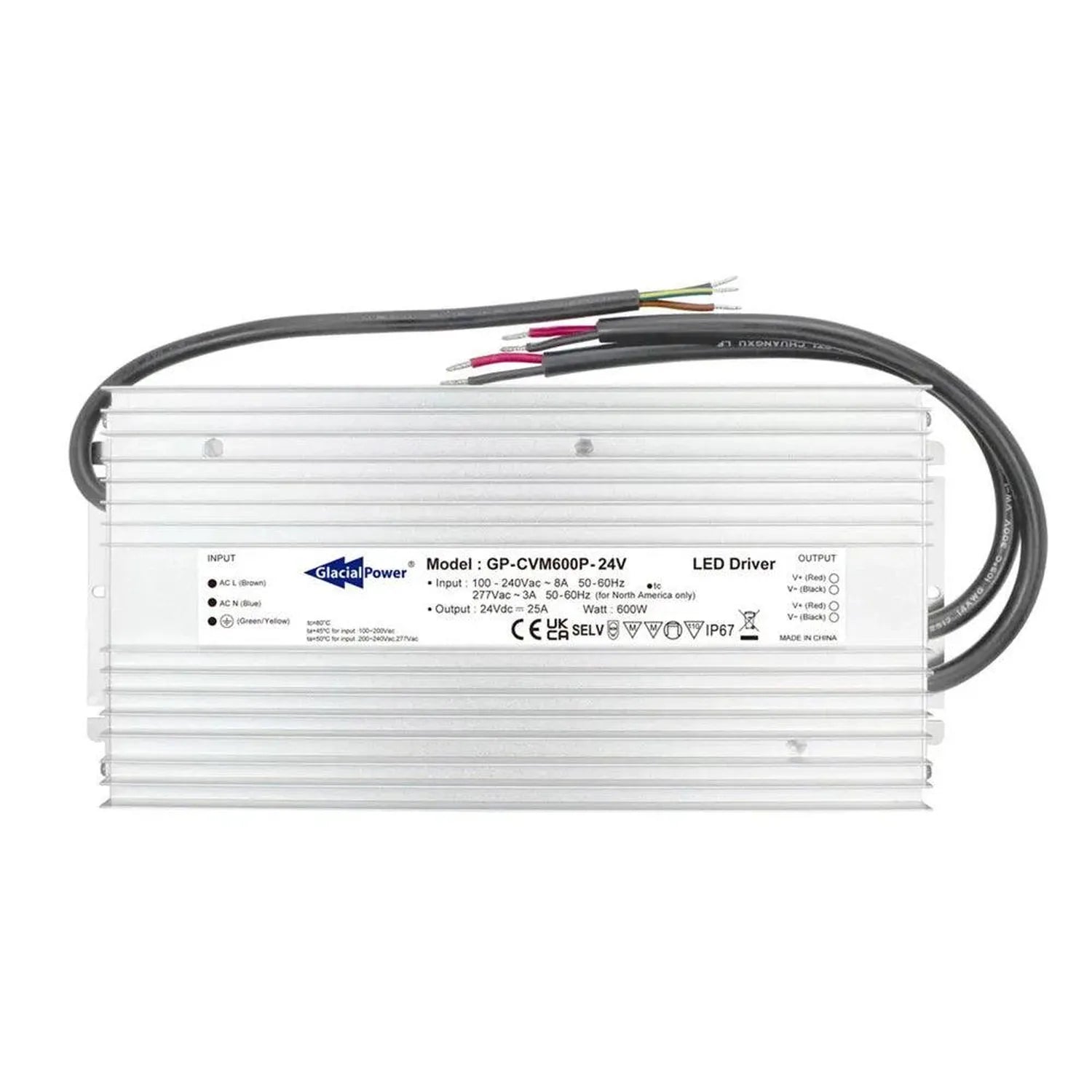

Glacial Power GP-CVM600P-24V LED driver, 600W constant voltage power supply with input and output terminal labels visible.

600W Constant Voltage LED Power Supply 24V Dimmable | Glacial Power

£164.27
Skip to product information
Glacial Power GP-CVM600P-24V LED driver, 600W constant voltage power supply with input and output terminal labels visible.
600W Constant Voltage LED Power Supply 24V Dimmable | Glacial Power

600W Constant Voltage LED Power Supply 24V Dimmable | Glacial Power

Vendor
Glacial
SKU
999017
Availability
In stock
Weight
2.5 kg

£164.27inc VAT £136.89exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Glacial Power GP-CVM600P is a constant voltage LED driver rated at 600W, built for LED strips, signage and long track lighting runs. This 24V dimmable version pairs a compact 2.4kg housing with 95% efficiency and 1-10V dimming control, and it carries UK and EU approval.

Key features of this LED power supply 24V

  • Output power: up to 600W constant voltage.

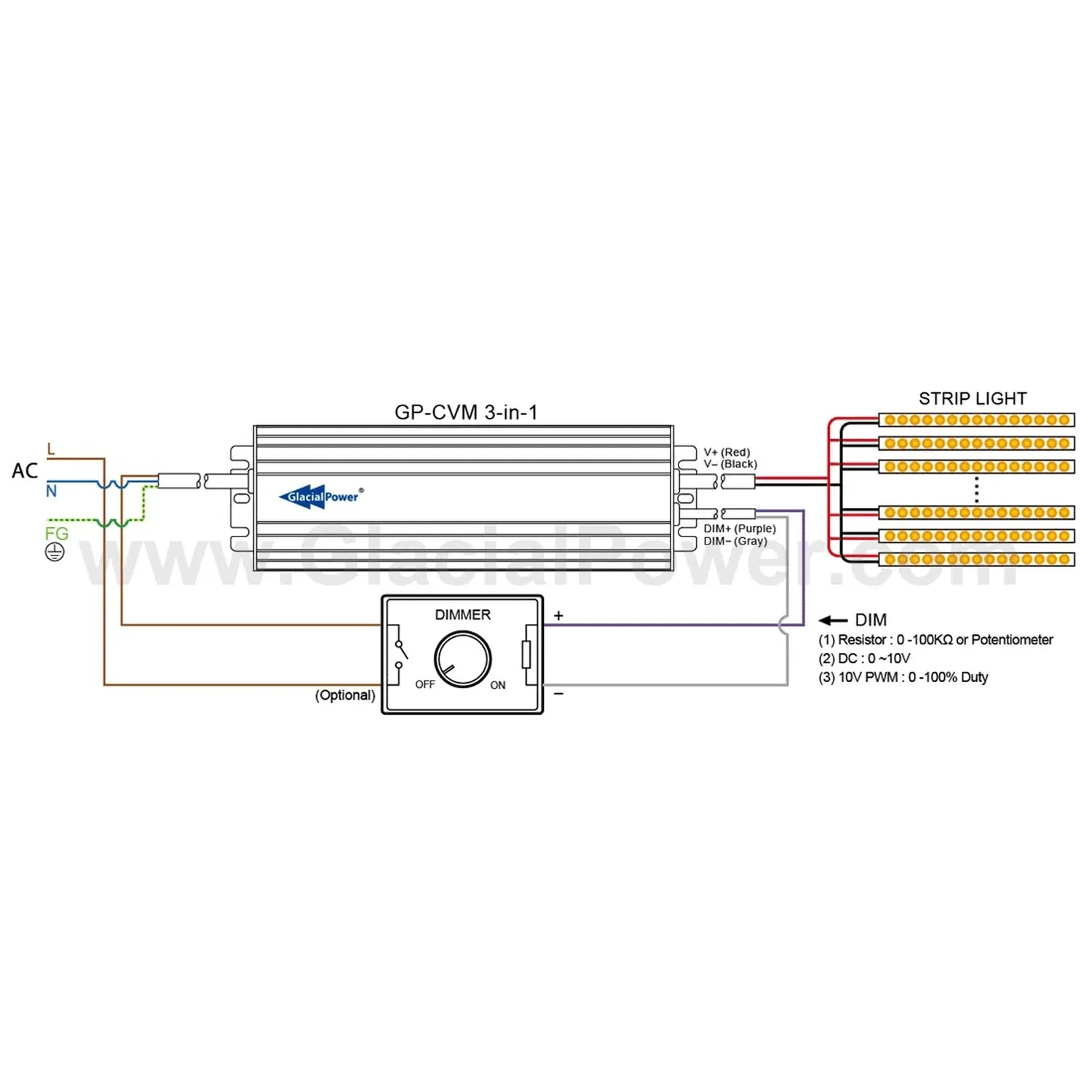

  • Dimming: 1-10V dimmable switch.
  • Efficiency: 95% at 24V output.
  • Weight: compact 2.4kg housing.
  • Input range: 90 to 305VAC universal AC input.
  • Protections: OVP, OCP, SCP and OTP built in.

Applications

Designed for LED strips, illuminated signage, light boxes, LED neon flex, aluminium profile and 48V magnetic track lighting. The active PFC design keeps power factor above 0.98 at 115VAC and above 0.95 at 230VAC at full load, with total harmonic distortion under 10% at 230VAC.

Build and protection

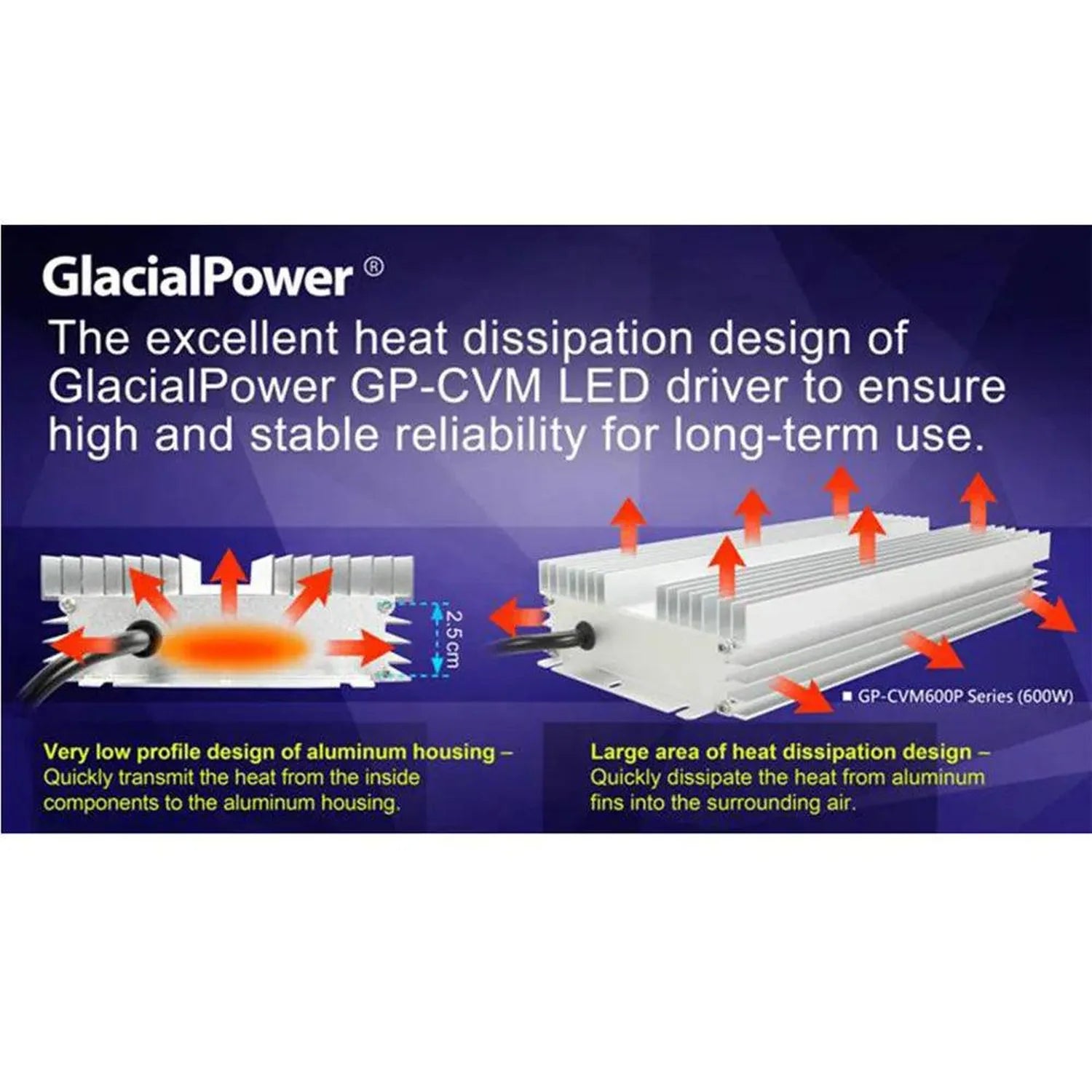

The case is fully insulated and IP67 rated, cooled by free air convection through a metal housing. Surge protection is rated at 4KV/2KV, and standby power draw stays under 0.5W at 230VAC on dimming models.

Operating conditions

Standard operating temperature runs from -40°C to +50°C, subject to the output load derating curve. Inrush current at cold start is typically 55A at 230VAC.

Technical Specifications 26 rows Show
Technical Specs
Model No. GP-CVM600P-12V(X) GP-CVM600P-24V(X) GP-CVM600P-36V(X) GP-CVM600P-48V(X) GP-CVM600P-54V(X)
Output DC Voltage 12V 24V 36V 48V 54V
Rated Current 0~40A 0~25A 0~16.66A 0~12.5A 0~11.1A
Rated Power 480W 600W 599.76W 600W 599.4W
Ripple &Noise (Max.) 150mV 150mV 250mV 250mV 350mV
Efficiency at 230VAC (Typ.) 92.5% 95% 95.5% 96% 96%
Voltage Tolerance ± 5% ± 5% ± 5% ± 5% ± 5%
PWM Dimming (optional) > 1600 Hz (for dimmable version)
Set up time (Max.) 0.5s / 230VAC, 1s / 115VAC, at full load.
0.7s / 230VAC for DALI-2 version
Input Rated Voltage 100 ~ 277VAC 141~392VDC
Voltage Range 90 ~ 305VAC
Frequency Range 47 Hz ~ 63 Hz
AC Current (Typ.) 6.4A at 115VAC / 3.2A at 230VAC , 5.2A at 115VAC / 2.6A at 230VAC only for 12V(X)
Power Factor >0.98 at 115VAC / >0.95 at 230VAC at full load. PF≧0.9 at 70% load
Total Harmonic Distortion THD < 10% at 230VAC, full load.
Inrush Current (Typ.) Cold Start 55A (Td=2020us measured at 50% Ipeak) at 230VAC
Max. Number of PSUs
on Circuit Breaker		 B type : 1 unit (16A) / 2 unit (25A),
C type : 1 unit (10A) / 2 units (16A) / 3 units (25A),
D type : 4 units (16A) / 6 units (25A) at 230VAC
Leakage Current <1mA / 240VAC
Protections Over Current 105~180% rated current.
Type: Hiccup mode (Auto recover after fault condition disappeared).
Short Circuit Type: Hiccup mode (Auto recover after fault condition disappeared).
Over Voltage 13~19V 26~38V 38V~50V 50V~65V 56~70V
Type: Latch at full load
Over Temperature Tcase: 95°C ± 10°C
Type: Shut down output, recovers automatically after temperature goes down.
Others MTBF 120K hours min. MIL-HDBK-217F(25°C)
Dimension(L x W x H) 300 x 138 x 47mm; 2450g/pcs

Manufacturer datasheet. Figures as published by the manufacturer.
