24V Dimmable LED Driver 120W Triac IP67 | Glacial GP-TH120N-24V
- Vendor
- Glacial
- SKU
- 999019
- Availability
- In stock
- Weight
- 1.024 kg
£55.60inc VAT £46.33exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

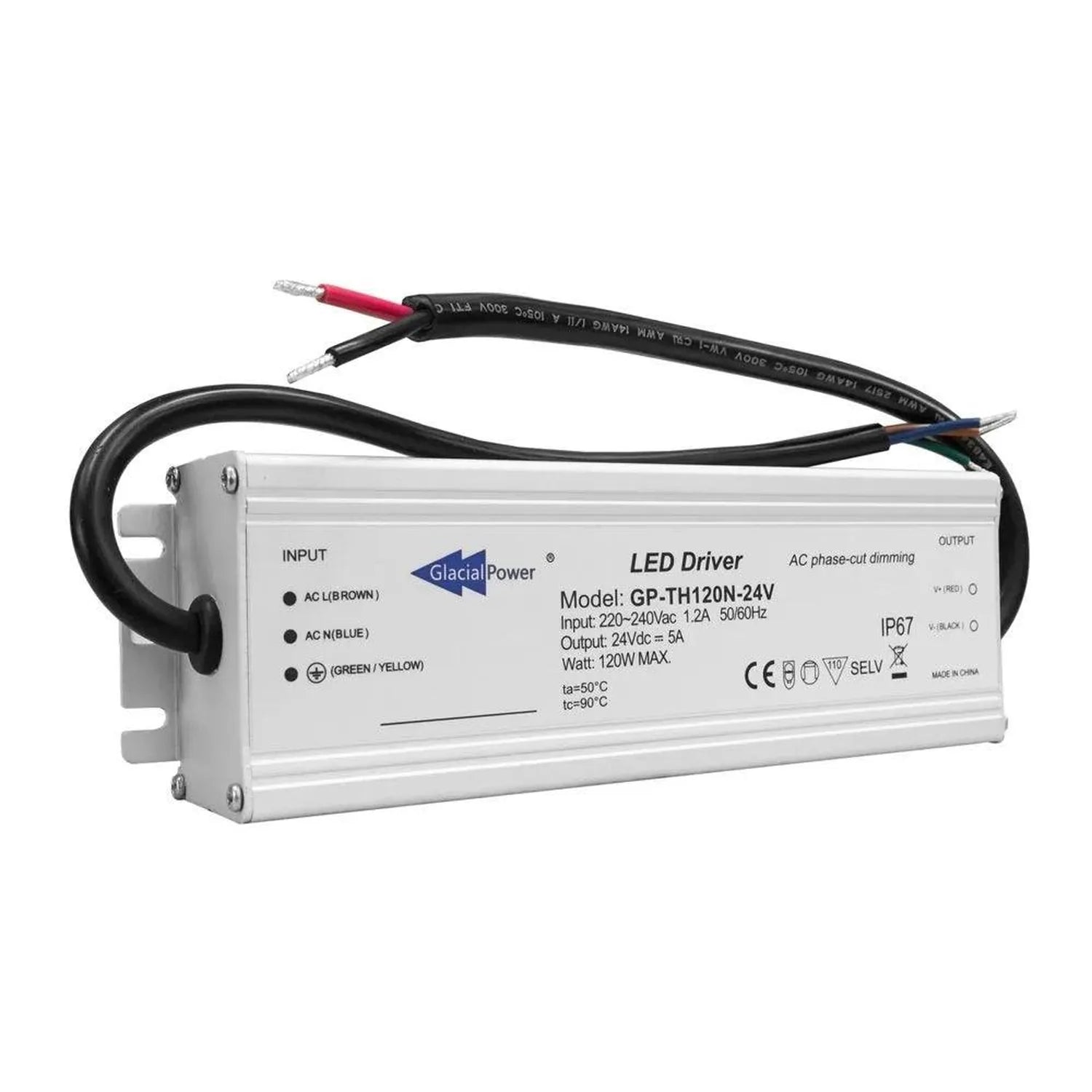

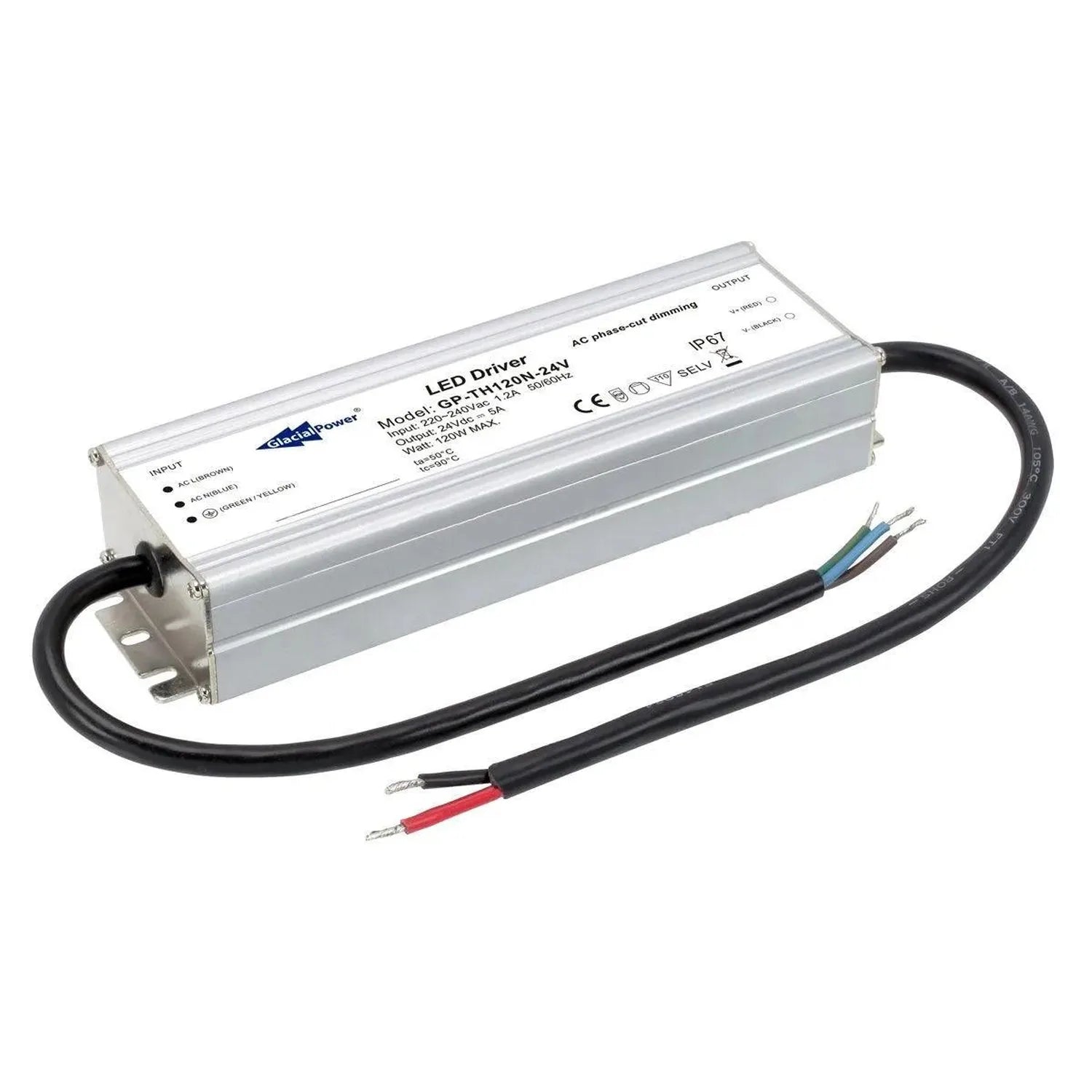

The Glacial GP-TH120N-24V is a constant voltage LED driver for 24V LED strip and modules. It delivers 24V DC at 5000mA, up to 120W, and dims straight from the mains through a triac dimmer. Leading edge and trailing edge dimmers both work, with a dimming range of 1% to 100%.
24V dimmable LED driver features
- Output: 24V DC, 5000mA, 120W
- Dimming: triac phase-cut, 1% to 100%, leading or trailing edge
- Input: 205 to 256V AC
- Efficiency: 84%
- Enclosure: fully isolated potted case, IP67, Class I with FG (earth)
- Protection: over voltage, over current, short circuit and over temperature
Where it fits
Because the case is potted and rated IP67, the driver can go indoors or outdoors, in dry or damp locations. That makes it a practical choice for strip runs under canopies, in display cabinets or along architectural features where moisture is a concern. It suits restaurants, jewellery shops, homes and theatres, anywhere you want smooth mains dimming of 24V strip without adding a separate control system.
It runs within an operating temperature of -20°C to 50°C. Check the load derating curve before sizing a run near the top of that range.
Sizing and installation
The housing measures 222 x 68 x 39 mm and weighs 1024g. Keep the connected strip load within the 120W rating. Wire it to a compatible triac dimmer on the mains side and connect the earth, since this is a Class I unit.
Warranty
Glacial covers the GP-TH120N-24V with a 3-year warranty.
Technical Specifications 38 rows Show
| Brand | Glacial |
| Model | GP-TH120N-24V |
| Type | Constant Voltage LED Driver with Triac Dimming |
| Output voltage | 24VDC |
| Rated current | 5000mA |
| Rated power | 120W |
| Ripple and noise (max) | 2.6Vp-p |
| Voltage tolerance | ± 5% |
| Dimming range | 1%~100% |
| Dimming type | AC phase-cut dimming, leading edge and trailing edge TRIAC dimmers |
| Efficiency (typical) | 84% |
| Setup time (max) | 0.5S / 230Vac at full load |
| Rated input voltage | 220~240VAC |
| Input voltage range | 205~256VAC |
| Frequency | 50/ 60 Hz |
| AC current (max) | 1.2A at 230VAC |
| Power factor | > 0.5 at 230Vac with full load. |
| Inrush current (max) | ≤ 60A at 230VAC |
| Leakage current | <1mA / 230VAC |
| Over current protection | 110% - 140% Constant current limiting, auto-recovery |
| Over temperature protection | 110°C - 120°C Temperature limiting, auto-recovery |
| Short circuit protection | Hiccup mode, recovers automatically after fault condition is removed |
| IP rating | IP67 |
| Installation | Fully Potted suitable for dry and damp location applications. |
| Protection class | Class I power unit, with FG. |
| Operating temperature | -20C ~ 50C (Refer to output load derating curve) |
| Operating humidity | 20% ~ 90% RH non-condensing. |
| Storage temperature | -20 ~ +80C |
| Storage humidity | 10% ~ 90% RH |
| Safety standards | meet EN61347-1,EN61347-2-13 |
| Withstand voltage | I/P - O/P : 3.75K VAC |
| Isolation resistance | I/P-O/P : 100M ohms / 500VDC at 25C |
| EMC standards | meet EN55015,EN61000-4-2,3,4,5,6,8,11 ,EN61547 |
| MTBF | 100K hours min. at Ta=25°C |
| Dimensions (L x W x H) | 222 x 68 x 39 mm |
| Weight | 1024g/pcs |
| Warranty | 3 Years Warranty |
| RoHS | RoHS Compliant. |
Manufacturer datasheet. Figures as published by the manufacturer.
