Name: 24V 2A 48W LED Power Supply
Brand: Glacial
SKU: GP-LVB024-32D
Price: 27.46 GBP
Availability: InStock

All LED Strip Drivers 12V & 24V

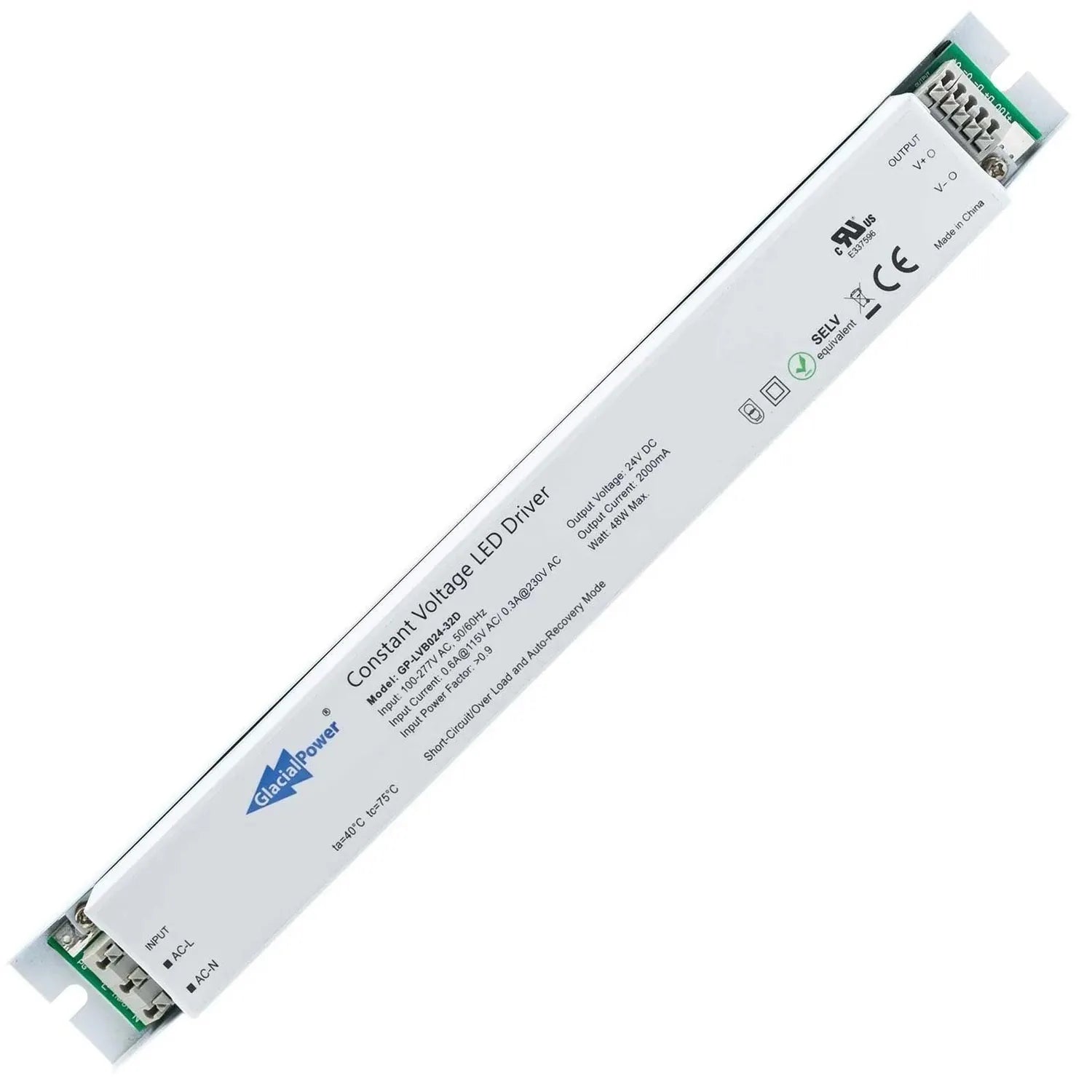

Glacial Power 24V constant voltage LED driver with green terminal connectors, front label view showing specifications and saf

24V 2A 48W LED Power Supply | Glacial GP-LVB024-32D

Vendor: Glacial
SKU: GP-LVB024-32D
Availability: In stock
Weight: 0.473 kg

£27.46inc VAT £22.88exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout

Talk to our sales team

Product Description

The Glacial GP-LVB024-32D is a 48W constant voltage power supply built for 24V LED strip lighting. It is non-dimmable and suits short runs from a few centimetres up to 5 metres of strip.

Key features

Output, 24V DC, 0-2A rated current range
Power, 48W rated maximum
Input, universal AC input from 90 to 305VAC
Standby draw, less than 0.5W at no load
Protection, over current protection (OCP) and short circuit protection (SCP)
Build, slim enclosure with terminal block connections, 300 x 33.3 x 28mm

Applications

Its compact, slim housing and terminal block wiring make it well suited to furniture lighting and other cramped installation spaces where a bulky transformer will not fit. The built-in Active PFC function and constant voltage mode keep it dedicated to LED strip circuits rather than general purpose use.

Operating range

The driver runs across an operating temperature range of -10°C to 40°C at full load, so check the installation location falls within that range before fitting.

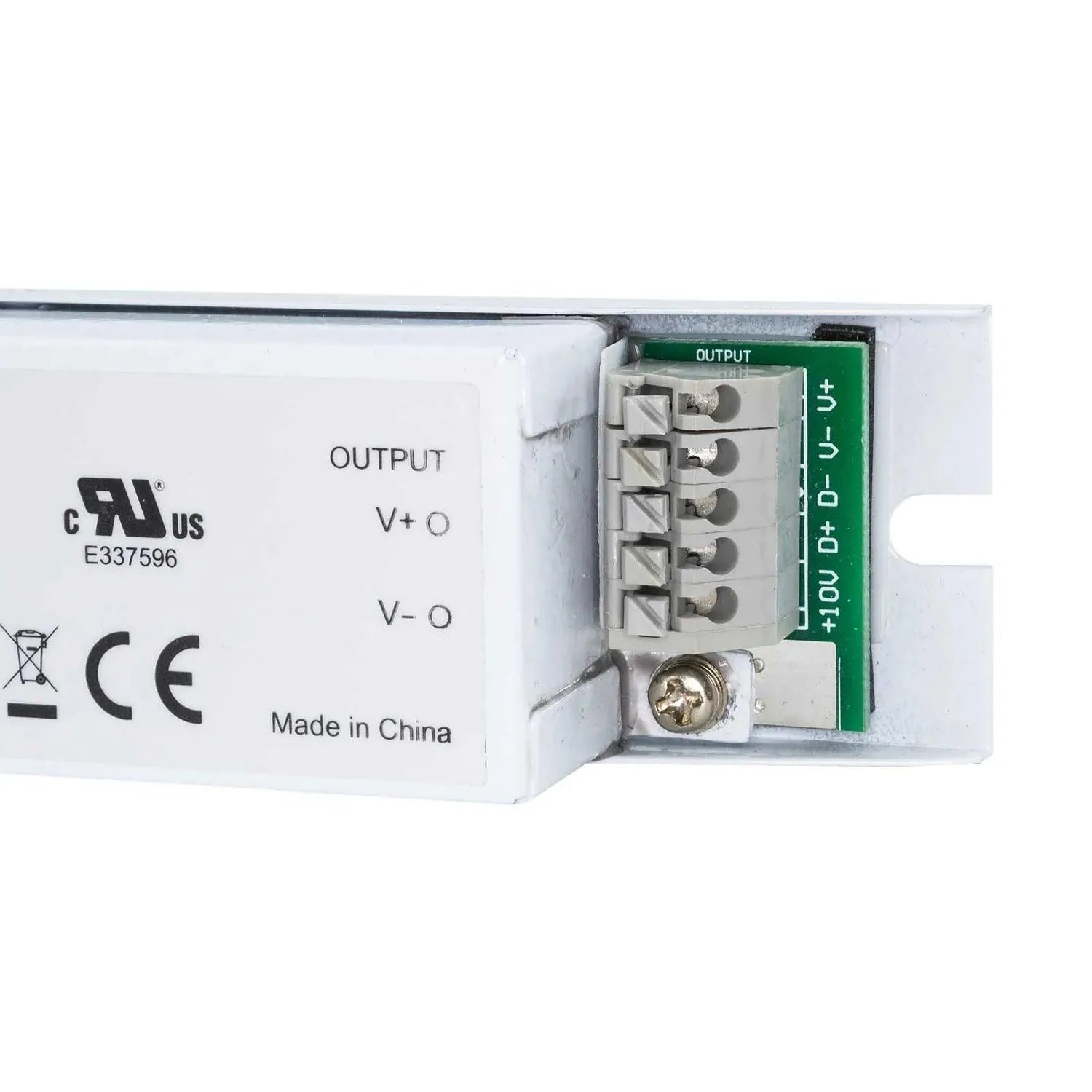

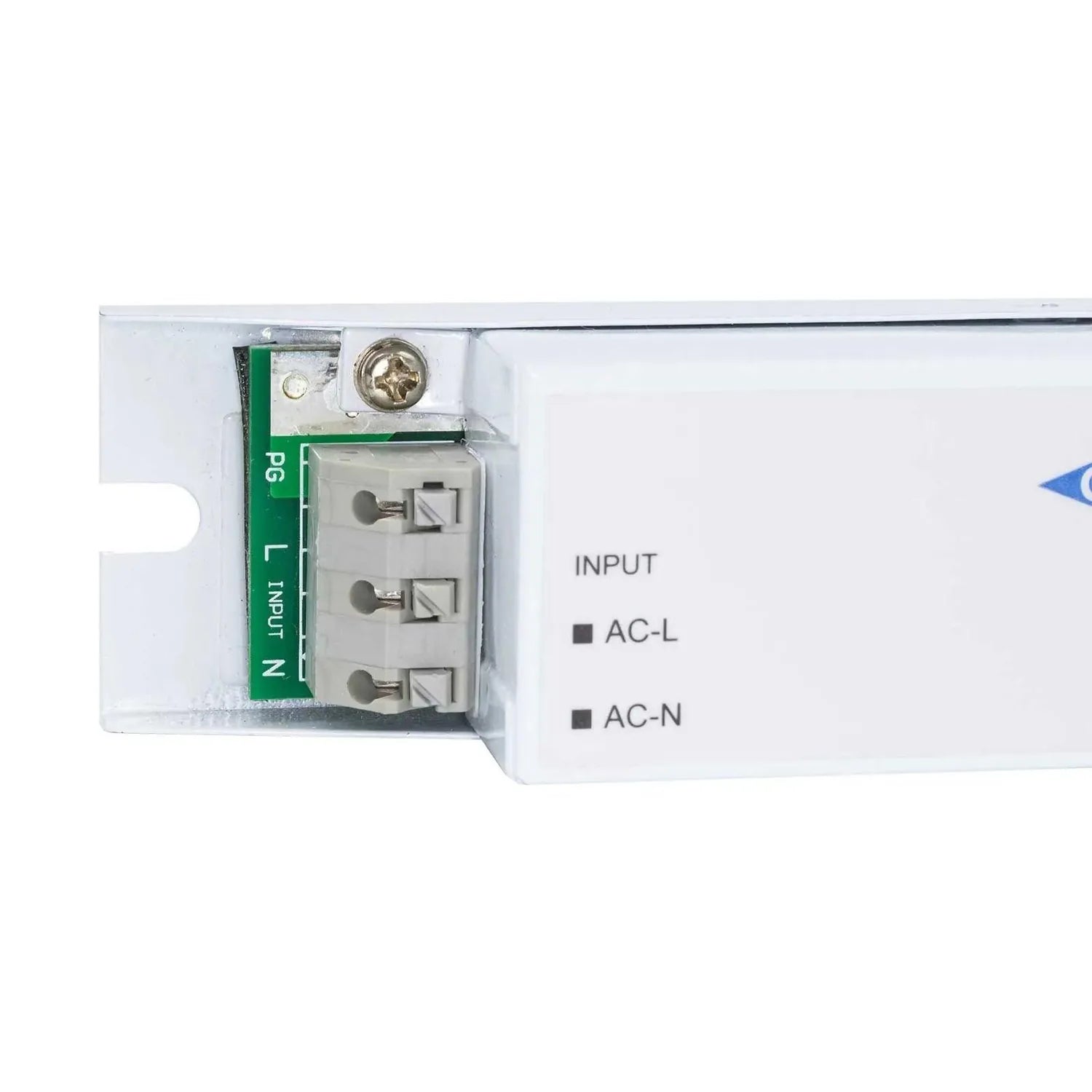

Terminal block wiring on both input and output keeps installation straightforward for anyone connecting up 24V LED strip circuits.

Technical Specifications 29 rows Show

Model No.		GP‐LVB024‐32D
Output	DC voltage	24V
	Rated Current Range	0‐2A
	Ripple & Noise (max.) note.2	3Vp‐p
	Voltage Tolerance note.3	± 5%
	Rated Power(max)	48W
	Efficiency (Typ.) note.1	84%
	Setup Time (max.)	2S at 230VAC Full Load
Input	Voltage Range	100VAC‐240VAC / 277VAC for North American Only
	Frequency Range	50 Hz / 60 Hz
	AC Current	0.6A at 115VAC/ 0.3A at 230VAC /0.25A at 277VAC
	Power Factor	PF＞0.97/115VAC,PF＞0.92/230VAC,PF＞0.9/277VAC
	Inrush Current (max)	<10A/230VAC
	Leakage Current	<1mA / 240VAC
Protections	Over Current	110%‐130% Constant current limiting, auto‐recovery
Protections	Short Circuit	Hiccup mode: Recovers automatically after fault condition has been removed.
Environment	Ambient Temp.	‐20°C~+50°C full load .
	Operating Humidity	20% ~ 95% RH non‐condensing.
	Storage Temp. / Humidity	‐20 ~ +80°C / 10% ~ 95% RH
Safety & EMC	Safety Standards	Meet EN61347‐1，EN61347‐2‐13；UL8750 refer 1310
	Withstand Voltage	Meet I/P‐O/P: 3.75KVAC
	Isolation Resistance	Meet I/P‐O/P:100M ohms / 500VDC at 25°C
	EMI Conduction & Radiation	Meet Compliance to EN55015,FCC part 15
	Harmonic Current	Meet Compliance to EN61000‐3‐2 Class C
	EMS Immunity	Meet Compliance to EN61000‐4‐2,3,4,5,6,8,11;EN61547
Connection	Input	3P screw terminal black
Connection	Output	2P screw terminal black
Others	MTBF	>100K Hours at full load and 25°C ambient conditions(MIL‐HDBK‐217F)
Others	Dimension(L x W x H)	300 x 33.3 x 28 mm; 472.5g/pcs

Manufacturer datasheet. Figures as published by the manufacturer.
