LED Linear Light 60W 1437mm Adjustable 32-42-50-60W Suspended | Attica
- Vendor
- Ledison
- SKU
- 105002
- Availability
- In stock
- Weight
- 2.5 kg
£76.64inc VAT £63.87exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

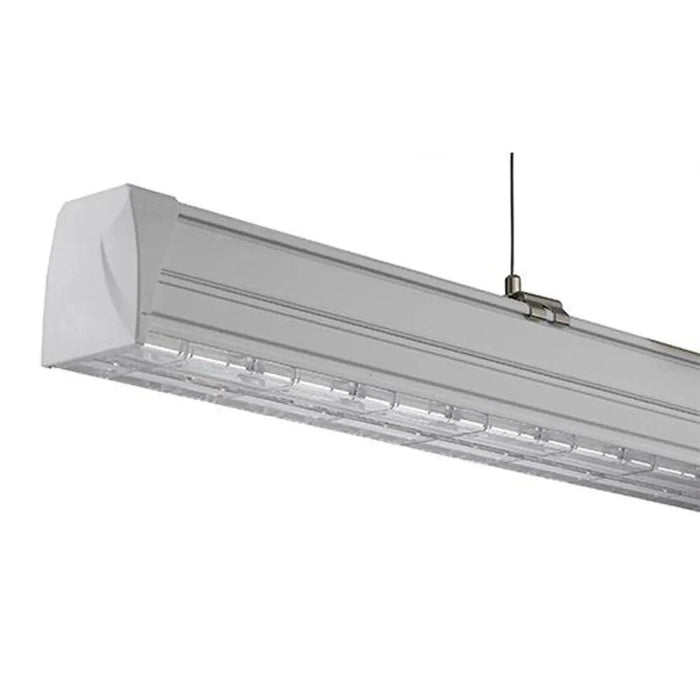

The Attica LED linear light is a 1437mm fitting with an internal Osram LED driver. Output is set on the fitting itself, at 32, 42, 50 or 60 watts, so a single model can cover rooms that need different light levels. It can be suspended or fixed directly to the surface.
Attica LED linear light features
- Adjustable power: 32-42-50-60W, selected on the fitting
- Driver: internal Osram LED driver
- LEDs: 132 SMD 2835 chips behind a prismatic, magnifying optical lens
- Colour rendering: CRI >80
- Supply: AC 220-240V, 50/60Hz, Class I
- Protection and warranty: IP40, with a 5-year warranty
Control options
Three versions are offered: non-dimmable, 1-10V or DALI. The wiring differs between them. Non-dimming fittings use 5 wires, while the 1-10V and DALI versions use 7. Pick the version that matches your lighting control system before ordering.
Mounting and build
Hang it on suspension for open ceilings, or mount it flush to the surface where headroom is limited. The body is aluminium with a PC/PMMA diffuser and a white frame, and each piece weighs 2.5kg. With an IP40 rating, this is an indoor fitting.
Certification
The fitting carries TUV, ROHS, CE and UL certification.
Planning an Attica system
Attica is a system made up of several parts. These need to be chosen together, so get in touch with us to confirm the right combination of components for your project.
Technical Specifications 20 rows Show
| Fitting | LINEAR LED |
| Power rating | adjustable: 32-42-50-60 Wattage |
| Driver | Internal LED Driver made by Osram |
| Length | 1437mm |
| LED chips | 2835 |
| Colour rendering index | >80 |
| Optic | Prismatic, magnifying optical lens |
| Mounting | Surface mounting or suspended |
| Voltage | AC 220-240V |
| Line frequency | 50/60Hz |
| IP rating | IP40 |
| Number of LEDs | 132 |
| Net weight per piece | 2.5kg |
| Wiring | 5 wires non-dimming; 7 wires 1-10V/DALI |
| Material | Aluminum + PC/PMMA |
| Frame | White |
| Class | CLASS I |
| Storage temperature | -25C~+55C |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
