Emergency LED Linear Light 1437mm UGR<19 Self-Contained Battery | Attica
- Vendor
- Ledison
- SKU
- 105003
- Availability
- In stock
- Weight
- 2.5 kg
£135.44inc VAT £112.87exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

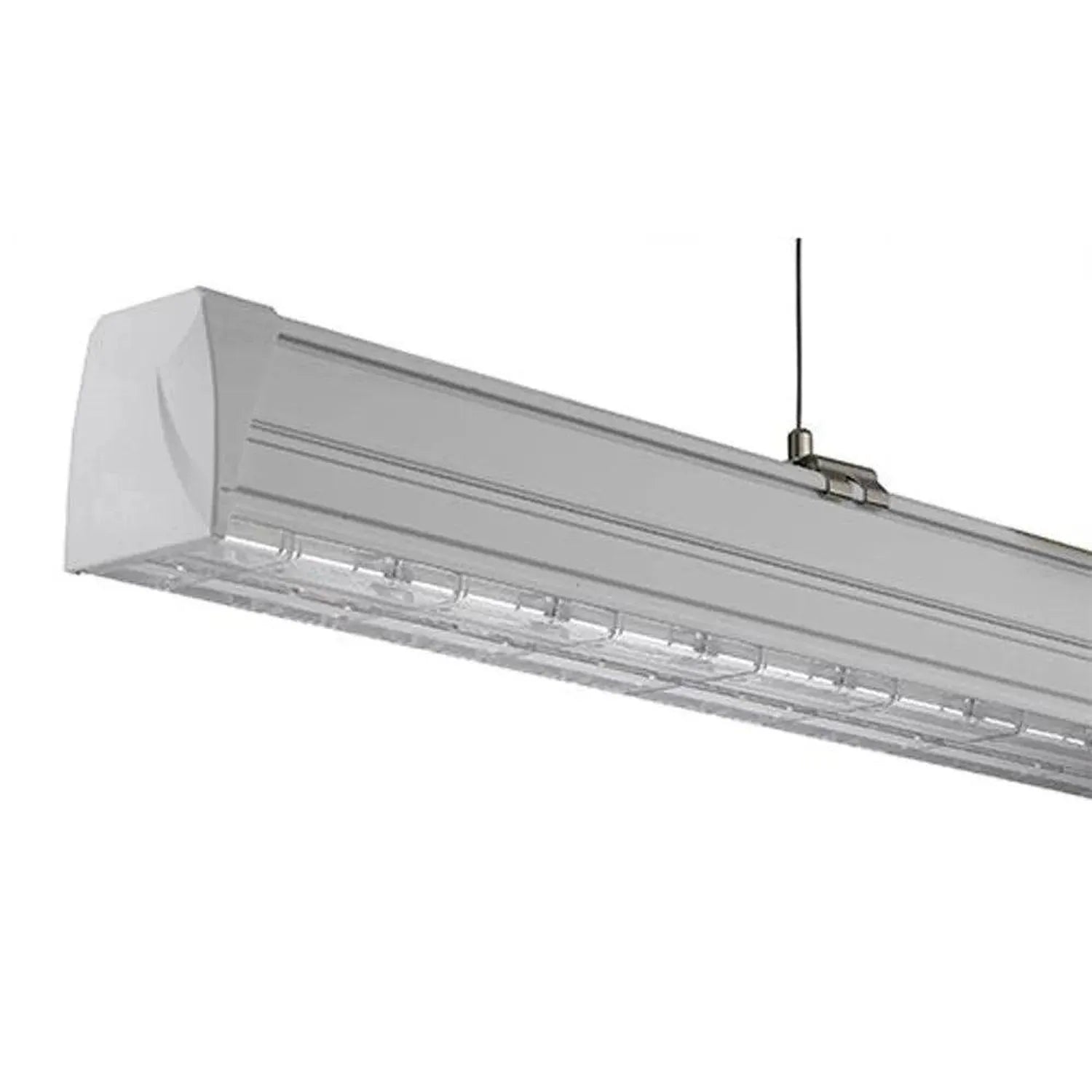

This LED linear light carries its own emergency pack and is built for the Attica trunking system. It is 1437mm long, offers UGR<19 for low-glare light, and runs from the building's normal mains at AC/DC220-240V. If the power fails, the fitting switches automatically to its self-contained battery to help with safe evacuation.
LED linear light features
- Emergency supply: self-contained battery with automatic changeover when mains power is lost.

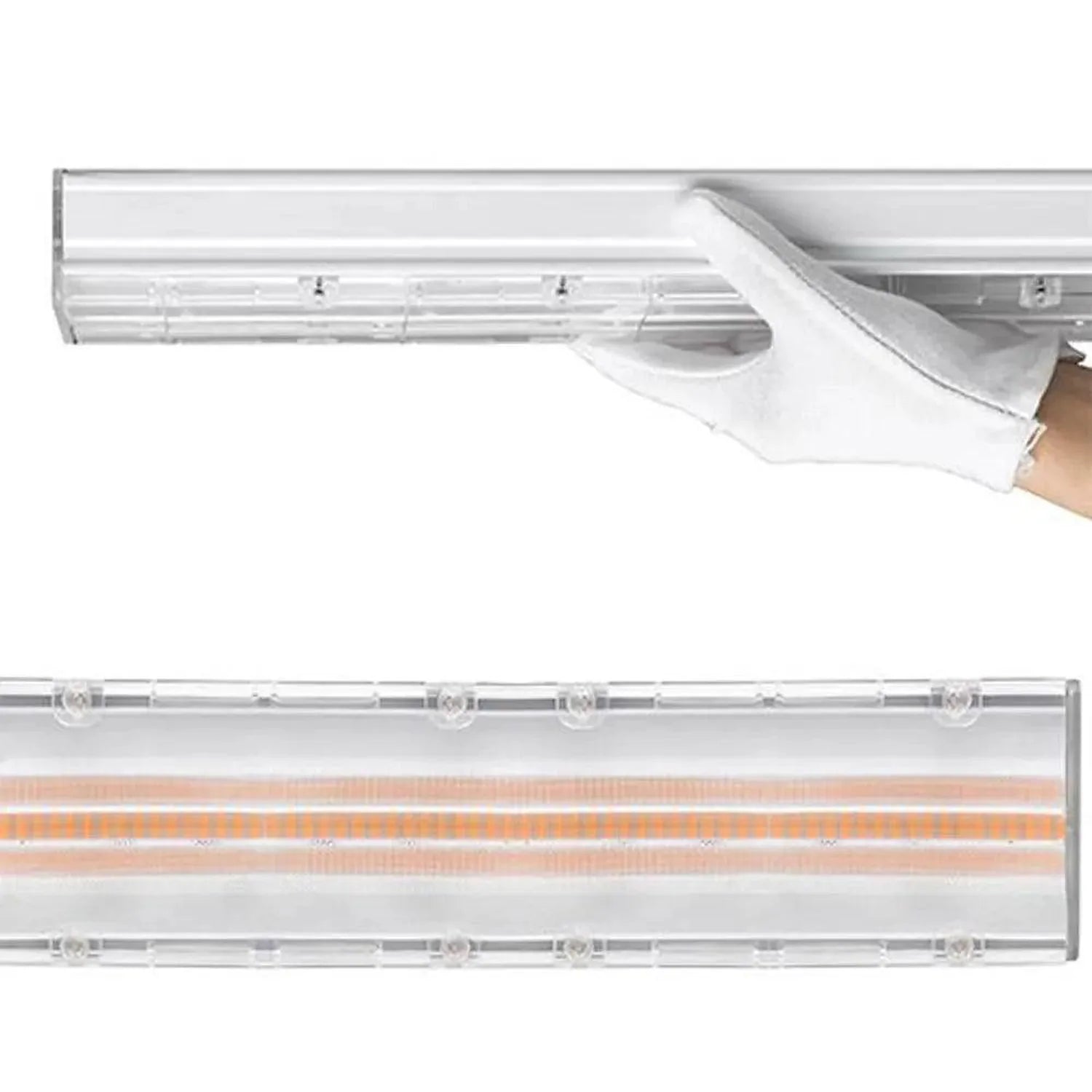

- Glare control: UGR<19, with a prismatic, magnifying optical lens.
- Light source: 132 SMD 2835 LED chips with a colour rendering index of >80.
- Control options: non-dimmable, 1-10V or DALI versions.

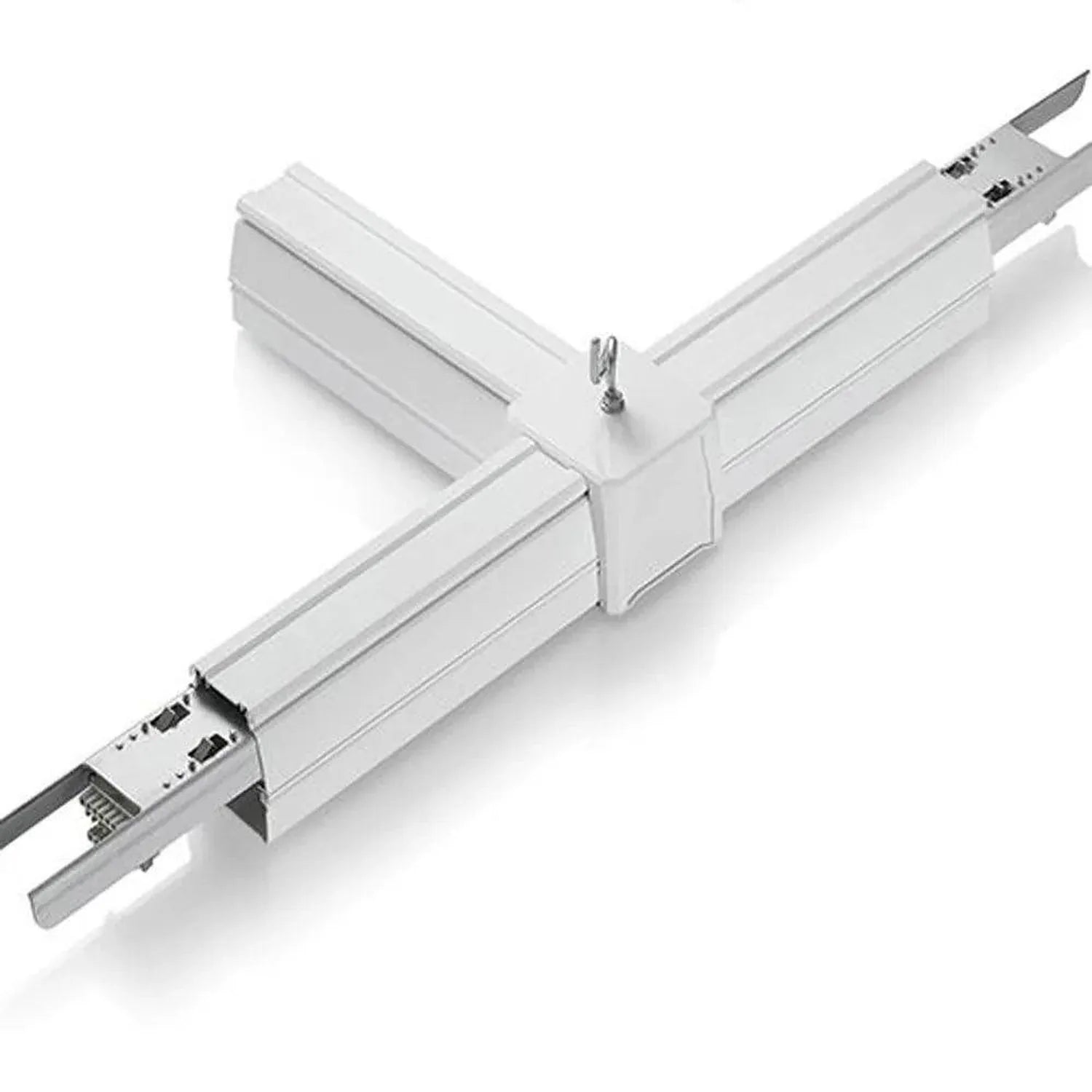

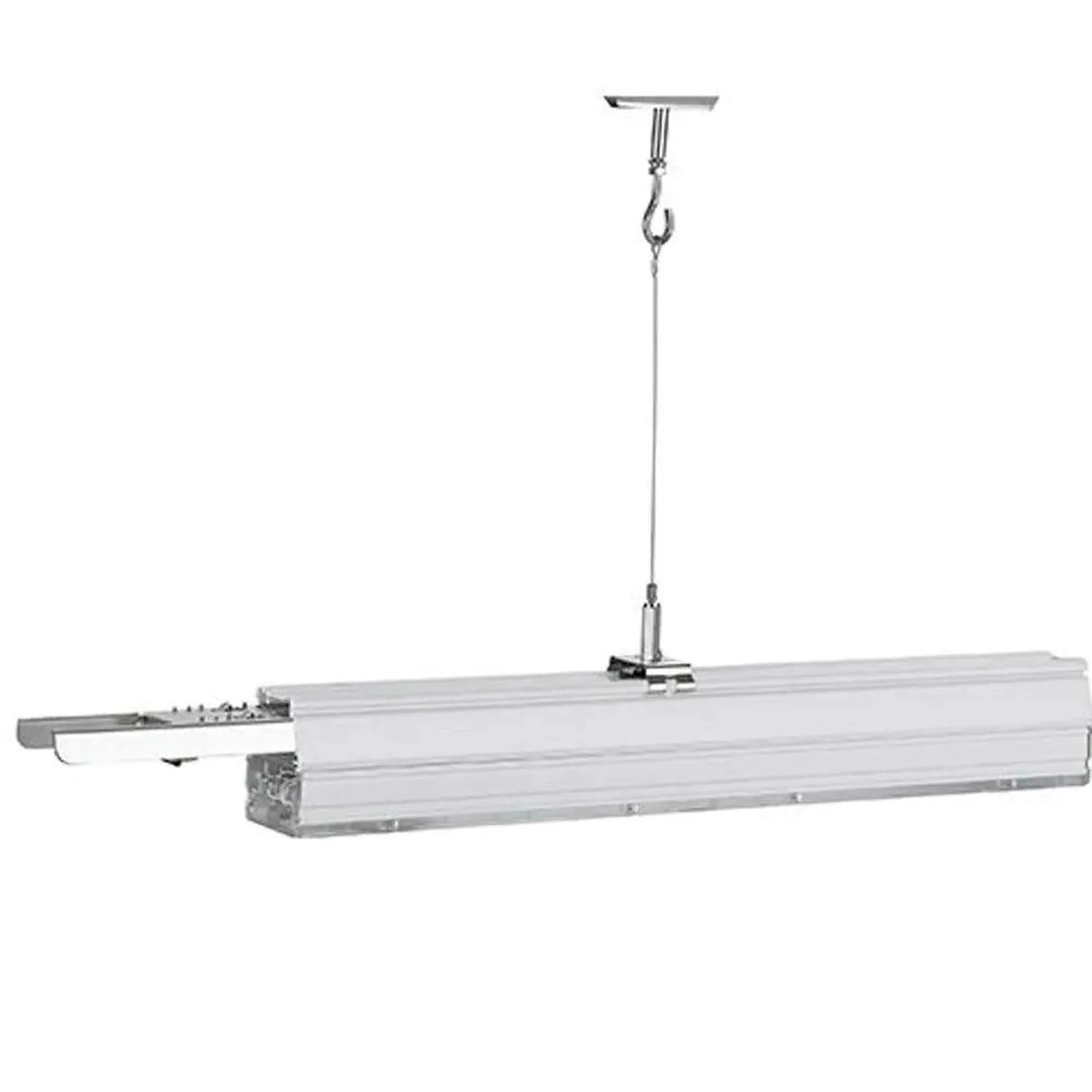

- Installation: tool-less Snap and Go plug-in system, for surface mounting or suspended runs.
- Protection and warranty: IP40, with a 5-year warranty.
Where it fits
The UGR<19 rating makes this fitting suited to working areas and retail spaces, where low glare matters. It slots into Attica trunking, which carries two independent lighting circuits. Because the emergency function sits in the fitting itself, normal and emergency lighting can share one continuous run instead of needing separate fittings.
Wiring and system planning

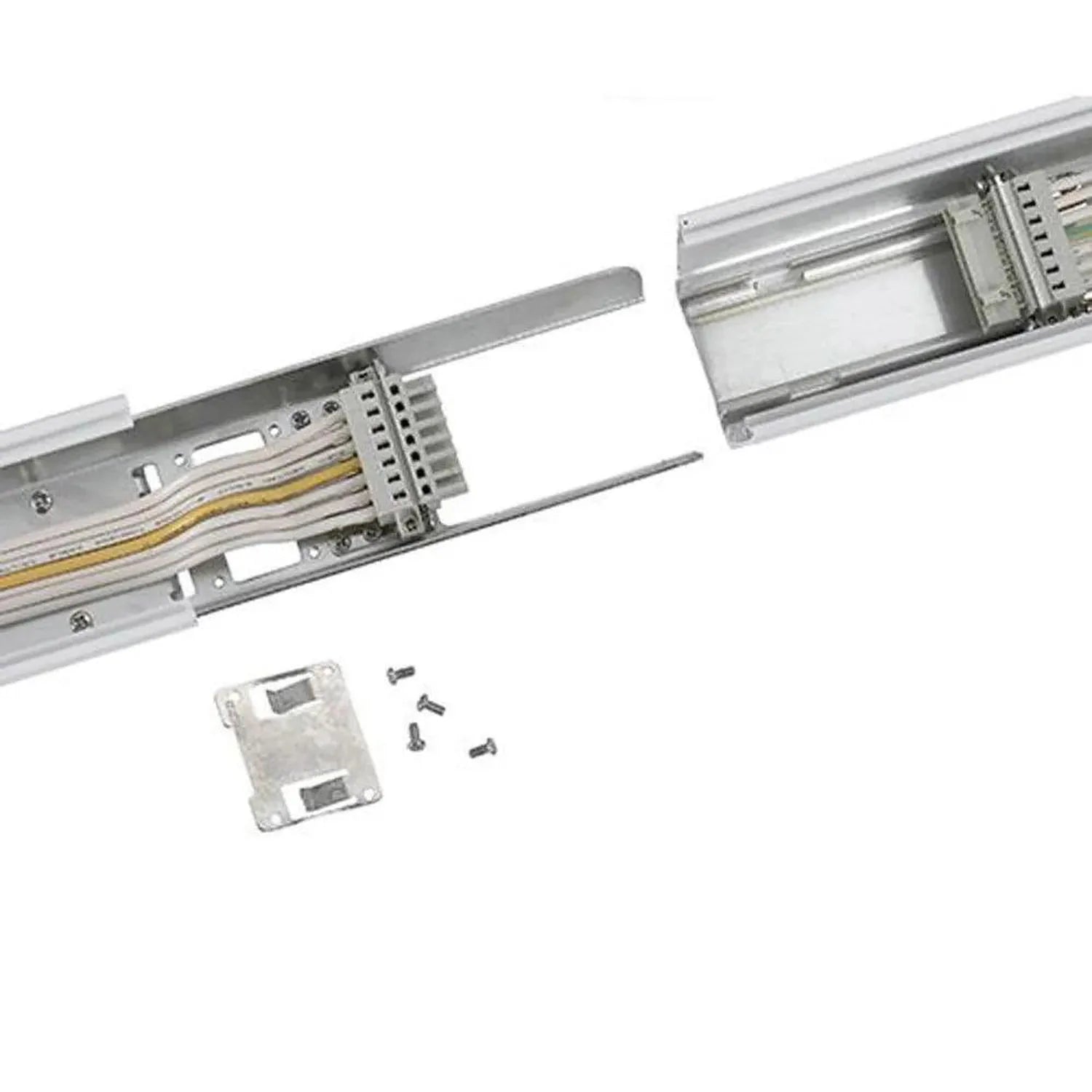

Emergency trunking uses 11 wires. Four of those are extra, serving the emergency converter and battery. Non-dimming runs use 5 wires and 1-10V or DALI runs use 7, so check the wiring before ordering. The Attica system is made up of several parts that must be chosen together. Email us for a quote and we can help put the right combination together.
Build and approvals
The body is aluminium with a PC/PMMA diffuser and a white frame. It is a Class I fitting weighing 2.5kg per piece, and carries TUV, ROHS, CE and UL certification.
Technical Specifications 22 rows Show
| Fitting | LINEAR LED |
| Length | 1437mm |
| Emergency | Self-contained battery, automatic switch to emergency supply |
| LED chips | SMD 2835 |
| Colour rendering index | >80 |
| Glare | UGR<19 |
| Optic | Prismatic, magnifying optical lens |
| Mounting | Surface mounting or suspended |
| Voltage | AC/DC220-240V |
| Line frequency | 50/60Hz |
| IP rating | IP40 |
| Number of LEDs | 132 |
| Net weight per piece | 2.5kg |
| Wiring | 5 wires non-dimming; 7 wires 1-10V/DALI; 11 wires emergency |
| Installation | Tool-less Snap and Go plug-in system |
| Material | Aluminum + PC/PMMA |
| Frame | White |
| Class | CLASS I |
| Storage temperature | -25C~+55C |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
| Wattage | 72W |
Manufacturer datasheet. Figures as published by the manufacturer.
