Linkable LED Trunking Light 1437mm UGR<19 IP40 | Attica
- Vendor
- Ledison
- SKU
- 105004
- Availability
- In stock
- Weight
- 2.5 kg
£81.85inc VAT £68.21exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

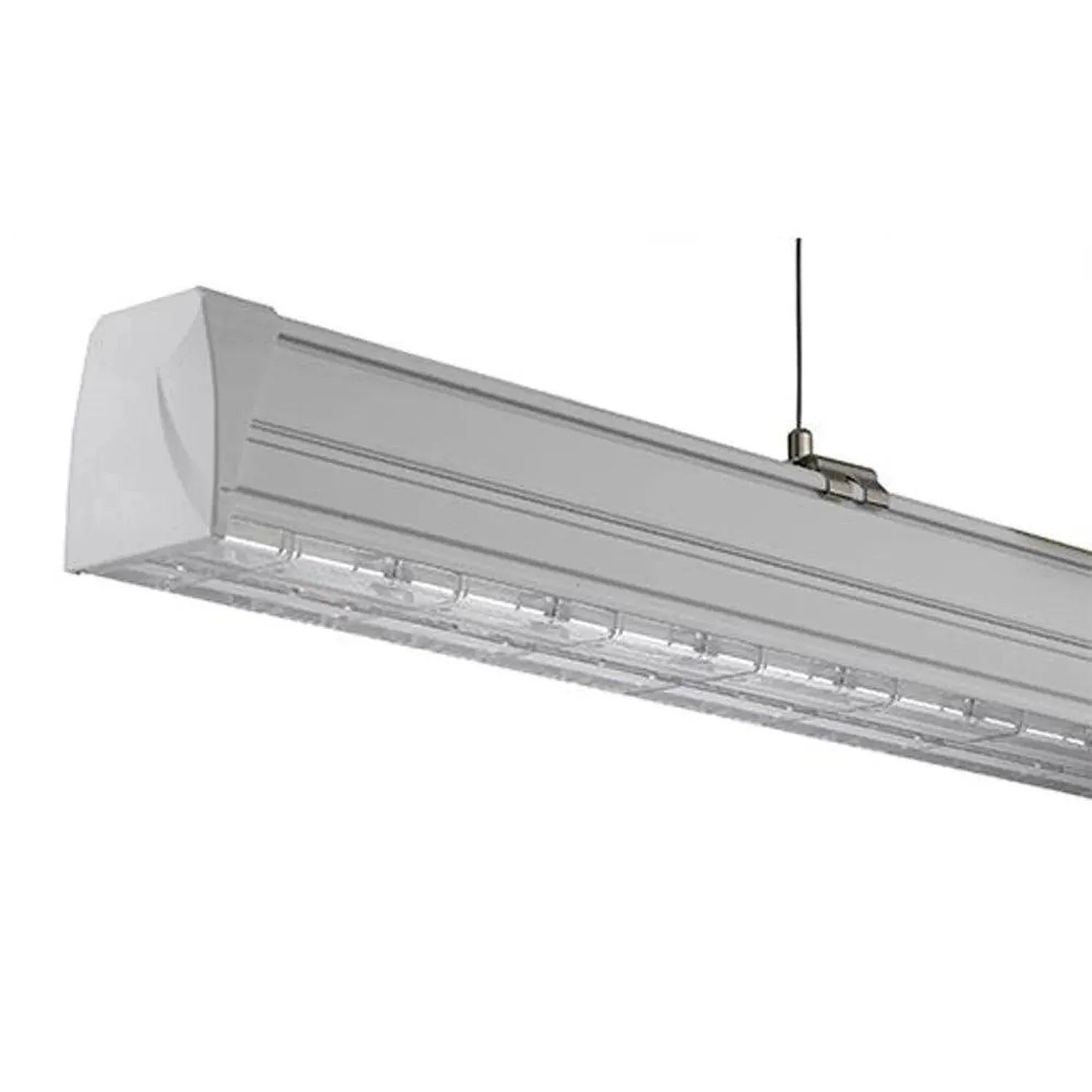

This linkable LED trunking light belongs to the Attica system from Ledison. Each fitting is 1437mm long and runs on AC/DC220-240V. A UGR<19 option is available where low glare matters. It suits working areas, retail spaces, warehouses and long aisles.
LED trunking features
- Length: 1437mm per fitting.
- Control options: non-dimmable, 1-10V or DALI.

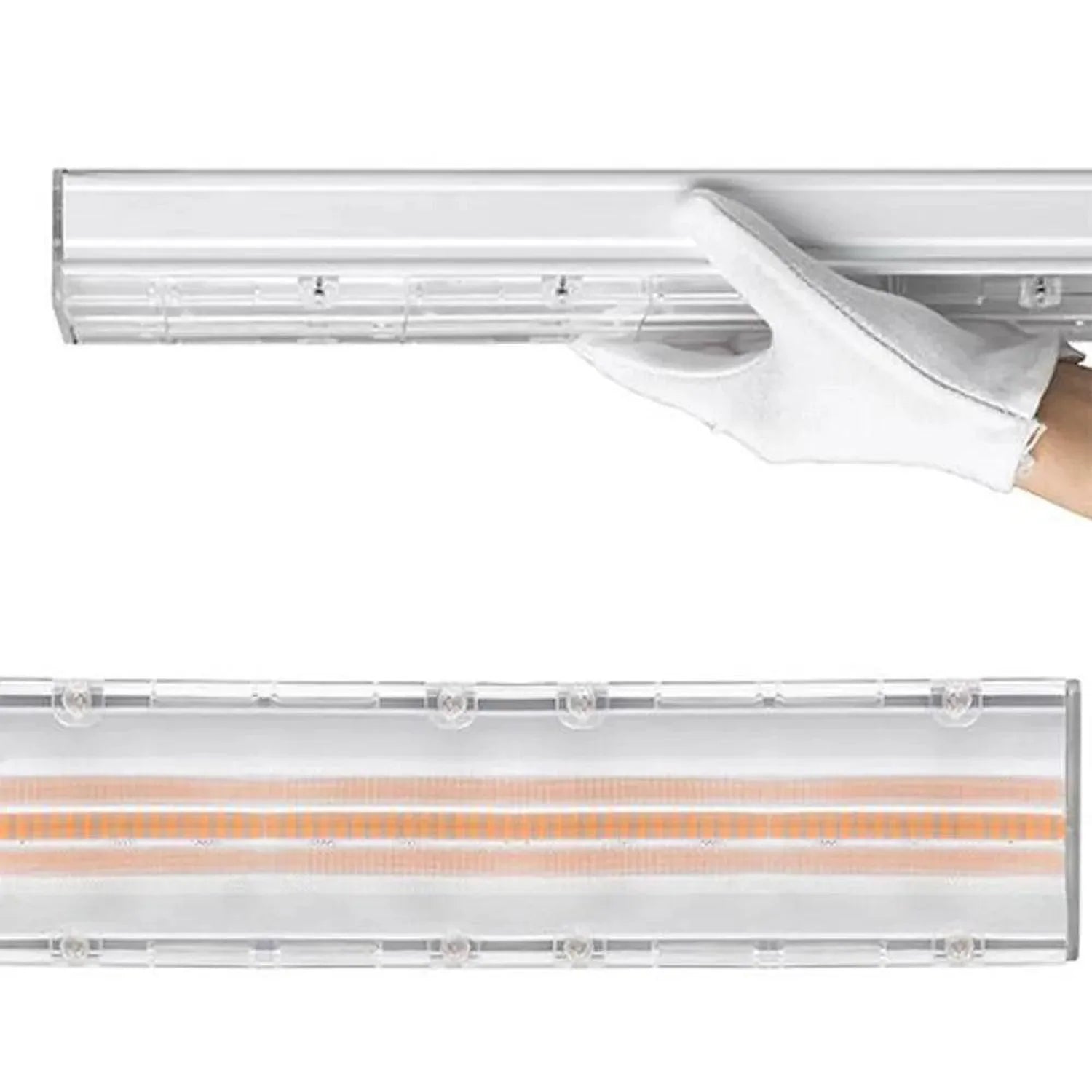

- Optic: prismatic, magnifying optical lens with a colour rendering index above 80.
- LEDs: SMD 2835 chips, with the power rating adjustable on the fitting.
- Build: aluminium structure with heatsink, rated IP40.
- Warranty: 5 years.
Fitting and linking

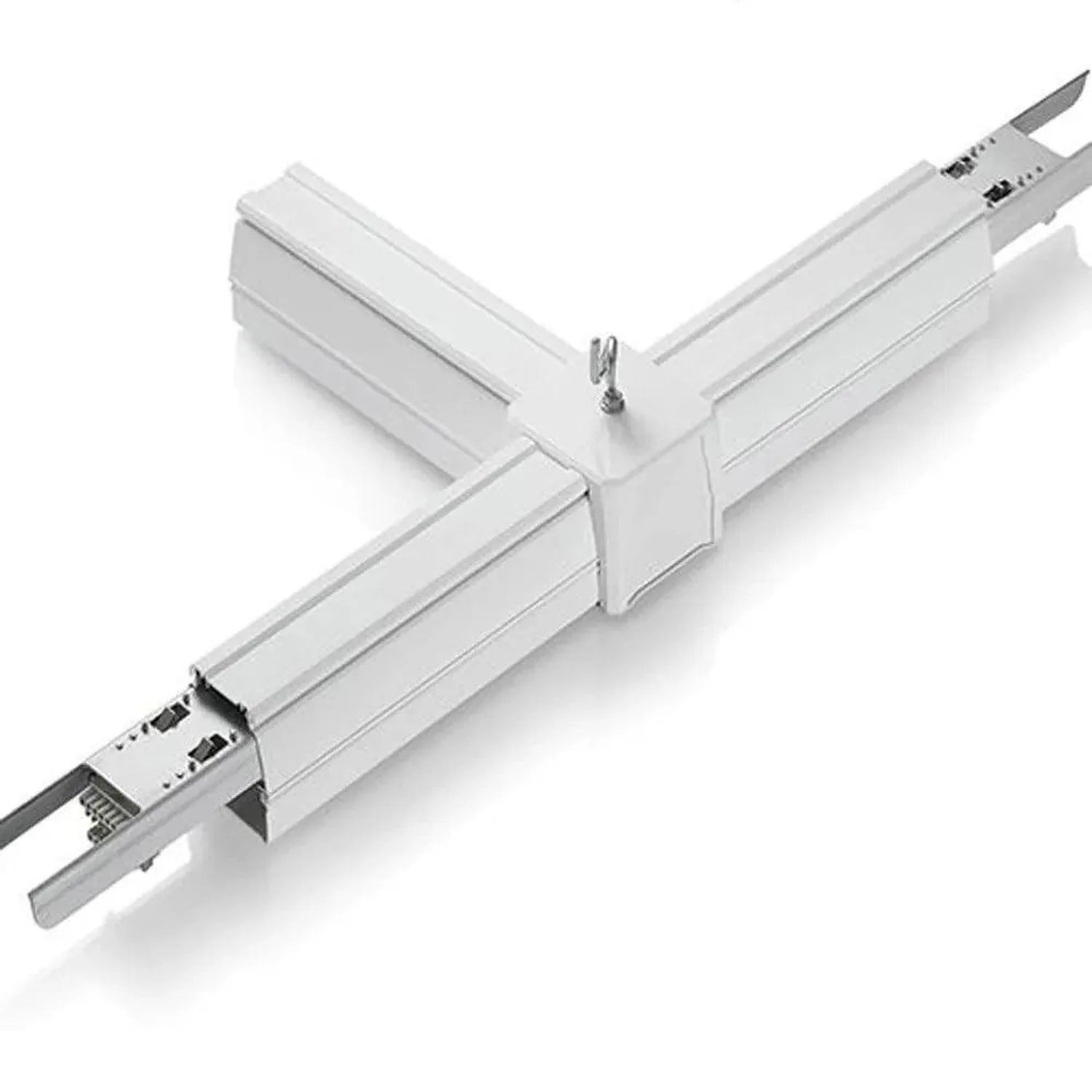

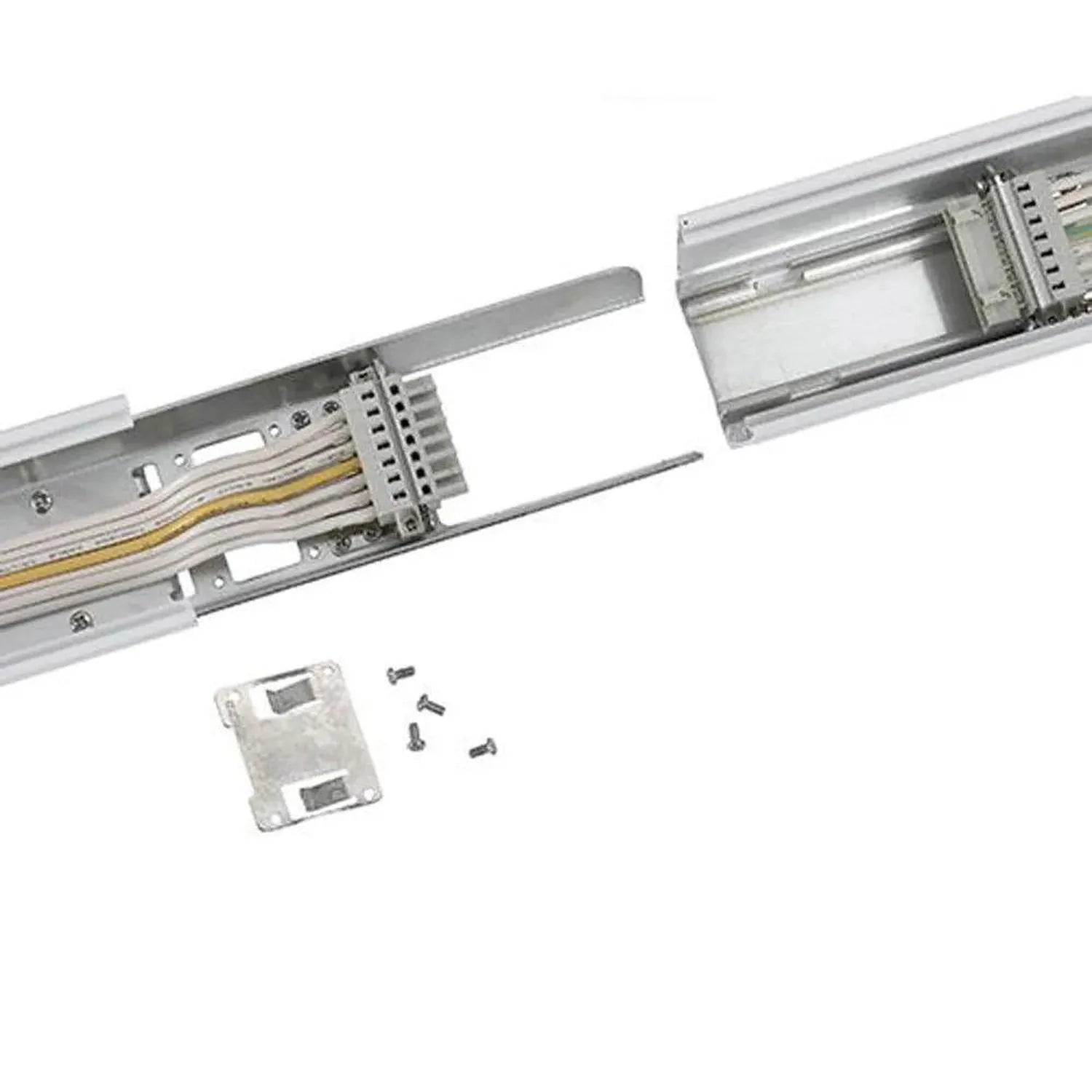

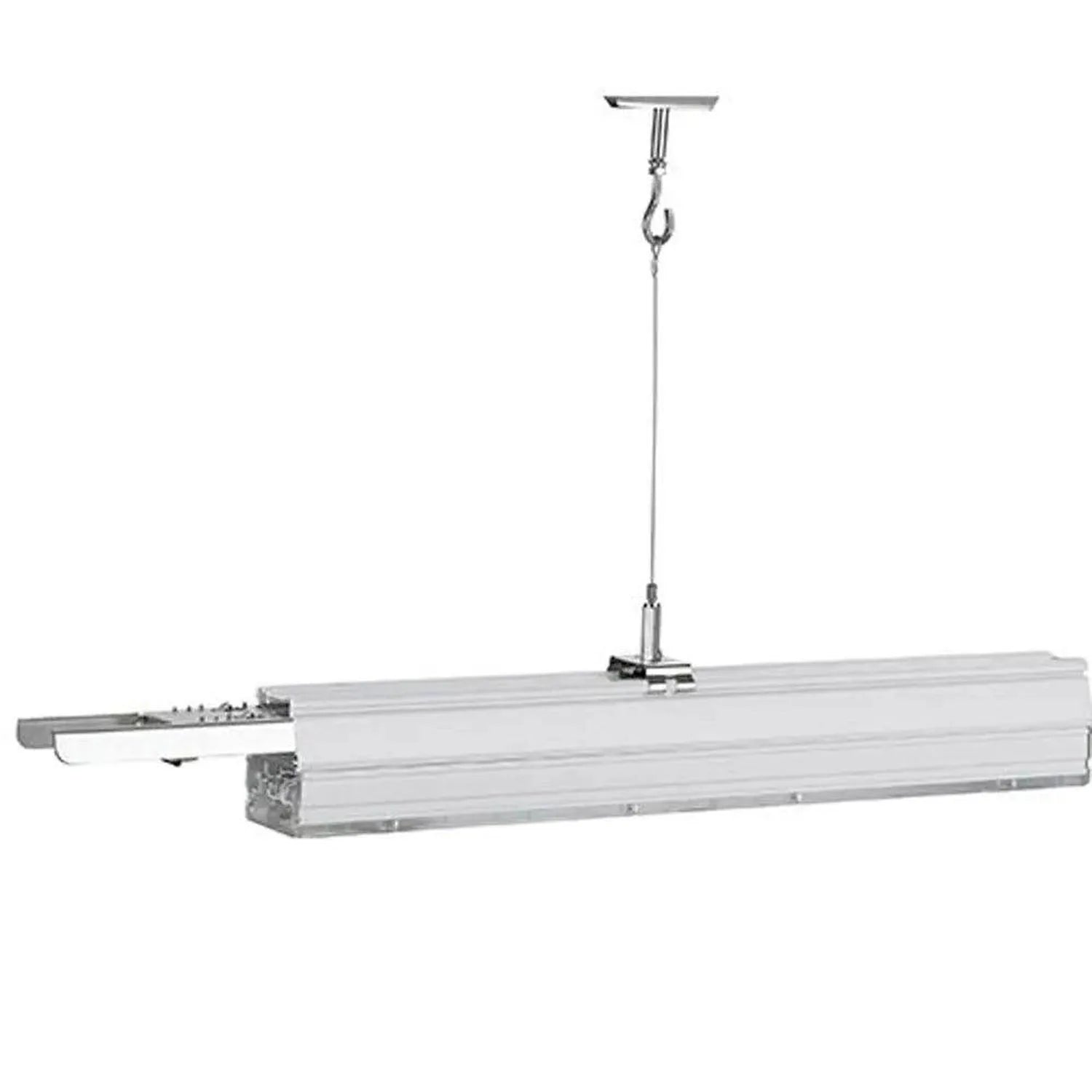

Installation needs no tools. The Snap and Go plug-in system lets you join several fittings into one continuous line, then fix the run to the surface or suspend it. Up to 40 fittings of 72W can share one line at 230VAC.
Wiring
Non-dimming trunking uses 5 wires. The 1-10V and DALI versions use 7.
Applications
Long, unbroken runs of light are where this fitting earns its place. Think warehouse racking, supermarket aisles, workshops and open-plan workspaces, where a single linked line covers the length of the room. With its IP40 rating, it is an indoor fitting.
Planning an Attica installation
The Attica system is made up of several parts that have to be chosen together. Email us with your layout and we will put together a quote for the complete system.
Technical Specifications 21 rows Show
| Fitting | LINEAR LED |
| Length | 1437mm |
| LED chips | SMD 2835 |
| Colour rendering index | >80 |
| Glare | UGR<19 |
| Optic | Prismatic, magnifying optical lens |
| Mounting | Surface mounting or suspended |
| Voltage | AC/DC220-240V |
| Line frequency | 50/60Hz |
| IP rating | IP40 |
| Number of LEDs | 132 |
| Net weight per piece | 2.5kg |
| Wiring | 5 wires non-dimming; 7 wires 1-10V/DALI |
| Installation | Tool-less Snap and Go plug-in system |
| Material | Aluminum + PC/PMMA |
| Frame | White |
| Class | CLASS I |
| Storage temperature | -25C~+55C |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
| Wattage | 72W |
Manufacturer datasheet. Figures as published by the manufacturer.
