Emergency LED Trunking Light 1437mm Linkable IP40 | Attica
- Vendor
- Ledison
- SKU
- 105004w
- Availability
- In stock
- Weight
- 2.5 kg
£135.44inc VAT £112.87exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

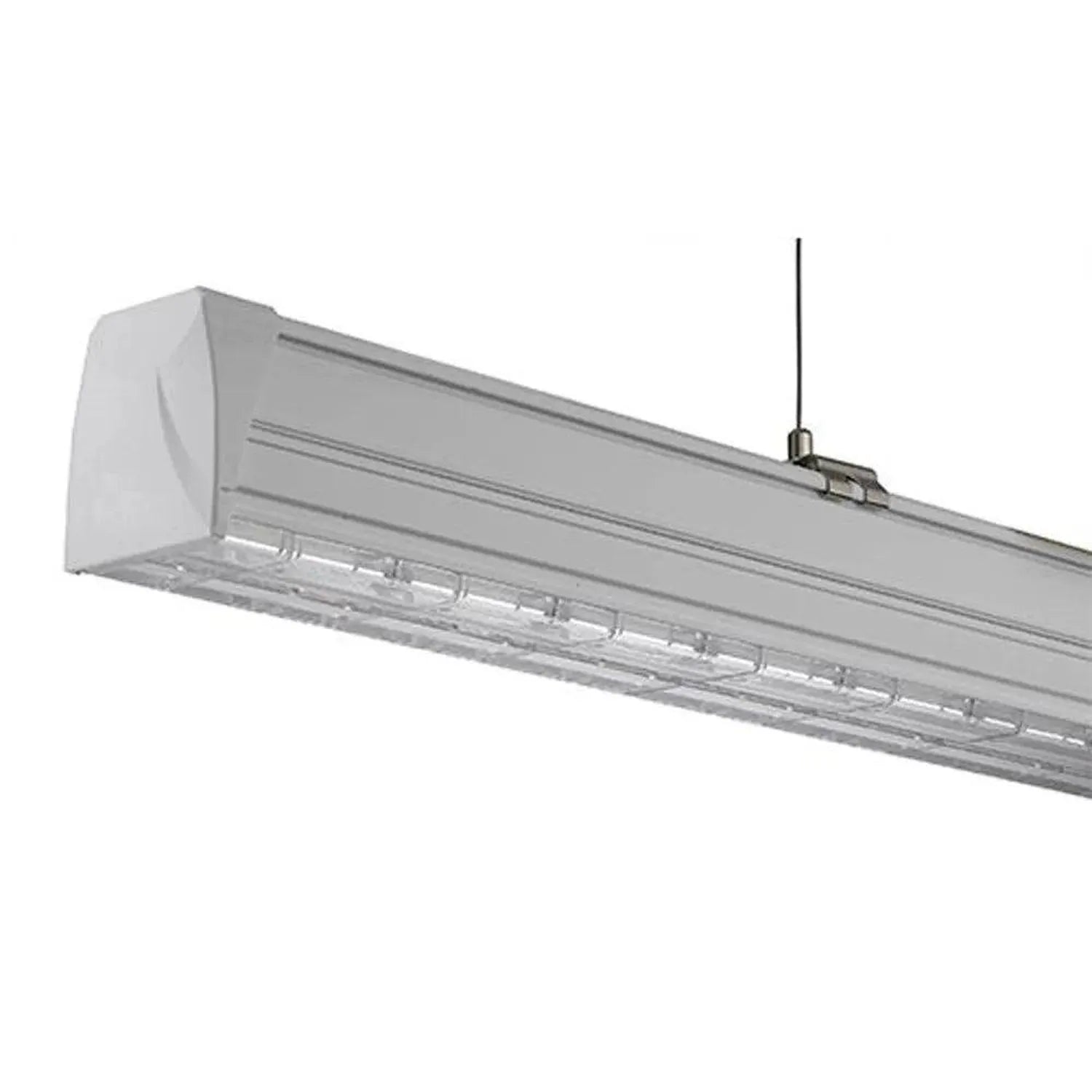

This linkable emergency LED trunking light belongs to the Attica system and measures 1437mm. It runs from the building's normal mains supply. If that power fails, it switches automatically to a self-contained battery to help people evacuate safely.
Attica LED trunking with emergency pack

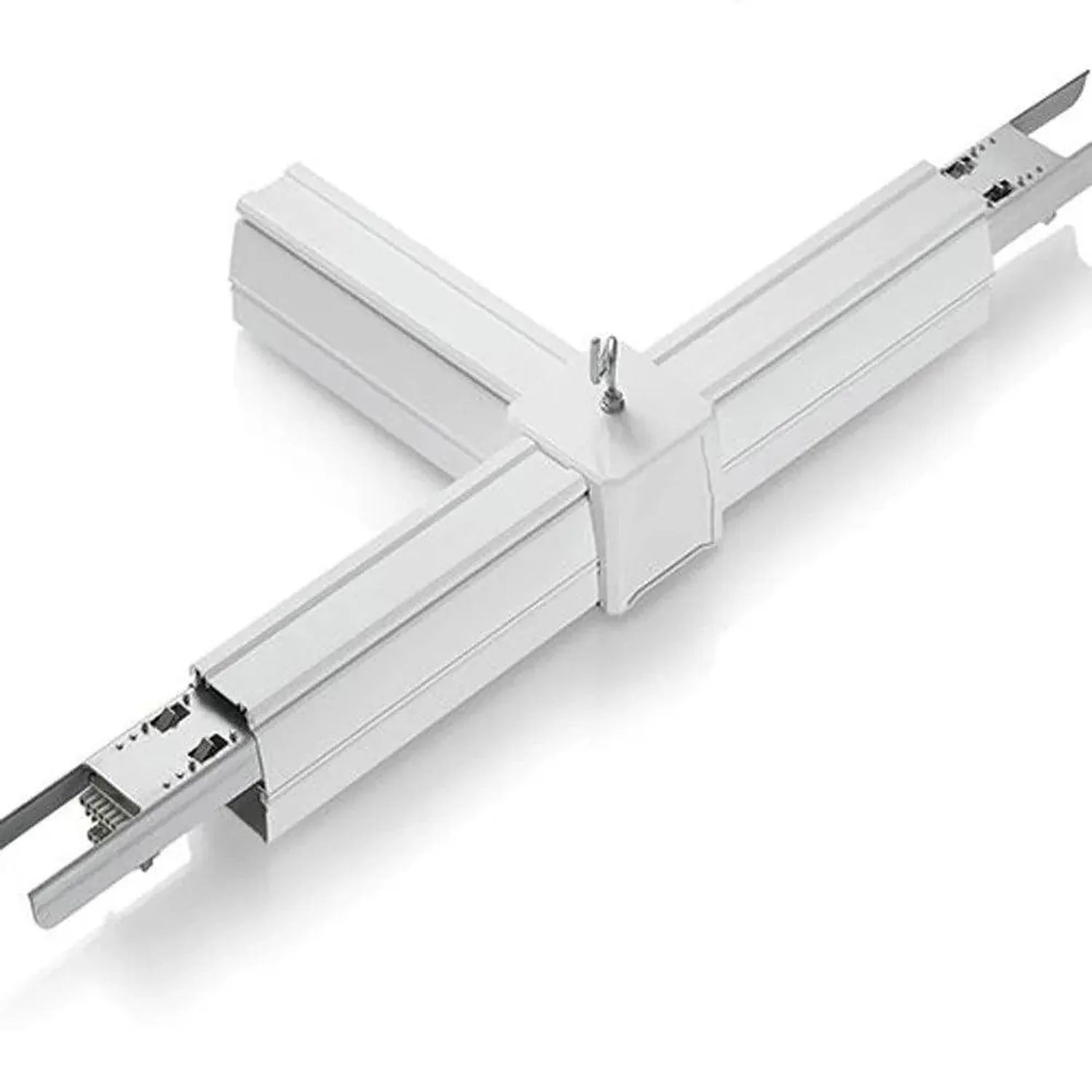

Fittings link together, so one run can light a small office or stretch along a warehouse or grocery store aisle. Cross and L-shaped connectors let you build the layout the space needs. There are three control versions: non-dimmable, 1-10V or DALI.
- Length: 1437mm
- Supply: AC/DC220-240V, 50/60Hz
- Emergency: self-contained battery with automatic changeover
- Circuits: two independent lighting circuits inside the trunking
- LEDs: 132 SMD 2835 chips, colour rendering index >80
- Protection: IP40, Class I
Optics and construction

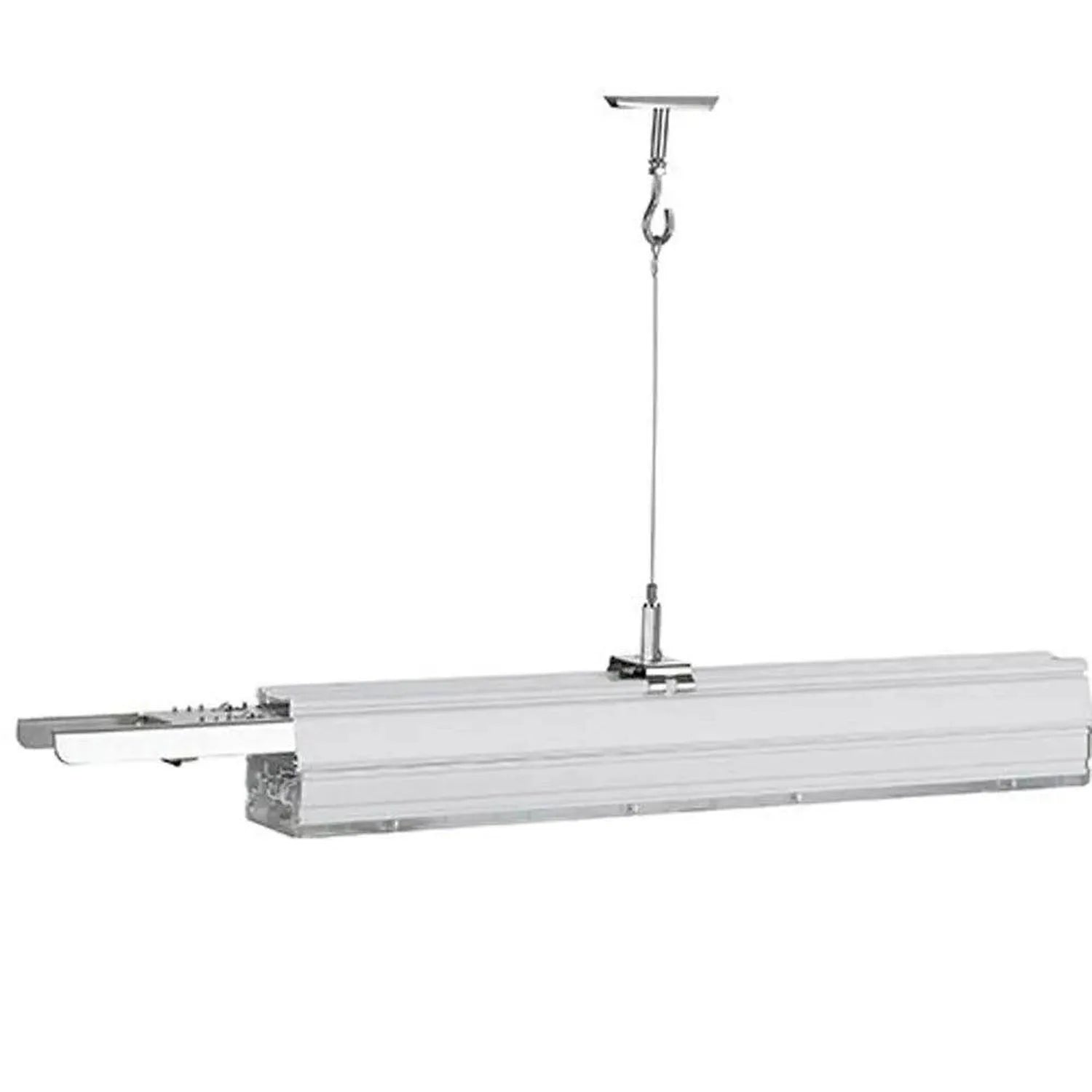

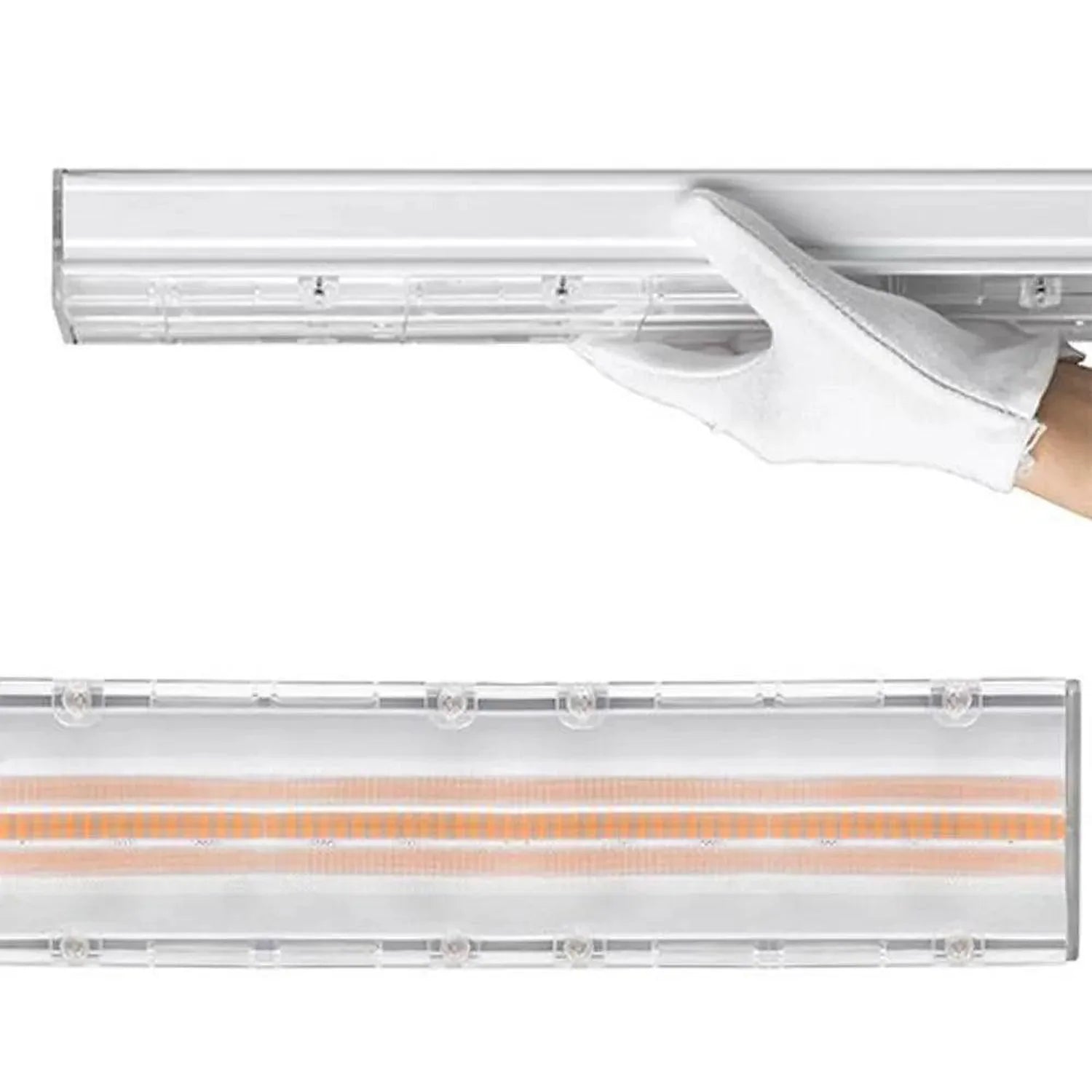

A prismatic, magnifying optical lens sits over the LEDs. The body is aluminium with PC/PMMA, finished in a white frame, and each piece weighs 2.5kg. Mount it on the surface or suspend it. Certifications listed are TUV, ROHS, CE and UL, and the fitting carries a 5-year warranty.
Wiring and planning

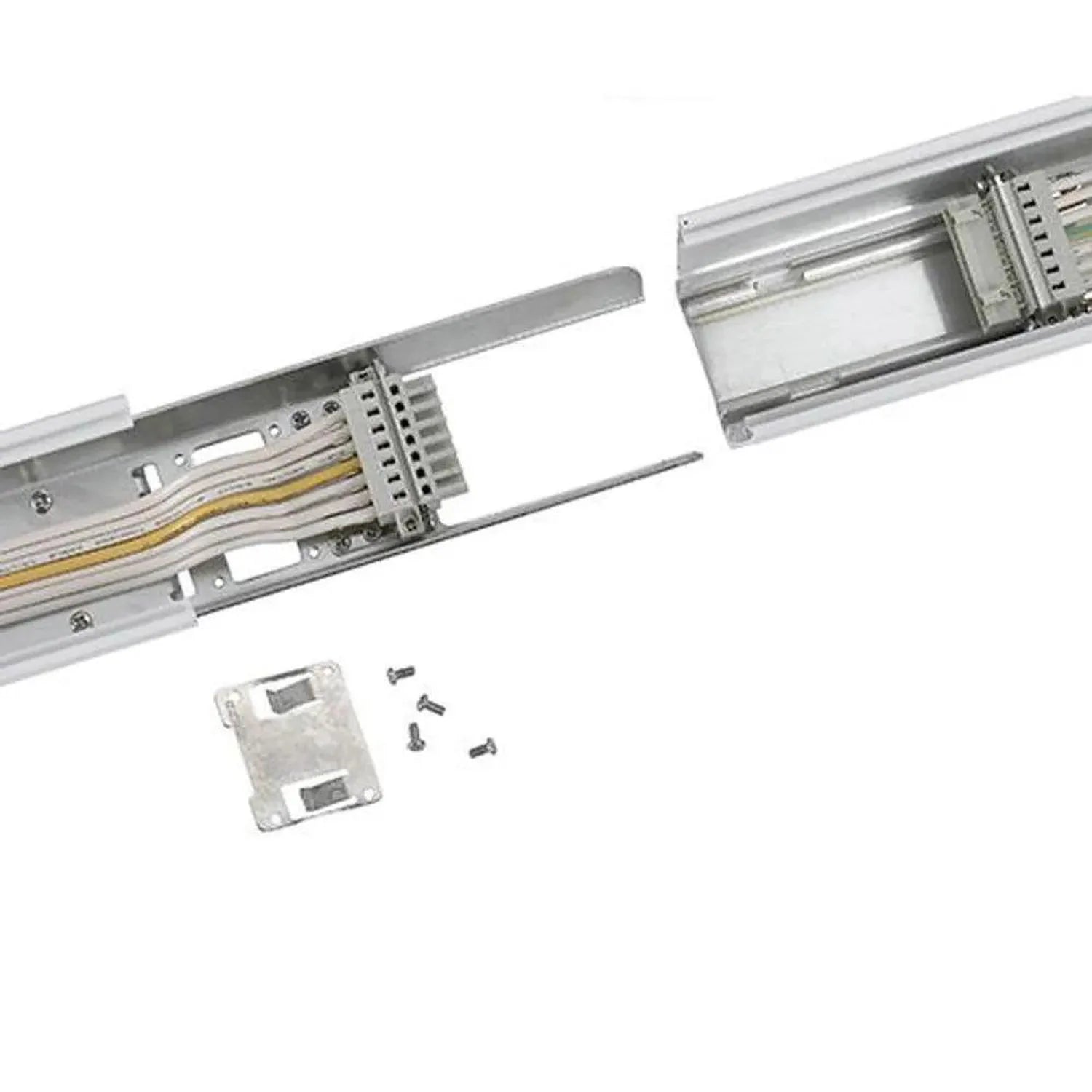

Emergency trunking uses 11 wires. That is 4 more than the dimmable versions, to serve the emergency converter and battery. Non-dimming trunking uses 5 wires and the 1-10V or DALI versions use 7.
Specifying a full system
The Attica range is made up of several parts that have to be chosen together. Email us with your layout and we will put a quote together for the complete run.
Where it fits
With an IP40 rating, this is an indoor fitting. It suits offices, retail floors and warehouse aisles, where continuous lines of light and built-in emergency backup are both needed.
Technical Specifications 20 rows Show
| Fitting | LINEAR LED |
| Length | 1437mm |
| Emergency | Self-contained battery, automatic switch to emergency supply |
| LED chips | SMD 2835 |
| Colour rendering index | >80 |
| Optic | Prismatic, magnifying optical lens |
| Mounting | Suspended or Surface Mounted |
| Voltage | AC/DC220-240V |
| Line frequency | 50/60Hz |
| IP rating | IP40 |
| Number of LEDs | 132 |
| Net weight per piece | 2.5kg |
| Wiring | 5 wires non-dimming; 7 wires 1-10V/DALI; 11 wires emergency |
| Material | Aluminum + PC/PMMA |
| Frame | White |
| Class | CLASS I |
| Storage temperature | -25C~+55C |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
| Wattage | 72W |
Manufacturer datasheet. Figures as published by the manufacturer.
