LED Linear Light 26W 60cm 2ft with Philips Xitanium Driver | Attica
- Vendor
- Ledison
- SKU
- 105000
- Availability
- In stock
- Weight
- 2.5 kg
£57.74inc VAT £48.12exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

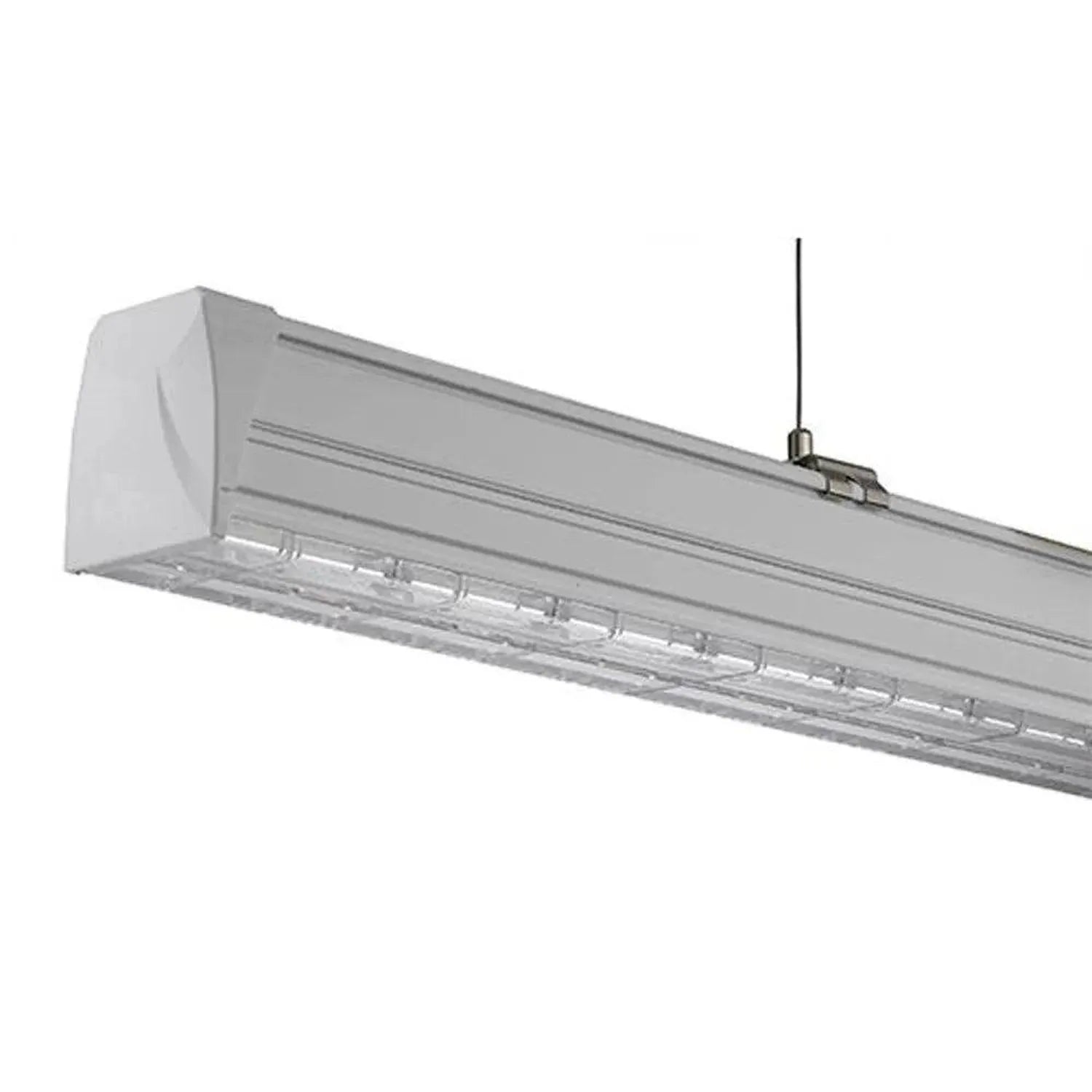

This 26W LED linear light from the Attica range measures 60cm (2ft) and has a Philips Xitanium LED driver built in. It can be fixed straight to a surface or suspended, with a 578mm body made from an aluminium structure that doubles as the heatsink.
LED linear light features
- Power: 26W
- Driver: internal Philips Xitanium LED driver

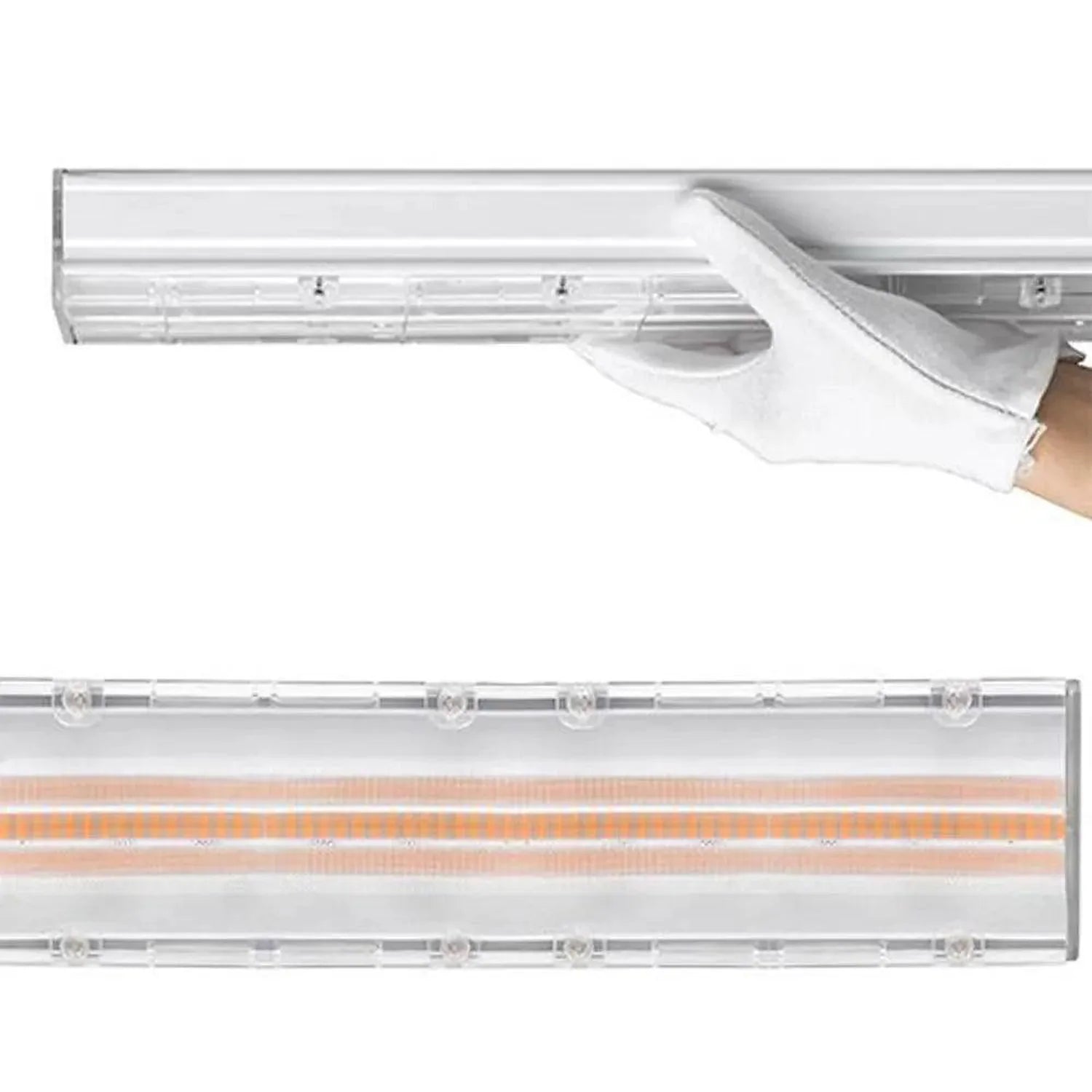

- LEDs: 132 SMD 2835 chips with a colour rendering index of >80
- Supply: 90-277Volt input at 50/60Hz
- Protection: IP40, Class I
- Warranty: 5 years
Control options

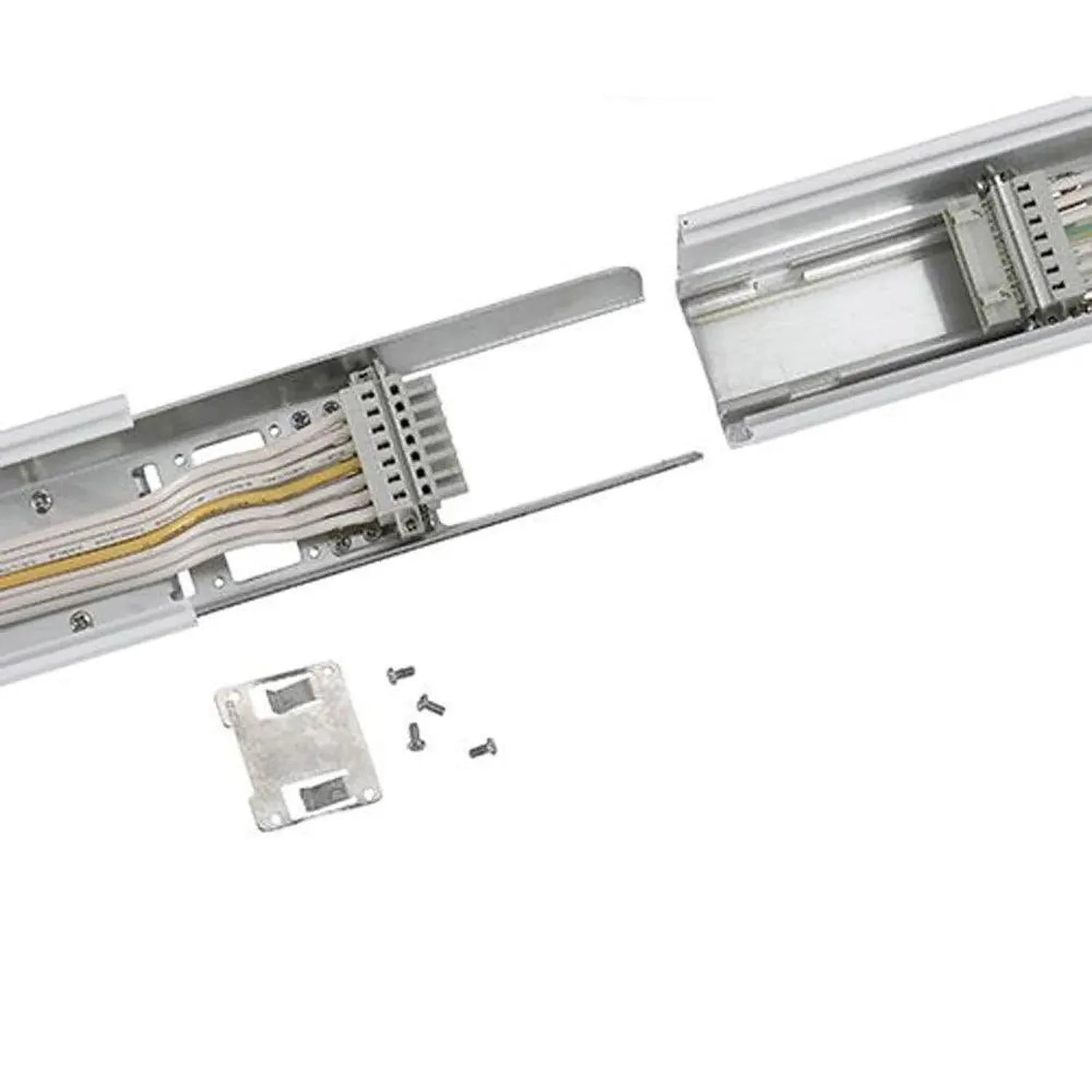

The fitting comes in three versions: non-dimmable, 1-10V or DALI. Wiring differs between them. The non-dimming version uses 5 wires, while the 1-10V and DALI versions use 7, so pick the control type before you plan the cable runs.
Applications

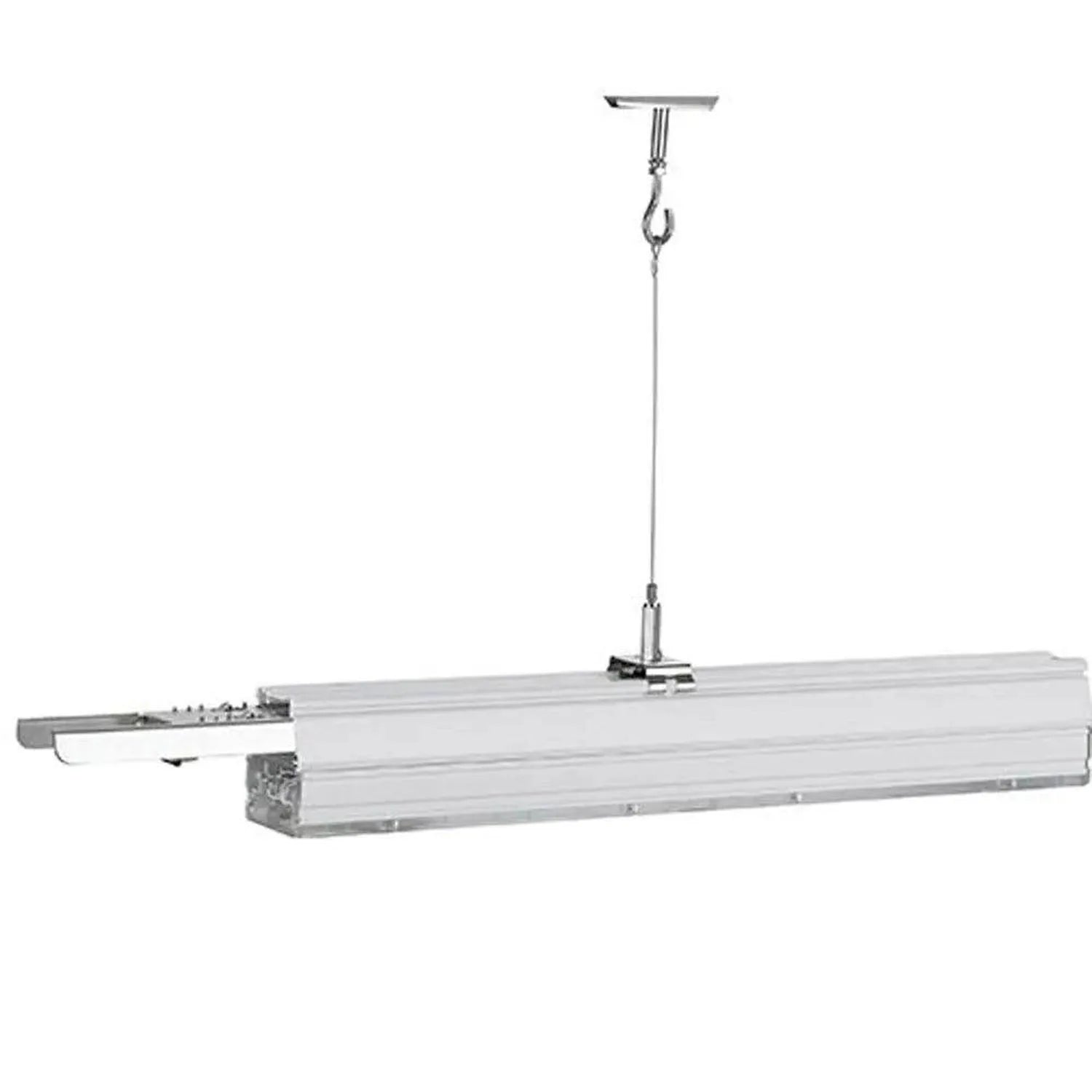

With an IP40 rating, this is an indoor fitting. Surface mounting suits lower ceilings, and suspension works where you want the light hung below the ceiling line. The frame is white, and the body combines aluminium with a PC/PMMA diffuser material. Each piece weighs 2.5kg.

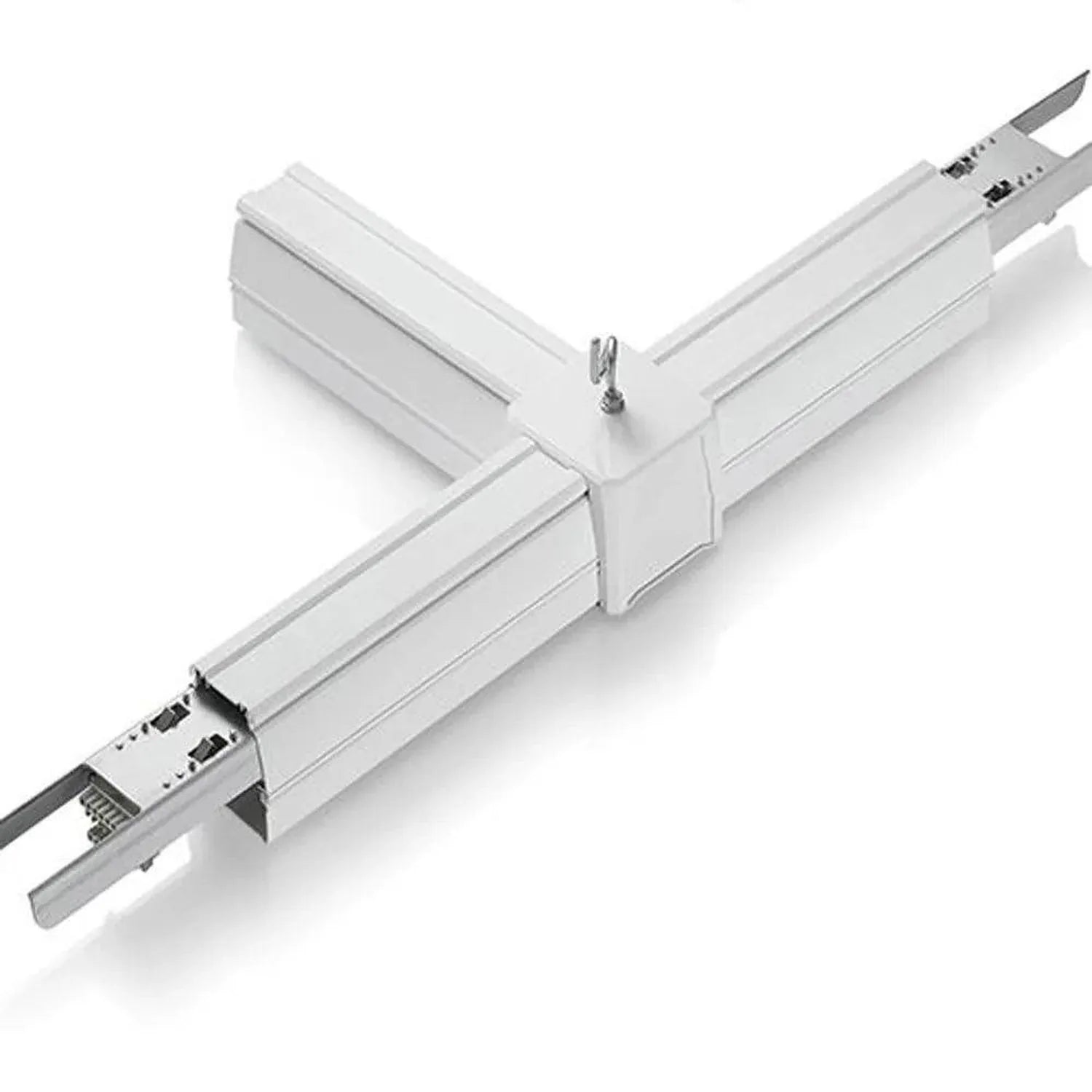

Planning an Attica system
Attica is a linked system. Several parts have to be chosen together for a complete run, so get in touch with us and we can help you work out the right combination for your layout.
Certification
The fitting carries TUV, ROHS, CE and UL certification.
Technical Specifications 20 rows Show
| Fitting | LINEAR LED |
| Wattage (rated) | 26 Watt |
| Length | 578mm |
| Driver | Internal LED Driver Xitanium made by Philips |
| LED chips | 2835 |
| Number of LEDs | 132 |
| Colour rendering index | >80 |
| Mounting | Surface mounting or suspended |
| Line frequency | 50/60Hz |
| Net weight per piece | 2.5kg |
| IP rating | IP40 |
| Voltage | 90-277Volt |
| Wiring | 5 wires non-dimming; 7 wires 1-10V/DALI |
| Heatsink | Aluminium structure with heatsink |
| Material | Aluminum + PC/PMMA |
| Frame | White |
| Class | CLASS I |
| Storage temperature | -25C~+55C |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
