LED Linear Light 42W 120cm Philips Xitanium Driver IP40 | Attica
- Vendor
- Ledison
- SKU
- 105001
- Availability
- In stock
- Weight
- 2.5 kg
£76.64inc VAT £63.87exc VAT
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

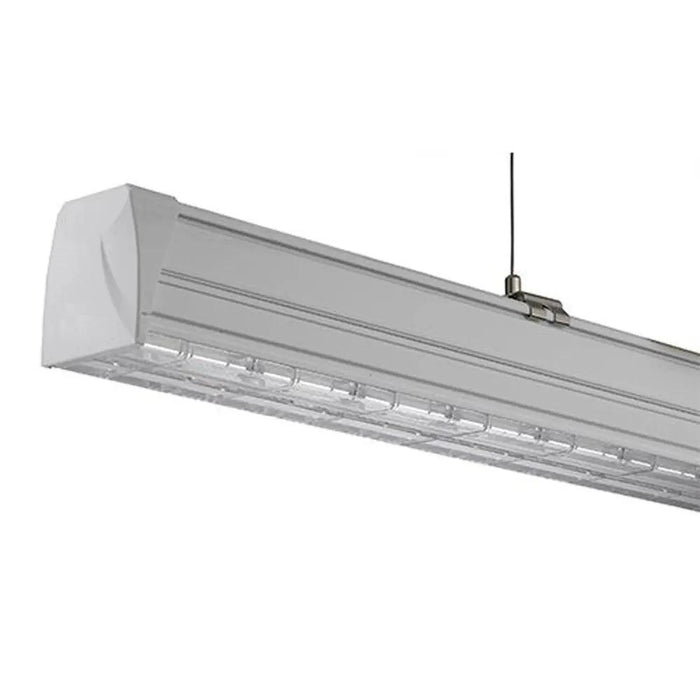

This 42W LED linear light from the Attica range is 120cm (4ft) nominal, with a measured length of 1150mm. A Philips Xitanium LED driver sits inside the fitting. You can mount it directly to a surface or hang it as a suspended run, and it comes in non-dimmable, 1-10V or DALI versions.
Attica LED linear light with Philips Xitanium driver
The light source is 132 SMD 2835 LED chips with a colour rendering index above 80. They sit on an aluminium structure that doubles as the heatsink, with a PC/PMMA diffuser and a white frame. Input voltage is 90-277Volt at 50/60Hz.
- Power: 42 Watt
- Driver: internal Philips Xitanium LED driver
- LEDs: 132 SMD 2835 chips, CRI >80
- Protection: IP40, Class I
- Certification: TUV, ROHS, CE, UL
- Warranty: 5 years
Choosing a version
Pick the control option to suit the building. The non-dimmable version uses 5 wires. The 1-10V and DALI versions use 7 wires, so plan the cabling before first fix if dimming or a DALI control system is on the specification.
Where it fits
With an IP40 rating this is an indoor fitting. Surface or suspended mounting gives you options for ceilings of different types, and each piece weighs 2.5kg net.
Planning an Attica system
Attica is a linear trunking system made up of several parts that need to be selected together. Get in touch with the layout you have in mind and we can help put the right combination of components together for the project.
Technical Specifications 20 rows Show
| Fitting | LINEAR LED |
| Wattage (rated) | 42 Watt |
| Length | 1150mm |
| Driver | Internal LED Driver Xitanium made by Philips |
| LED chips | 2835 |
| Number of LEDs | 132 |
| Colour rendering index | >80 |
| Mounting | Surface mounting or suspended |
| Line frequency | 50/60Hz |
| Net weight per piece | 2.5kg |
| IP rating | IP40 |
| Voltage | 90-277Volt |
| Wiring | 5 wires non-dimming; 7 wires 1-10V/DALI |
| Heatsink | Aluminium structure with heatsink |
| Material | Aluminum + PC/PMMA |
| Frame | White |
| Class | CLASS I |
| Storage temperature | -25C~+55C |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
