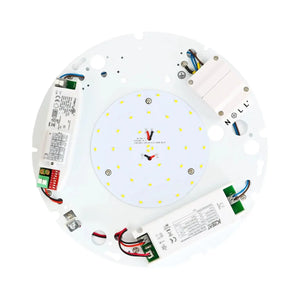

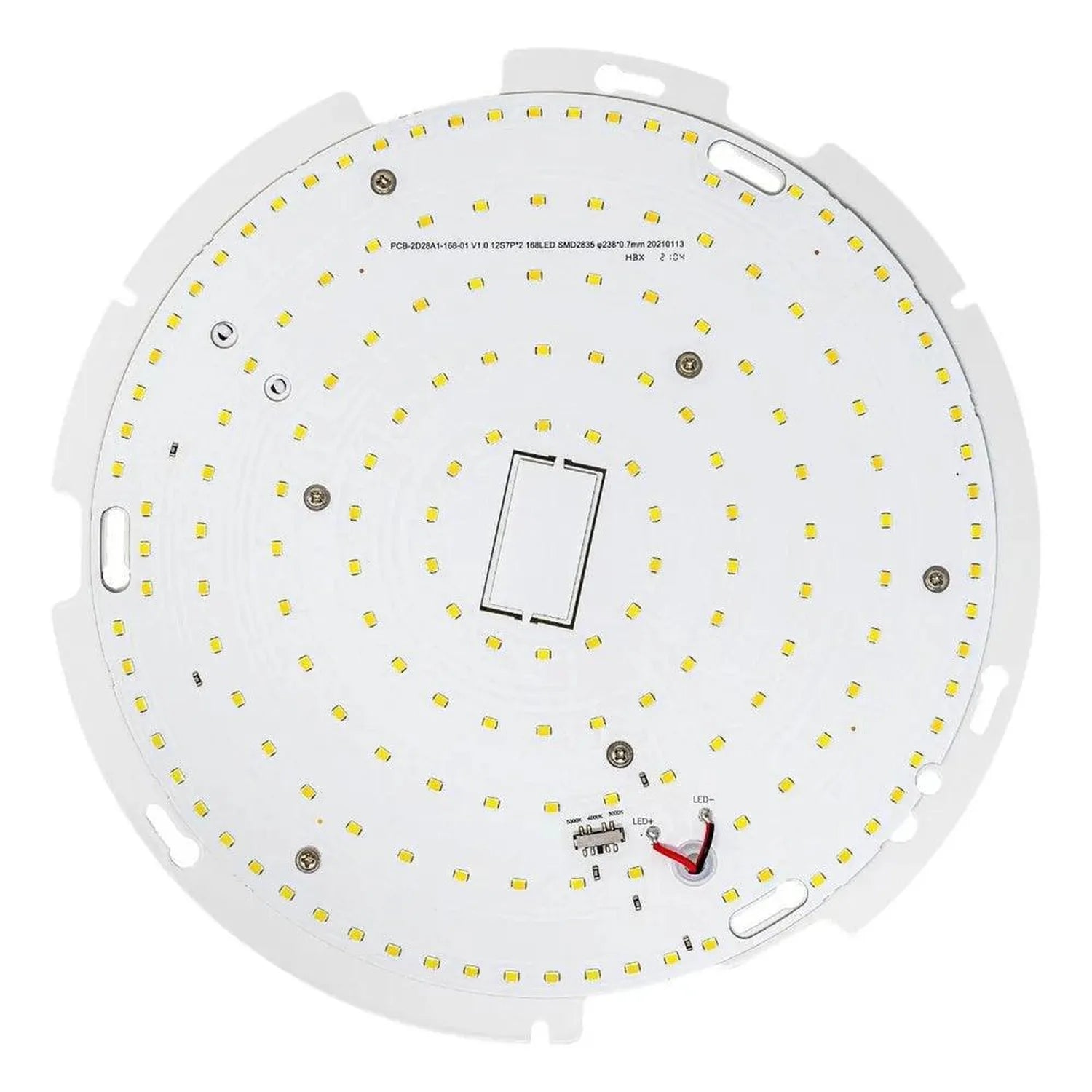

Round LED panel circuit board with yellow SMD chips, mounting holes, and central connector, viewed from above.

18W LED Gear Tray Microwave Sensor Emergency Battery 2D Retrofit | Ledison

£47.20
Skip to product information
Round LED panel circuit board with yellow SMD chips, mounting holes, and central connector, viewed from above.

18W LED Gear Tray Microwave Sensor Emergency Battery 2D Retrofit | Ledison

Vendor
Ledison
SKU
101033
Availability
In stock
Weight
0.313 kg

£47.20inc VAT £39.33exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 18W LED gear tray combines an adjustable microwave sensor and an emergency battery in one unit. It takes the place of a 28W or 36W 2D fluorescent lamp inside a round ceiling or wall light, so the existing fitting stays on the wall. Output is 1800 lumens at 100lm/W.

LED gear tray features

  • Output: 18 watts, 1800 lumens, 100lm/W

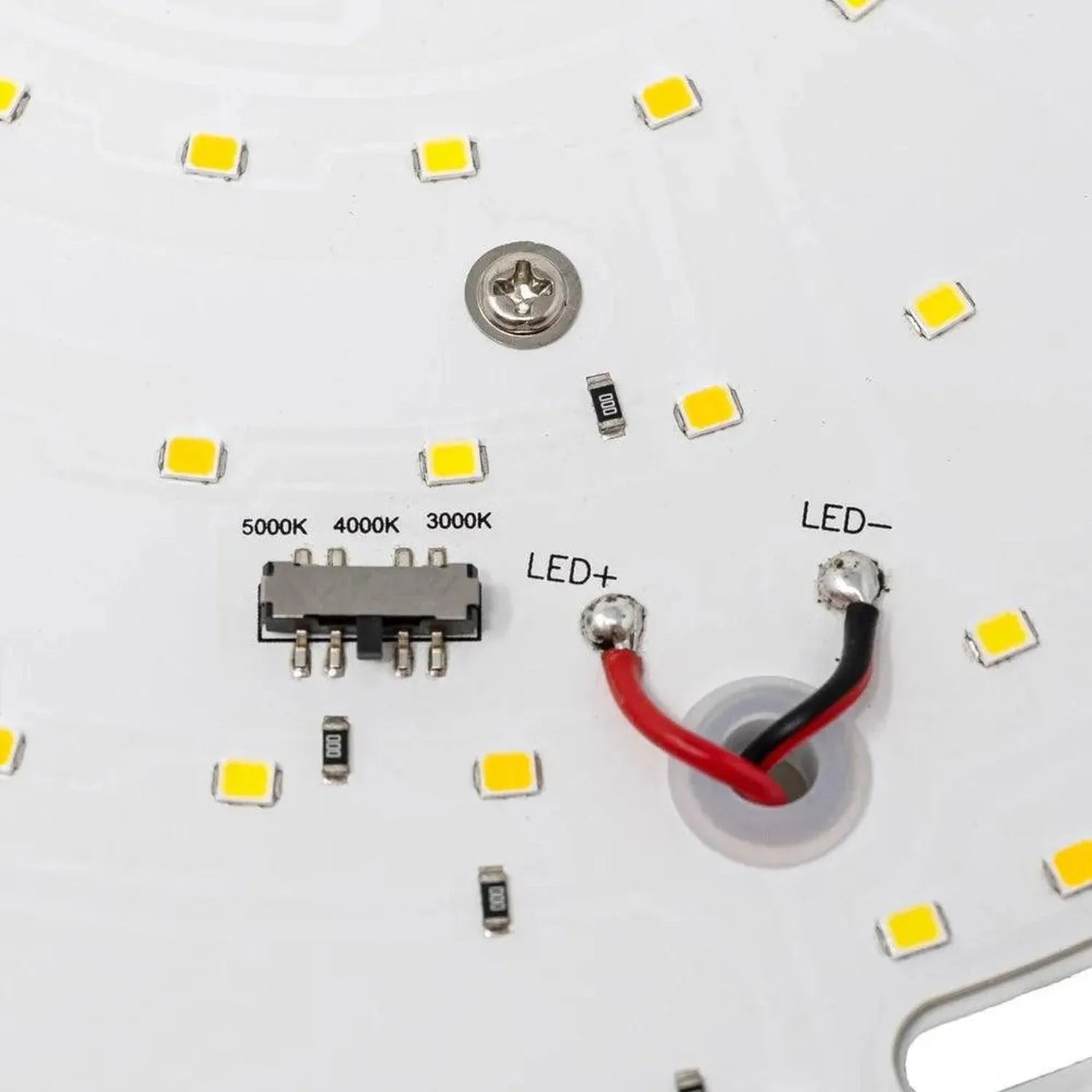

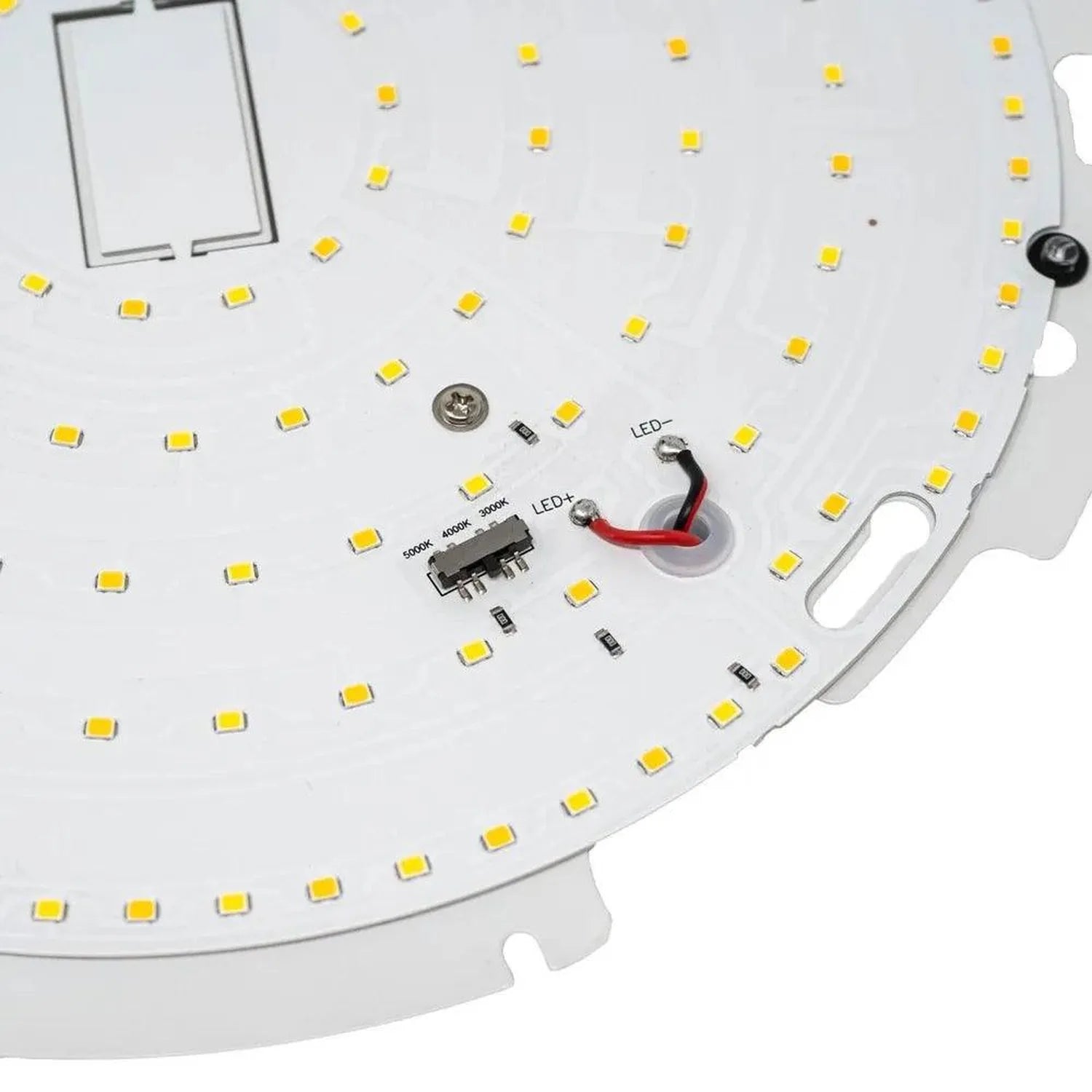

  • Colour temperature: 3000K, 4000K or 5000K

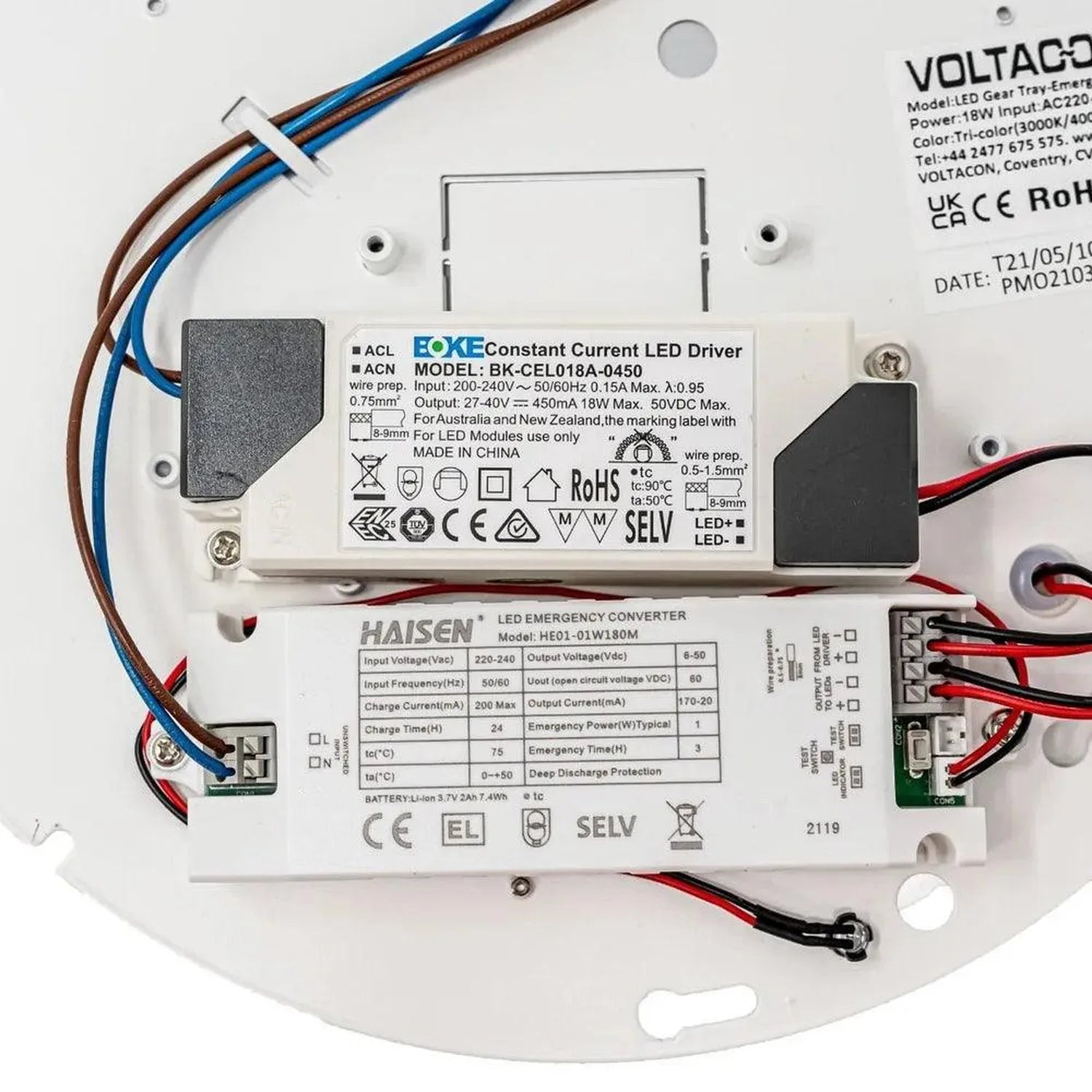

  • Emergency: emergency driver with a 3.6V lithium-ion battery, up to 3 hours
  • Sensor: adjustable motion sensitivity, detection range and photocell
  • Beam angle: 120 degrees
  • Lifetime: 50,000 hours, not dimmable

How it operates

Day to day it behaves as an ordinary light, controlled either from a wall switch or by the sensor. Lose the mains and it switches to emergency mode. The battery then keeps it lit for up to 3 hours, making this a maintained emergency fitting.

Installation

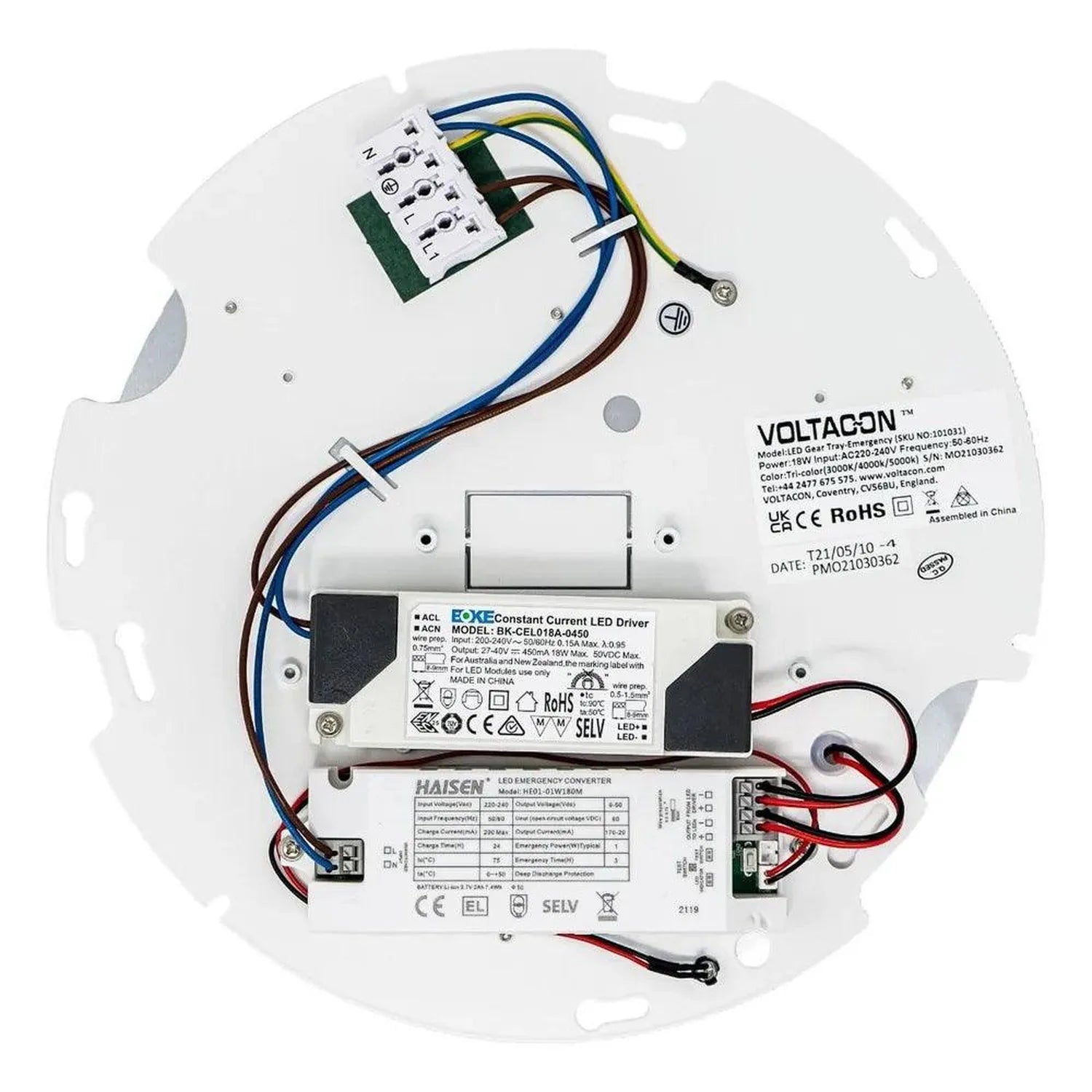

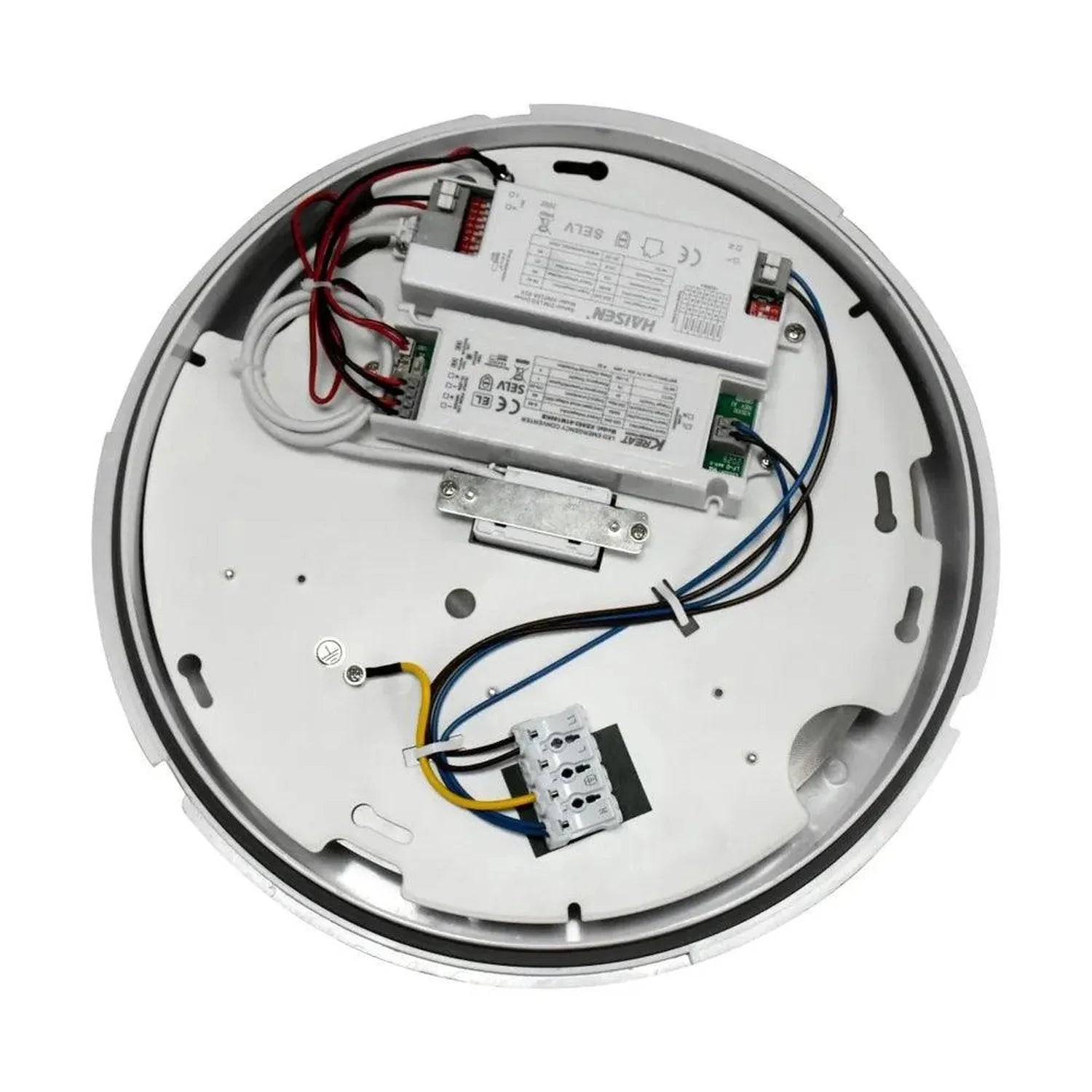

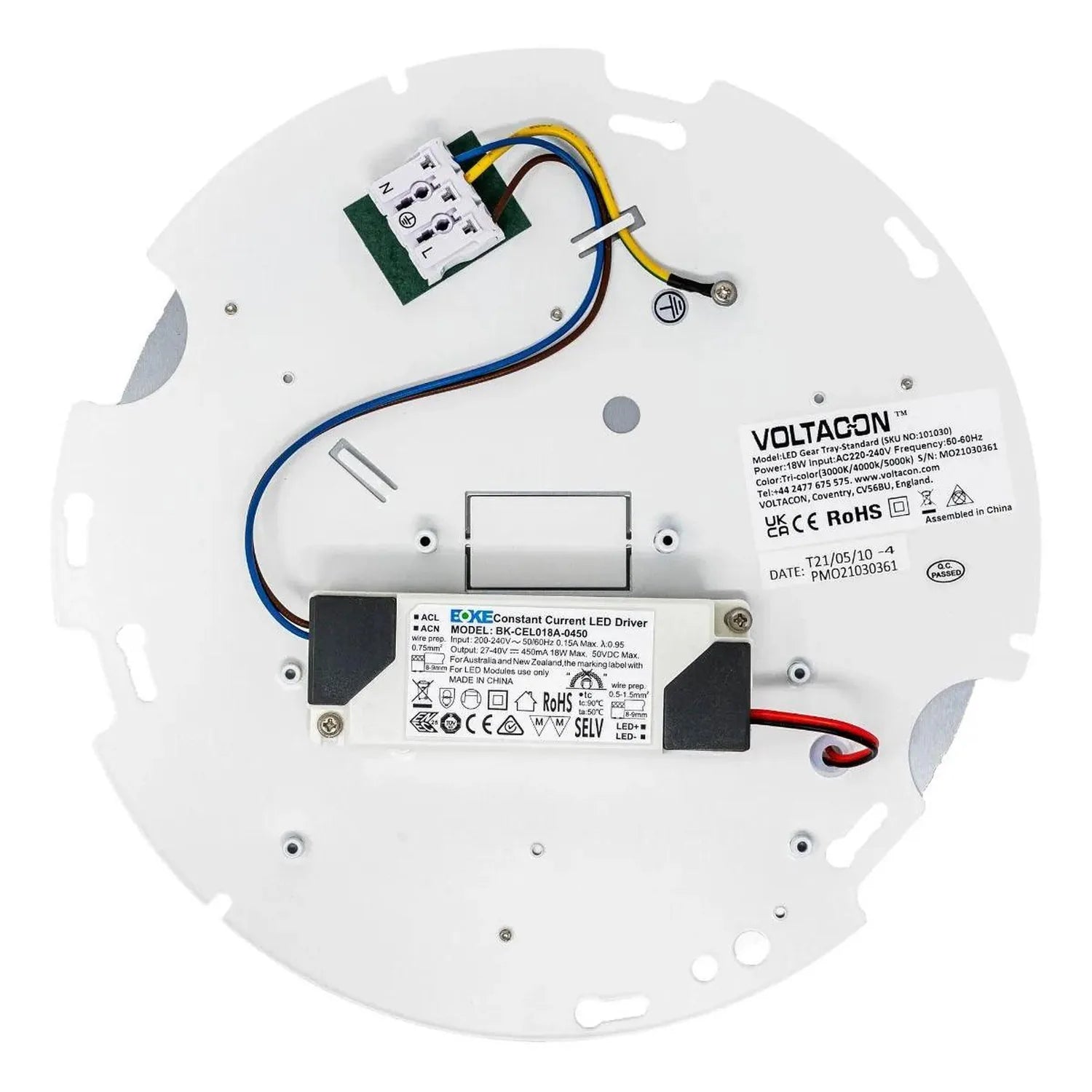

The tray measures 262mm in diameter and wires into a fully insulated junction box. Connections are made at a 4-way terminal block covering switched live, unswitched live for the emergency circuit, neutral and earth. The unswitched live is what keeps the battery charged, so it needs a permanent supply.

Where to fit it

Corridors, stairwells and communal areas suit it well. So do entrances and commercial spaces where a sensor-controlled light with emergency backup is wanted from a single bulkhead.

Warranty

5 years on the LED. 1 year on the emergency components.

Technical Specifications 19 rows Show
Fitting2D / 4 pin
Luminous flux1800lm
Wattage (rated)18W
Colour rendering index>80
Voltage100-265V
Typical efficiency100lm/W
Line frequency50/60Hz
Beam angle120°
Average lifetime50,000 hours
Current250mA
Colour temperature3000K / 4000K / 5000K
Power factor0.95
Dimensions262mm diameter
Battery3.6V lithium-ion battery pack
Emergency durationup to 3 hours
DimmableNo
Operating temperature-20°C to 45°C
CertificationTUV, RoHS Compliant, CE, UL
Warranty5 years (LED) / 1 year (emergency)

Manufacturer datasheet. Figures as published by the manufacturer.
