DALI Touch Panel Dimmer Switch Controller | Euchips P02

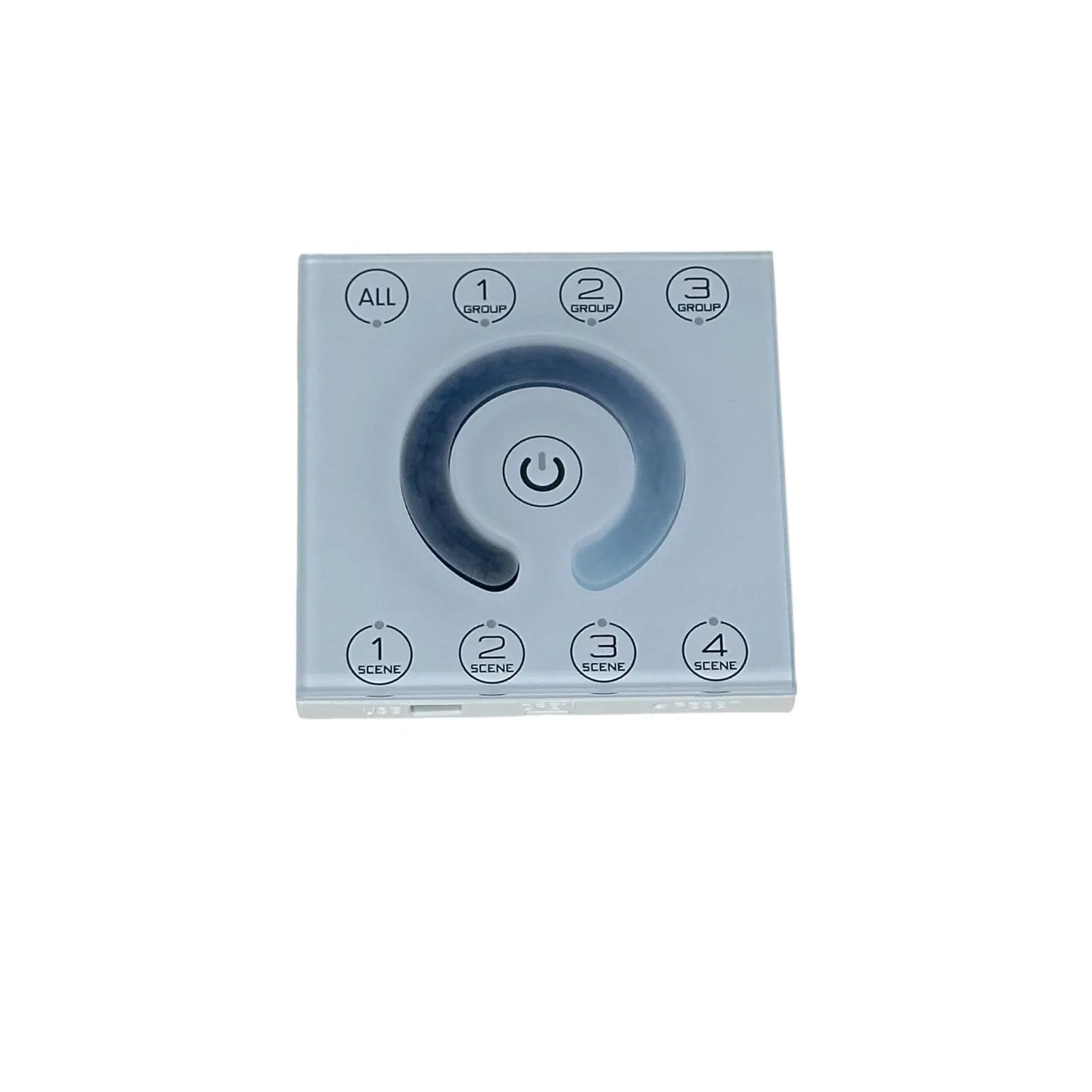

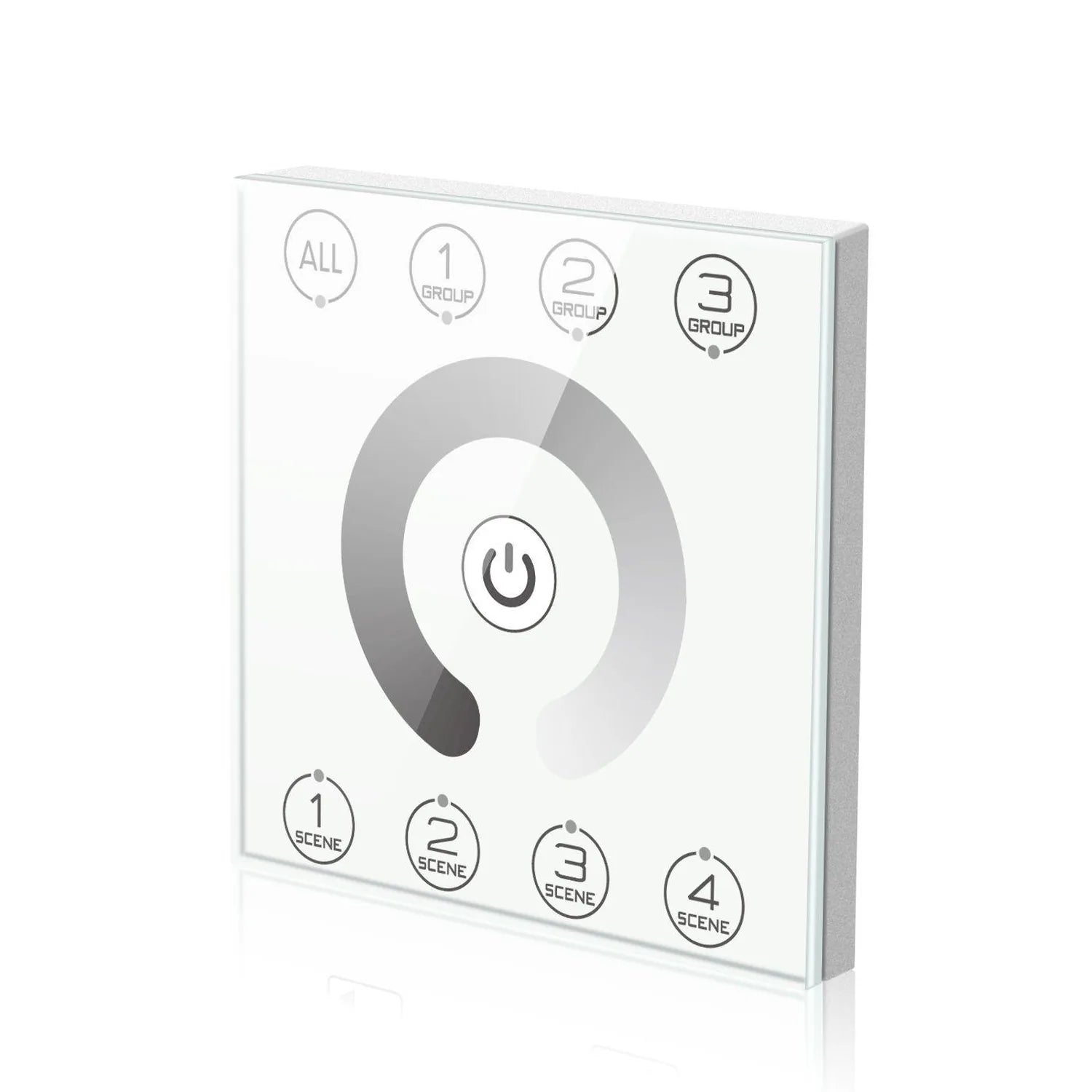

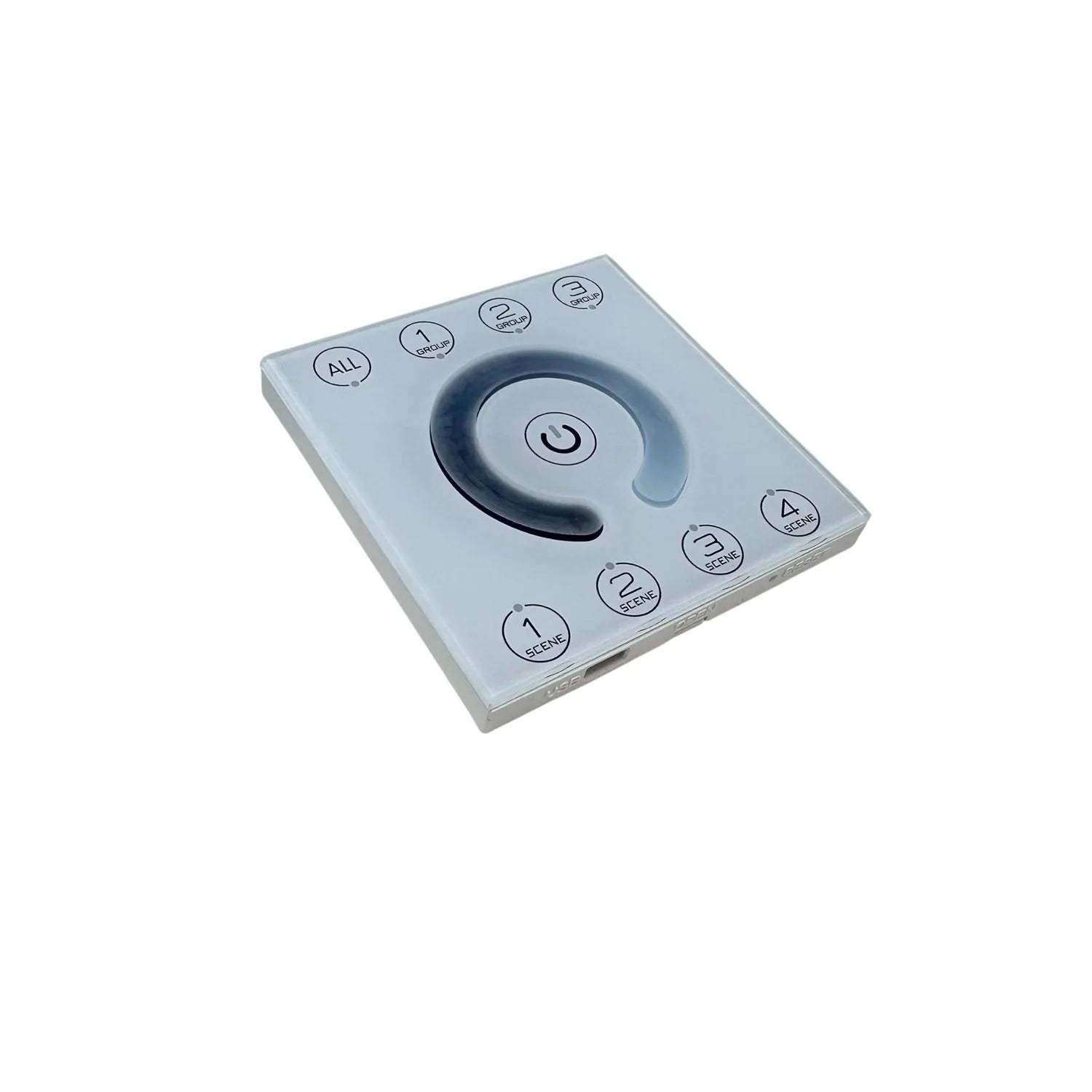

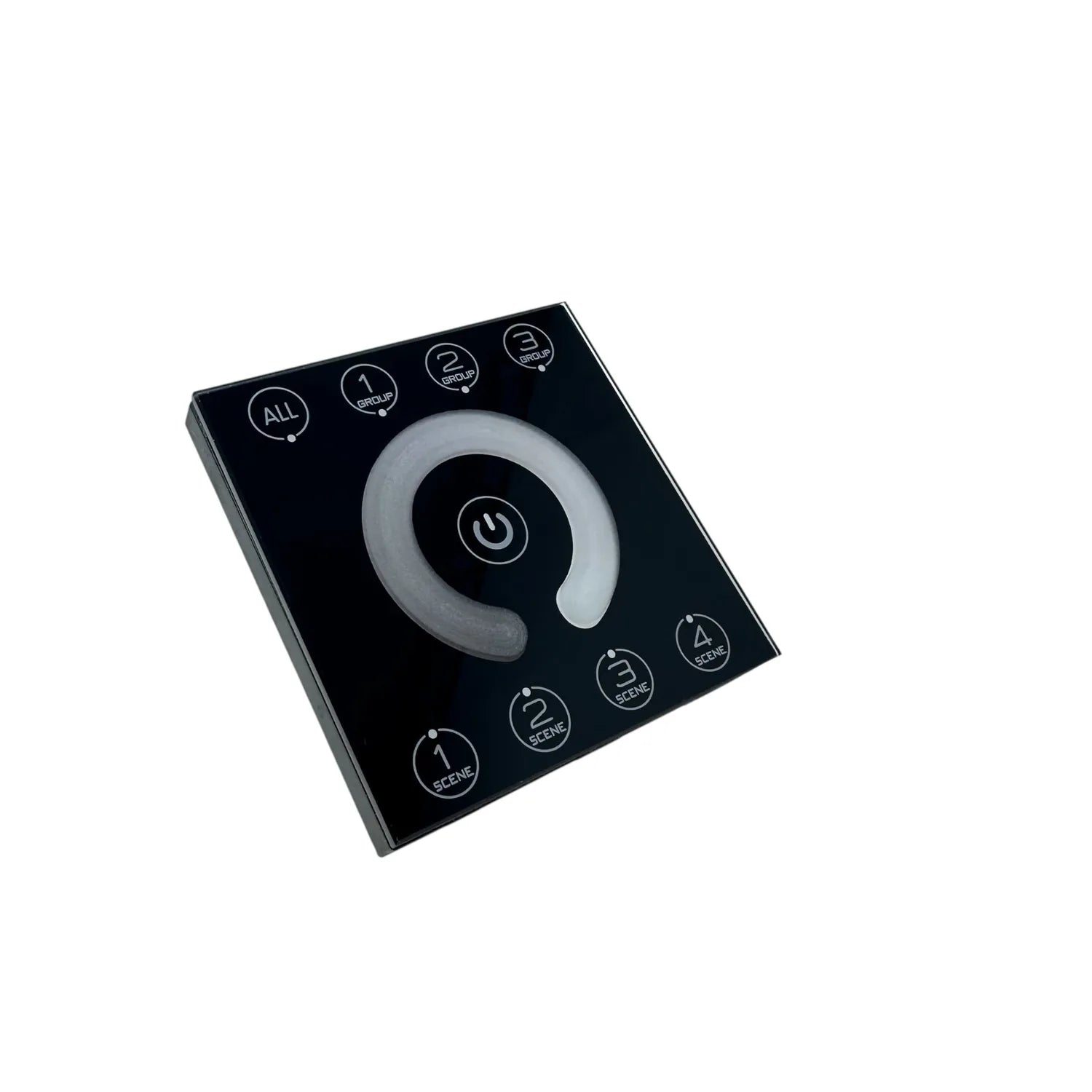

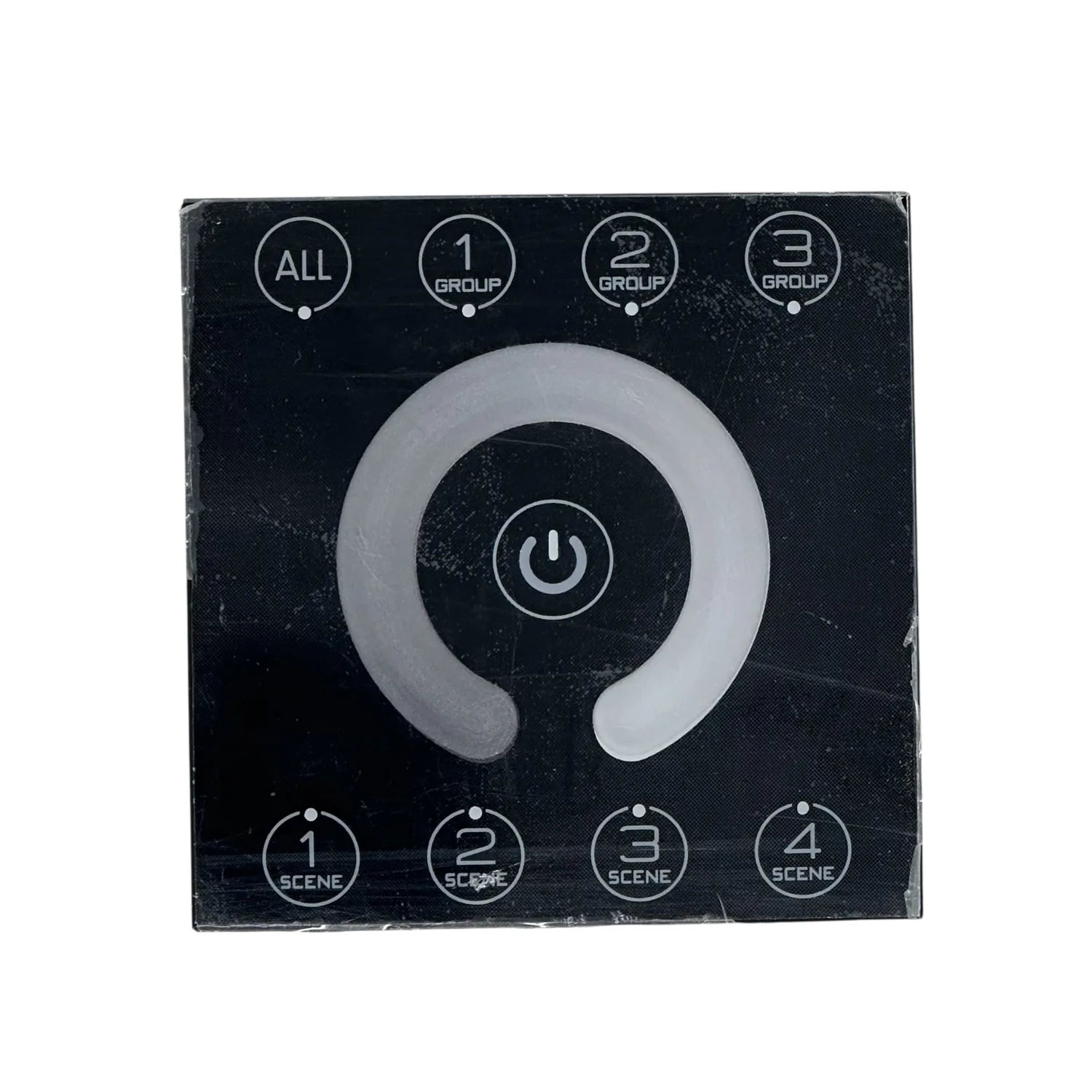

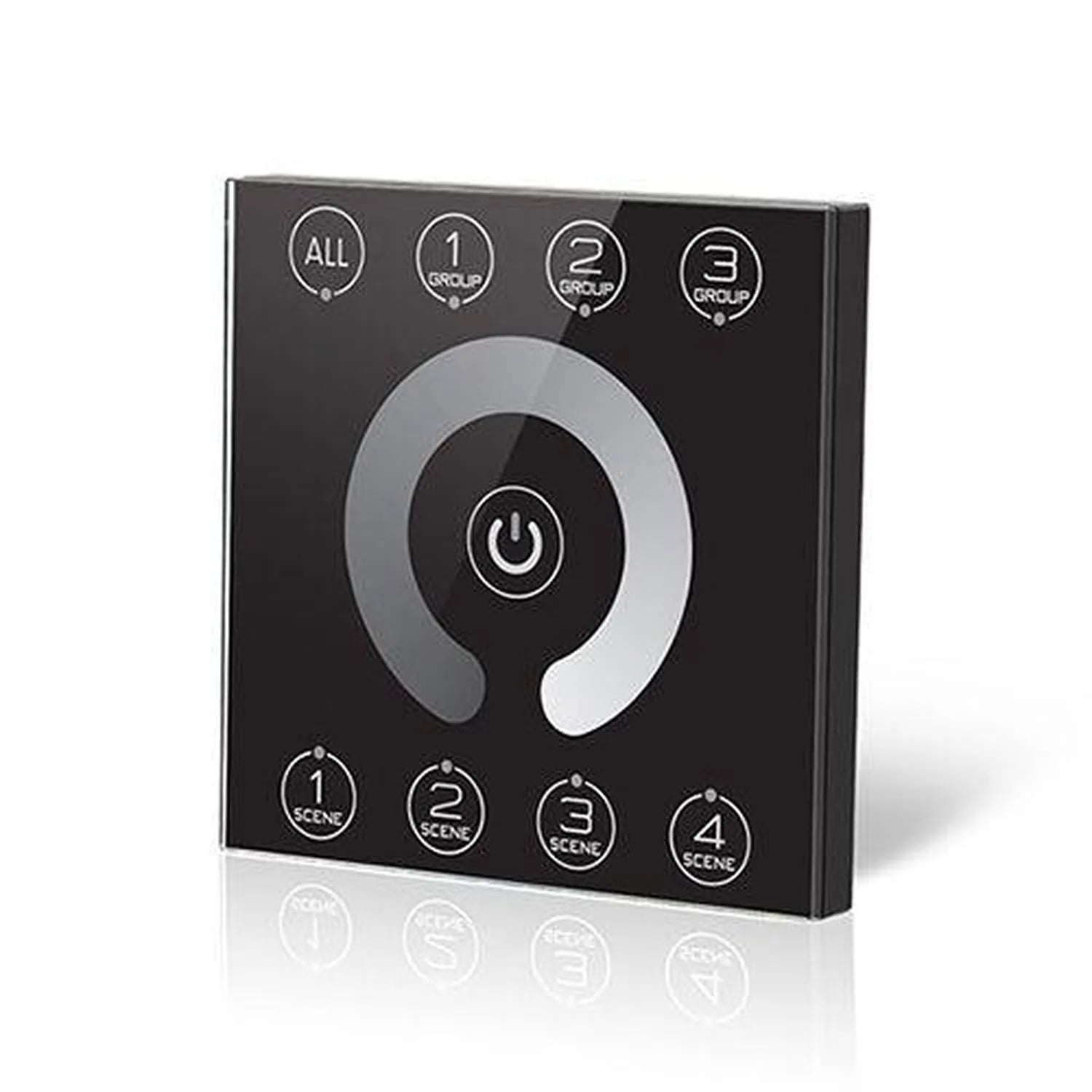

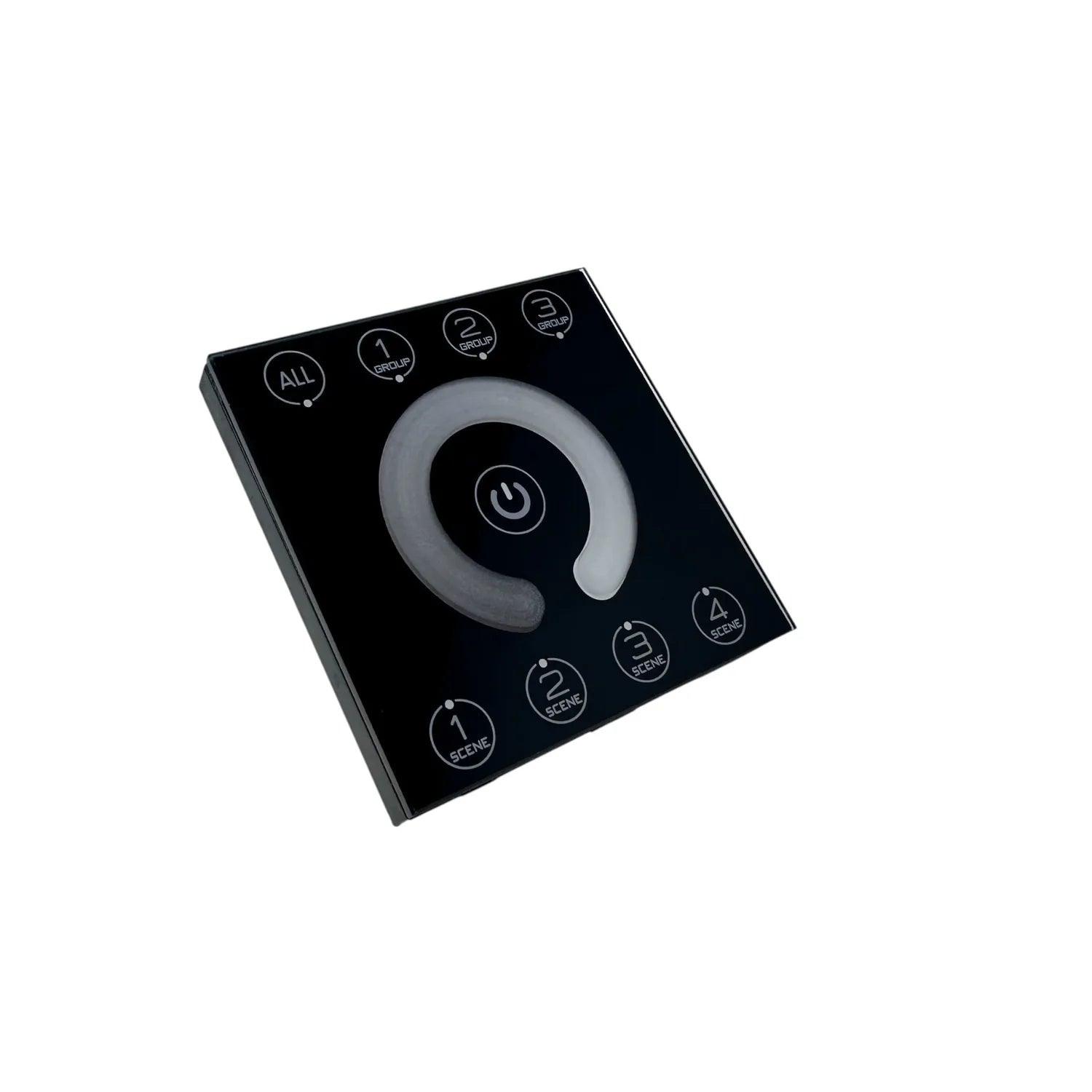

The Euchips P02 is a DALI touch panel dimmer switch for controlling DALI-dimmable LED lighting from a wall-mounted panel. It is surface mounted, available in black or white, and fits standard electrical wall boxes.

Key features of this dali touch panel

• Protocol, meets DALI standard IEC60929/IEC62386
• Power, powered directly from the DALI BUS supply
• Control, supports broadcast control plus up to 3 groups and 4 scenes, each controlled individually
• Indicator, blue LED button indicator for status feedback
• Finish, glass front panel, surface mounted design

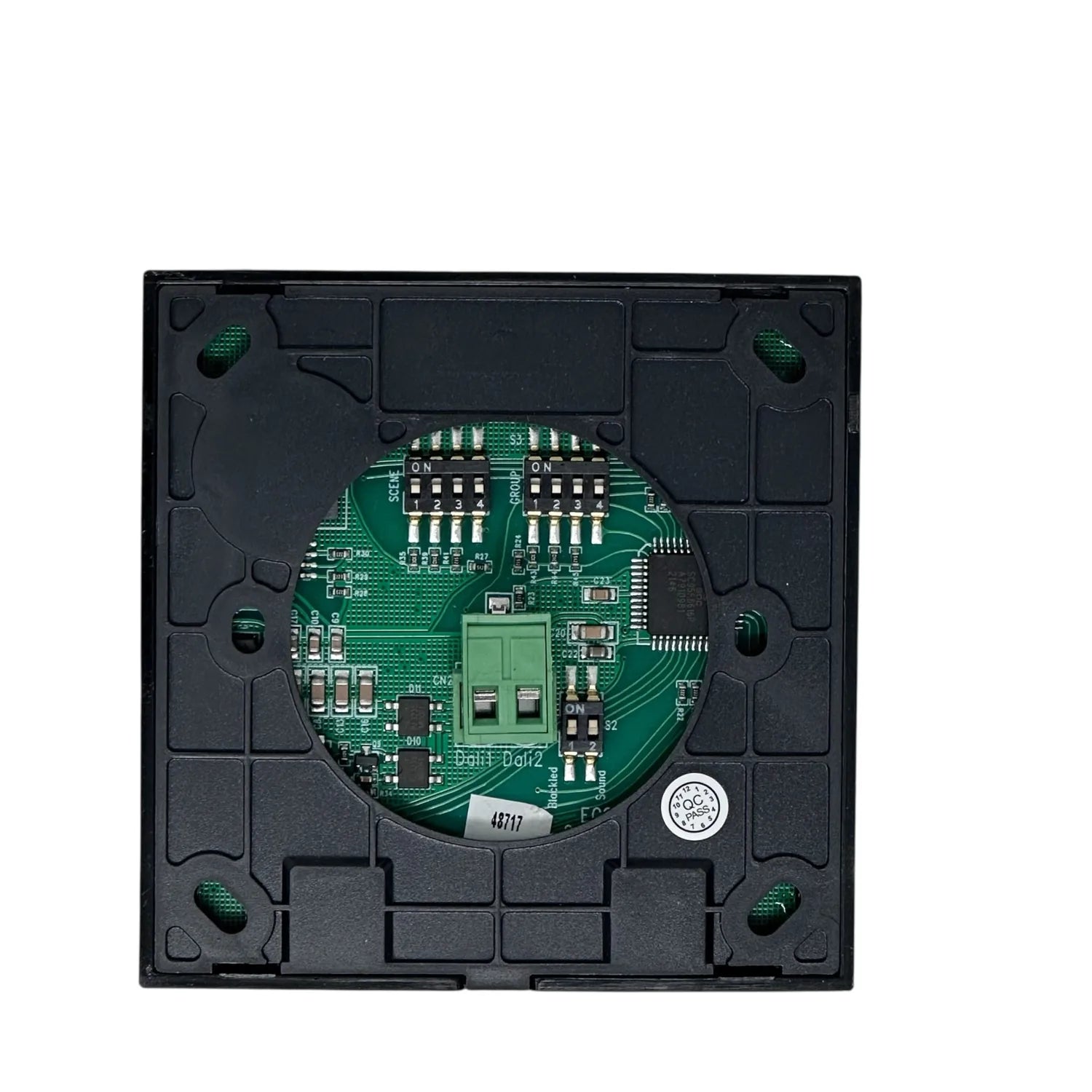

• Setup, start group and start scene are set using a dip-switch on the rear of the unit

Technical details

• Output signal: DALI (Group/Scene/broadcast)
• Indicator lights: 9
• Groups: 3
• Scenes: 4
• Input voltage: 16VDC
• Input current: 8mA

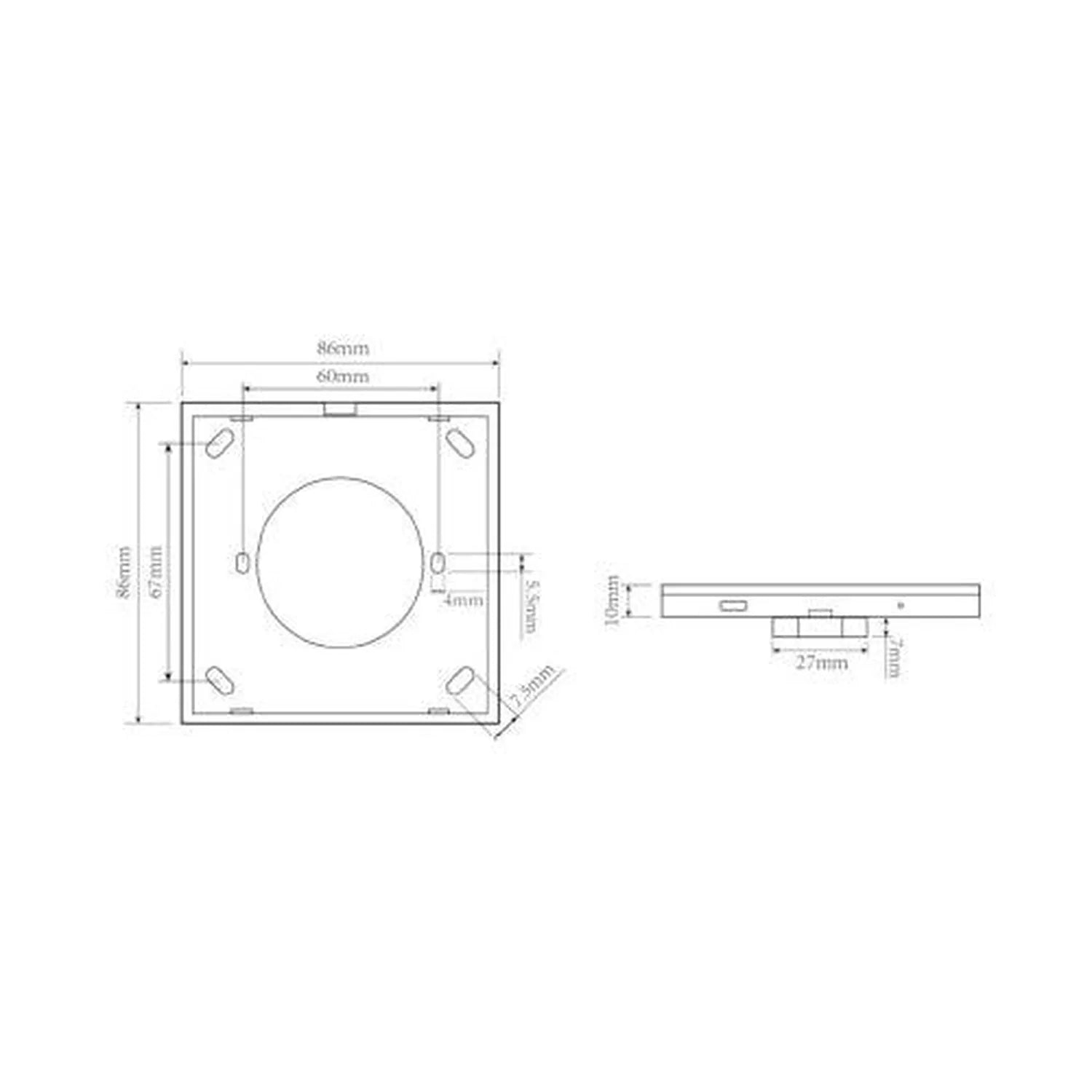

• Dimensions: 86 x 86 x 10mm
• Net weight: 110gr
• Working temperature: -10℃ ~ 60℃

Applications

The P02 suits offices, retail spaces and homes where DALI-dimmable fittings need a simple wall control. Its glass panel and compact 86 x 86 x 10mm size mean it sits neatly alongside standard wall switches, while the group and scene control lets one panel manage several lighting zones from a single position.
