All DALI Dimmable Drivers

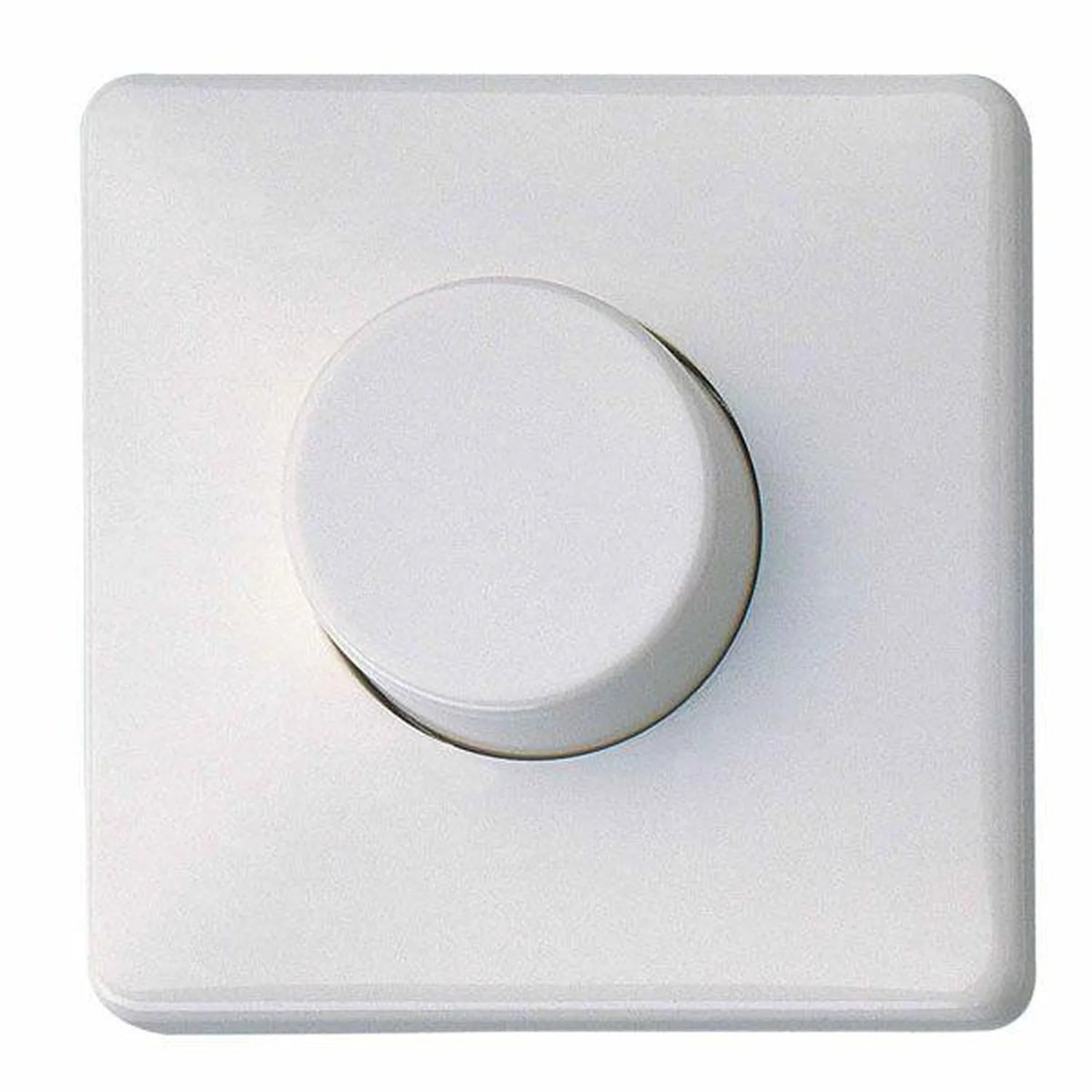

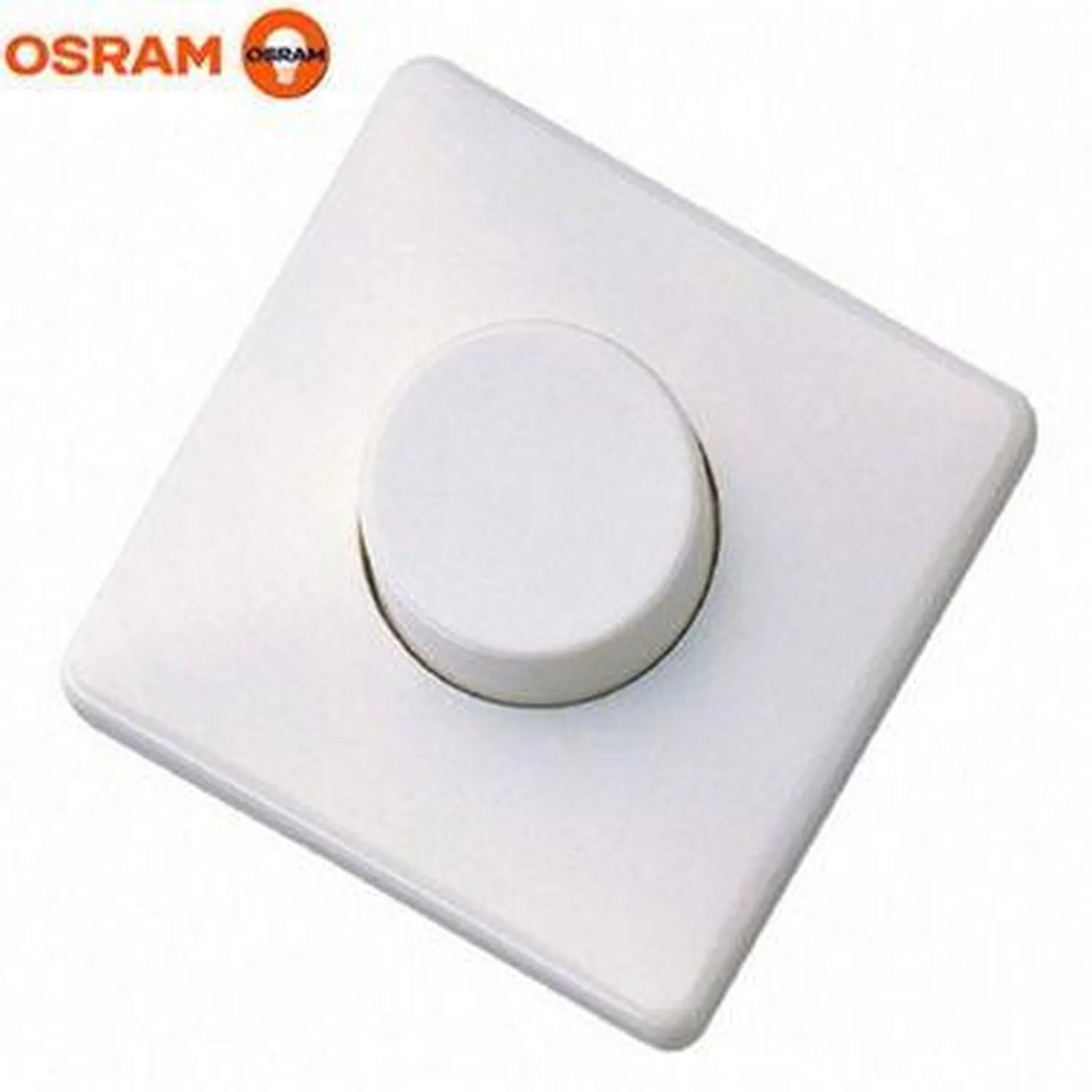

OSRAM white rotary dimmer switch with circular dial control on square faceplate, product photo on white background.

Osram DALI MCU TW G2 Tunable White Rotary Dimmer Switch 230V

£106.04
Skip to product information
OSRAM white rotary dimmer switch with circular dial control on square faceplate, product photo on white background.

Osram DALI MCU TW G2 Tunable White Rotary Dimmer Switch 230V

Vendor
Osram
SKU
201022
Availability
In stock
Weight
0.1 kg

£106.04inc VAT £88.37exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

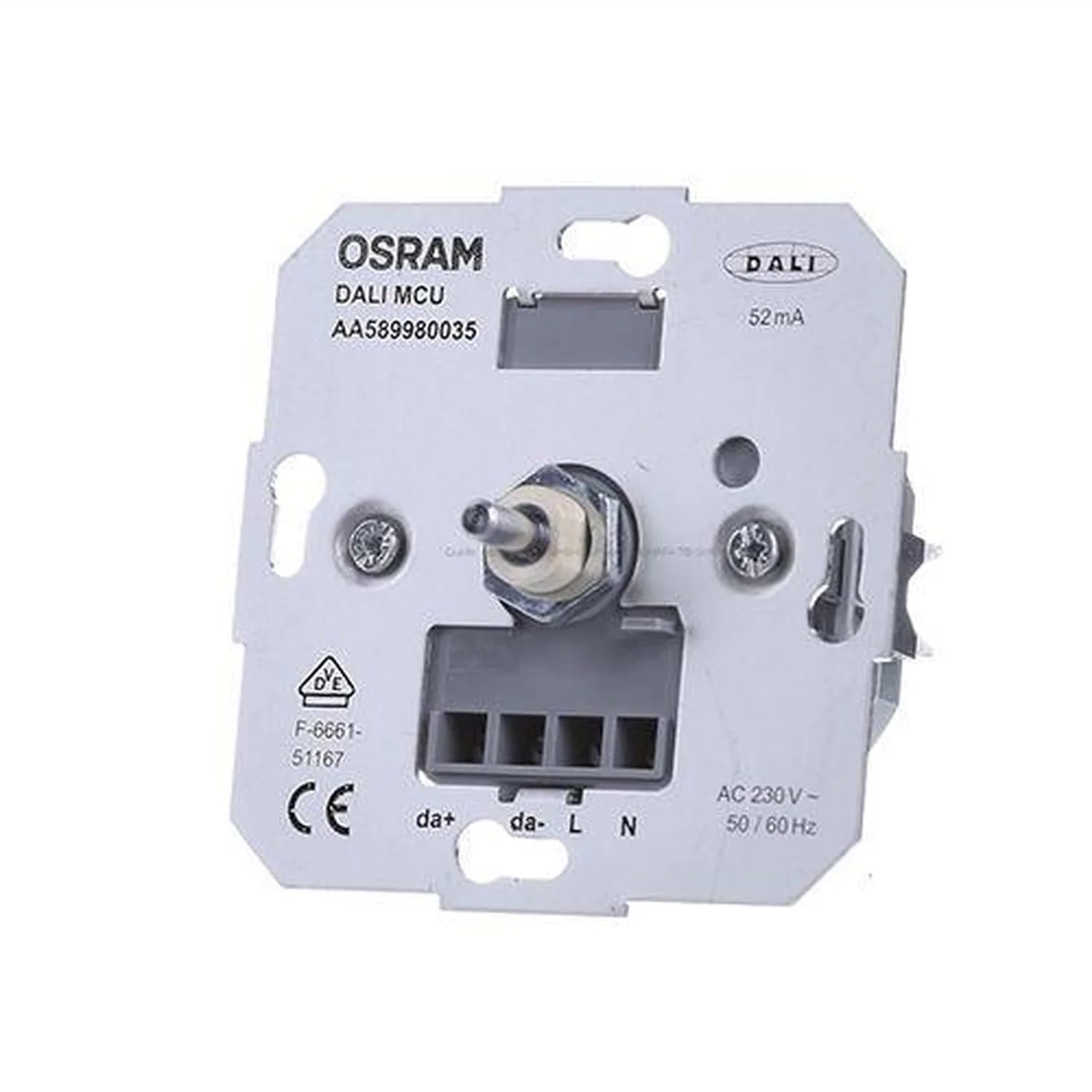

The Osram DALI MCU TW G2 is a rotary dimmer switch in a white casing for tunable white DALI lighting. One knob handles dimming, switching and colour temperature for up to 25 LED drivers or power supplies. It runs on 230 V and draws a maximum of 2 W.

Osram DALI MCU key features

  • Control functions: dimming, switching and colour temperature adjustment
  • Protocol: DALI edition 2 (IEC 62386 ed. 2)
  • Load: up to 25 LED drivers
  • Cable run: DALI control cable up to 300 m
  • Multiple control points: up to four DALI MCUs connected in parallel, synchronising automatically
  • Power failure: behaviour after a power cut is configurable

Applications and installation

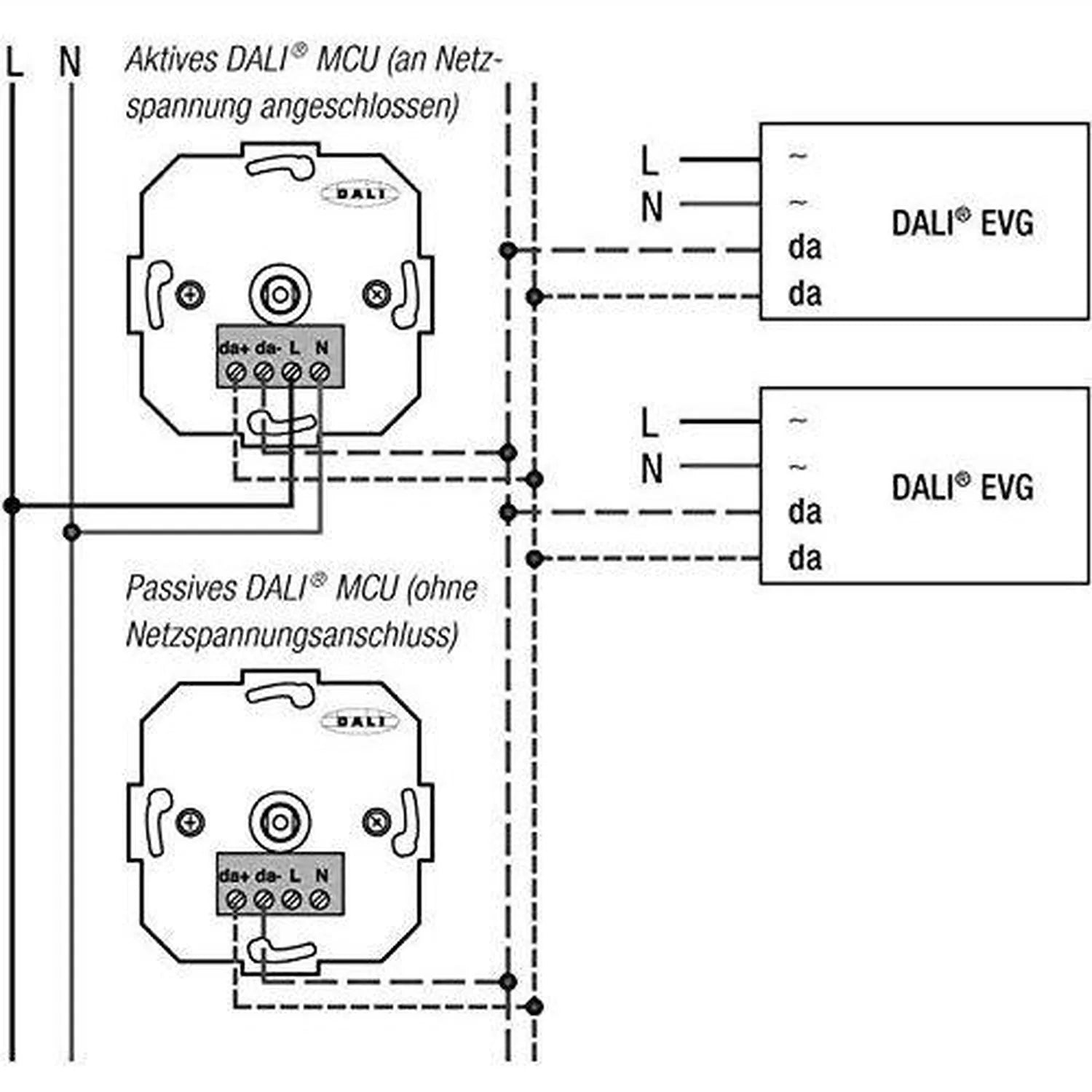

The unit fits into a flush device box, and the cover and rotary knob come with it. With an IP20 rating it belongs indoors. Where a room has more than one entrance, wire up to four MCUs in parallel and each will stay in step with the others, so users can adjust the lights from whichever point is nearest.

Standard presence and motion detectors with a mains contact can be combined with the switch. Larger schemes can grow using DALI repeaters or further control units.

Size and build

The body measures 71 x 71 x 50 mm and weighs 95.00 g. Approvals listed are CE, UKCA and EAC.

What's in the box

  • DALI MCU TW G2 control unit
  • Cover
  • Rotary knob
Technical Specifications 18 rows Show
BrandOsram
Product codeOsram Dali MCU TW G2
TypeTunable white (dimming, switching and colour temperature)
ControlRotary knob
CasingWhite
DALIDALI edition 2 (IEC 62386 ed. 2)
Power consumptionmax. 2 W
DALI cable lengthup to 300 m
Maximum loadup to 25 ECGs
Parallel unitsUp to 4 DALI MCUs
Dimensions71 x 71 x 50 mm
Nominal voltage230 V
Ambient temperature-20...+50 C
IP ratingIP20
InstallationIntegrated in flush device box
Weight95.00 g
ApprovalsCE / UKCA / EAC
In the boxCover and rotary knob included

Manufacturer datasheet. Figures as published by the manufacturer.
