Product Description

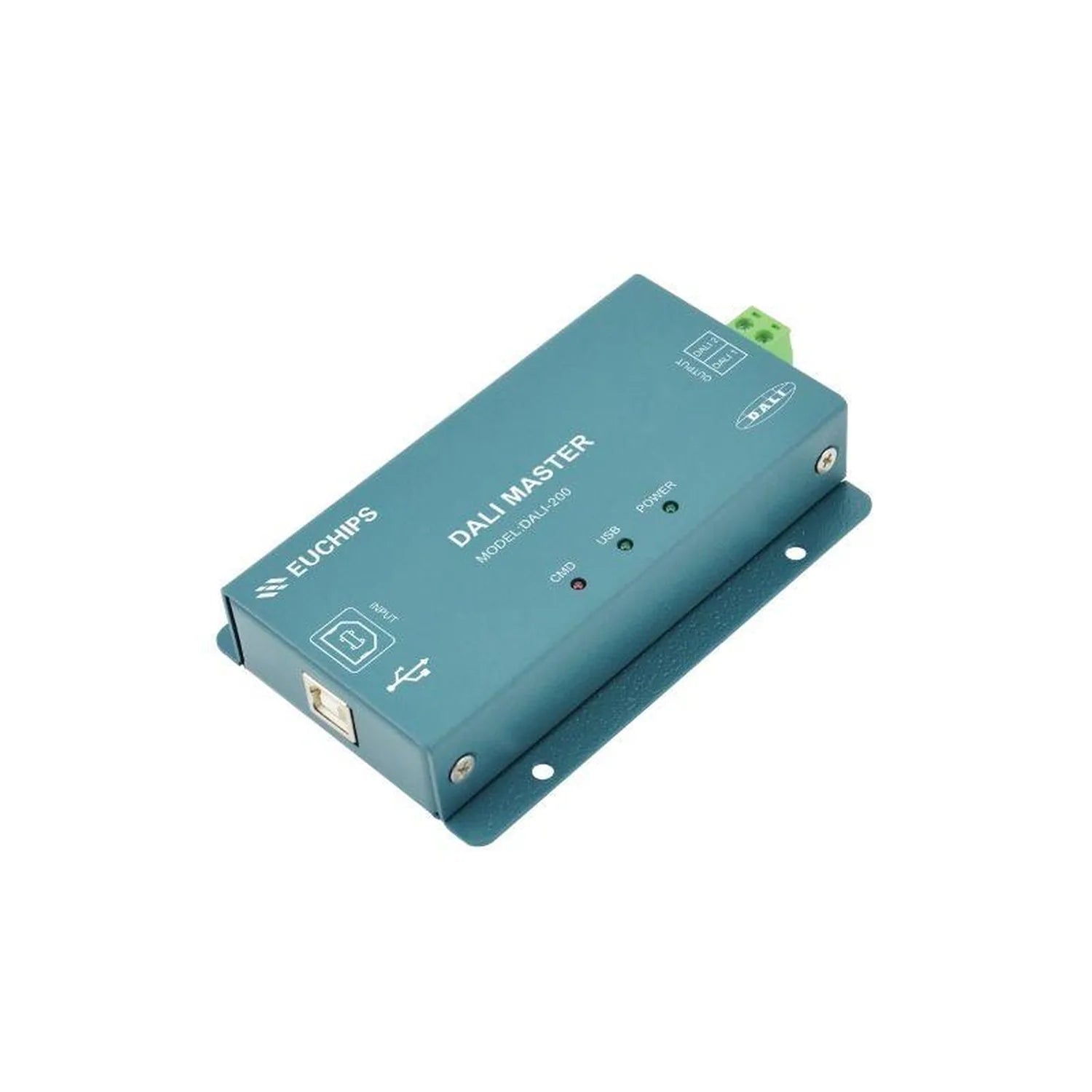

The Euchips DALI-200 is a DALI master controller that plugs into a computer over USB. From there you can set up DALI-compatible light fittings and control them directly, using the DALI master control software on the computer. It handles up to 64 DALI devices, each with its own address.
DALI master controller features
- Protocol: meets DALI protocol IEC62386.
- Capacity: up to 64 DALI devices with different addresses.
- Power: supplied via the DALI cable and USB interface, 5V from the USB port, 2.5W.
- DALI current draw: 2 mA.
- Indicators: power light, USB light and a DALI command send indicator.
- Housing: 108mm*72.5mm*23.5mm, 200g, IP20.
Commissioning and control
Connect it to the DALI line and it finds the equipment automatically. Short addresses are allocated for you. Need to start again? It can re-address all equipment on the line.
Once the fittings are addressed, you can send commands by broadcast, to a single address or to a group. Groups and scenes can be set or read, and so can every parameter in the DALI parameter chart. The DALI debug commands are kept as well, which is useful when tracking down a fault on an installation.
Where it fits
This controller suits installers commissioning a DALI lighting scheme from a laptop, and anyone who wants to adjust addresses, groups or scenes on an existing DALI system without a dedicated wall panel. It sits between the computer and the DALI line and outputs a DALI signal to the connected fittings.
Operating conditions
The working temperature range is 0°C to 50°C. The unit is rated IP20.
Technical Specifications 17 rows Show
| Brand | Euchips |
| Model | DALI-200 |
| Type | DALI master controller |
| Connection | USB to a computer |
| Protocol | IEC62386 |
| Supply | DALI cable and USB interface (5V USB, 2.5W) |
| Current draw | 2 mA from DALI |
| Maximum devices | Up to 64 DALI devices |
| Output signal | DALI signal |
| Input | 5V USB |
| Power dissipation | 2.5W |
| Indicators | Power indicator light, USB indicator light, DALI Command Send Indicator |
| Size | 108mm*72.5mm*23.5mm |
| IP rating | IP20 |
| Weight | 200g |
| Working temperature | 0°C to 50°C |
| Software | DALI master control software on the computer |
Manufacturer datasheet. Figures as published by the manufacturer.
