DALI LED Driver 25W Constant Current 350-1050mA | Mean Well LCM-25DA
- Vendor
- Meanwell
- SKU
- 770010
- Availability
- In stock
- Weight
- 0.1 kg
£27.25inc VAT £22.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

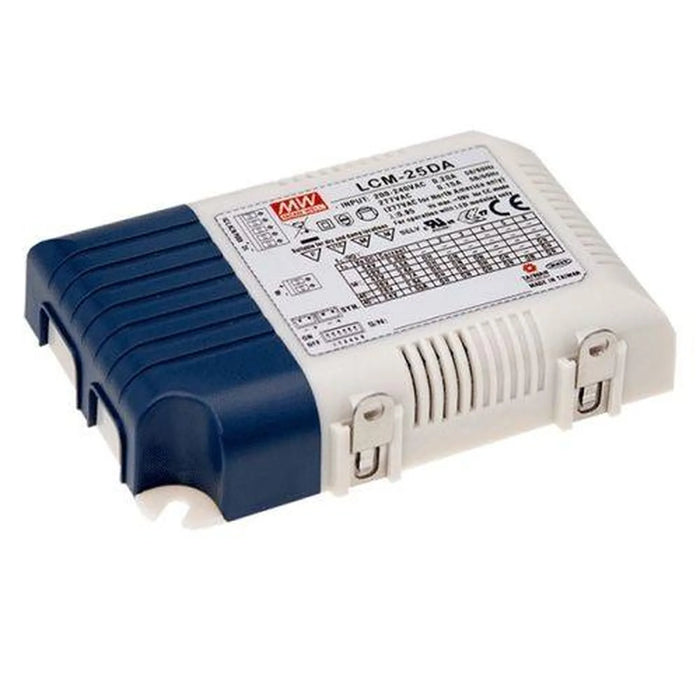

The Mean Well LCM-25DA is a 25W constant current LED driver with DALI and push dimming built in. Output current is set by DIP switch across six levels between 350mA and 1050mA, so the same driver can be matched to a range of LED loads. All power and signal connections sit on one side. That makes it easier to fit into tight spaces.
DALI LED driver key features
- Output current: 350mA, 500mA, 600mA, 700mA (default), 900mA or 1050mA, selected by DIP switch
- Input: 180 ~ 277VAC with built-in active PFC
- Dimming: DALI (16 groups, 64 addresses) plus push dimming, with a logarithm or linear dimming curve (IEC62386-207)
- Synchronisation: up to 10 drivers linked as 1 master + 9 slaves
- Standby power: <0.5W
- Protection: short circuit and over temperature
Applications
This driver is for indoor LED lighting only. It is a Class II unit in a plastic case, relying on free air cooling, and measures 105*68*23mm. Mean Well covers it with a 5 years warranty.
Wiring and installation notes
The push button must be wired between the PUSH terminal and AC/L only. Connecting it to AC/N causes a short circuit.
- Up to 10 drivers can share one push button
- Push button cable to the last driver: max 20 metres
- Max 26 units on a type B 16A breaker, or 44 on type C (230VAC)
For larger DALI installations, group and address the drivers through the bus, and use push dimming where a simple wall switch is all the room needs.
Technical Specifications 25 rows Show
| Brand | Mean Well |
| Model | LCM-25DA |
| Type | 25W Multiple-Stage Constant Current Mode LED Driver |
| Current level | 350mA 500mA 600mA 700mA(default) 900mA 1050mA |
| Rated power | 18.9W 25.2W |
| Voltage range | 180 ~ 277VAC |
| Frequency range | 47 ~ 63Hz |
| Power factor | PF0.94/230VAC, PF0.91/277VAC@full load |
| Efficiency | 86% |
| Standby power | <0.5W |
| DALI standards | IEC62386-101, 102, 207,251 |
| THD | THD< 20%(@load50%/230VAC; @load75%/277VAC) |
| AC current | 0.17A/230VAC 0.15A/277VAC |
| Leakage current | <0.5mA / 240VAC |
| Withstand voltage | I/P-O/P:3.75KVAC ; I/P-DA:1.5KVAC ; O/P-DA:1.5KVAC |
| Factory default current | 700mA |
| Synchronisation | up to 10 drivers (1 master + 9 slaves) |
| Push button cable | max. 20 meters |
| Cooling | free air convection |
| Case | Fully isolated quality plastic case |
| Class | Class II power unit, no F.G. |
| MTBF | 213.3K hrs min. MIL-HDBK-217F (25) |
| Dimensions | 105*68*23mm (L*W*H) |
| Weight (packed) | 0.17Kg |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
