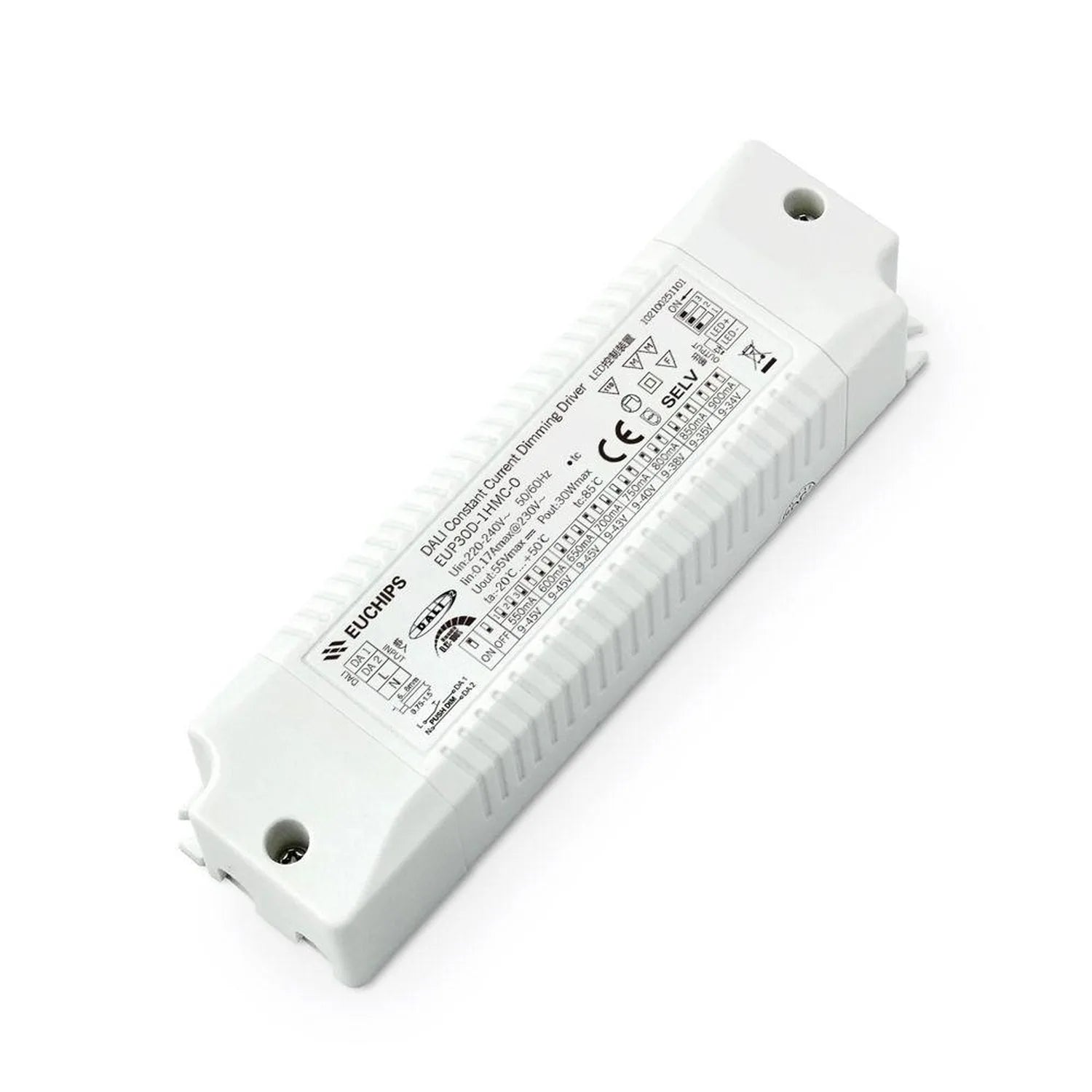

White rectangular LED driver with ribbed cooling fins, mounting holes, and technical specifications label visible, angled vie

Euchips DALI Driver 20W or 30W Constant Current | EUP30D-1HMC-0 / EUP20D-1HMC-0

20W
£27.25
Skip to product information
White rectangular LED driver with ribbed cooling fins, mounting holes, and technical specifications label visible, angled vie

Euchips DALI Driver 20W or 30W Constant Current | EUP30D-1HMC-0 / EUP20D-1HMC-0

Vendor
Euchips
SKU
770715
Availability
Pre-order
Weight
0.15 kg

Not in stock right now. We will confirm the lead time before dispatch.

£27.25inc VAT £22.71exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This Euchips DALI driver is a DALI-certified constant current LED driver offered in two sizes, 20W (EUP20D-1HMC-0) and 30W (EUP30D-1HMC-0). It suits downlights, LED T8/T5 tubes, ceiling lights, battens and troffers. You set the output current on the DIP switch to match the light it is feeding.

Euchips DALI driver features

  • Output: single channel, with the current level chosen by DIP switch
  • Protocol: meets DALI IEC 62386-207 Ed2.0
  • Dimming control: DALI or Push DIM (Touch DIM), with a range of 0.1%-100% and dimming to off
  • Efficiency: up to 87% on the 30W model and 85% on the 20W model
  • Power factor correction: built-in active PFC
  • Protection: short circuit, overload and over temperature

Choosing between the two models

The 30W EUP30D-1HMC-0 offers 8 current levels from 550mA to 900mA, set to 550mA out of the box. It measures 150*42.5*28.5mm and is rated for a lifetime of 50,000h@tc:75.

The 20W EUP20D-1HMC-0 has four DIP switch settings: 350mA/9-40VDC/14W, 500mA/9-40VDC/20W, 550mA/9-36VDC/19.8W and 700mA/9-28VDC/19.6W. It measures 150*43*29mm, weighs 125g and carries a lifetime rating of 50,000h@tc:70.

Both run on 220VAC-240VAC at 50/60Hz. Both are IP20 and intended for indoor use only. Each comes with a 5 year warranty.

Installation notes

Wire the driver to a DALI controller for networked dimming, or to a push switch for simple local control. Dimming is smooth and free of flicker either way.

  • For Push DIM, use only an open push button without an indicator light
  • Keep the cable between each unit to a maximum of 20 metres
  • Fit no more than 36 drivers on a B16 breaker, or 45 on a C16
Technical Specifications 28 rows Show
BrandEuchips
ModelsEUP30D-1HMC-0 / EUP20D-1HMC-0
TypeAC/DC constant current mode output LED driver
DALI standardIEC 62386-207 Ed2.0
Input voltage (30W)220VAC-240VAC
Frequency (30W)50/60Hz
Efficiency (30W)87%@230VAC,Full load
Power factor (30W)0.95@230VAC,Full load
THD (30W)<10%@230VAC, Full load
Standby power (30W)<0.5W
Output current (30W)550mA 600mA 650mA 700mA 750mA 800mA 850mA 900mA
Dimming (30W)DALI /Touch DIM(Push DIM)
Dimming range (30W)0.1%-100% Dimming to off
IP rating (30W)IP20
Dimensions (30W)150*42.5*28.5mm
Weight (30W)125g
Lifetime (30W)50,000h@tc:75
Warranty (30W)5 Years
Input voltage (20W)220VAC-240VAC
Frequency (20W)50/60Hz
Efficiency (20W)85%@230VAC, Full load
Output current (20W)350mA/9-40VDC/14W, 500mA/9-40VDC/20W, 550mA/9-36VDC/19.8W, 700mA/9-28VDC/19.6W
Dimming range (20W)0.1%-100% Dimming to off
IP rating (20W)IP20
Dimensions (20W)150*43*29mm
Weight (20W)125g
Lifetime (20W)50,000h@tc:70
Warranty (20W)5 years

Manufacturer datasheet. Figures as published by the manufacturer.

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
L
Lutron K.S.
Perfect replacement Dali drivers

Perfect replacement Dali drivers
Quick delivery
Great value
Highly recommended
