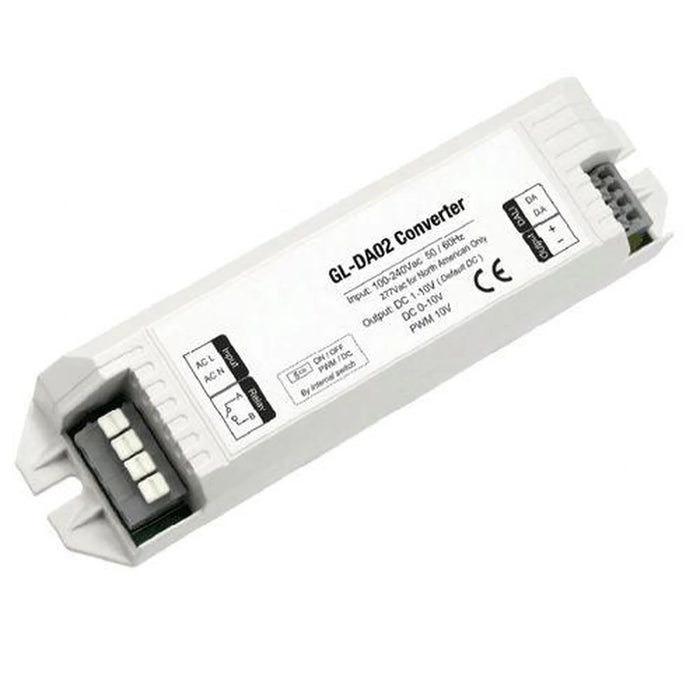

GL-DA02 Converter, white rectangular LED driver with terminal blocks and control switch, angled product view.

DALI to 1-10V Converter 0-10V PWM Built-in Relay | Glacial Power LDN-DA02

£43.04
Skip to product information
GL-DA02 Converter, white rectangular LED driver with terminal blocks and control switch, angled product view.

DALI to 1-10V Converter 0-10V PWM Built-in Relay | Glacial Power LDN-DA02

Vendor
Glacial
SKU
770060
Availability
In stock
Weight
0.1 kg

£43.04inc VAT £35.87exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Glacial Power LDN-DA02 takes a digital DALI signal and turns it into an analogue dimming signal that an LED driver can follow. Its output can be set to PWM-10V, DC 0-10V or DC 1-10V. That lets you bring 3-in-1 (DC/PWM/Resistor) dimmable LED drivers under the control of a DALI system without swapping the drivers themselves. A built-in relay switches the driver off completely.

DALI to 1-10V converter features

  • DALI standard: compatible with IEC62386 part 102 and part 206
  • Output modes: PWM-10V, DC 0-10V or DC 1-10V, selectable
  • Dimming curve: logarithmic or linear, selectable
  • Relay: built-in, rated 2A with a maximum inrush current of 70A
  • Supply voltage: 90-290 VAC
  • Wiring: DALI signal is polarity insensitive, with screw-less connectors for installation

How many drivers it can run

The output will handle up to 6 sets of GP-HS10P or GP-HS15P drivers. For the GP-HS60P, RS26, RS35, RS45 and RS60 series, the limit is 3 sets. Check which series you are fitting before planning the circuit.

Where it is used

Typical loads are LED panels, downlighters and T8 / T5 LED tubes. In buildings, that covers office spaces and conference rooms, factory floors and home lighting control schemes where a DALI controller needs to drive analogue dimmable fittings.

Size and warranty

The unit measures 150 x 40 x 28 mm and weighs 100g. It is covered by a 3 year warranty.

Technical Specifications 22 rows Show
BrandGlacial Power
ModelLDN-DA02
CodeCM-DA02A31EWW0001
InputDALI (IEC62386 PART 102 & PART 206)
OutputPWM-10V / DC 0-10V / DC 1-10V
Dimming curveLOGARITHM OR LINEAR
RelayBuilt-in, turns driver on/off completely
Power consumption1.6W (typ.), 3W (max.)
DALI bus current2mA
PWM frequency500Hz
PWM duty cycle0.1%-100%
DC 0/1-10V output accuracy± 3%
Wire sizeAWG 22-16
ProtectionDALI input reversed protection, output channel short protection
Warranty3 YEAR
Supply voltage90-290 VAC
Relay rating2A / Max inrush current 70A
Output channels1
Max drivers on the output6 sets for GP-HS10P and GP-HS15P series; 3 sets for GP-HS60P, RS26, RS35, RS45 and RS60 series
Dimensions150 x 40 x 28 mm (L x W x H)
Weight100g ±10%
Operating temperature-20 to +40°C

Manufacturer datasheet. Figures as published by the manufacturer.
