Euchips DALI LED Driver 60W Constant Current 1050-1400mA | EUP60D-1HMC-0
- Vendor
- Euchips
- SKU
- 770019
- Availability
- Sold out
- Weight
- 0.1 kg
£36.70inc VAT £30.58exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

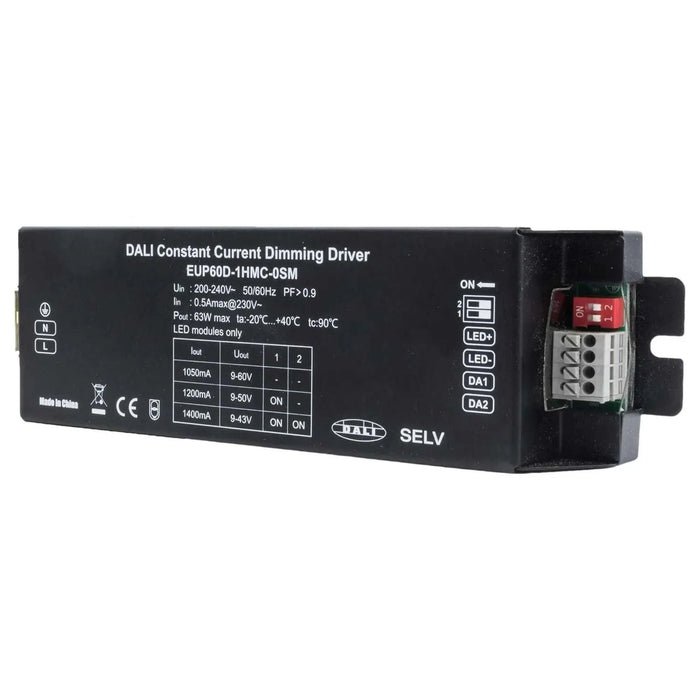

The Euchips EUP60D-1HMC-0 is a 60W constant current LED driver with DALI dimming, housed in a metal case. A DIP switch sets the output current anywhere from 1050mA to 1400mA, so one driver can be matched to several LED loads. Dimming comes from a DALI controller or from a standard Touch DIM push switch.
DALI LED driver key features
- Input: 200-240VAC
- Output options: 1050mA/9-58VDC/60.9W, 1200mA/9-50VDC/60W or 1400mA/9-43VDC/60.2W
- Current selection: single-channel output, set by DIP switch
- Dimming: meets DALI protocol IEC 62386, plus Touch DIM
- Output quality: THD≤15%, low ripple current, no flicker
- Efficiency: up to 86%, with built-in active PFC
Protection and build
Over-voltage, short circuit and over power protection are built in. The metal case measures 203*54*33mm and carries an IP20 rating. Rated lifetime is 30,000h@tc:75℃.
Warranty: 3 years.
Where to use it
This driver suits downlights, panel lights and other indoor LED lighting. With an IP20 rating it belongs indoors. On a DALI network it takes commands from the building's lighting controller. Where no DALI system exists, wire it to a push switch and use Touch DIM instead. Choose the current on the DIP switch before installation to suit the LED module being driven.
Technical Specifications 25 rows Show
| Brand | Euchips |
| Model | EUP60D-1HMC-0 |
| Power | 60W |
| Input voltage | 200-240VAC |
| Output current | 1050mA to 1400mA |
| Casing | Metal |
| DALI standard | IEC 62386 |
| THD | ≤15% |
| Efficiency | up to 86% |
| Output | 1050mA/9-58VDC/60.9W, 1200mA/9-50VDC/60W, 1400mA/9-43VDC/60.2W |
| Dimensions | 203*54*33mm |
| Frequency | 50/60Hz |
| Power factor | ≥0.9@230VAC,Full load |
| AC current (max) | 0.4Amax@230VAC |
| Ripple current | <4% |
| Current tolerance | ±3% |
| No load output voltage | 95V Max |
| Dimming mode | DALI /Touch DIM(Push DIM) |
| Working temperature | -20℃~40℃ |
| Tc | 95℃ |
| IP rating | IP20 |
| Lifetime | 30,000h@tc:75℃ |
| Switch cycle | >15,000 times |
| Net weight | 410g±5%/PCS |
| Warranty | 3 years |
Manufacturer datasheet. Figures as published by the manufacturer.
