DALI LED Driver 36W Constant Current 200-1050mA | EASEIC LND136
- Vendor
- Easeic
- SKU
- 613136
- Availability
- In stock
- Weight
- 0.1 kg
£30.44inc VAT £25.37exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

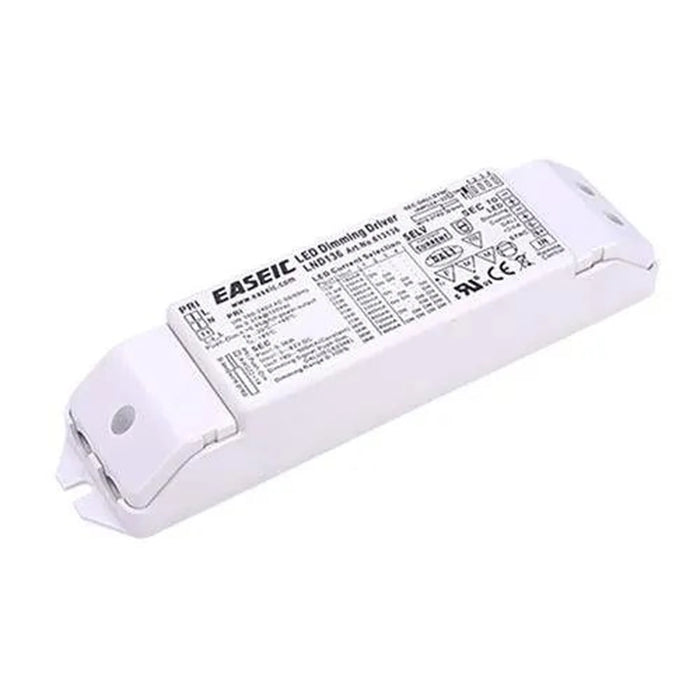

The EASEIC LND136 is a constant current DALI LED driver rated up to 36W. Its output current is set between 200-1050mA on DIP switches, so one driver can be matched to a range of LED loads. Dimming comes from DALI 2 with feedback, 1-10V, PWM or a mains push switch.
DALI LED driver key features
- Output power: up to 36W
- Output current: 200-1050mA, selected by DIP switch
- Output voltage: 3V to 66V
- Input: 100~277Vac
- Dimming: analogue and flicker-free from 0-100%, with LED start at 0.1%
- Protection: short circuit, over current, over voltage and open circuit
Efficiency reaches up to 88%. Power factor is >0.95 and THD is <10%. The case measures 167x39x30mm (LxWxH), and the driver carries a 5 year warranty.
Where it fits
Use it to drive LED panels, battens and linear lighting, or downlights and spotlights. It suits offices, retail and hospitality schemes where lighting runs on a DALI network or a simpler switch-dim setup.
Installation notes
- Terminal cover and cable retainer are included
- Wire with 16-24 AWG solid copper wire rated >=300V/85C
- DALI and switch-dim share the same terminals (DA/N and DA/L)
- Connecting DALI disables the 1-10V and switch-dim functions
- Up to 16 drivers on a B16 breaker, or 28 on a C16 (230VAC)
Check the current setting
Out of the factory it is set to 200mA. At that setting the maximum output is 13W. To get the full 36W, set the current to 550mA or above.
Technical Specifications 30 rows Show
| Brand | EASEIC |
| Model | LND136 |
| Order code | 613136 |
| Type | LED DALI Dimmable Driver |
| Output power | Up to 36W |
| Output current | 200-1050mA |
| Output voltage | 3V to 66V |
| Max open circuit voltage | <75V |
| Input voltage | 100~277Vac |
| Frequency | 50/60Hz |
| Efficiency | Up to 88% |
| Power factor | >0.95 |
| Dimming range | 0-100% |
| Protection | Short Circuit, Over Current, Over Voltage, Open Circuit |
| Operating temperature | -20 to +50, 20-95% RH non-condensing |
| Dimensions | 167x39x30mm (LxWxH) |
| Weight | 0.15Kg(0.37lbs) |
| Dimming | DALI 2 / 1-10V / PWM / PUSH-Dim |
| THD | <10% |
| Protection class | UL Class 2 |
| Line current | 0.44A@100VAC 0.36A@120VAC 0.19A@230VAC |
| Inrush current | 55A(twidth=270us measured at 50% Ipeak) at 230VAC |
| Leakage current | <0.5mA/230VAC |
| Max case temperature (Tc) | 75 for Life & 85 for UL Safety |
| DALI sink current | <2mA |
| LED start | 0.1% |
| Environmental rating | UL damp and dry |
| Wire | 16-24 AWG solid copper wire rated >=300V/85C |
| PUSH cable length | <20m |
| Warranty | 5 year warranty |
Manufacturer datasheet. Figures as published by the manufacturer.
