LED PL-L 2G11 - 9W, 4-pin

Ref: LDN-2G1109S840

£15.80

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£15.33	Save 3%
12 Items	£14.85	Save 6%
24 Items	£14.54	Save 8%

Description

Specification

Downloads

Description

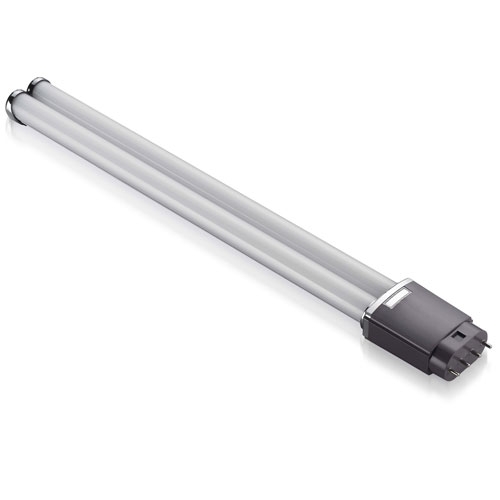

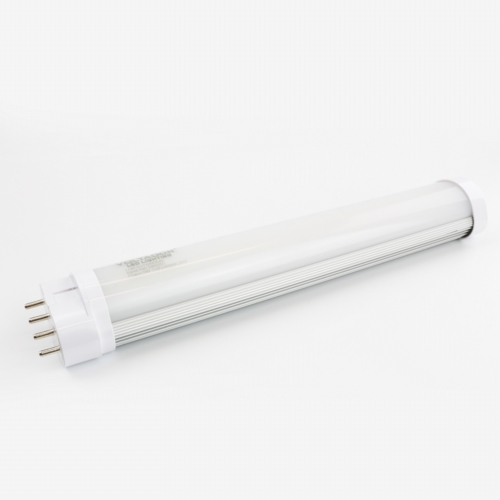

We developed an LED tube light that has identical dimensions of the old fluorescent lamp but the energy savings can reach 60-70%. The LED PL 2G11 tube light has an isolated LED power supply inside the aluminium housing. The 4 pin connector is wired internally to the driver that feeds the LED chips with low voltage 36Vdc.

The light is powered directly from the mains voltage and accepts wide range from 100-240VAC. If your old fitting has a magnetic or electronic ballast, they have to be removed or bypassed. The new light lamp works more efficiently when it operates directly from the grid voltage.

Ledison's light fitting is the perfect replacement for the fluorescent counterparts of Sylvania, Osram and Philips.

It also replaces the GE (General Electric) Biax 2G11

VOLTACON LED	PHILIPS	OSRAM	Sylvania
LED Equivalent	Fluorescent	Fluorescent	Fluorescent
G1109S 9Watt	18W PL-L 18W/4P	18W DULUX PL-L 18W/4P	PL-L 18W/4P
G1112S 12Watt	24W PL-L 24W/4P	24W DULUX PL-L 24W/4P	PL-L 24W/4P
G1112S 15Watt	36W PL-L 36W/4P	36W DULUX PL-L 36W/4P	PL-L 36W/4P
G1112S 18Watt	40W PL-L 40W/4P	40W DULUX PL-L 40W/4P	PL-L 40W/4P
G1112S 26Watt	55W PL-L 55W/4P	55W DULUX PL-L 55W/4P	PL-L 55W/4P
Certification:	ROHS Compliant, CE, UL	Dimmable	NO
Warranty:	5	LED Driver	Built in
Operating Temp:	-40 ^OC to 50 ^OC

Specification

Specification of the PL-L 2G11 LED Bulb - BEAM ANGLE : 220 deg

Fitting:	PL-L 2G11	Luminous flux:	855lm
Wattage (rated):	9 Watt	Color Rendering index:	>80
Voltage:	100-265Volt	Typical efficiency:	105lm/W
Line frequency:	50/60Hz	Fitting/Pins:	PL-L 4PIN
Average lifetime:	50,000 hours	Net Weight per piece
Color Temperature:		Diameter	41mm
Warm white:	2700-3200K	Length (incl pins)	232mm
Natural white:	4000-5000K	Dimmable	NO
Cool white:	5500-6000K	Warranty:	5 years
Operating Temp:	-40 ^OC to 50 ^OC	Certification:	ROHS Compliant, CE, UL

t also replaces the GE (General Electric) Biax 2G11

VOLTACON LED	Philips	OSRAM	Sylvania
LED Equivalent	Fluorescent	Fluorescent	Fluorescent
G1109S 9Watt	18W PL-L 18W/4P	18W DULUX PL-L 18W/4P	PL-L 18W/4P
G1112S 12Watt	24W PL-L 24W/4P	24W DULUX PL-L 24W/4P	PL-L 24W/4P
G1112S 15Watt	36W PL-L 36W/4P	36W DULUX PL-L 36W/4P	PL-L 36W/4P
G1112S 18Watt	40W PL-L 40W/4P	40W DULUX PL-L 40W/4P	PL-L 40W/4P
G1112S 26Watt	55W PL-L 55W/4P	55W DULUX PL-L 55W/4P	PL-L 55W/4P
Certification:	ROHS Compliant, CE, UL	Dimmable	NO
Warranty:	5	LED Driver	Built in
Operating Temp:	-40 ^OC to 50 ^OC
